YINMIK YK-T5AEU 5-in-1 Water Quality Tester User Manual

소개

The YINMIK YK-T5AEU is a versatile 5-in-1 water quality tester designed for precise measurement of pH, Electrical Conductivity (EC), Total Dissolved Solids (TDS), Salinity, and Temperature. This device provides simultaneous readings, making it an essential tool for maintaining optimal water conditions in various applications, including swimming pools, spas, aquariums, hydroponic systems, brewing, and drinking water analysis.

제품 끝view

무엇이 포함됩니까?

• YINMIK YK-T5AEU Water Quality Tester
• 사용자 설명서
• pH Calibration Solutions (3 bottles)

주요 특징

• 5-in-1 기능: Measures pH, EC, TDS, Salinity, and Temperature.
• 동시 표시: All relevant parameters are shown on the screen at once.
• 다양한 용도: Suitable for pools, aquariums, hydroponics, brewing, and drinking water.
• Pre-calibrated: EC/TDS/Salinity functions are pre-calibrated from the factory.
• Replaceable Electrode: 장기간 사용 가능하고 유지 보수가 용이합니다.

설정 및 교정

The EC/TDS/Salinity functions of your YINMIK YK-T5AEU tester are pre-calibrated at the factory and can be used directly. However, pH calibration is required for accurate measurements.

pH 교정

1. Prepare the pH 7.00 calibration solution.
2. Clean the electrode with distilled water and dry it gently.
3. Immerse the electrode into the pH 7.00 solution.
4. Press and hold the "pH CAL" button for 5 seconds. The display will show "CAL" and "7.00" will flash three times.
5. Wait for the reading to stabilize. The calibration for pH 7.00 is complete.
6. Repeat the process for pH 4.00 and pH 10.01 solutions if higher accuracy across the range is desired.

교정 빈도: For precision of +/-0.1pH, calibrate once per week. For precision of 0.2-0.3pH, calibrate once per month.

EC/TDS/Salinity Calibration

The EC/TDS/Salinity functions are pre-calibrated at the factory. If recalibration is needed, follow these steps:

1. Add the 1413 µS/cm calibration solution. Wait for the value to stabilize.
2. Press and hold the "EC CAL" button for 5 seconds, then release. A value will flash on the screen.
3. Use the up and down arrows to adjust the value to 1413.
4. The "1413" will flash three times, indicating calibration is complete.
5. Clean the electrode and dry it.

메모: 5000 µS/cm and 12.88 mS/cm solutions follow the same calibration steps. For drinking water, no calibration is typically required. For pool water, calibrate once every 2-3 months.

작동 지침

일반적인 사용

To use the tester, simply immerse the electrode into the water sample. The device will automatically display the pH, EC, TDS, Salinity, and Temperature readings simultaneously on the screen. No need to switch modes to view 다른 매개변수.

특정 응용 프로그램

수영장 및 스파

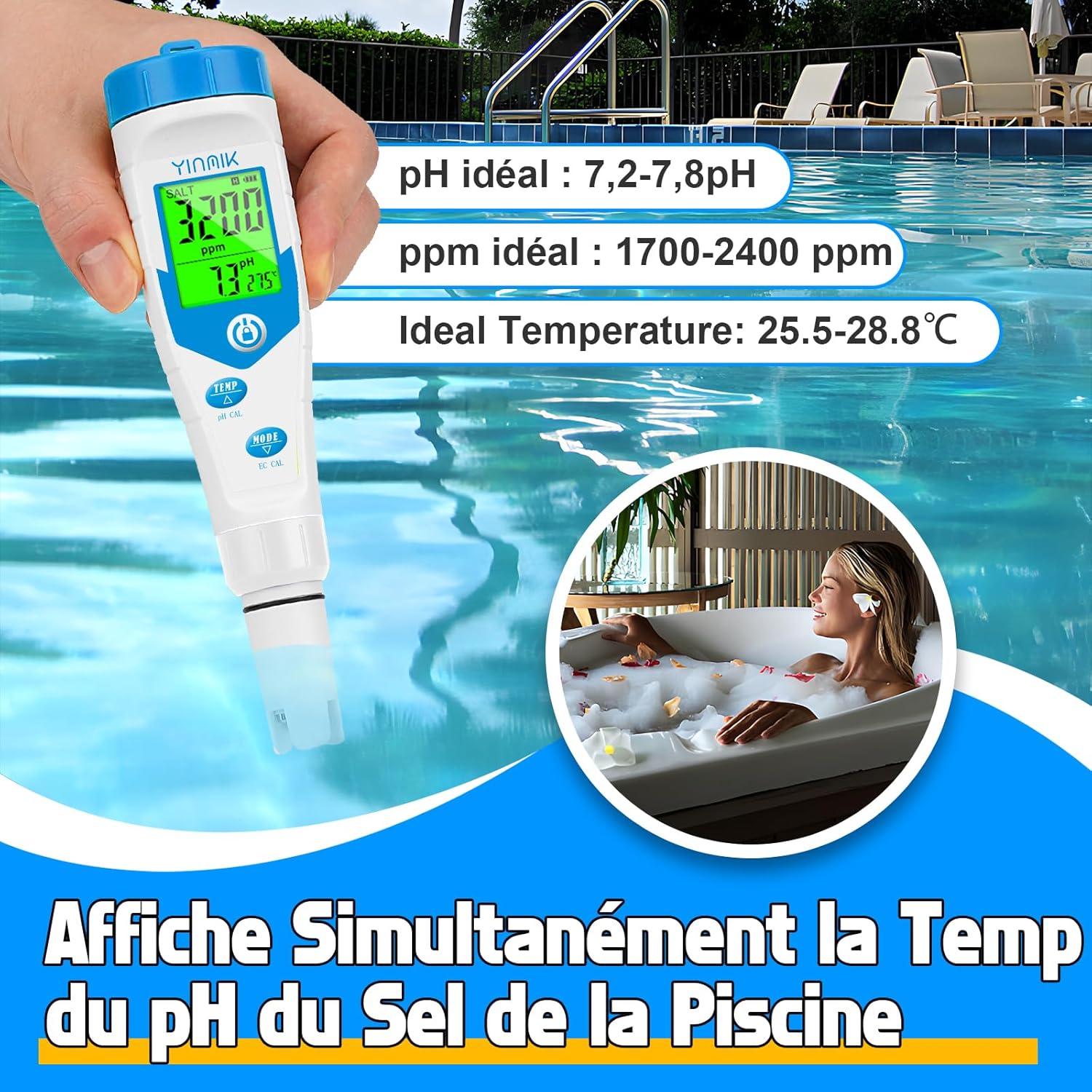

Regularly monitor the pH and salinity levels of your pool or spa water. Ideal pH for pools is typically 7.2-7.8, and ideal salinity (for saltwater pools) is 1700-2400 ppm. Temperatures between 25.5-28.8°C are generally recommended. High salinity levels (above 4500 ppm) can damage salt chlorine generators.

Aquariums (Freshwater and Saltwater)

Maintain stable pH and salinity (for saltwater aquariums) to ensure the health of aquatic life. The TDS meter can also help assess the efficiency of your filtration system; high TDS in pumped water may indicate a need for filter replacement.

수경법

Accurate pH and EC measurements are crucial for nutrient uptake in hydroponic systems. This tester allows for easy monitoring of these parameters to ensure plants receive the necessary nutrients for growth.

식수

Use the TDS function to check the quality of your drinking water, including tap water, filtered water, well water, and bottled water. TDS values can indicate the effectiveness of water filters; high TDS may suggest a filter needs replacement.

Brewing and Fermentation

For brewing beer, the pH of your mash affects enzyme activity, which is vital for converting starches to fermentable sugars. For kombucha, maintaining a pH range of 2.5 to 3.5 is key for optimal flavor. When pickling vegetables, the tester helps prepare the fermentation brine.

유지

전극 청소

Regularly clean the EC electrode probe with a cotton swab to prevent residue buildup and ensure accurate readings.

저장

To maintain the electrode's longevity, add a few drops of electrode protection liquid (KCL solution) to the cap. If KCL solution is unavailable, three drops of water can be used as a temporary measure.

문제 해결

If you experience inaccurate readings or device malfunction, consider the following:

• 부정확한 pH 측정값: Recalibrate the pH function using fresh buffer solutions. Ensure the electrode is clean.
• 불안정한 판독값: Ensure the electrode is fully immersed and the water sample is still. Clean the electrode if necessary.
• 디스플레이/전원 문제 없음: 배터리 잔량을 확인하십시오. 잔량이 부족하면 배터리를 교체하십시오.
• 일반적인 오작동: Refer to the warranty and support section for assistance.

명세서

보증 및 지원

YINMIK is committed to customer satisfaction. Your YK-T5AEU tester comes with a 90일 무료 교체 policy for any product defects. For any questions or concerns, our customer service team aims to respond within 12시간.

All corresponding accessories for this pH and salinity tester, including pH calibration powder, pH and EC calibration liquid, and replacement probes, can be found in the YINMIK store.
