1. 서론

구매해주셔서 감사합니다asing the Roban RTF 450 Size UH-1D RC Helicopter. This Ready-To-Fly (RTF) model is equipped with an X1 Flight Control System, offering a comprehensive remote-controlled helicopter experience. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your helicopter.

포함된 구성 요소

The package includes all necessary components for immediate flight after initial setup and charging. Please verify all items are present upon unboxing.

• Roban RTF 450 Size UH-1D RC Helicopter (Army Green)
• X1 Flight Control System (integrated)
• Remote Control (10 channel)
• Two 14.8V 3300mAh 35C LiPo Batteries
• 배터리 충전기
• 메인 로터 블레이드
• 테일 로터 블레이드
• 제품 매뉴얼(이 문서)
• Additional accessories (e.g., decals, tools)

그림 1.1: Contents of the Roban RTF 450 Size UH-1D RC Helicopter package, including the helicopter, remote control, batteries, charger, and other accessories.

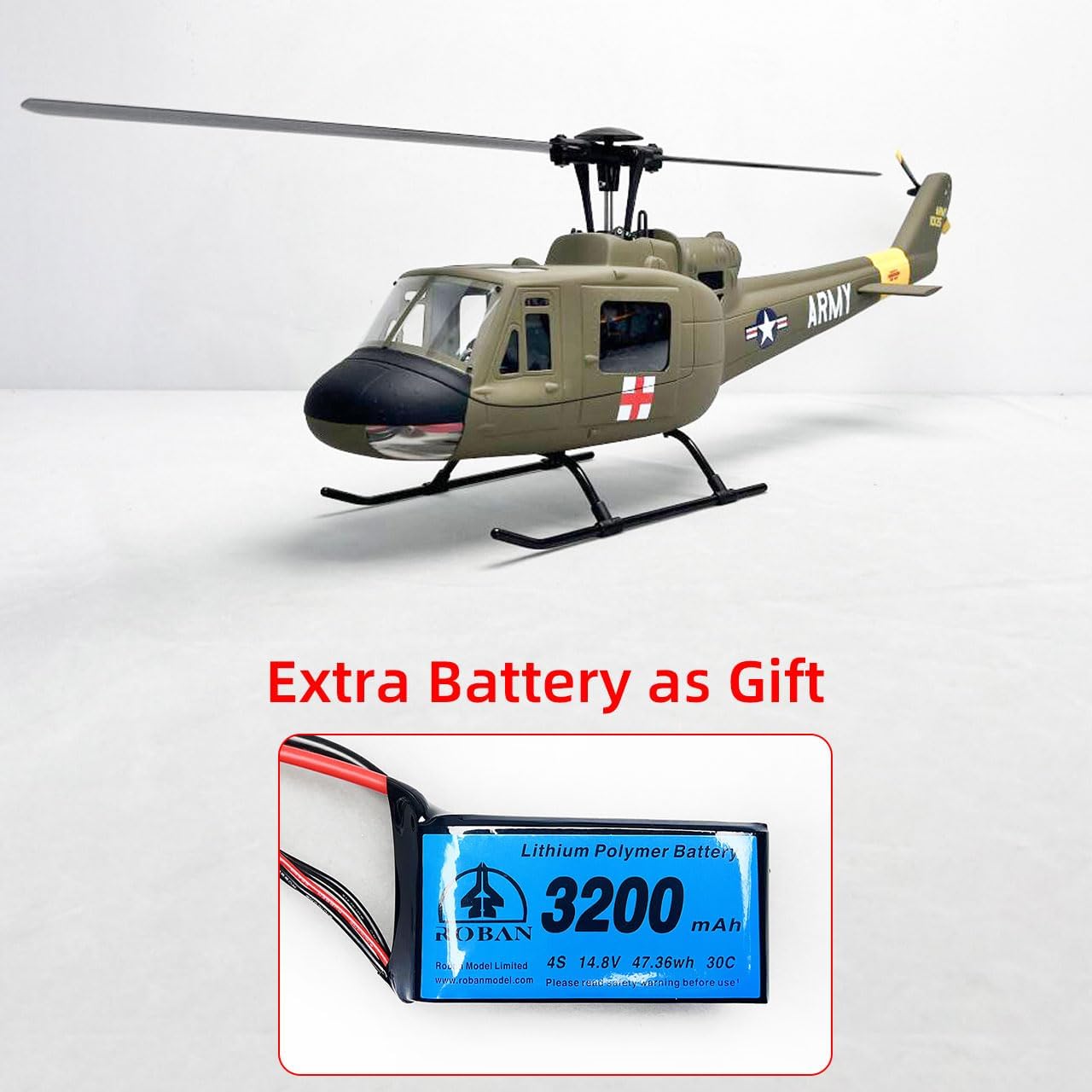

그림 1.2: The Roban RTF 450 Size UH-1D RC Helicopter shown with an additional 3200mAh Lithium Polymer battery, highlighting the included power source.

2. 설정

Although this is a Ready-To-Fly (RTF) model, some initial steps are required before your first flight. Carefully follow these instructions.

2.1 배터리 충전

The helicopter uses 14.8V 3300mAh 35C Lithium Polymer (LiPo) batteries. Always use the provided charger or a compatible LiPo balance charger. Improper charging can lead to fire or damage.

1. 충전기를 전원에 연결합니다.
2. Connect the LiPo battery's balance lead to the balance port on the charger.
3. Connect the main power lead of the LiPo battery to the charger's output port.
4. Select the correct battery type (LiPo) and charging current (typically 1C, which is 3.3A for a 3300mAh battery).
5. Start the charging process. Monitor the battery during charging and never leave it unattended.
6. 충전이 완료되면 배터리를 충전기에서 분리하세요.

중요한: Always store LiPo batteries in a fire-safe bag or container. Do not overcharge or over-discharge batteries.

2.2 원격 제어 준비

Ensure the remote control has fresh batteries installed. The 10-channel radio control system is pre-bound to the helicopter from the factory. If re-binding is ever required, refer to the specific instructions for the X1 Flight Control System and your remote control model.

2.3 비행 전 점검

각 비행 전에 다음 사항을 점검하십시오.

• 시각적 검사: Check for any visible damage to the fuselage, rotor blades, landing gear, and tail boom.
• 로터 블레이드: Ensure main and tail rotor blades are securely attached and free from cracks or chips.
• Battery Securement: Confirm the flight battery is fully charged and securely installed in the helicopter's battery compartment.
• 제어면: Power on the remote control first, then the helicopter. Verify all control surfaces (cyclic, collective, rudder) respond correctly and smoothly to remote control inputs.
• 모터 및 ESC: Listen for any unusual noises during initial power-up.

그림 2.1: 내부 view of the helicopter's fuselage, illustrating the placement of the flight battery and X1 Flight Control System. Ensure the battery is secured to prevent movement during flight.

3. 사용 설명서

Operating an RC helicopter requires practice and adherence to safety guidelines. Always fly in a safe, open area away from people, animals, and obstacles.

3.1 안전 지침

• 위치: Fly in open spaces, clear of buildings, trees, power lines, and water.
• 날씨: Avoid flying in windy conditions, rain, or snow.
• 거리: Maintain a safe distance from yourself and others. The rotating blades can cause serious injury.
• 배터리 안전: Never operate with damaged batteries. Disconnect the battery immediately after flight.
• 감독: 어린 운전자의 경우 성인의 감독이 권장됩니다.
• 비행 전 점검: Always perform the checks outlined in Section 2.3.

3.2 기본 비행 제어

The 10-channel remote control provides precise command over the helicopter's movements. Familiarize yourself with the stick functions before attempting flight.

• Throttle/Collective: Controls the main rotor speed and blade pitch, affecting altitude. (Typically left stick, vertical axis)
• Rudder/Yaw: Controls the tail rotor, rotating the helicopter left or right around its vertical axis. (Typically left stick, horizontal axis)
• Aileron/Roll: Tilts the helicopter left or right, causing it to move sideways. (Typically right stick, horizontal axis)
• Elevator/Pitch: Tilts the helicopter forward or backward, causing it to move forward or backward. (Typically right stick, vertical axis)

Practice gentle movements and hovering at low altitudes before attempting advanced maneuvers.

그림 3.1: The Roban RTF 450 Size UH-1D RC Helicopter performing a stable flight, demonstrating its operational capabilities.

4. 유지관리

Regular maintenance ensures the longevity and safe operation of your RC helicopter.

4.1 Post-Flight Checks

• 배터리 분리: Always disconnect the flight battery immediately after landing.
• 손상 여부 검사: Check for any new cracks, loose screws, or bent parts.
• 청결: Remove any dirt, grass, or debris from the rotors, motors, and fuselage.
• 모터 온도: Feel the motors and ESC for excessive heat.

4.2 일반 관리

• 저장: Store the helicopter and remote control in a cool, dry place, away from direct sunlight.
• 배터리 보관: Store LiPo batteries at a "storage charge" (approximately 3.8V per cell) if not used for extended periods. Never store fully charged or fully discharged.
• 매끄럽게 하기: Periodically check moving parts for smooth operation. Apply a small amount of silicone lubricant to linkages if necessary.
• 패스너: Regularly check all screws and bolts for tightness. Vibrations during flight can cause them to loosen.

5. 문제 해결

This section addresses common issues you might encounter with your Roban RTF 450 Size UH-1D RC Helicopter.

여기에 언급되지 않은 문제는 고객 지원팀에 문의하세요.

6. 사양

Detailed technical specifications for the Roban RTF 450 Size UH-1D RC Helicopter.

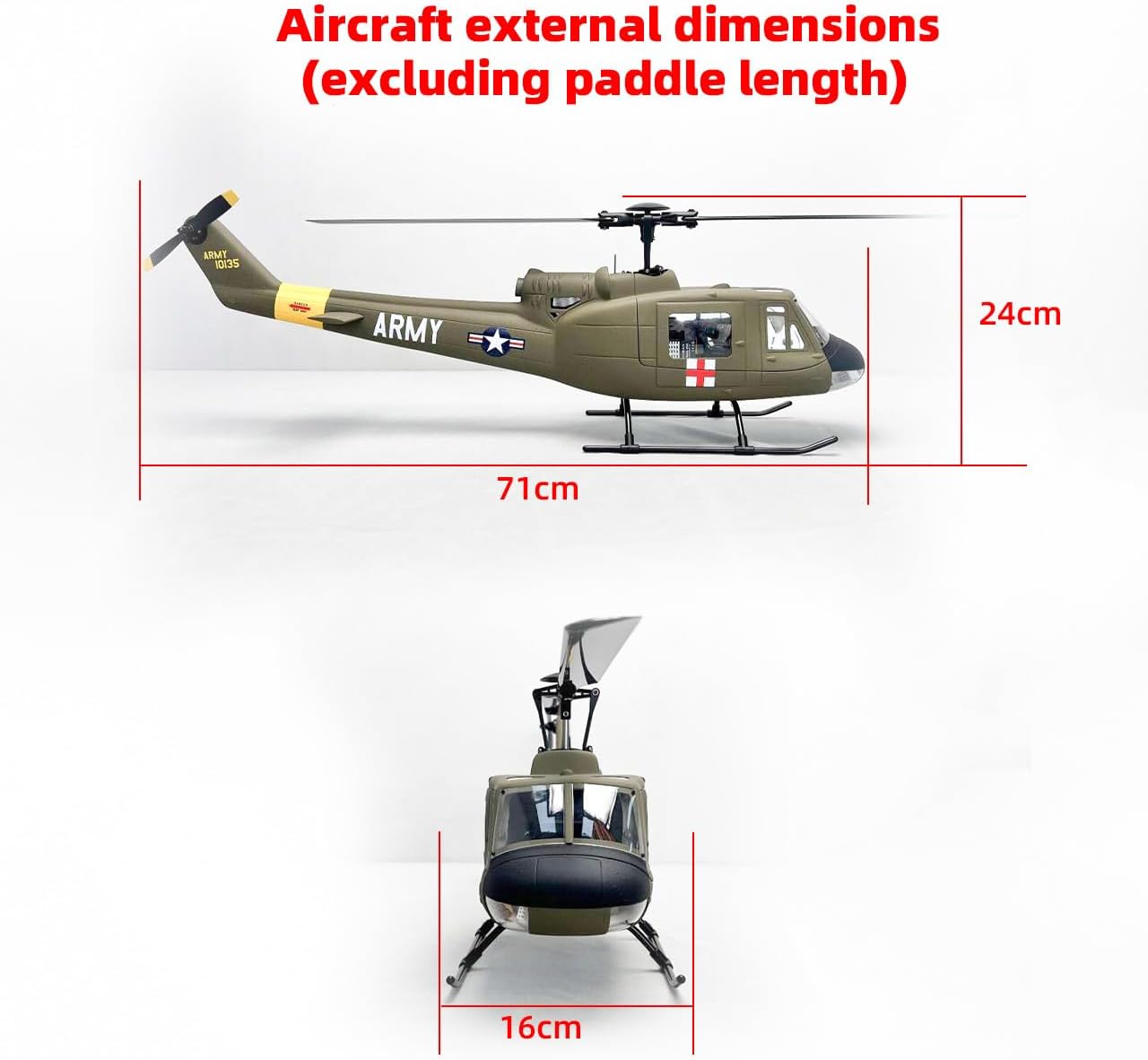

그림 6.1: External dimensions of the helicopter, illustrating key measurements such as length, width, and height (excluding paddle length).

7. 보증 및 지원

7.1 보증 정보

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. The warranty period typically begins from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact the retailer.

7.2 고객 지원

If you encounter any issues or have questions regarding the operation, maintenance, or repair of your Roban RTF 450 Size UH-1D RC Helicopter, please contact your retailer or the manufacturer's customer support. When contacting support, please have your model number (450) and a detailed description of the issue ready.

제조업체: FLTHOBBY

For the most up-to-date support contact information, please visit the official website of the manufacturer or your point of purchase.
