Generic AK1016 Music Spectrum Audio Analyzer Display

1. 서론

This manual provides detailed instructions for the Generic AK1016 Music Spectrum Audio Analyzer Display. This device is designed to visualize audio signals, offering a high-resolution display for music and sound levels. It features multiple input options and customizable display settings, making it suitable for various audio environments.

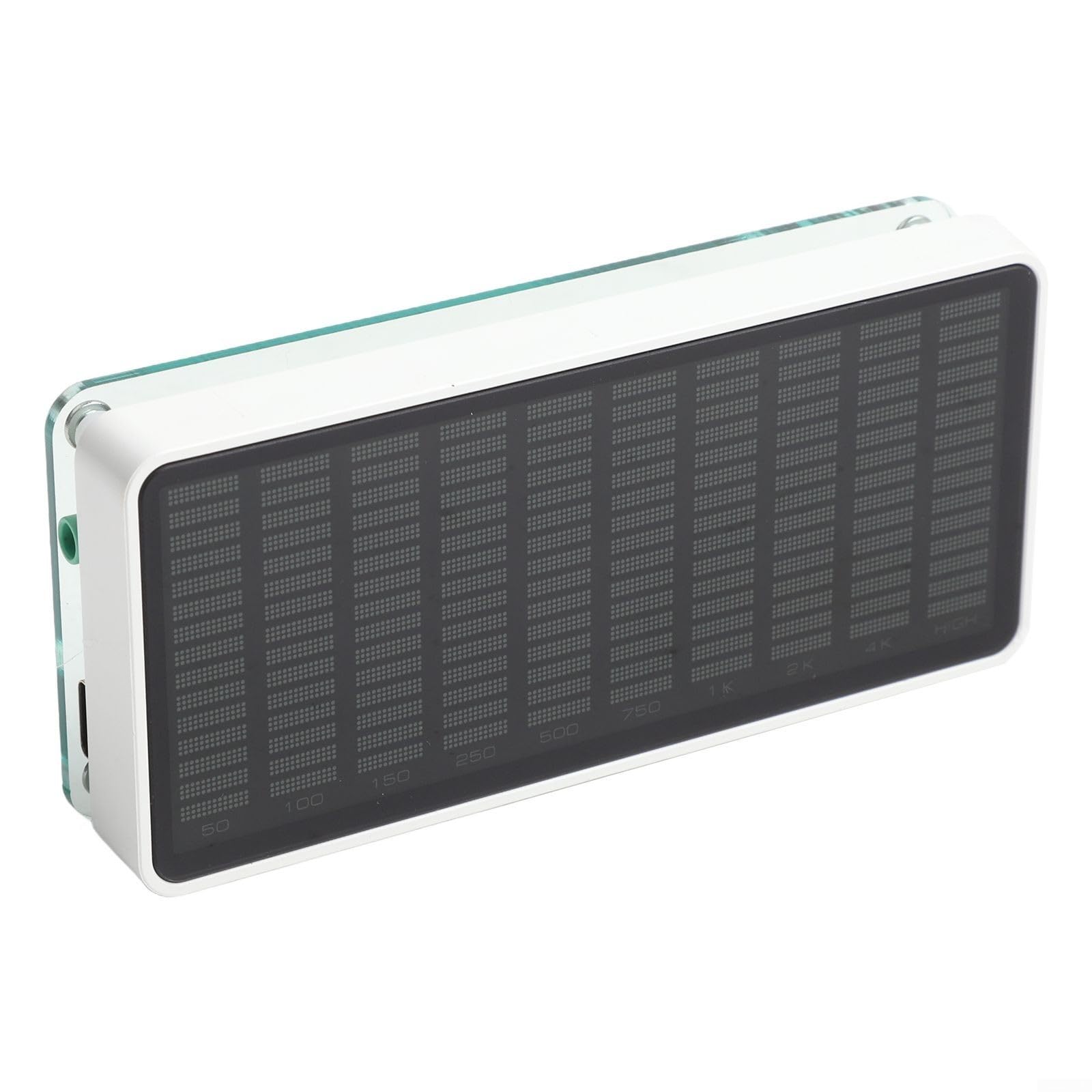

그림 1: 전면 view of the AK1016 Music Spectrum Audio Analyzer Display.

2. 패키지 내용

아래 나열된 모든 품목이 패키지에 포함되어 있는지 확인하세요. 품목이 누락되었거나 손상된 경우 고객 지원팀에 문의하세요.

• 1 × AK1016 Audio Spectrum Analyzer
• USB 케이블(Type-C) 1개
• 1 × 3.5mm 오디오 케이블
• 1 × 1:2 3.5mm 케이블

Figure 2: Contents included in the AK1016 package.

3. 제품 특징

• Accurate Music Spectrum & Dual Signal Input: Features a 10×16 high-resolution display for precise visualization of each frequency band (50Hz to 20KHz). Equipped with 3.5mm AUX and microphone inputs for versatile connectivity with various audio devices.
• Wide-band Display and Gain Selection: Supports 50Hz to 20KHz frequency sweep with high-precision display. Offers gain selection options: -20dB, -15dB, -10dB, -5dB, and 0dB to optimize display sensitivity.
• Unique AGC Algorithm and Custom Output Curve: Automatic Gain Control (AGC) ensures optimal visual effects across varying input signal strengths. Includes two display modes: real output and smooth output, balancing accuracy and visual appeal.
• Adjustable Display Items: Brightness, high beam descent speed, hold time, and peak descent speed can be adjusted independently. All settings are saved with power-off memory.
• Dual Power Interfaces and Key Noise Filtering: Two Type-C interfaces (side and back) provide flexible power connection options. Features key noise filtering to adapt to different environments.

4. 장치 레이아웃

Familiarize yourself with the input ports and control buttons on the AK1016 device.

Figure 3: AK1016 device layout with labeled inputs and controls.

• 3.5mm AUX 입력: For low-level audio signals from external devices.
• 마이크 픽업 홀: For ambient sound detection.
• DC 5V 입력(C 타입): Two Type-C ports for power input.
• 위쪽 버튼 : 메뉴를 탐색하거나 값을 증가시킵니다.
• 확인 버튼: 선택 사항을 확인하거나 메뉴로 들어갑니다.
• 아래로 버튼 : 메뉴를 탐색하거나 값을 감소시킵니다.

5. 설정

1. 전원 연결: Connect the provided USB Type-C cable to one of the DC 5V IN ports on the AK1016 and to a 5V/1A power adapter (not included) or a USB port on a computer. The device will power on automatically.
2. 오디오 입력(AUX): For direct audio input, connect your audio source (e.g., mobile phone, PC, game console) to the 3.5mm AUX input port using the provided 3.5mm audio cable.
3. Audio Input (MIC): For ambient sound visualization, ensure no cable is connected to the 3.5mm AUX input. The device will automatically switch to microphone pickup mode.

그림 4: 예ample setup of the AK1016 on a desktop.

6. 운영

The AK1016 offers various settings and modes for customizing your audio visualization experience.

6.1. Navigation and Adjustment

• 사용하세요 Up 그리고 아래에 buttons to navigate through menu options or adjust values.
• 를 누르세요 OK button to enter a menu, confirm a selection, or switch between display modes.

6.2. Gain Selection

Adjust the input gain to match your audio source and achieve the desired display sensitivity. The available gain settings are:

• -20데시벨
• -15데시벨
• -10데시벨
• -5데시벨
• 0데시벨

6.3. Amp증폭 곡선 설정

The device supports 5 amplification curve settings to modify how frequencies are displayed:

1. Compress low frequency
2. Compress low frequency and enhance high frequency
3. 하지 마세요 amplify (default setting)
4. Slightly compress low frequency and enhance high frequency
5. 고주파수 향상

6.4. Music Spectrum Modes

Choose from various display modes to suit your preference:

• 일반 모드
• Inverted mode
• 리버스 모드
• Amplification curve mode
• True output
• Smooth output

6.5. Adjustable Display Items

Fine-tune the visual behavior of the spectrum display:

• 명도: 8 levels of adjustment.
• Main Light Column Descent Speed: Controls how quickly the main bars fall.
• Peak Hold Time: Sets how long peak indicators remain visible.
• Peak Descent Speed: Controls how quickly peak indicators fall.

All settings are automatically saved and retained even after the device is powered off.

7. 사양

8. 관리 및 유지 보수

• 부드럽고 마른 천으로 닦아 기기를 깨끗하게 유지하세요. 강한 화학 물질이나 연마성 세제는 사용하지 마세요.
• 장치를 극한의 온도, 습도 또는 직사광선에 노출시키지 마십시오.
• 장치를 떨어뜨리거나 강한 충격을 가하지 마십시오.
• 적절한 환기를 보장하고 개구부를 막지 마십시오.

9. 문제 해결

• 디스플레이 없음: Ensure the device is properly connected to a 5V/1A power source. Check all cable connections.
• Display Not Responding to Audio: Verify that the audio source is playing and connected correctly to either the 3.5mm AUX input or that the microphone pickup is enabled (no AUX cable connected). Adjust the gain settings if the signal is too low.
• 잘못된 표시 동작: Reset settings to default if custom settings cause unexpected behavior. Refer to the 'Operation' section for adjusting display parameters.
• 장치 전원이 켜지지 않음: Confirm the power adapter meets the 5V/1A requirement. Try a different USB cable or power source.

10. 보증 및 지원

이 제품에는 표준 제조사 보증이 적용됩니다. 자세한 보증 조건은 구매 시 제공된 설명서를 참조하시거나 판매점에 문의하세요.

For technical support, troubleshooting assistance, or inquiries regarding your AK1016 Music Spectrum Audio Analyzer Display, please contact the seller or manufacturer directly through the platform where the product was purchased.
