소개
This manual provides instructions for the setup, operation, and maintenance of your Generic RCS-4MVPS4EX replacement remote control for Sanyo Air Conditioners. Please read this manual carefully to ensure proper use and to maximize the lifespan of your device.
This remote control is designed as a direct replacement for the original Sanyo RCS-4MVPS4EX model. Ensure your original remote matches the appearance of this replacement for full compatibility.
설정
1. 배터리 설치
리모컨 작동에는 AAA 배터리 2개(별도 구매)가 필요합니다. 다음 단계에 따라 배터리를 설치하십시오.
- 리모콘 뒷면에서 배터리함을 찾으세요.
- 배터리 덮개를 아래로 밀어서 엽니다.
- Insert two fresh AAA alkaline batteries, ensuring the positive (+) and negative (-) terminals match the diagrams inside the compartment.
- 배터리 덮개를 제자리에 밀어 넣어 딸깍 소리가 날 때까지 밀어 넣습니다.
이미지: 앞면과 뒷면 view of the RCS-4MVPS4EX remote control. The back view clearly shows the battery compartment cover.
2. 초기 사용
This remote control is pre-programmed and does not require any pairing or setup procedures. Once batteries are installed, it is ready for use with compatible Sanyo Air Conditioners.
3. Resetting the Remote
If the remote control is not functioning correctly after battery installation, locate the small 'ACL' (Reset) button, usually found within the battery compartment or on the front panel, and press it gently with a pointed object (e.g., a pen tip). This will reset the remote to its default settings.
작업
Familiarize yourself with the buttons on your remote control. The following section describes the primary functions:

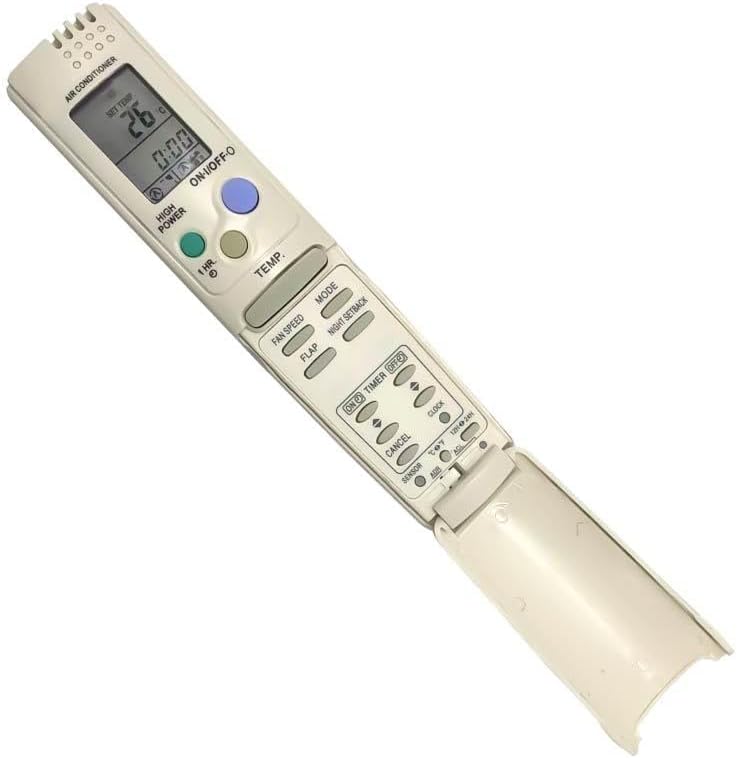

이미지: 앞면 view of the RCS-4MVPS4EX remote control with the lower panel open, displaying all operational buttons.
- 켜기/끄기: 눌러 에어컨을 켜거나 끕니다.
- 고출력: Activates or deactivates the high power cooling/heating mode for rapid temperature change.
- TEMP. (▲/▼): Use the up (▲) and down (▼) arrows to adjust the desired temperature setting.
- 1시간: Likely a quick timer setting, possibly for 1 hour of operation or sleep mode. Refer to your air conditioner's manual for specific functionality.
- 오시는 길 : Cycles through various operating modes such as Cool, Heat, Fan, Dry, and Auto.
- 팬 속도 : 팬 속도를 조절합니다(예: 낮음, 중간, 높음, 자동).
- 플랩: Controls the louver (air flap) direction or swing function.
- 야간 차질: Activates a power-saving or comfort-oriented night mode, often adjusting temperature gradually.
- 타이머 켜기/끄기: Sets or cancels the automatic on/off timer for the air conditioner.
- 시계: 리모컨 디스플레이에 현재 시간을 설정합니다.
- 취소: 활성화된 타이머 설정 또는 기타 기능을 취소합니다.
- 감지기: Activates or deactivates a sensor function, possibly related to room temperature sensing or occupancy.
For detailed information on specific air conditioner functions, please consult the original user manual for your Sanyo Air Conditioner model.
유지
배터리 교체
Replace batteries when the remote control's display becomes dim, or if the remote becomes unresponsive. Always replace both batteries simultaneously with new AAA alkaline batteries. Do not mix old and new batteries, or different types of batteries.
청소
To clean the remote control, wipe it with a soft, dry cloth. Do not use liquid cleaners, abrasive cleaners, or chemical solvents, as these can damage the remote's surface or internal components.
문제 해결
- 리모컨이 응답하지 않음:
- 배터리가 올바른 극성으로 올바르게 설치되었는지 확인하세요.
- 오래된 배터리를 새 AAA 알칼리 배터리로 교체하세요.
- 리모컨과 에어컨 수신기 사이에 장애물이 없는지 확인하십시오.
- 에어컨의 유효 작동 범위 내에 있는지 확인하십시오.
- Press the 'ACL' (Reset) button as described in the Setup section.
- 디스플레이가 어둡거나 비어 있음:
- Batteries are low. Replace them with new ones.
명세서
- 모델: RCS-4MVPS4EX
- 호환 장치: Sanyo Air Conditioners
- 전원: AAA 배터리 2개(포함되지 않음)
- 지원되는 최대 장치 수: 1
- 품목 무게: (배터리 제외) 약 8온스
- 특징: 인체공학적 디자인
보증 및 지원
This product is a replacement remote control. For specific warranty information, please refer to the retailer or manufacturer from whom you purchased this device. If you have any questions regarding the operation or compatibility of this remote control, please contact the seller for assistance.
