RADIOMASTER Boxer Crush Radio Controller Transmitter User Manual

1. 서론

The RADIOMASTER Boxer Crush Radio Controller Transmitter is a high-performance remote control system designed for RC enthusiasts. It features the EdgeTX Operating System and an ExpressLRS RF System, providing reliable and precise control for various remote-controlled vehicles. This manual provides essential information for setting up, operating, and maintaining your Boxer Crush transmitter.

2. 제품 특징

• Available in seven vibrant colors: Iron Grey, Frost White, Mint Mist, Hot Pink, Cherry Red, Iceberg Blue, and Lemon Twist Yellow.
• Equipped with CNC Aluminum AG01 Hall-effect Gimbals for precise control.
• Features a powerful STM32F407VGT6 microcontroller with 1MB Flash and 192KB RAM.
• Built-in ExpressLRS Backpack for enhanced connectivity.
• Redesigned SD card slot with a new and improved 512MB pre-loaded SD card included.

Image: The RADIOMASTER Boxer Crush Radio Controller in Iron Grey, highlighting its sleek design.

Image: A display of the RADIOMASTER Boxer Crush Radio Controller available in multiple vibrant colors.

3. 패키지 내용

Upon unboxing your RADIOMASTER Boxer Crush, ensure all the following items are present:

• 1 x Boxer Crush Radio Transmitter
• 1 x Signature Carry Case
• 1 x T Antenna
• 1 x USB-C 케이블
• 짐벌 보호대 1개

Image: The complete package contents of the RADIOMASTER Boxer Crush, including the transmitter, carry case, antenna, USB-C cable, and gimbal protector.

4. 설정

4.1. 배터리 설치

The Boxer Crush requires a 2S 6200mAh Li-Po battery (not included) or AA batteries using the provided battery pack. To install:

1. 송신기 뒷면에서 배터리 구획을 찾으세요.
2. Slide the battery cover latch to open the compartment.
3. Connect the Li-Po battery to the internal connector, ensuring correct polarity. If using AA batteries, insert them into the battery pack and connect the pack.
4. Carefully place the battery into the compartment and close the cover, ensuring it latches securely.

4.2. 안테나 설치

Attach the T Antenna to the designated port on the top of the transmitter. Ensure it is securely fastened but do not overtighten.

4.3. Gimbal Protector Removal

Remove the gimbal protector before operating the transmitter to allow full range of motion for the gimbals.

5. 사용 설명서

5.1. 전원 켜기 / 끄기

To power on the transmitter, press and hold the power button located centrally above the screen until the EdgeTX logo appears. To power off, press and hold the power button until the power-down sequence completes.

5.2. 기본 제어

The Boxer Crush features two main gimbals for control inputs, along with various switches and buttons for auxiliary functions. Familiarize yourself with the layout:

• 짐발: 주요 비행면(스로틀, 에일러론, 엘리베이터, 러더)을 조종합니다.
• 스위치: Used for flight modes, arming, and other programmable functions.
• Buttons (RTN, PAGE, TELE, SYS): Navigate through the EdgeTX menu system.
• 스크롤 휠: 메뉴 탐색 및 매개변수 조정에 사용됩니다.

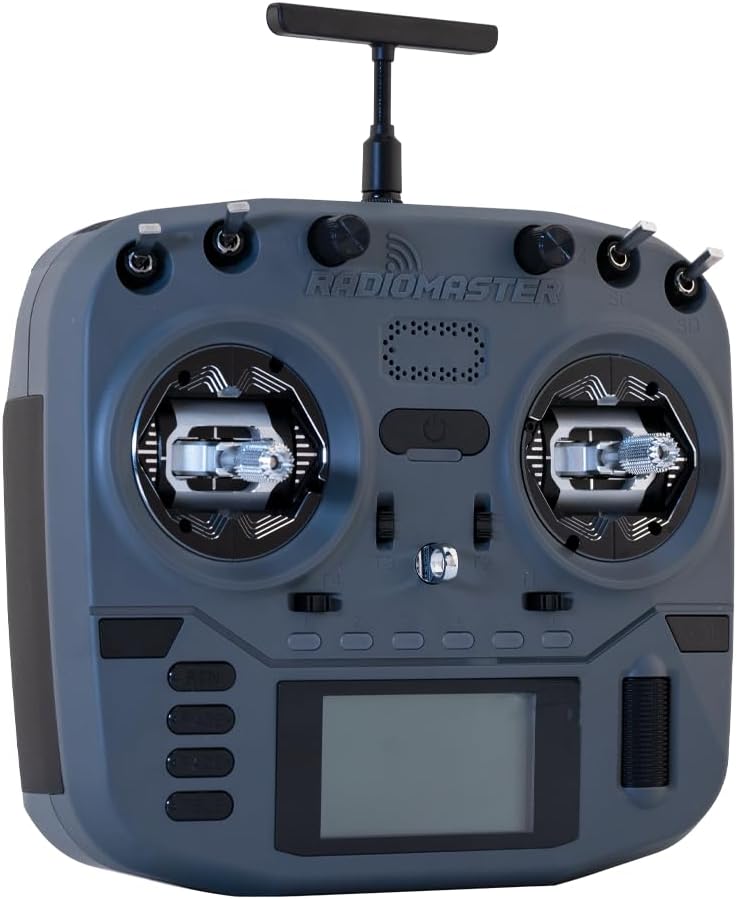

이미지: 앞면 view of the RADIOMASTER Boxer Crush, showing gimbals, screen, and control buttons.

5.3. Menu Navigation (EdgeTX)

The EdgeTX operating system provides extensive customization. Use the SYS button to enter the system menu, the PAGE buttons to navigate between pages, and the scroll wheel to select options and adjust values. The RTN button returns to the previous screen.

5.4. 조이스틱 보정

Regular joystick calibration ensures optimal performance. Refer to the transmitter's internal menu for the calibration procedure. Generally, this involves moving both gimbals through their full range of motion.

5.5. Binding/Pairing

To bind your Boxer Crush transmitter to a receiver, follow the specific binding procedure outlined in your receiver's manual. Typically, this involves putting the receiver into bind mode and then initiating the binding process from the transmitter's EdgeTX menu.

6. 유지관리

• 송신기를 깨끗하게 유지하고 먼지나 이물질이 없도록 하세요. 청소 시에는 부드럽고 마른 천을 사용하세요.
• Store the transmitter in its carry case when not in use to protect it from damage.
• Ensure batteries are charged using appropriate chargers and follow battery safety guidelines.
• Periodically check all switches and gimbals for smooth operation.

7. 문제 해결

• 송신기가 켜지지 않음: 배터리 충전 상태를 확인하고 올바르게 설치되었는지 확인하십시오.
• 제어 응답 없음: Verify the transmitter is bound to the receiver and that the model is correctly selected in EdgeTX. Check antenna connection.
• 불규칙적인 제어: Perform joystick calibration. Check for any physical obstructions to the gimbals.
• SD 카드 오류: Ensure the SD card is properly seated. If issues persist, try reformatting the card (backing up data first) or using a different SD card.

8. 사양

Image: Diagram illustrating the dimensions of the RADIOMASTER Boxer Crush Radio Controller.

9. 보증 및 지원

보증 정보 및 기술 지원에 대해서는 RADIOMASTER 공식 웹사이트를 참조하십시오. web사이트를 방문하거나 공인 대리점에 문의하세요. 보증 청구를 위해 구매 증빙 자료를 보관하세요.

Official RADIOMASTER Web대지: www.radiomasterrc.com
