Skydroid T12/SG12-RX Receiver User Manual

1. 서론

This manual provides detailed instructions for the installation, operation, and maintenance of the Skydroid T12/SG12-RX Receiver. This receiver is designed for use with plant protection drones and other remote-controlled aircraft, ensuring reliable communication and control. Please read this manual thoroughly before using the product to ensure proper functionality and safety.

2. 패키지 내용

아래 나열된 모든 품목이 패키지에 포함되어 있는지 확인하세요. 품목이 누락되었거나 손상된 경우 판매자에게 문의하세요.

• Skydroid T12/SG12-RX Receiver Unit
• 2.4G 안테나 (2개)
• Connection Cables (including K V2 cable)

그림 2.1: 이상view of the Skydroid T12/SG12-RX Receiver and its accompanying accessories, including the main receiver unit, two antennas, and various connection cables.

3. 제품 오버view

The Skydroid T12/SG12-RX receiver features multiple ports and indicators for seamless integration into your drone system.

3.1 수신기 유닛

그림 3.1: 상세 view of the Skydroid T12/SG12-RX receiver unit, highlighting its various ports and LED indicators for connectivity and status monitoring.

주요 구성 요소 및 지표:

• 빨간색 LED: 상태 표시기.
• GN LED: 상태 표시기.
• 모드 키: Button for mode selection or binding.
• GND : Ground connection points.
• USB5V: 5V USB power input.
• DM/CH9, DP/CH10: Digital/PWM output channels.
• Rx3, Tx3: 직렬 통신 포트.
• 2.4G ANT-: Antenna connection ports.
• VCC: 전원 입력.
• Rx1, Tx1, Rx2, Tx2: Additional serial communication ports.
• 스버스: S.BUS output for flight controller connection.

3.2 안테나

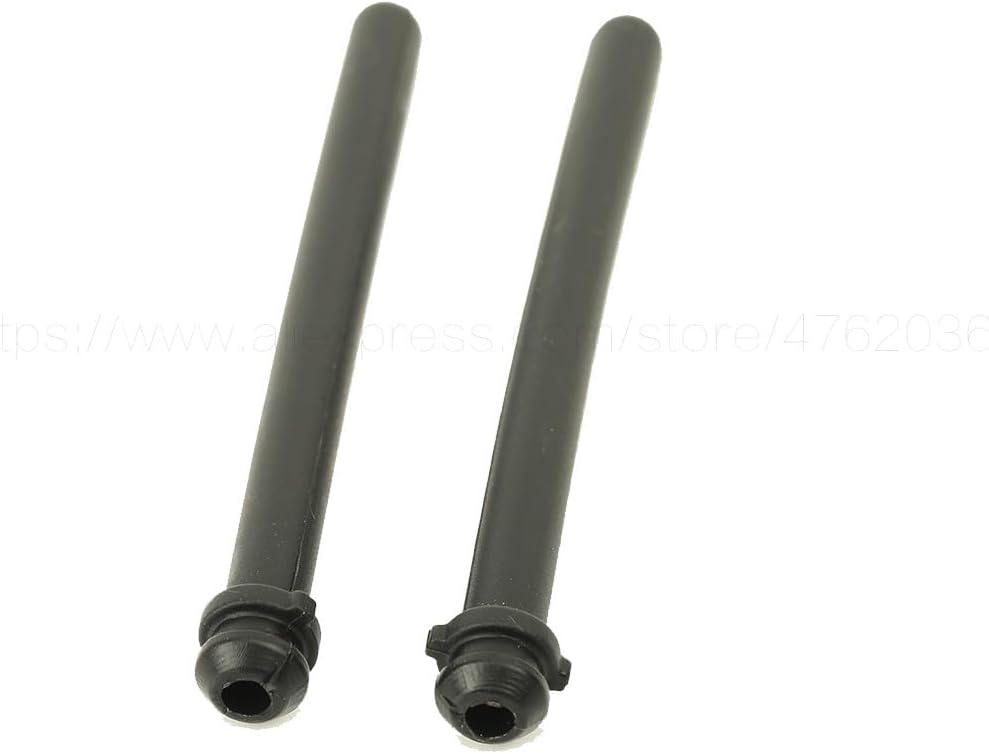

Figure 3.2: The two 2.4G antennas provided with the receiver, essential for establishing a stable radio link with the transmitter.

The two 2.4G antennas are crucial for maintaining a stable and reliable radio link between the receiver and the remote controller. Ensure they are securely connected and positioned correctly for optimal signal reception.

3.3 연결 케이블

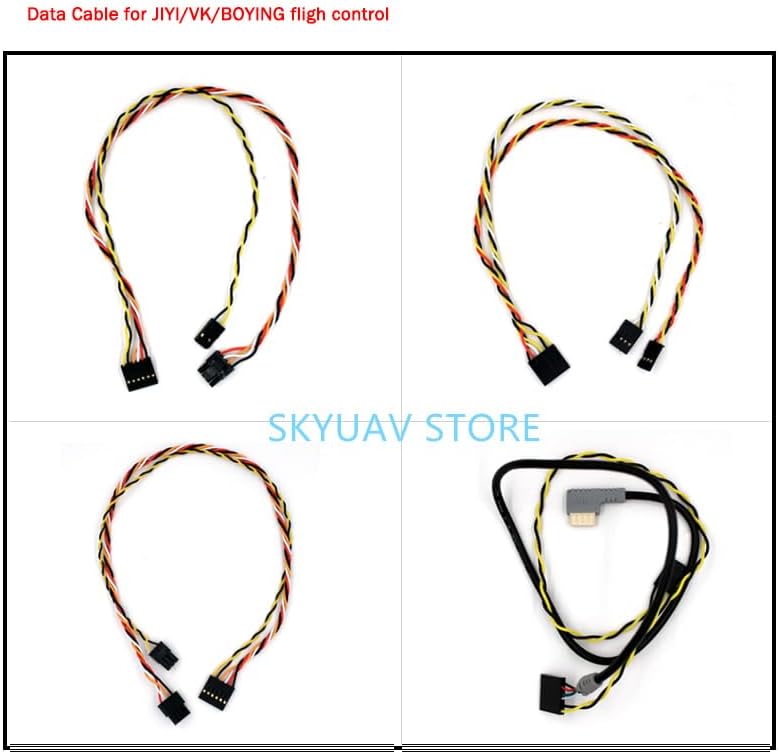

Figure 3.3: A selection of data cables compatible with the Skydroid receiver, including the K V2 cable, used for connecting to flight controllers and other peripherals.

The package includes various connection cables, such as the K V2 cable, designed for interfacing the receiver with different flight controllers (e.g., JIJI/VK/BOYING) and other drone components. Refer to your flight controller's manual for specific wiring diagrams.

4. 설정 및 설치

Follow these steps to properly install and set up your Skydroid T12/SG12-RX Receiver.

1. 안테나 연결: Carefully connect the two 2.4G antennas to the designated "2.4G ANT-" ports on the receiver unit. Ensure they are securely fastened but do not overtighten. Position the antennas away from metal objects and at a 90-degree angle to each other for best signal diversity.
2. 전원 연결: Connect the receiver to a stable 5V power source. Use the VCC and GND pins for power input. Ensure correct polarity to prevent damage. The USB5V port can also be used for power during configuration or testing.
3. 비행 컨트롤러 연결: Connect the receiver to your drone's flight controller using the appropriate cable (e.g., K V2 cable). Common connection methods include:
   • S.BUS: Connect the Sbus pin on the receiver to the S.BUS input on your flight controller. This is a common single-wire digital protocol.
   • UART (Rx/Tx): For serial communication, connect Rx1/Tx1 or Rx2/Tx2 (or Rx3/Tx3) to the corresponding UART ports on your flight controller.
   • PWM : If using traditional PWM, connect the DM/CH9 and DP/CH10 pins to the respective PWM input channels on your flight controller.
   Refer to your flight controller's manual for specific wiring and configuration details.
4. Binding (Pairing): To establish communication between the receiver and your Skydroid remote controller, a binding process is required. Typically, this involves:
   • Power on the receiver while holding down the MODE KEY.
   • Observe the LED indicators for binding status (refer to your remote controller's manual for specific LED patterns).
   • Initiate the binding process on your Skydroid remote controller.
   • Once successfully bound, the LEDs on the receiver will indicate a solid connection.

5. 사용 설명서

Once the receiver is installed and bound to your remote controller, it will facilitate communication for controlling your drone.

• 전원 켜기 순서: Always power on your remote controller first, then the drone (which powers the receiver). This ensures the receiver establishes a link with the controller before the flight controller initializes.
• LED 표시등:
  • 빨간색 LED: Indicates power status or error conditions.
  • GN LED: Indicates signal reception and connection status. A solid green light typically means a stable connection.
  Consult your Skydroid remote controller's manual for detailed LED status interpretations.
• 신호 손실: In case of signal loss, the receiver will typically enter a failsafe mode, as configured on your flight controller. Ensure your failsafe settings are properly configured for safe operation.

6. 유지관리 및 관리

적절한 유지 관리는 수신기의 수명 연장과 안정적인 성능을 보장합니다.

• 깨끗하게 유지하십시오: Regularly clean the receiver unit with a soft, dry cloth. Avoid using solvents or abrasive cleaners.
• 요소로부터 보호: Shield the receiver from moisture, dust, and extreme temperatures. If used in a plant protection drone, ensure it is adequately protected from liquids and chemicals.
• 연결 검사: Periodically check all cable connections and antenna attachments for looseness or damage. Replace any worn or damaged components immediately.
• 펌웨어 업데이트: 스카이드로이드 공식 웹사이트를 확인하세요 website for any available firmware updates for your receiver. Follow the provided instructions carefully for updating.

7. 문제 해결

If you encounter issues with your Skydroid T12/SG12-RX Receiver, refer to the following common problems and solutions:

8. 사양

The following are the technical specifications for the Skydroid T12/SG12-RX Receiver:

• 모델 번호: SKYRDROID SG12
• 치수: 340*135*95MM (as per product description, likely package size)
• 기술적 매개변수: 값 10
• 재료: 복합소재
• For Vehicle Type: Airplanes (specifically plant protection drones)
• Tool Supplies: 조립된 클래스
• Four-wheel Drive Attributes: 조립
• 원격 제어 주변기기/장치: 리모컨
• Upgrade Parts/Accessories: 어댑터
• RC Parts & Accs: 커넥터/배선
• 추천 연령: 18+
• 기원: 중국 본토

9. 보증 및 지원

Specific warranty terms and detailed support contact information are not provided in the product data. For warranty claims or technical assistance, please contact the retailer or manufacturer directly through their official channels. Retain your proof of purchase for any warranty-related inquiries.
