소개
This manual provides detailed instructions for the assembly, operation, and maintenance of your HAPPYGRILL Outdoor Wicker Lounge Daybed, Model HG3079. Please read this manual thoroughly before assembly and use to ensure safe and correct operation and to maximize the lifespan of your product.

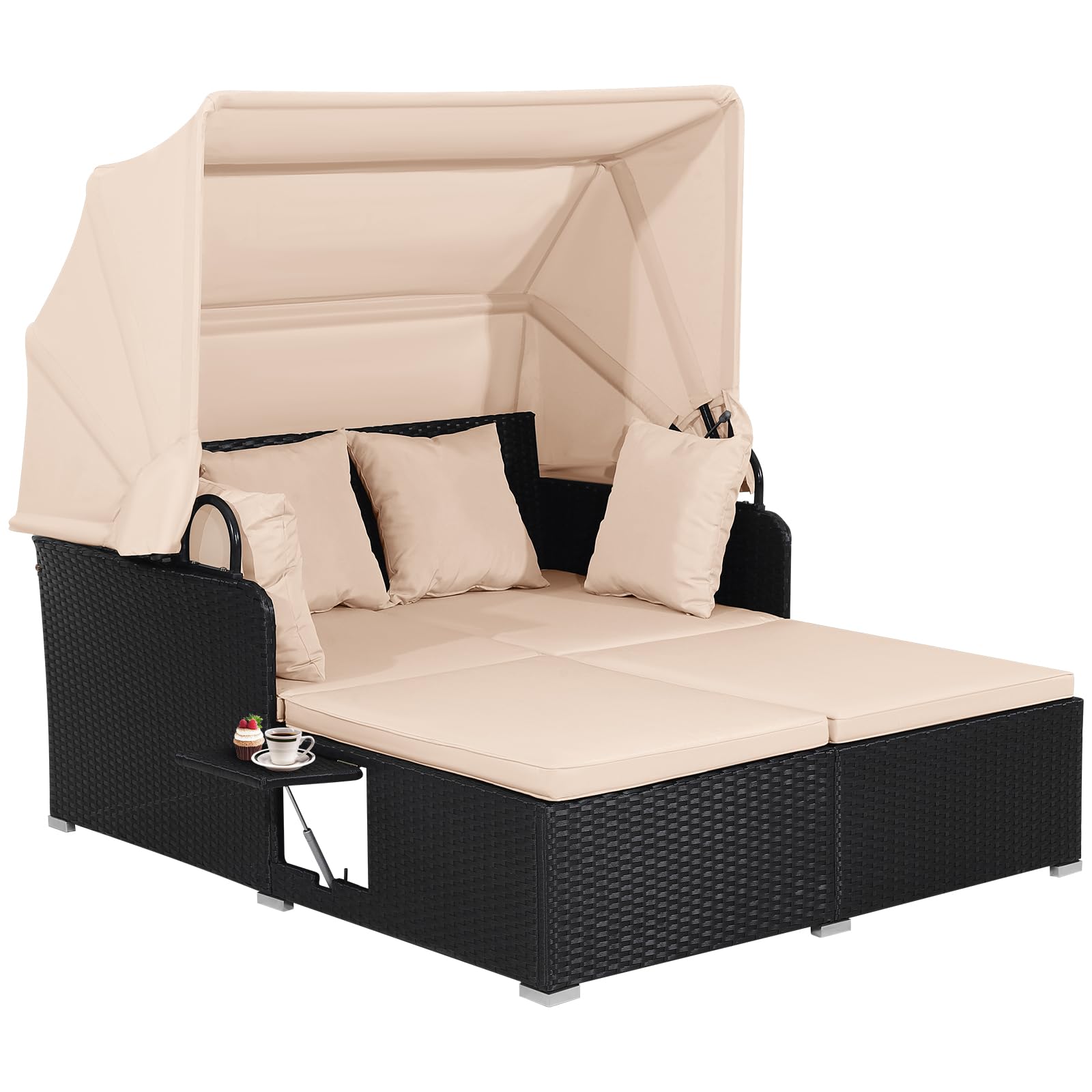

Image: The HAPPYGRILL Outdoor Wicker Lounge Daybed in beige, featuring a retractable canopy and side tables, set on an outdoor patio.
안전 정보
부상이나 제품 손상을 방지하기 위해 다음 안전 예방 조치를 준수하세요.
- Keep the daybed away from open flames or high heat sources.
- Supervise children and pets to avoid entrapment risks, especially when operating the canopy or side tables.
- Always secure the canopy and side tables when not in use to prevent accidental movement or damage from wind.
- Ensure all screws are tightened securely after assembly and periodically check for tightness.
- 최대 중량 용량인 800파운드를 초과하지 마십시오.
패키지 내용
조립을 시작하기 전에 아래 나열된 모든 부품이 있는지, 손상되지 않았는지 확인하십시오. 부품이 누락되었거나 손상된 경우 고객 지원 센터로 문의하십시오.
- 1 x Daybed Frame (multiple components)
- 2 x 시트 쿠션
- 4 x 쿠션
- 1 x 사용 설명서(이 문서)
- 조립용 하드웨어(나사, 볼트, 육각 렌치 등)
설정 및 조립
Assembly is required for this product. All necessary tools are included. Please follow the instructions carefully.
- 모든 구성 요소를 풀어보세요: 모든 부품을 포장에서 조심스럽게 꺼낸 후 긁힘을 방지하기 위해 깨끗하고 부드러운 표면에 놓으세요.
- Identify parts: Refer to the included assembly diagram (not provided in this digital manual) to identify each component.
- 초기 고정: When attaching components, insert all screws into their respective holes before fully tightening any of them. This ensures proper alignment.
- 최종 조임: Once all components are loosely assembled and aligned, gradually tighten all screws until secure. Do not overtighten.
- Canopy Assembly: Pay close attention to the canopy assembly, ensuring the pneumatic rods are correctly installed for safe and smooth operation.
- 쿠션 배치: Place the seat cushions and throw pillows onto the daybed.
중요 조립 참고 사항:
Do not tighten screws until all the holes are aligned. Otherwise, some screw holes may be misaligned, resulting in different lengths of furniture legs or an unstable structure.
Image: Assembly diagram illustrating key dimensions and the importance of aligning all screw holes before tightening.
작동 지침
개폐식 캐노피
The daybed features a retractable canopy for adjustable sun protection. Use the pneumatic rod mechanism for smooth operation.
- 캐노피를 확장하려면: Gently pull the canopy forward. The pneumatic rods will assist in extending it to the desired position.
- 차양막을 접으려면: Gently push the canopy backward. The pneumatic rods will assist in retracting it.
- 캐노피 고정: When the canopy is fully retracted, use the integrated fixed ropes to secure it in place. This prevents it from unfolding unexpectedly or being affected by wind.
Image: Detail of the retractable canopy, highlighting the pneumatic rod for adjustment and the fixed ropes for securing.
Retractable Side Tables
The daybed includes two retractable side tables for convenient access to personal items.
- To Extend a Side Table: Gently pull the table outwards from the side of the daybed. It will slide out to provide a flat surface.
- To Retract a Side Table: Gently push the table back into the side of the daybed until it is flush with the frame.
- 중량 제한: Each side table has a weight capacity of 10 lbs. Do not place heavy items on them.
Image: A retractable side table extended, showing space for a phone, drink, or magazine.
유지
쿠션과 베개
- 청소: The cushion and pillow covers feature a zippered design, allowing for easy removal and cleaning. Follow the care instructions on the fabric label.
- 건조: To prolong the service life of the cushions and pillows, always ensure they are kept dry. Store them indoors during inclement weather or when not in use for extended periods.
- 색상 변화: Please note that due to light exposure and avoidance, the color of the cushions may appear slightly different under various lighting conditions.
Image: Close-up of a cushion demonstrating its high-density sponge filling and the zippered cover for easy removal.
Wicker and Frame
- 청소: Wipe the PE wicker and steel frame with a damp cloth and mild soap. Rinse thoroughly and dry completely.
- 보호: The hand-woven PE wicker is fade-resistant and sun-protective. The steel frame is rustproof. However, regular cleaning and covering the daybed when not in use can further extend its lifespan.
- 안정성 확인: Periodically check all bolts and screws to ensure they remain tight. Tighten as necessary.
이미지: 상세 views of the daybed's construction, including fade-resistant PE wicker, extra support legs, and non-slip foot pads.
문제 해결
If you encounter any issues with your daybed, please refer to the following common solutions:
- 불안정한 구조: Ensure all assembly screws are fully tightened. Check that the daybed is placed on a flat, even surface. Adjust non-slip foot pads if necessary.
- Canopy Difficulty: If the canopy is stiff or difficult to move, check the pneumatic rods for proper installation and ensure no obstructions are present. Ensure fixed ropes are not interfering with movement.
- Side Table Issues: If a side table is not retracting or extending smoothly, check for obstructions in its track. Ensure no debris is preventing movement.
- 쿠션 슬라이딩: While cushions are designed for comfort, some movement may occur. Consider adding non-slip pads underneath the cushions if excessive sliding is experienced.
명세서
| 특징 | 세부 사항 |
|---|---|
| 전체 치수(길이 x 너비 x 높이) | 65" x 60.5" x 58.5"(165.1cm x 153.67cm x 148.59cm) |
| Lying Area Dimensions (L x W) | 58인치 x 48.5인치(147.3cm x 123.2cm) |
| 지면에서 좌석 높이 | 12.5인치(31.75cm) |
| 사이드 테이블 크기 (가로 x 세로 x 높이) | 10" x 7.5" x 12"(25.4cm x 19.05cm x 30.48cm) |
| 시트 쿠션 치수(길이 x 너비 x 두께) | 58" x 23.5" x 2"(147.3cm x 59.69cm x 5.08cm) |
| Throw Pillow Dimensions (L x W x Thickness) | 16" x 16" x 5"(40.64cm x 40.64cm x 12.7cm) |
| 순중량 | 59.5파운드(26.99kg) |
| Weight Capacity (Daybed) | 800파운드(362.87kg) |
| Weight Capacity (Each Side Table) | 10파운드(4.54kg) |
| 좌석 수 | 2명 |
| 재료 | PE Wicker, Steel, Polyester, Sponge |
| Wicker Color | 검은색 |
| 쿠션 컬러 | 베이지색 |
| 조립이 필요합니다 | 예 |
보증 정보
HAPPYGRILL products are manufactured to high-quality standards. For specific warranty details regarding your Outdoor Wicker Lounge Daybed, please refer to the warranty card included with your purchase or visit the official HAPPYGRILL web사이트. 보증 청구를 위해 구매 증빙 자료를 보관하세요.
고객 지원
If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact HAPPYGRILL customer support. Contact information can typically be found on the product packaging, the official HAPPYGRILL web웹사이트 또는 판매점의 지원 채널을 통해 문의하실 수 있습니다.
When contacting support, please have your model number (HG3079) and purchase date readily available.
