소개
구매해주셔서 감사합니다asing the AODK Electric Height Adjustable Standing Desk. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new desk. Please read these instructions carefully before use and retain them for future reference.

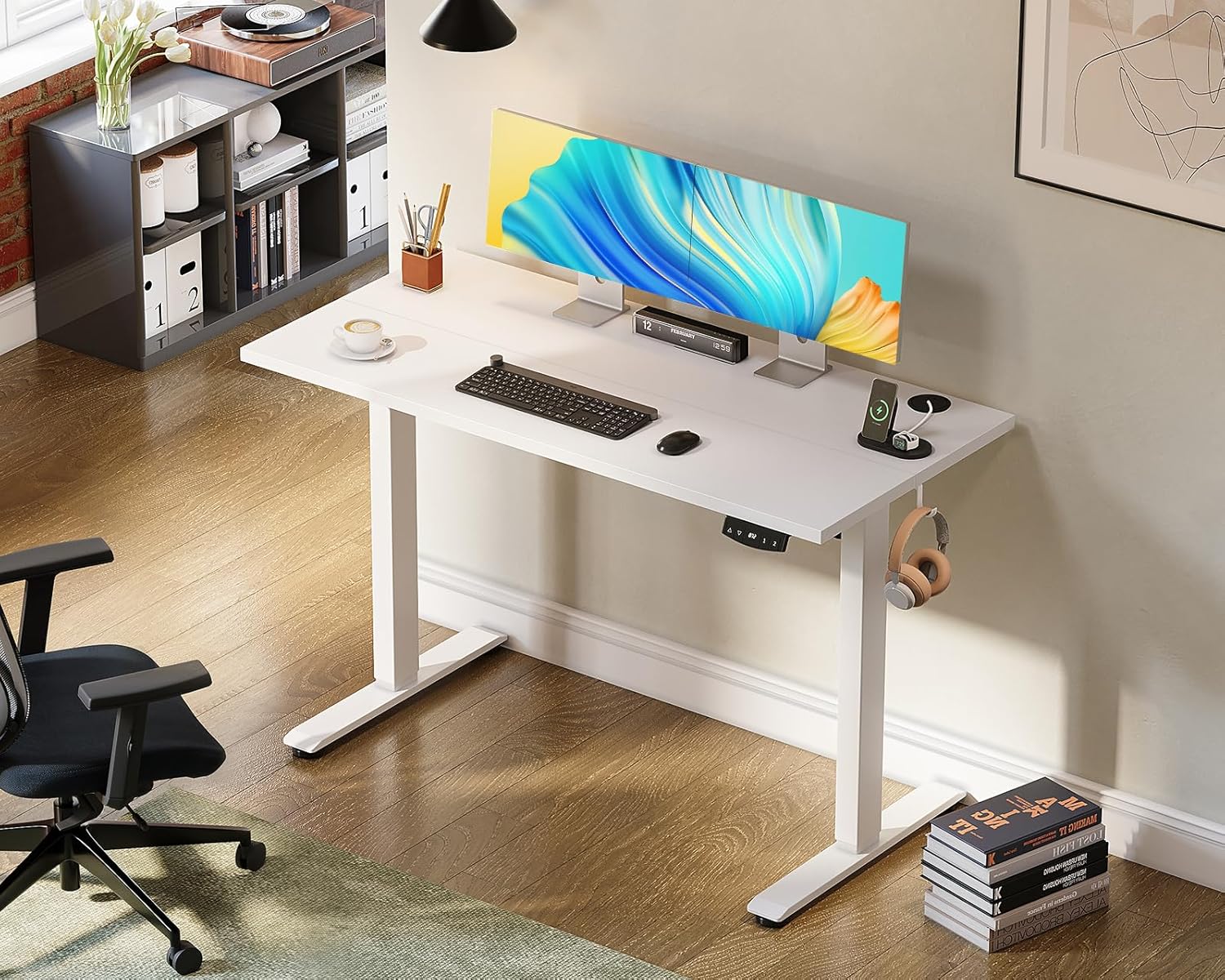

Image: AODK Electric Standing Desk in a modern office setup with a monitor, keyboard, and headphones.
안전 정보
- 사용하기 전에 모든 구성 요소가 단단히 고정되어 있는지 확인하십시오.
- 부상을 예방하기 위해 작동 중에는 어린이와 애완동물이 책상에 접근하지 못하도록 하세요.
- Do not overload the desk. The maximum dynamic load capacity is 80kg.
- The desk is equipped with an anti-collision function. If the desk encounters an obstacle during height adjustment, it will automatically stop to prevent damage or injury. However, always be aware of your surroundings.
- 모터 또는 제어 장치를 직접 분해하거나 수리하려고 하지 마십시오. 도움이 필요하면 고객 지원 센터에 문의하십시오.
- 전원 코드가 끼이거나 손상되지 않았는지 확인하세요.
Image: Diagram illustrating the anti-collision feature of the AODK Electric Standing Desk, showing automatic stop upon encountering an obstacle and a detailed view of the quiet motor.
제품 사양
| 특징 | 사양 |
|---|---|
| 치수(폭 x 깊이 x 높이) | 120cm x 54cm x 72-118cm |
| 높이 조절 범위 | 72 cm to 118 cm (stepless) |
| 체중 | 약 20kg |
| 정적 하중 용량 | 120kg |
| 동적 부하 용량 | 80kg |
| 리프팅 속도 | 20mm/초 |
| 소음 수준 | < 55dB (데시벨) |
| Material (Top Plate) | High-strength Melamine Laminated Board |
| 소재(프레임) | 고품질 탄소강 |
| 색상 | 하얀색 |
| 특별 기능 | Electric height adjustment, Memory function (2 presets), Anti-collision function, Quiet operation, Storage hook, Cable management hole, Adjustable feet |

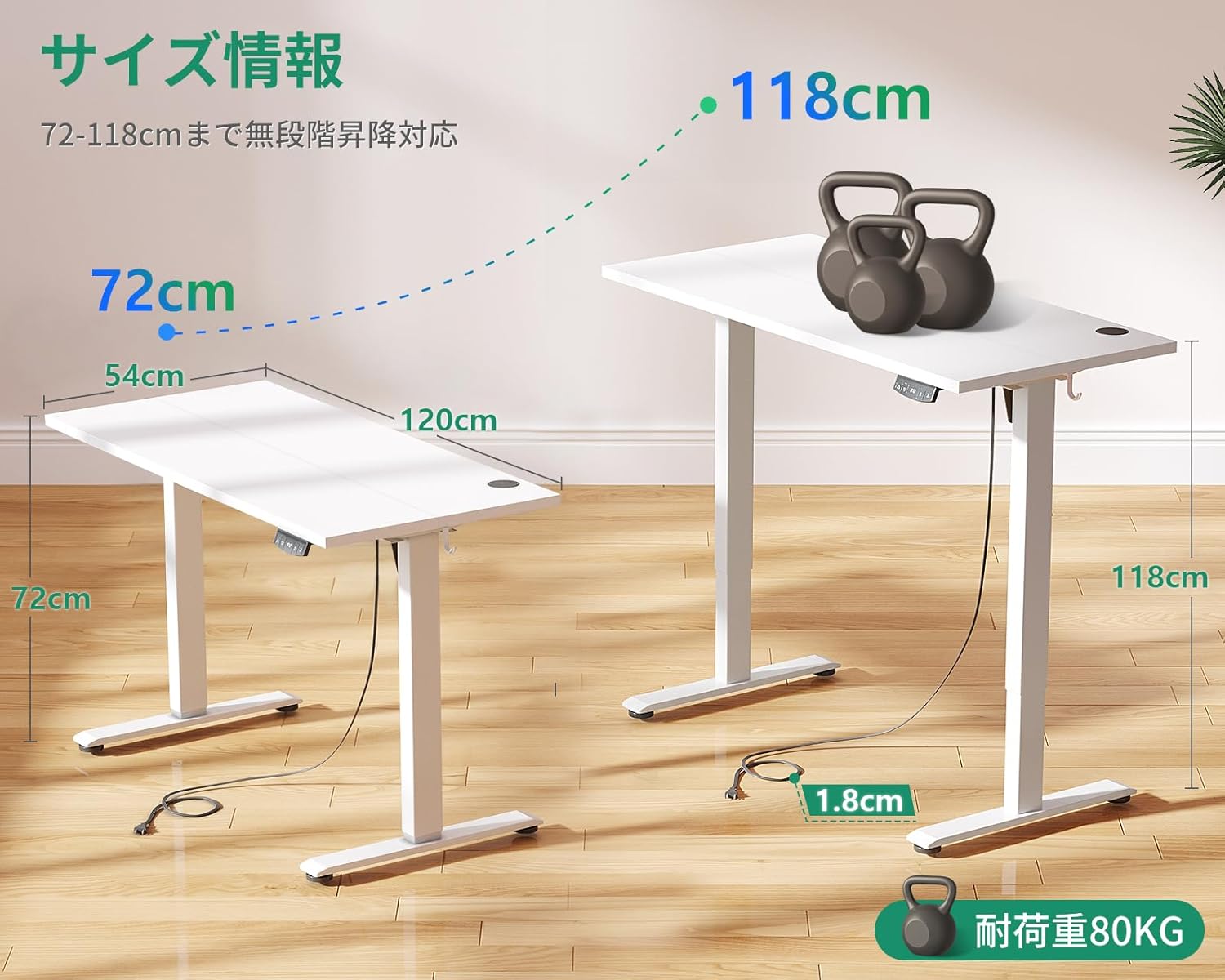

Image: Diagram showing AODK Electric Standing Desk dimensions and load capacity.
패키지 내용
Please check that all parts are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
- 데스크 탑
- Desk Legs and Frame Components
- 제어판
- 전원 어댑터 및 케이블
- 조립 하드웨어(나사, 볼트 등)
- 렌치
- 사용 설명서
조립 설명서
The AODK Electric Standing Desk is designed for easy customer assembly. A wrench is included for your convenience. A detailed, easy-to-understand instruction manual is provided within the package to guide you through each step. Follow the diagrams and instructions carefully to ensure proper and safe assembly.
- 모든 구성품을 풀어서 패키지 내용물 목록과 비교해보세요.
- Assemble the desk frame according to the provided diagrams, ensuring all screws are tightened.
- Attach the desk top to the assembled frame.
- Install the control panel and connect all necessary cables to the motor and power adapter.
- 전원 어댑터를 적절한 전원 콘센트에 꽂습니다.
- Adjust the feet levelers to ensure the desk is stable on your floor surface.
작동 지침
높이 조정
To adjust the desk height, simply press and hold the up (▲) or down (▼) buttons on the control panel. The desk will move smoothly to your desired height within the range of 72 cm to 118 cm. Release the button when the desk reaches the preferred height.
Image: Demonstrating the height adjustment feature for sitting (72cm) and standing (118cm) positions.
메모리 사전 설정
The desk features two memory preset buttons (1 and 2) to save your preferred sitting and standing heights. This allows for quick and easy switching between positions.
- 위/아래 버튼을 사용하여 책상 높이를 원하는 대로 조절하세요.
- Press and hold one of the memory buttons (1 or 2) until you hear a beep or see a confirmation on the display (if available). The height is now saved.
- To recall a saved height, simply press the corresponding memory button (1 or 2). The desk will automatically move to the saved position.
Image: Close-up of the control panel with memory preset buttons.
충돌방지 기능
The desk is equipped with an advanced anti-collision system. If the desk encounters an obstruction during upward or downward movement, it will automatically detect the obstacle, stop, and slightly reverse direction to prevent damage or injury. This feature enhances safety, especially in households with children or pets.
Features & Design Details
- 수납용 고리: A convenient hook is located on the underside of the desk top. It can be installed on either the left or right side to suit your preference and is ideal for hanging headphones, bags, or other accessories.
- 케이블 정리용 구멍: The desk top includes a cable management hole to help organize wires from multiple devices, keeping your workspace tidy and clutter-free.
- 조절 가능한 다리: The desk feet are equipped with adjusters, allowing for fine-tuning to ensure stability and prevent wobbling, even on slightly uneven floor surfaces.
- 견고한 구조: The desk features a high-strength melamine laminated board for the top, resistant to dirt, scratches, heat, and moisture. The frame is constructed from high-quality carbon steel, providing superior durability and resistance to deformation compared to standard steel. Upgraded robust legs further enhance the desk's stability, ensuring it remains steady even at its maximum height.
이미지: 상세 view of the storage hook, cable management hole, and adjustable feet.
유지
- 청소: 부드러운 천으로 책상 표면을 닦으세요.amp 옷감. 마감재를 손상시킬 수 있는 연마성 세제나 가혹한 화학 물질을 피하십시오.
- 정기 점검: 모든 나사와 볼트가 단단히 조여져 있는지 정기적으로 점검하세요. 필요하면 다시 조이세요.
- 조절 가능한 다리: Ensure the adjustable feet are properly set to maintain desk stability. Readjust if the desk feels wobbly.
- 케이블 관리 : Regularly check power and data cables to ensure they are not pinched or damaged, especially during height adjustments.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 책상이 움직이지 않아요 | Power cable disconnected; Motor error; Overload. | Check power connections. Unplug and replug the power cable. Reduce weight on the desk. If the issue persists, contact support. |
| 책상이 불안정하게 움직이거나 이상한 소음이 발생합니다. | 하중이 고르지 않음; 연결이 느슨함; 방해물. | 무게를 고르게 분산하세요. 모든 조립 나사를 점검하세요. 다리에 이물질이 없는지 확인하세요. |
| 충돌 방지 기능이 자주 작동합니다. | Obstruction in path; Sensitivity setting (if applicable). | Clear any objects from the desk's path. Ensure nothing is touching the desk legs or frame during movement. |
| 메모리 기능이 작동하지 않음 | 높이가 제대로 저장되지 않았습니다. | Re-save the desired height by holding the memory button until confirmation. |
If you encounter any issues not listed here or if the suggested solutions do not resolve the problem, please contact customer support.
보증 및 지원
AODK is committed to providing high-quality products. If you experience any defects or malfunctions with your desk, please do not hesitate to contact us. Our customer support team is available to assist you with any inquiries or issues you may have.
For support, please refer to the contact information provided with your purchase or visit the official AODK store on Amazon.
