CAARLA CA19 Pneumatic Strapping Machine User Manual

1. 서론

The CAARLA CA19 Pneumatic Strapping Machine is a handheld tool designed for efficient packaging using PET (Polyethylene Terephthalate) and PP (Polypropylene) plastic straps. This machine integrates tensioning, friction welding, and cutting functions into a single, easy-to-operate unit. It is suitable for various industrial applications, including metallurgy, steel, and building materials, providing a secure and reliable strapping solution.

Key features include its lightweight design, high-power pneumatic operation, and the use of friction hot melt for a strong, fastener-free joint. The ergonomic design ensures comfortable and safe operation.

2. 안전 지침

Read and understand all safety instructions before operating the machine. Failure to follow these instructions may result in injury or damage to the equipment.

• 개인 보호 장비(PPE): Always wear safety glasses, gloves, and appropriate footwear when operating the strapping machine.
• 급기: Ensure the air compressor is properly maintained and provides stable air pressure within the specified range (0.5-0.7 Mpa). Disconnect the air supply before performing any maintenance, adjustments, or when the machine is not in use.
• 작업 영역: 작업 공간은 깨끗하고 밝으며 장애물이 없도록 유지하십시오. 적절한 환기를 확보하십시오.
• Strap Handling: Be cautious when handling strapping material, as it can recoil under tension. Keep hands and body clear of the strap path during operation.
• 기계 검사: Before each use, inspect the machine for any damage, loose parts, or worn components. Do not operate a damaged machine.
• 허가받지 않은 수정: Do not modify the machine or use non-original replacement parts. This may compromise safety and void the warranty.

3. 제품 구성품

The CAARLA CA19 Pneumatic Strapping Machine consists of several key components designed for efficient operation. The package also includes essential tools for setup and maintenance.

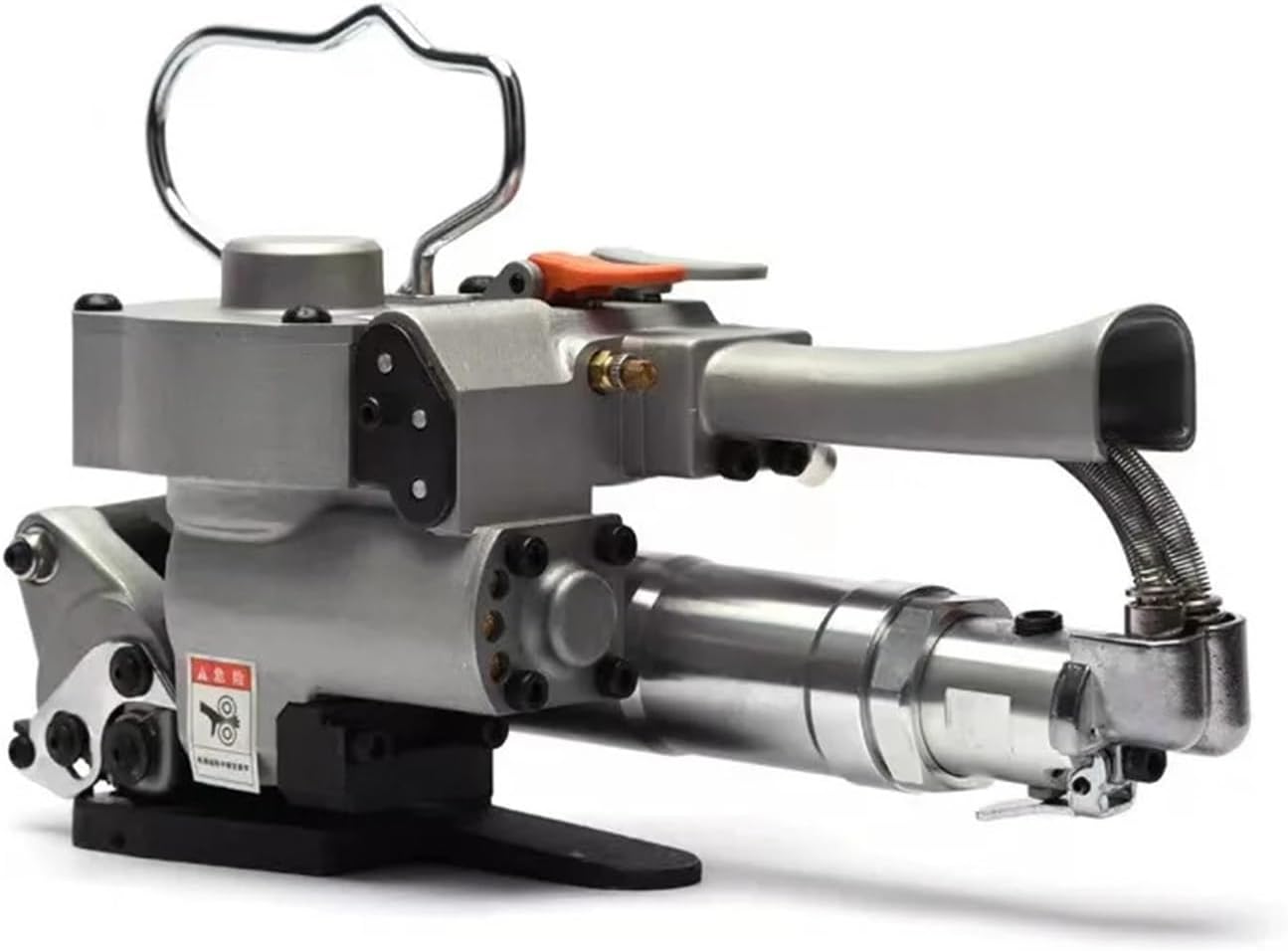

Figure 1: CAARLA CA19 Pneumatic Strapping Machine and accessory tools.

• 본문: Houses the pneumatic motor and mechanisms.
• 핸들: 편안한 조작을 위한 인체공학적 손잡이.
• Tensioning Lever/Button: Activates the strap tensioning mechanism.
• Welding/Cutting Lever/Button: Initiates the friction welding and strap cutting process.
• Strap Guides: Channels for proper strap insertion.
• 공기 유입구: 에어호스 연결부.
• 포함된 도구: Wrenches, hex keys, and a screwdriver for adjustments and maintenance.

그림 2: 상세 views of the machine's tensioning, welding, and air inlet components.

4. 설정

Follow these steps to prepare your CAARLA CA19 for operation:

1. 짐 풀기: Carefully remove the strapping machine and all accessories from its packaging. Inspect for any shipping damage.
2. 공기 압축기 연결: Connect a suitable air hose from your air compressor to the air inlet on the strapping machine. Ensure the connection is secure and leak-free. The ideal working pressure is 0.63 Mpa (approximately 91 PSI), with a permissible range of 0.5-0.7 Mpa (72-101 PSI).
3. 스트랩 준비: Ensure you are using the correct type and size of strap (PP/PET, 13-19mm width, 0.5-1.2mm thickness) for the CA19 model.

5. 사용 설명서

Operating the CAARLA CA19 is a three-step process: strap insertion, tensioning, and friction welding/cutting.

1. Strap Insertion:
   • Place the strap around the package or bundle you wish to secure.
   • Insert the leading end of the strap into the lower strap guide of the machine.
   • Bring the other end of the strap over the first, and insert it into the upper strap guide, ensuring it passes through the tensioning and welding mechanisms.
2. 긴장:
   • Press and hold the tensioning lever/button. The machine will begin to pull the strap tight around the package.
   • Release the lever/button once the desired strap tension is achieved. Avoid over-tensioning, which can damage the package or strap.
3. Friction Welding and Cutting:
   • After tensioning, press and hold the welding/cutting lever/button. The machine will perform a friction weld to join the strap ends and then cut the excess strap.
   • Hold the lever/button until the welding and cutting cycle is complete (typically a few seconds).
   • Release the lever/button and carefully remove the machine from the strapped package.

6. 유지관리

정기적인 유지보수는 스트래핑 기계의 수명과 최적의 성능을 보장합니다.

• 청소: Regularly clean the strap guides, tensioning wheel, and welding plate to prevent strap residue buildup. Use a dry cloth or compressed air.
• 에어 시스템 : Periodically check air hose connections for leaks and ensure the air filter on your compressor is clean.
• 매끄럽게 하기: Consult the manufacturer's guidelines for specific lubrication points and schedules. Generally, moving parts may require light lubrication to ensure smooth operation.
• 점검: Inspect wear parts such as the tensioning wheel, cutter blade, and welding plate for signs of wear or damage. Replace worn parts as necessary using original manufacturer components.
• 저장: Store the machine in a clean, dry environment when not in use. Disconnect the air supply.

7. 문제 해결

If you encounter issues with your CAARLA CA19, refer to the following common problems and solutions:

8. 사양

9. 보증 및 지원

For warranty information, technical support, or to order replacement parts, please contact your original point of purchase or the manufacturer directly. Keep your purchase receipt as proof of purchase.
