SilhouEase SE14 Magnetic Exhaust Fan Cover & Removable Return Vent

1. 서론

The SilhouEase SE14 is a dual-purpose magnetic cover designed to function as both an exhaust fan cover and a removable air return vent. Engineered for flush mounting on ceilings or walls, it provides an ultra-minimal and professional finish, blending seamlessly into any interior. Its magnetic closure allows for easy access while ensuring a secure fit. This manual provides essential information for the proper installation, operation, and maintenance of your SilhouEase SE14 unit.

Figure 1: The SilhouEase SE14 Magnetic Exhaust Fan Cover and Removable Return Vent.

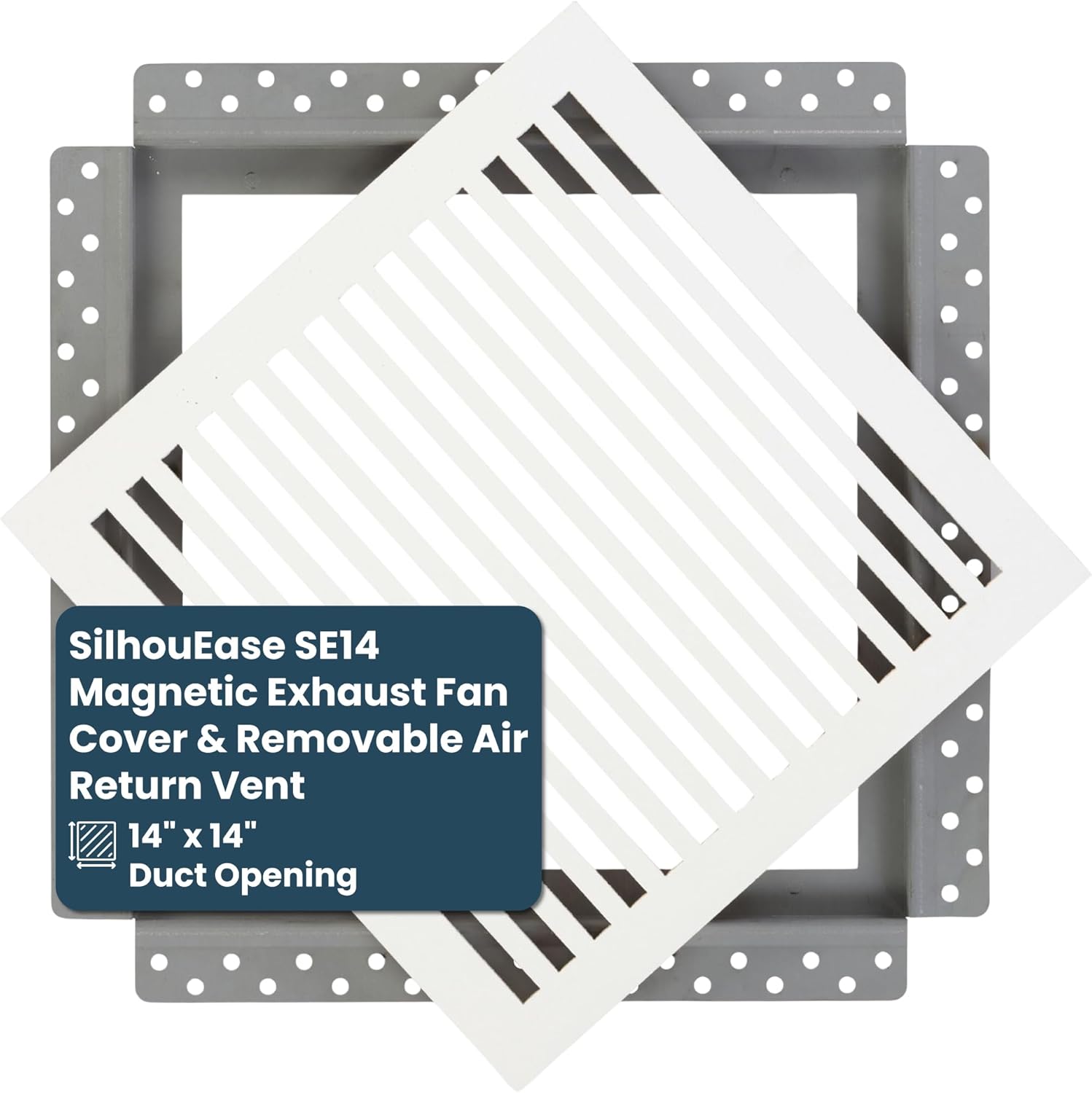

Figure 2: The SilhouEase SE14, highlighting its 14" x 14" duct opening compatibility.

2. 제품 특징

• 이중 목적 설계: Functions as both an exhaust fan cover and a removable air return vent with magnetic closure, enabling clean, flush mounting.
• Easy Access & Secure Fit: Features a magnetic inlay for seamless access and secure closure, ideal for areas requiring regular maintenance or damp어 조정.
• 내구성 있는 구조: Made from water and moisture-resistant materials, including non-combustible triple-fiber reinforced cement board and a 24-gauge galvanized steel frame.
• 맞춤형 마감: Arrives pre-primed and paint-ready, allowing for easy blending with your ceiling or wall finish. It can also be wallpapered.
• 다양한 사이즈: This specific model (SE14) is 14" x 14" and suitable for standard duct openings from 4" to 12".

Figure 3: The sophisticated aesthetic and removable panel feature of the SilhouEase SE14.

Figure 4: Comparison of SilhouEase SE14's superior design and functionality against traditional vents.

Figure 5: Illustration of the robust materials used in the SilhouEase SE14 construction.

3. 설치 가이드

The SilhouEase SE14 is designed for flush-mount installation, compatible with 1/2" or 5/8" drywall. Professional installation is recommended for optimal results, especially for achieving a seamless finish.

3.1. Tools and Materials Required (Not Included)

• 줄자
• 연필
• 석고보드 톱 또는 다용도 칼
• 수준
• Drywall Mud/Joint Compound
• 건식벽체 테이프
• Sanding Tools
• Paint or Wallpaper (optional, for customization)

3.2. 설치 단계

1. 오프닝을 준비하세요: Ensure your existing duct opening is within the compatible range (4" to 12" for the 14"x14" model). Measure and mark the precise 14" x 14" square on your ceiling or wall where the vent will be installed. Use a level to ensure the lines are straight.
2. 석고보드를 자르세요: Carefully cut out the marked square using a drywall saw or utility knife. Ensure the edges are clean and straight.
3. Install the Frame: Insert the SilhouEase SE14 frame into the prepared opening. The frame is designed to sit flush with the drywall surface. Secure the frame to the surrounding studs or joists using appropriate fasteners (not included). Ensure the frame is level and securely mounted.
4. Apply Drywall Mud/Tape: Once the frame is securely in place, apply drywall tape around the edges of the frame where it meets the existing drywall. Apply several thin coats of drywall mud (joint compound) over the tape and the frame's flange, feathering it out to create a smooth, seamless transition with the surrounding wall or ceiling. Allow each coat to dry thoroughly before applying the next.
5. 모래와 마무리: Once the mud is completely dry, sand the area smooth to achieve a perfectly flush and seamless surface. Remove any dust.
6. Paint or Wallpaper (Optional): The pre-primed surface of the SilhouEase SE14 frame is ready for painting or wallpapering. Apply your desired finish to match your interior decor. Ensure the paint or wallpaper extends over the mudded area for a truly invisible look.
7. Attach the Magnetic Cover: Once the paint or wallpaper is dry, simply place the magnetic cover onto the installed frame. The strong magnets will hold it securely in place, creating a clean, flush appearance.

Figure 6: The virtually invisible flush-mount design of the SilhouEase SE14 in a home setting.

Figure 7: Customizing the SilhouEase SE14 to match your interior with paint or wallpaper.

Figure 8: The SilhouEase SE14 functioning as a bathroom exhaust fan cover.

Figure 9: Guide to finding the right size for your space, showing various compatible opening sizes.

4. 운영

The SilhouEase SE14 is designed for simple operation, primarily for accessing the ductwork or fan for maintenance. The magnetic attachment allows for quick and easy removal and reattachment of the cover panel.

4.1. Removing the Cover Panel

• Gently pull on the edges of the cover panel. The magnetic hold will release, allowing you to remove the panel.
• Store the panel in a safe place while performing maintenance or adjustments to the fan or ductwork.

4.2. Reattaching the Cover Panel

• Align the cover panel with the installed frame.
• The magnets will guide the panel into place, securing it flush against the frame.

5. 관리 및 유지 보수

Regular care will ensure the longevity and aesthetic appeal of your SilhouEase SE14.

• 청소: The surface can be wiped clean with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the paint or material.
• Repainting/Re-wallpapering: If you wish to change your decor, the cover panel can be repainted or re-wallpapered as needed. Ensure the surface is clean and dry before applying new finishes.
• 습기 저항성: The product is designed to be moisture and water-resistant, making it suitable for humid environments like bathrooms. However, avoid prolonged exposure to standing water.

6. 문제 해결

While the SilhouEase SE14 is designed for reliable performance, here are some common issues and potential solutions:

• Cover Panel Not Sitting Flush:
  • Ensure the drywall mudding around the frame is completely smooth and even. Any bumps or unevenness will prevent the panel from sitting flush.
  • Check for any debris or obstructions between the panel and the frame.
• Magnetic Hold Feels Weak:
  • Verify that the frame is installed correctly and that the magnetic inlay is not obstructed by excessive paint or wallpaper layers.
  • Ensure the panel is correctly aligned with the frame.
• Difficulty Removing Panel:
  • Apply gentle, even pressure when pulling. Avoid prying with tools that could damage the finish.

7. 제품 사양

8. 보증 및 지원

For specific warranty information, please refer to the documentation provided with your purchase or contact LUXAIRY VENTS directly. The product typically comes with a 30-day return policy from the date of purchase.

8.1. 고객 지원

If you have any questions, require technical assistance, or need to report an issue, please contact LUXAIRY VENTS customer support through their official website or the retailer from whom you purchased the product. Please have your model number (SE14) and purchase details ready when contacting support.
