소개
This manual provides essential information for the proper installation, operation, and maintenance of your KomeStone K4 Double-Barrel Rock Tumbler Replacement Belts. These belts are designed for durability and optimal performance with your KomeStone K4 Double-Barrel Rock Tumbler. Please read this manual thoroughly before attempting any installation or maintenance.
안전 정보
경고:
- Avoid direct contact with eyes when handling the product or any associated materials.
- Ensure the rock tumbler is unplugged and powered off before attempting any belt replacement or maintenance.
- Keep replacement belts and small parts out of reach of children and pets.
상자 안에 무엇이 들어있나요?
패키지에는 다음 항목이 포함되어 있어야 합니다.
- 2 x Rock Tumbler Belts
설정 및 설치
Follow these steps to replace the drive belt on your KomeStone K4 Double-Barrel Rock Tumbler:
- 전원 끄기 및 플러그 뽑기: Before beginning, ensure your rock tumbler is completely powered off and unplugged from the electrical outlet. This is crucial for your safety.
- 드라이브 메커니즘에 접근하세요: Carefully locate the drive mechanism where the existing belt is situated. This may involve removing a protective cover or panel on your tumbler, depending on its design. Refer to your rock tumbler's original manual if unsure.
- 오래된 벨트 제거: Gently roll the old belt off the motor pulley and the larger drive wheel. If the belt is broken, simply remove any remaining pieces.
- 새 벨트 설치: Place one of the new replacement belts around the larger drive wheel first. Then, carefully stretch and roll the belt onto the smaller motor pulley. Ensure the belt is seated correctly in the grooves of both pulleys.
- 장력 확인: Once installed, the belt should be snug but not overly tight. It should allow the drive wheel to turn smoothly without excessive resistance or slippage.
- 커버 교체: Reattach any protective covers or panels that were removed.
- 테스트 작업: Plug in the rock tumbler and turn it on briefly to ensure the new belt is functioning correctly and the barrels are rotating smoothly.

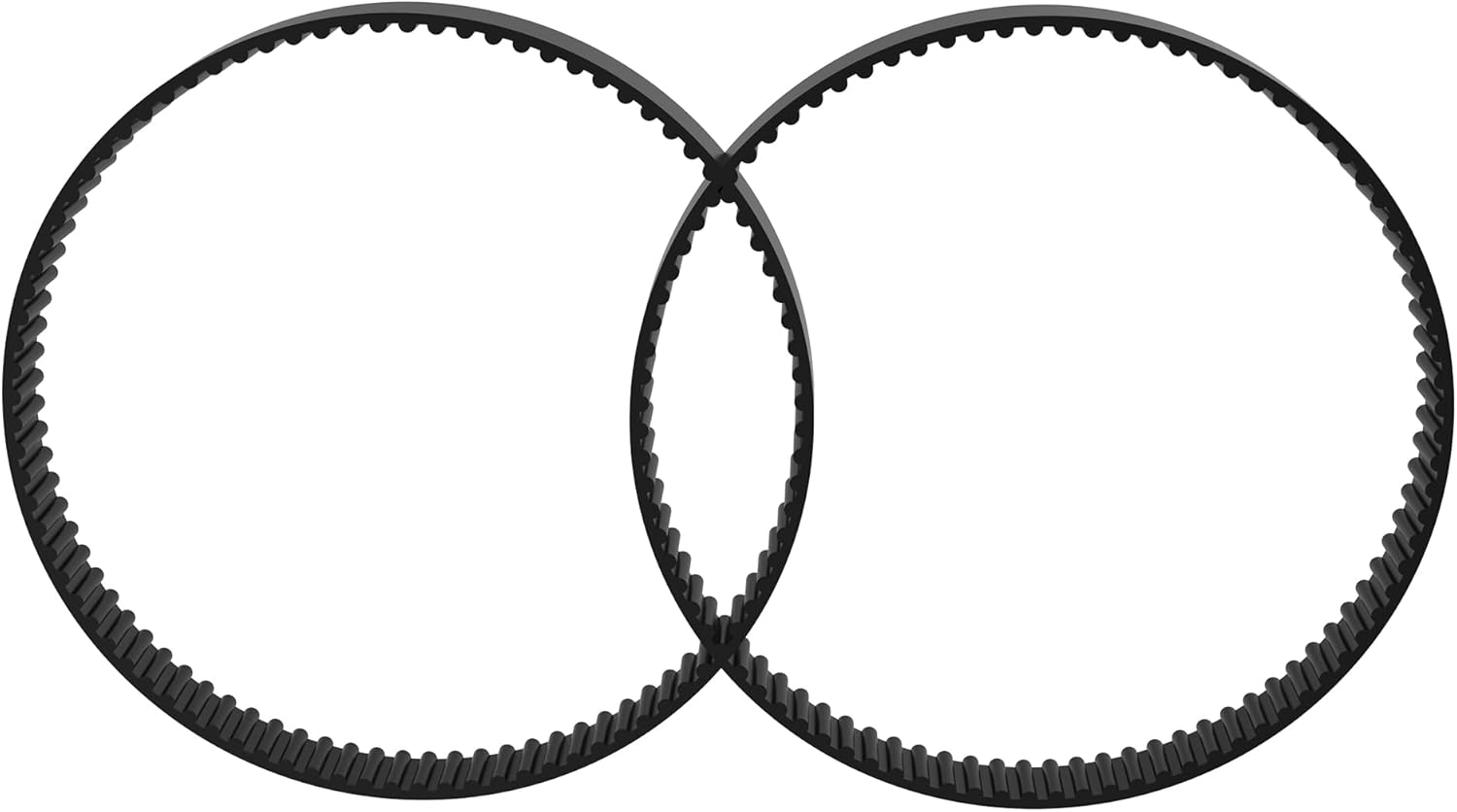

Image: Two KomeStone K4 Double-Barrel Rock Tumbler Replacement Belts. These durable belts are designed to ensure smooth and consistent rotation of your rock tumbler's barrels, essential for effective polishing.
작동 원리
The replacement belt serves as the crucial link between the motor and the rotating barrels of your rock tumbler. It transfers power from the motor to the drive shaft, causing the barrels to rotate. Proper belt tension and condition are vital for consistent tumbling action and efficient polishing of your materials.
유지
To maximize the lifespan of your replacement belts and ensure optimal performance of your rock tumbler, consider the following maintenance tips:
- 정기 검사: 벨트에 마모, 균열, 닳음 또는 늘어짐이 있는지 주기적으로 점검하십시오. 심각한 손상이 발견되면 벨트를 교체하십시오.
- 깨끗하게 유지하십시오: Ensure the belt and pulleys are free from debris, grit, or lubricant buildup, which can cause slippage or premature wear.
- 적절한 장력: Avoid over-tightening the belt, as this can strain the motor and bearings. Conversely, a loose belt will slip and not transfer power effectively.
- 저장: Store spare belts in a cool, dry place away from direct sunlight and extreme temperatures to prevent material degradation.
문제 해결
If you encounter issues with your rock tumbler's operation after belt replacement, consider these common troubleshooting steps:
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| Barrels not rotating or rotating slowly | Belt is loose or slipping | Check belt tension; ensure it is properly seated on pulleys. Clean pulleys if greasy. |
| 이상한 소음 (끽끽거리는 소리, 갈리는 소리) | Belt misalignment or wear | Inspect belt for damage or improper seating. Replace if worn. |
| Belt breaks frequently | Over-tightening, worn pulleys, or excessive load | Ensure belt is not too tight. Inspect pulleys for sharp edges. Reduce load in barrels if consistently overloaded. |
명세서
- 제품 크기: 4.33 x 2.76 x 0.47 인치
- 품목 무게: 0.16 온스
- ASIN: B0DK57CSJ5
- 제조업체: 코메스톤
- 호환성: KomeStone K4 Double-Barrel Rock Tumbler
보증 및 지원
KomeStone products are manufactured to high standards. For specific warranty details or technical support regarding your replacement belts or KomeStone rock tumbler, please refer to the warranty information provided with your original rock tumbler purchase or visit the official KomeStone website. You may also contact KomeStone customer service for assistance.
추가 지원이 필요하면 다음을 방문하세요. KomeStone Store on Amazon.
