URPIZY Replacement Red Valve Handwheel Instruction Manual

1. 제품 오버view

The URPIZY Replacement Red Valve Handwheel is designed for easy replacement of existing faucet and valve handles. Constructed from durable cast iron with a protective red paint finish, this handwheel is suitable for various indoor and outdoor applications.

주요 특징:

• Durable cast iron construction with red paint finish.
• Designed for easy installation and replacement.
• Compatible with various faucet types including garden, courtyard, bathroom, toilet, and kitchen faucets.
• Available in multiple stem hole sizes: 6mm, 7mm, and 8mm.

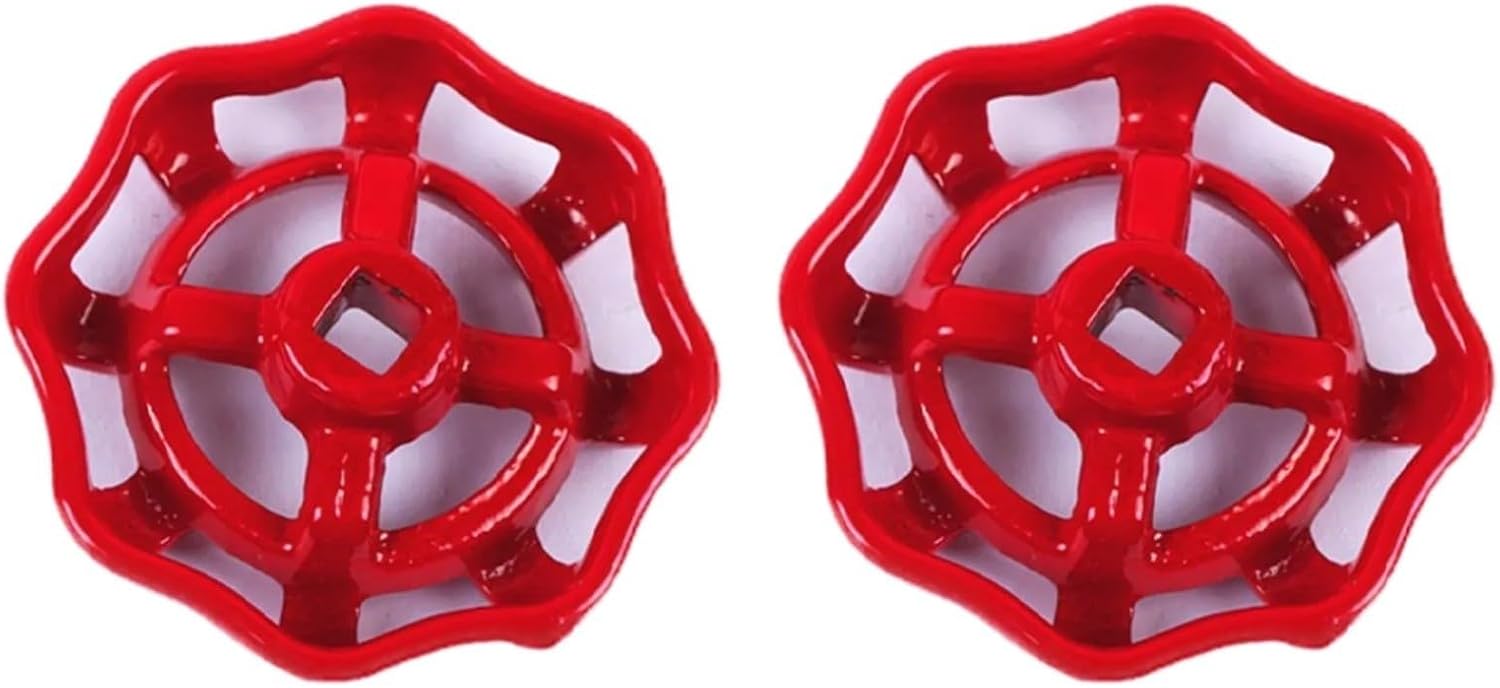

이미지 1: 상단 view of two URPIZY Replacement Red Valve Handwheels, highlighting the design and square stem hole.

2. 설정 및 설치

This valve handwheel is designed for straightforward installation. Ensure you have the correct size handwheel (6mm, 7mm, or 8mm) to match your faucet's stem.

1. 준비: Turn off the water supply to the faucet you intend to replace the handwheel on.
2. Remove Old Handwheel: If an old handwheel is present, carefully remove any retaining screws or caps. Then, pull the old handwheel off the faucet stem.
3. Clean Stem: Clean any debris or corrosion from the faucet stem to ensure a secure fit for the new handwheel.
4. Install New Handwheel: Align the square hole of the URPIZY Replacement Red Valve Handwheel with the square stem of the faucet. Press the handwheel firmly onto the stem.
5. Secure Handwheel: Use the appropriate screw (not included, typically reused from the old handwheel or provided with the faucet) to secure the handwheel to the stem. Tighten gently to prevent damage.
6. 시험: Turn on the water supply and test the new handwheel for proper operation (opening and closing the valve) and to check for any leaks.

이미지 2: 각도 view of the handwheel, illustrating the square stem connection point for installation.

3. 사용 설명서

The URPIZY Replacement Red Valve Handwheel operates like a standard faucet or valve handle.

• 밸브를 열려면: Turn the handwheel counter-clockwise. The amount of turn required to fully open the valve may vary depending on the faucet mechanism.
• 밸브를 닫으려면: Turn the handwheel clockwise until the water flow stops completely. Do not overtighten, as this can damage the valve or the handwheel.

4. 유지관리

To ensure the longevity and proper function of your URPIZY Replacement Red Valve Handwheel, follow these simple maintenance guidelines:

• 청소: Wipe the handwheel periodically with a damp cloth to remove dirt and grime. Avoid abrasive cleaners that could damage the paint finish.
• 점검: Regularly check the handwheel for any signs of wear, cracks, or looseness. Ensure the retaining screw remains tight.
• 부식 방지: While the cast iron is painted, prolonged exposure to harsh chemicals or extreme weather conditions may affect the finish. Consider applying a protective coating if used in highly corrosive environments.

5. 문제 해결

If you encounter issues with your valve handwheel, consider the following:

• Handwheel is Loose: Check if the retaining screw is tightened securely. If the screw is stripped or the handwheel hole is worn, replacement may be necessary.
• Handwheel Does Not Turn: Ensure there is no obstruction preventing the handwheel from turning. The faucet valve itself might be seized or damaged, requiring professional attention.
• 물 누출: If water leaks from around the stem after handwheel replacement, the issue is likely with the faucet's internal packing or O-rings, not the handwheel itself. Consult a plumbing professional.

6. 사양

Image 3: Illustration of different handwheel sizes, with a specific mention of 7mm.

7. 패키지 내용

패키지에는 다음이 포함됩니다.

• 1 x URPIZY Replacement Red Valve Handwheel

8. 보증 및 지원

Specific warranty information for the URPIZY Replacement Red Valve Handwheel is not provided in the product details. For any support inquiries or further assistance, please refer to the retailer or manufacturer's contact information where the product was purchased.
