DATOUBOSS Pure Sine Wave Inverter 1200W-12V User Manual

1. 제품 오버view

The DATOUBOSS Pure Sine Wave Inverter is a high-performance device designed to convert 12V DC power from a battery into stable 100V AC power, suitable for a wide range of electronic appliances. Utilizing advanced SPWM technology, it delivers a clean and reliable power output, minimizing the risk of damage to sensitive electronics. With a continuous output of 1200W and a peak output of 2400W, this inverter is ideal for various applications, including solar power systems, vehicle use (cars, trucks, boats, RVs), camping, outdoor activities, and as an emergency power source during outag에스.

Image: The DATOUBOSS Pure Sine Wave Inverter providing power to a laptop, tablet, and smartphone, illustrating its versatile AC output capabilities.

This inverter features multiple output ports, including standard AC outlets, a USB port, and a Type-C port, ensuring compatibility with diverse devices. Its robust construction and efficient cooling system contribute to its durability and quiet operation, making it a reliable power solution.

2. 안전 정보 및 보호 조치

Your safety and the protection of your devices are paramount. The DATOUBOSS Pure Sine Wave Inverter is equipped with five powerful protection functions to ensure safe and stable operation under various conditions:

• 과열 보호: Automatically shuts down the inverter if internal temperatures exceed safe limits.
• 오버볼tage 보호: Prevents damage from excessively high input voltage.
• 언더볼tage 보호: Protects your battery from deep discharge by shutting off when input voltage가 너무 낮습니다.
• 단락 보호: Safeguards the inverter and connected devices against short circuits.
• 과부하 보호: Automatically cuts power if the connected load exceeds the inverter's capacity.

항상 다음 안전 지침을 준수하세요.

• 인버터 c를 열지 마십시오.asing; 내부에 사용자가 수리할 수 있는 부품이 없습니다.
• 과열을 방지하려면 인버터 주변을 적절하게 환기시키십시오.
• 인버터를 물, 습기 및 가연성 물질로부터 멀리하십시오.
• Connect the inverter to a 12V DC power source only.
• Always use appropriate cables for connection, ensuring they can handle the required current.

Image: Visual representation of the inverter's five safety protection features, ensuring secure operation.

3. 제품 구성품

Familiarize yourself with the various parts of your DATOUBOSS Pure Sine Wave Inverter:

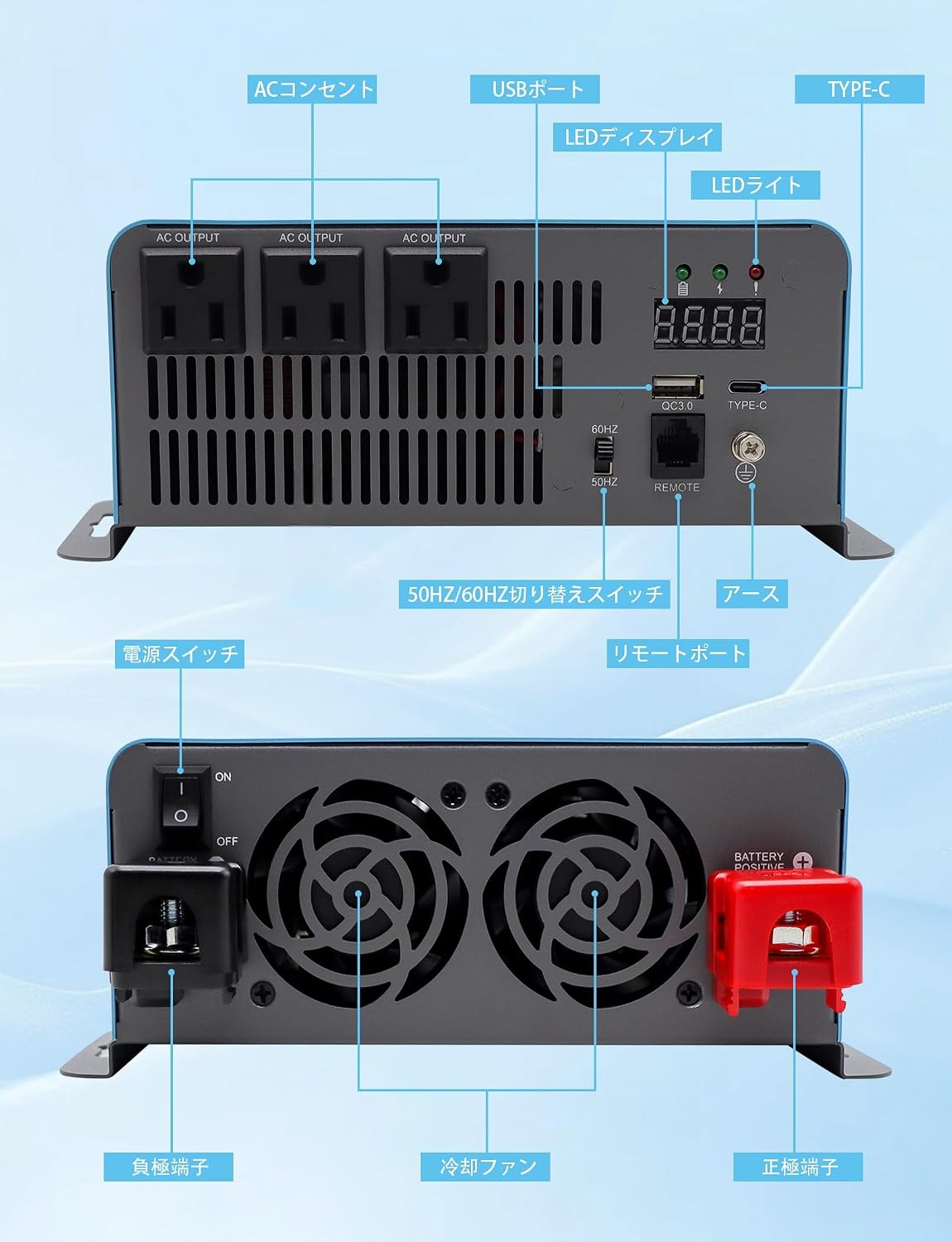

Image: Detailed diagram showing the front and rear panels of the inverter, highlighting all input/output ports, controls, and cooling components.

• AC 콘센트: Three standard 100V AC outlets for connecting appliances.
• USB 포트: USB 전원 장치 충전용.
• C 형 포트 : For charging compatible Type-C devices.
• LED 디스플레이: 입력 볼륨 표시tage, 출력 볼륨tage, 출력 와트tage.
• LED 표시등: Status lights for power and fault conditions.
• 50Hz/60Hz Switch: Allows selection of output frequency to match regional standards.
• 원격 포트: Connects to the included remote control for convenient operation.
• 접지 터미널: 안전 접지를 위해.
• 전원 스위치: Main ON/OFF switch for the inverter.
• 냉각 팬 : Two built-in fans for efficient heat dissipation.
• 양극(+) 및 음극(-) 단자: For connecting to the 12V DC battery.

The package includes the pure sine wave inverter unit, a remote control, connection cables, and this instruction manual.

4. 설정 지침

Follow these steps to set up your inverter:

1. 위치를 선택하세요: Place the inverter in a dry, well-ventilated area, away from direct sunlight, heat sources, and flammable materials. Ensure there is sufficient space around the cooling fans for airflow.
2. 케이블 준비: The included cables are suitable for initial use. However, for prolonged use at maximum power (1200W continuous, 2400W peak), it is highly recommended to use 4 AWG (American Wire Gauge) cables to ensure optimal performance and safety. The inverter requires a battery capable of supplying at least 115A continuously for maximum output.
3. 배터리에 연결:
   • Connect the positive (+) cable (red) from your 12V DC battery to the positive (+) terminal on the inverter.
   • Connect the negative (-) cable (black) from your 12V DC battery to the negative (-) terminal on the inverter.
   • 모든 연결 부분이 단단하고 안전하게 되어 아크와 과열을 방지하세요.
4. 접지: Connect a grounding wire from the inverter's ground terminal to a suitable ground point (e.g., vehicle chassis or earth ground) for added safety.
5. 원격 제어 연결(선택 사항): If using the remote control, plug its cable into the remote port on the inverter. The remote control cable is 6 meters long, offering flexible placement.
6. 주파수를 선택하세요: Use the 50Hz/60Hz switch on the inverter to select the appropriate output frequency for your region (e.g., 50Hz for Eastern Japan, 60Hz for Western Japan).

Image: The inverter highlighting its 50Hz/60Hz frequency selection switch, adaptable for different regional power standards in Japan.

Image: The inverter's remote control, illustrating its compact size and the generous 6-meter cable for convenient operation.

5. 사용 설명서

To operate your DATOUBOSS Pure Sine Wave Inverter:

1. 전원 켜기: Ensure all connections are secure. Flip the main power switch on the inverter to the "ON" position. If using the remote control, ensure the inverter's main switch is ON, then press the ON button on the remote. The LED display will illuminate, showing current voltage와 왓tage.
2. 장치 연결: Plug your AC appliances into the AC outlets, or USB/Type-C devices into their respective ports. Ensure the total wattage of connected devices does not exceed 1200W continuously or 2400W momentarily.
3. 모니터 성능: Observe the LED display for real-time input voltage, 출력 볼륨tage, 출력 와트tag이자형. 출력 볼륨tage typically ranges from 95V to 105V AC.
4. 전원 끄기 : Before disconnecting any devices, turn off the inverter by flipping the main power switch to "OFF" or pressing the OFF button on the remote control. Then, disconnect your appliances.

메모: If using the remote control, avoid turning the remote ON before starting your vehicle's engine if the inverter is connected to the vehicle battery. This can sometimes trigger an error. It is recommended to start the engine first, then turn on the inverter via the remote.

6. 유지관리

정기적인 유지보수는 인버터의 수명 연장과 최적의 성능을 보장합니다.

• 깨끗하게 유지하십시오: Periodically clean the exterior of the inverter with a dry, soft cloth. Ensure the cooling fan vents are free from dust and debris to maintain proper airflow.
• 연결 확인: Regularly inspect all cable connections to the battery and inverter terminals. Ensure they are tight and free from corrosion. Loose connections can cause overheating and power loss.
• 저장: 장기간 사용하지 않을 경우 인버터를 서늘하고 건조한 곳에 보관하십시오. 배터리 방전을 방지하기 위해 배터리에서 분리하십시오.
• 배터리 상태: Maintain your 12V DC battery in good condition. A healthy battery is crucial for the inverter's efficient operation.

7. 문제 해결

인버터에 문제가 발생하면 다음의 일반적인 문제와 해결 방법을 참조하세요.

If the problem persists after attempting these solutions, please contact DATOUBOSS customer support.

8. 사양

Image: The inverter with its physical dimensions labeled, indicating its compact and portable design.

9. 보증 및 지원

The DATOUBOSS Pure Sine Wave Inverter comes with a 1년 제조사 보증 구매일로부터. 이 보증은 정상적인 사용 하에서 재료 및 제조상의 결함을 포함합니다.

For warranty claims, technical assistance, or any questions regarding your product, please contact DATOUBOSS customer support through the retailer where you purchased the item. Please have your purchase receipt and product model number (B-SAK-1200W-12V) ready when contacting support.

For more information about DATOUBOSS products, you can visit the official brand store: DATOUBOSS Brand Store.
