Oneisall 2.5L Silent BPA-Free Cat Water Fountain User Manual

1. 서론

Thank you for choosing the Oneisall 2.5L Silent BPA-Free Cat Water Fountain. This product is designed to provide your cat with fresh, clean, and continuously flowing water, encouraging better hydration and promoting overall health. Its silent operation and multi-layer filtration system ensure a peaceful environment and pure drinking water for your beloved pet.

Please read this manual carefully before use to ensure proper installation, operation, and maintenance. Keep this manual for future reference.

2. 안전 지침

• Ensure the power adapter and cable are kept dry. Do not immerse the adapter in water.
• 분수대를 청소하거나 유지 보수하기 전에는 항상 전원을 차단하십시오.
• 이 제품은 실내에서만 사용하세요.
• Do not allow pets to chew on the power cord. If the cord is damaged, discontinue use immediately.
• 어린이의 손이 닿지 않는 곳에 보관하세요.
• Use only original Oneisall parts and accessories.
• The fountain is made from non-toxic, BPA-free, food-grade plastic (ABS, PP) to ensure your pet's health.

3. 패키지 내용

모든 품목이 들어 있는지 확인하려면 패키지를 확인하세요.

• 1 x Oneisall Cat Water Fountain (Main Unit)
• 1 x 물 펌프
• 1 x Power Cable (USB)
• 교체용 필터 1개
• 1 x 사용자 설명서

4. 제품 구성품

Familiarize yourself with the main parts of your Oneisall Cat Water Fountain:

• 수조: Transparent reservoir with 2.5L capacity and water level indicators.
• Top Tray: Features two circulating drinking trays for pets.
• 필터 케이스: Holds the multi-layer filter.
• 물 펌프: Submersible pump for water circulation.
• 필터: Multi-layer filtration system (cotton, activated carbon, ion-exchange resin).
• LED 조명: Integrated blue LED for water level monitoring.

Figure 4.1: Transparent water tank with level indicators and LED light.

Figure 4.2: Fountain highlighting 2.5L capacity and LED.

5. 조립 및 설정

1. 구성 요소 풀기: 포장에서 모든 부품을 조심스럽게 꺼냅니다.
2. 헹굼 구성품: Rinse the water tank, top tray, and pump thoroughly with water. Do not use soap on the pump.
3. 필터 설치: Place the multi-layer filter into the filter case. Ensure it is seated correctly.
4. 펌프를 조립하십시오: Connect the water pump to the tube extending from the top tray. Ensure a secure fit.
5. Place Pump: Position the assembled pump and top tray into the water tank. The pump should be fully submerged when the tank is filled.
6. 물 탱크 채우기: Fill the water tank with clean water up to the 'Max' line. Do not overfill. The transparent tank and LED light allow easy monitoring of the water level.
7. 전원 연결: Plug the USB power cable into the pump and then connect the adapter to a power outlet.

Figure 5.1: Filter case removal for assembly or cleaning.

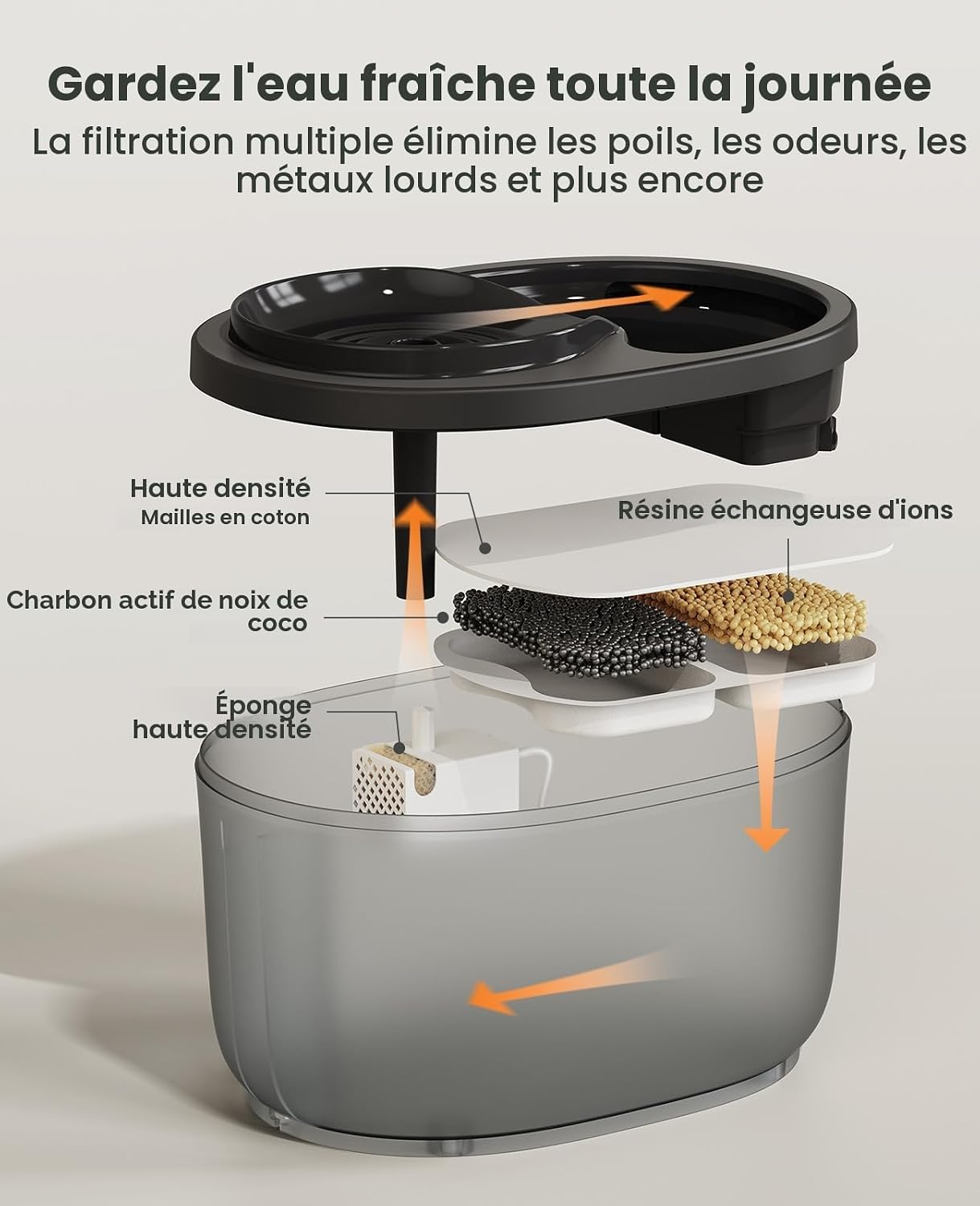

Figure 5.2: Multi-layer filtration system components.

6. 운영

Once assembled and plugged in, the fountain will start circulating water. The pump operates silently (below 30dB), ensuring it does not disturb your pet or your household.

• The fountain provides fresh, flowing water, which is more appealing to cats than stag그릇에 물을 담으세요.
• The 2.5L capacity ensures a continuous supply of fresh water for 6-10 days, depending on your cat's consumption and the number of pets.
• Monitor the water level through the transparent tank. Refill when the water level approaches the 'Min' line. The integrated blue LED light makes it easy to check the water level even in low light conditions.

Figure 6.1: Cats using the dual drinking trays.

Figure 6.2: Silent operation of the water pump.

7. 유지관리

Regular cleaning and filter replacement are crucial for maintaining water quality and extending the product's lifespan.

7.1 분수 청소

1. 플러그를 뽑다: 분수대를 청소하기 전에는 항상 전원 콘센트에서 플러그를 뽑으세요.
2. 분해: Remove the top tray and water pump from the tank.
3. 빈 물: Discard any remaining water from the tank.
4. 깨끗한 구성 요소: Wash the water tank and top tray with mild soap and water. Rinse thoroughly to remove all soap residue.
5. 펌프 청소: Disassemble the pump (if possible, refer to pump instructions) and clean any debris or hair. Rinse the pump thoroughly with water only. Do not use soap on the pump.
6. 마른: 재조립하기 전에 모든 구성 요소가 완전히 건조되었는지 확인하십시오.

7.2 필터 교체

• The multi-layer filter effectively removes hair, dust, impurities, and odors, ensuring clean and fresh water.
• It is recommended to change the filter every 2 to 4 weeks, or more frequently if you have multiple pets or notice reduced water flow/quality.
• To replace, remove the old filter from the filter case and insert a new one.

Figure 7.1: Filtration system benefits.

8. 문제 해결

• Fountain not working / No water flow:
  • Check if the power adapter is properly plugged into the outlet and the cable is securely connected to the pump.
  • Ensure the water level is above the 'Min' line. The pump needs to be submerged to function.
  • Clean the pump. Hair or debris can clog the pump impeller. Disassemble and clean the pump thoroughly.
  • 펌프를 프라이밍하세요: If the pump is not drawing water after assembly, try detaching the pump from the tube, submerging it in water, and allowing it to run for a few seconds to expel any trapped air. Then reattach it to the tube while submerged.
• 수류가 약합니다.
  • 수위를 확인하고 필요하면 물을 보충하세요.
  • Clean the pump and filter. A clogged filter or pump can reduce water flow.
• Fountain is noisy:
  • Ensure the water level is sufficient. Low water levels can cause the pump to make noise.
  • Clean the pump. Debris in the pump can cause vibrations and noise.
  • Ensure the fountain is placed on a flat, stable surface.
• Water accumulating around the lid / leaking:
  • Ensure the top tray is correctly seated and aligned with the water tank.
  • Check for any cracks or damage to the components.
  • Avoid overfilling the water tank beyond the 'Max' line.

9. 사양

Figure 9.1: Low power consumption of 1.5W.

10. 보증 및 지원

The Oneisall 2.5L Silent BPA-Free Cat Water Fountain comes with a 2년 제조사 보증 구매일로부터. 이 보증은 정상적인 사용 하에서 재료 및 제조상의 결함을 포함합니다.

For warranty claims, technical support, or any questions regarding your product, please contact Oneisall customer service. We offer 24/7 online customer support to assist you.

Please visit the official Oneisall web자세한 연락처 정보는 해당 웹사이트 또는 구매 플랫폼을 참조하십시오.
