Aechonow AEC-US01-CTT01146A105ZYX

Aechonow Flower Cat Tree Floor to Ceiling Instruction Manual

상표: Aechonow | 모델: AEC-US01-CTT01146A105ZYX

1. 안전 지침

  • 고양이가 캣타워를 사용하기 전에 모든 부품이 단단히 고정되었는지 확인하십시오.
  • Regularly inspect the cat tree for loose parts, wear, or damage. Tighten screws and replace worn components as needed.
  • Place the cat tree on a flat, stable surface. For floor-to-ceiling models, ensure the tension rod is properly adjusted and secured against the ceiling to prevent tipping.
  • Keep the cat tree indoors in a dry place to maintain material integrity.
  • This product is designed for cats. Keep children from climbing or playing on the cat tree to prevent injury.

2. 패키지 내용

Before assembly, verify that all parts listed in the instruction manual are present. Refer to the included parts diagram for identification.

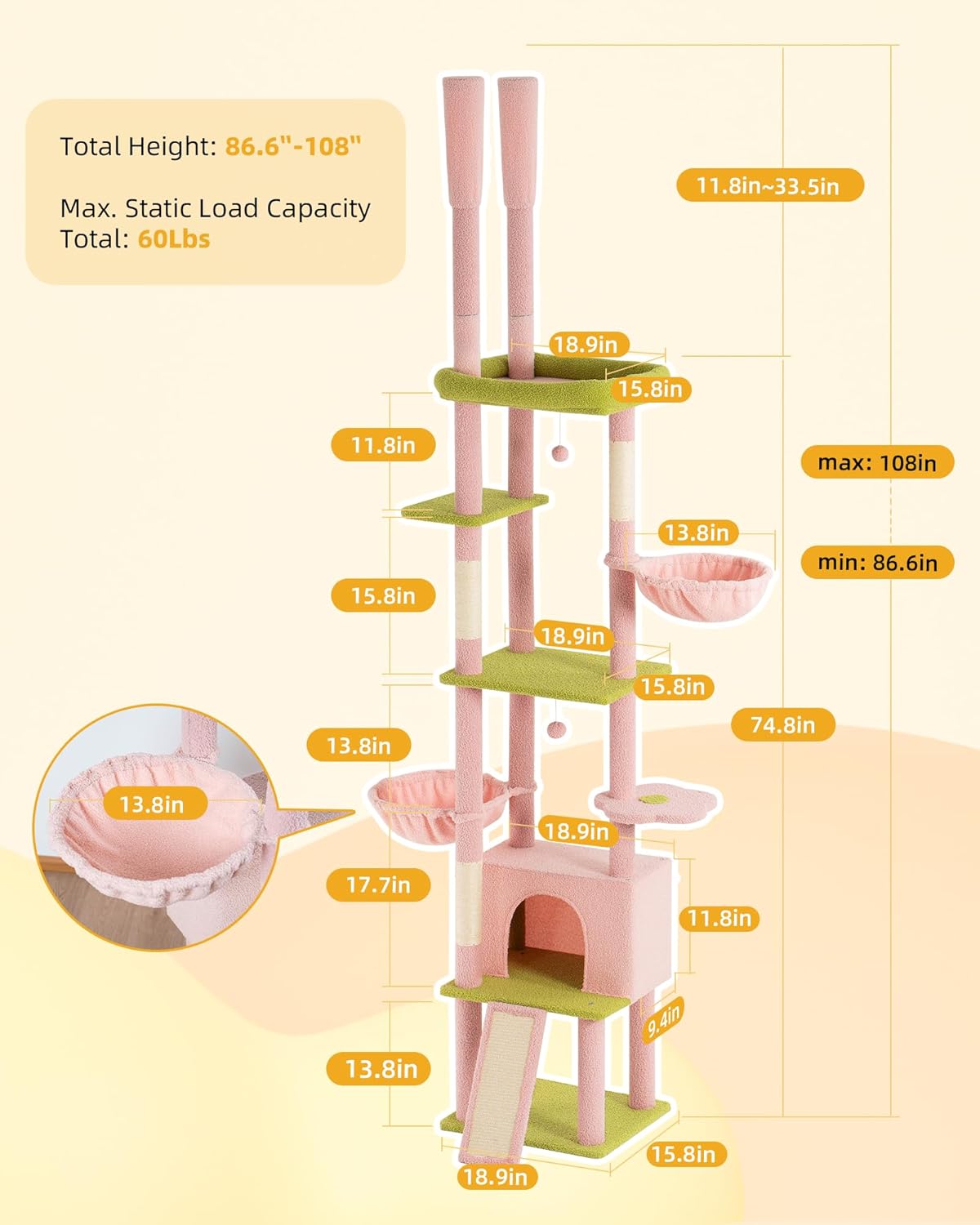

Diagram showing all parts and dimensions of the Aechonow Flower Cat Tree

Image: Detailed diagram of all cat tree components and their dimensions.

3. 조립 설명서

Assembly is straightforward with clear instructions and labeled parts. Follow these steps for a stable and enjoyable cat tree.

조립 완료view 동영상

Video: Aechonow Floor To Ceiling Cat Tree For Large Cats - Assembly and Usage Overview.

자세한 조립 단계

  1. 기본 조립: Attach the shortest posts to the main base platform using the provided screws. Ensure they are tightened securely.
  2. Cat Condo Installation: Secure the cat condo unit to the base structure. Use the appropriate screws to fasten it firmly.
  3. Platform and Hammock Attachment: Continue building upwards, attaching the various platforms and hammocks. Pay attention to the orientation of each piece as indicated in the manual.
  4. Upper Posts and Top Platform: Install the longer posts and the top platform. These will form the upper levels of the cat tree.
  5. Ceiling Tension Rod Adjustment: For floor-to-ceiling stability, insert the adjustable tension rod into the top post. Rotate the rod to extend it until it firmly presses against the ceiling. Secure the lower nut to lock the position, then rotate the upper nut to keep the cat tree stable.
  6. Scratching Ramp: 긁는 부분을 부착하세요amp to the designated lower platform.
  7. 상호작용 요소: Hang any included plush balls or toys from the platforms as desired.

Ceiling Height Adjustment Guide

Diagram showing different pole combinations for various ceiling heights

Image: Visual guide for selecting appropriate pole combinations based on ceiling height (220-275cm).

4. 제품 특징 및 사용법

The Aechonow Flower Cat Tree is designed to provide a multi-level activity center for your cats, promoting exercise, rest, and play.

  • 넓은 디자인: Features 2 large perches, 2 large hammocks, and 1 large condo, suitable for large cats or multiple cats.
  • Multiple Jumping Routes: Various platforms and levels encourage active play and climbing.
  • 스크래치 포스트: Equipped with durable sisal-wrapped posts for healthy claw maintenance.
  • 상호작용 요소: Plush balls are included to keep your cats engaged and entertained.
Aechonow Flower Cat Tree Floor to Ceiling with multiple cats enjoying various levels.

Image: An assembled Aechonow Flower Cat Tree with cats on different levels.

Multiple cats utilizing the spacious hammocks and enclosed condo of the Aechonow Cat Tree.

Image: Close-up of cats resting in the hammocks and condo.

Cat Tree in Use Video

Video: A cat demonstrating the use of the Aechonow Floor to Ceiling Cat Tree, including climbing and playing with attached toys.

5. 관리 및 유지 보수

  • 청소: Spot clean or hand wash with mild detergent. Do not machine wash.
  • 위치: Keep indoors in a dry place. Avoid exposure to direct sunlight or excessive moisture.
  • 점검: Regularly check all screws and connections for tightness. Re-tighten as necessary to maintain stability.

6. 문제 해결

  • 불안정성/흔들림: Ensure the top telescopic rod is fully extended and securely tightened against the ceiling. Check all connecting screws throughout the structure and tighten any loose ones.
  • 누락된 부품/손상된 부품: 도착 시 부품이 누락되었거나 손상된 경우 즉시 고객 지원팀에 연락하여 도움을 받으세요.
  • 고양이에 대한 무관심: Encourage your cat to use the tree by placing treats or favorite toys on different levels. Catnip can also be used to attract them.

7. 제품 사양

특징세부 사항
품목 무게40 파운드
품목 치수(LxWxH)19 x 15.8 x 108 inches (Adjustable height: 86"-108")
재료인조모피
색상Flower (Pink/Green)
모델명고양이 나무
품목 모델 번호AEC-US01-CTT01146A105ZYX
장착 유형Floor Mount (with ceiling tension)
제품의 특정 용도Climbing, Jumping, Running, Scratching

8. 보증 및 지원

이 Aechonow 고양이 나무에는 다음이 포함됩니다. 2년 제조사 보증.

For warranty claims, technical support, or any questions regarding your product, please contact Aechonow customer service through your retailer's support channels or visit the official Aechonow web연락처 정보 사이트.
