Merax Children's Bed with Trundle Bed, USB Ports, and Storage (140x200 cm) - Instruction Manual

1. 서론

This manual provides detailed instructions for the assembly, operation, and maintenance of your Merax Children's Bed. This versatile bed features a main sleeping area of 140x200 cm, a pull-out trundle bed of 90x190 cm, integrated USB charging ports, and various storage solutions. Please read all instructions carefully before assembly and use to ensure safe and correct operation.

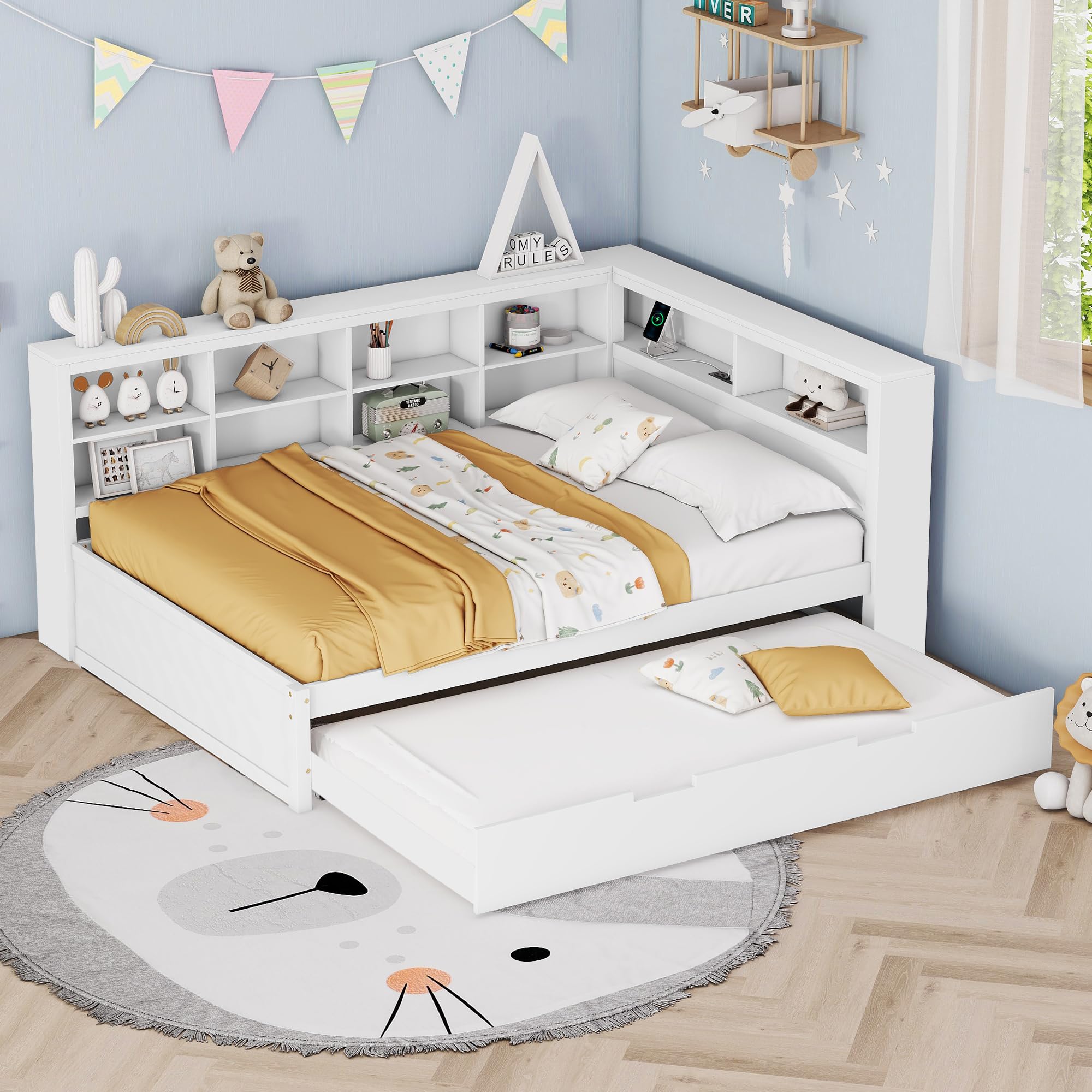

Figure 1: Merax Children's Bed with Trundle Bed and Storage

2. 안전 정보

Attention: Please follow these instructions for safe assembly and use. Ensure the bed is stable before use. Observe the maximum weight limit of 3 persons to ensure the bed's stability.

• Always assemble the bed on a soft, clean surface to prevent damage.
• 사용 전에 모든 나사와 패스너가 단단히 조여졌는지 확인하십시오. 정기적으로 점검하고 필요하면 다시 조여 주십시오.
• Do not allow children to play on or around the bed during assembly.
• 질식 위험을 방지하려면 작은 부품을 어린이의 손이 닿지 않는 곳에 보관하십시오.
• Do not overload storage compartments or shelves.
• Use only mattresses compatible with the specified dimensions (140x200 cm for the main bed, 90x190 cm for the trundle). Recommended mattress height for the trundle bed is 8-12 cm.

3. 패키지 내용

The Merax Children's Bed is delivered in 3 separate packages. Please ensure all packages have arrived before beginning assembly. Carefully unpack all components and verify against the parts list (usually included in one of the packages). If any parts are missing or damaged, please contact customer support.

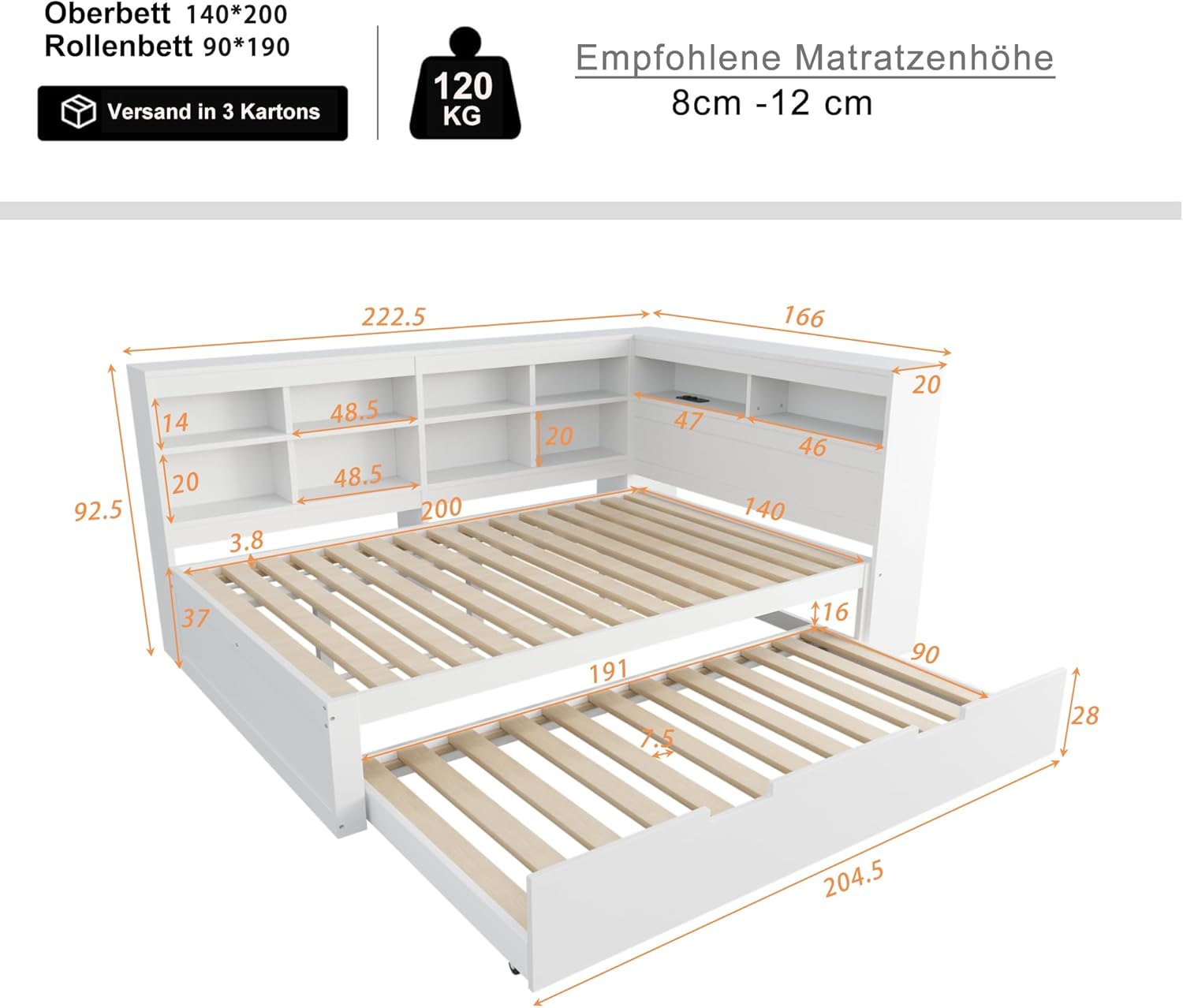

Figure 2: Product Dimensions and Packaging Information

4. 설치 및 조립

Assembly is designed to be straightforward. Follow the step-by-step instructions provided in the included assembly guide. All individual parts are marked for easy identification.

4.1 조립 종료view

4.2 주요 조립 단계

1. 프레임 어셈블리: Begin by assembling the main bed frame components. Ensure all connections are firm.
2. Headboard and Storage Unit: Attach the headboard and integrated storage shelves. These units provide ample space for books, decorations, and personal items.
3. 슬랫 설치: Place the wooden slats onto the bed frame. These provide support for the mattress.
4. Trundle Bed Assembly: Assemble the trundle bed frame and slats. The trundle bed can be installed to pull out from either the left or right side, depending on your room configuration and usage habits.
5. 침대 밑 서랍: Install the two practical drawers on wheels. These drawers feature a non-woven lining and are dust-resistant, offering additional storage. Magnetic closures help keep them securely shut.
6. USB Port Integration: Connect the integrated USB power strip as per the instructions.

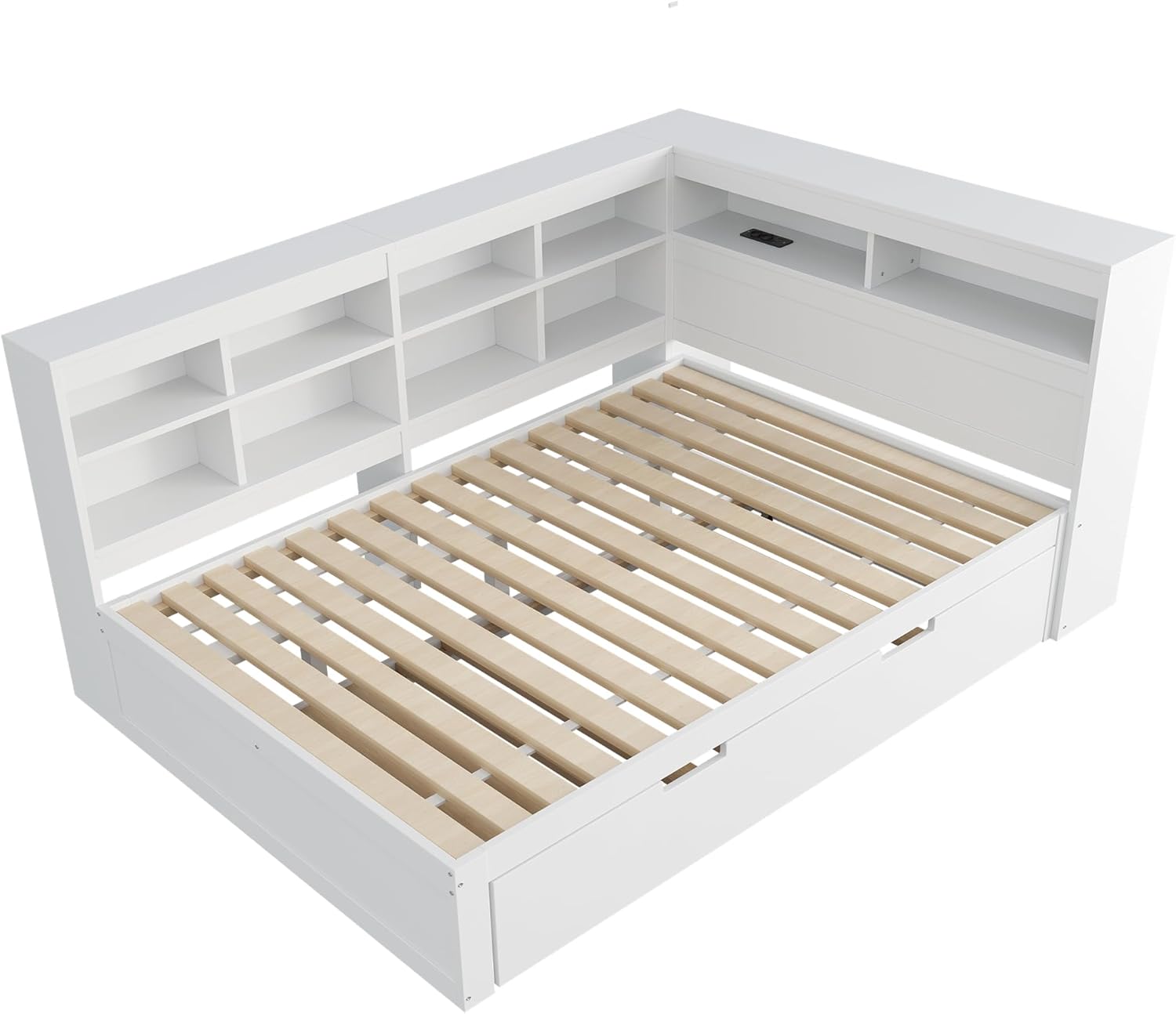

Figure 3: Bed Frame with Under-bed Storage

Figure 4: Bed with Trundle Extended

5. 사용 설명서

5.1 트런들 침대 사용하기

The trundle bed is designed for flexible sleeping arrangements. Gently pull the trundle bed from underneath the main bed using the integrated handle. To retract, push it back into place until it is fully stored. Ensure no obstacles are in the way when extending or retracting the trundle bed.

USB 충전 포트 5.2개

The integrated USB ports allow you to charge your electronic devices conveniently. Simply plug your device's USB cable into the available port. The power strip includes 2 AC outlets (250V/16A) and 2 USB-A ports (5V/2.1A). The cable length is 150 cm.

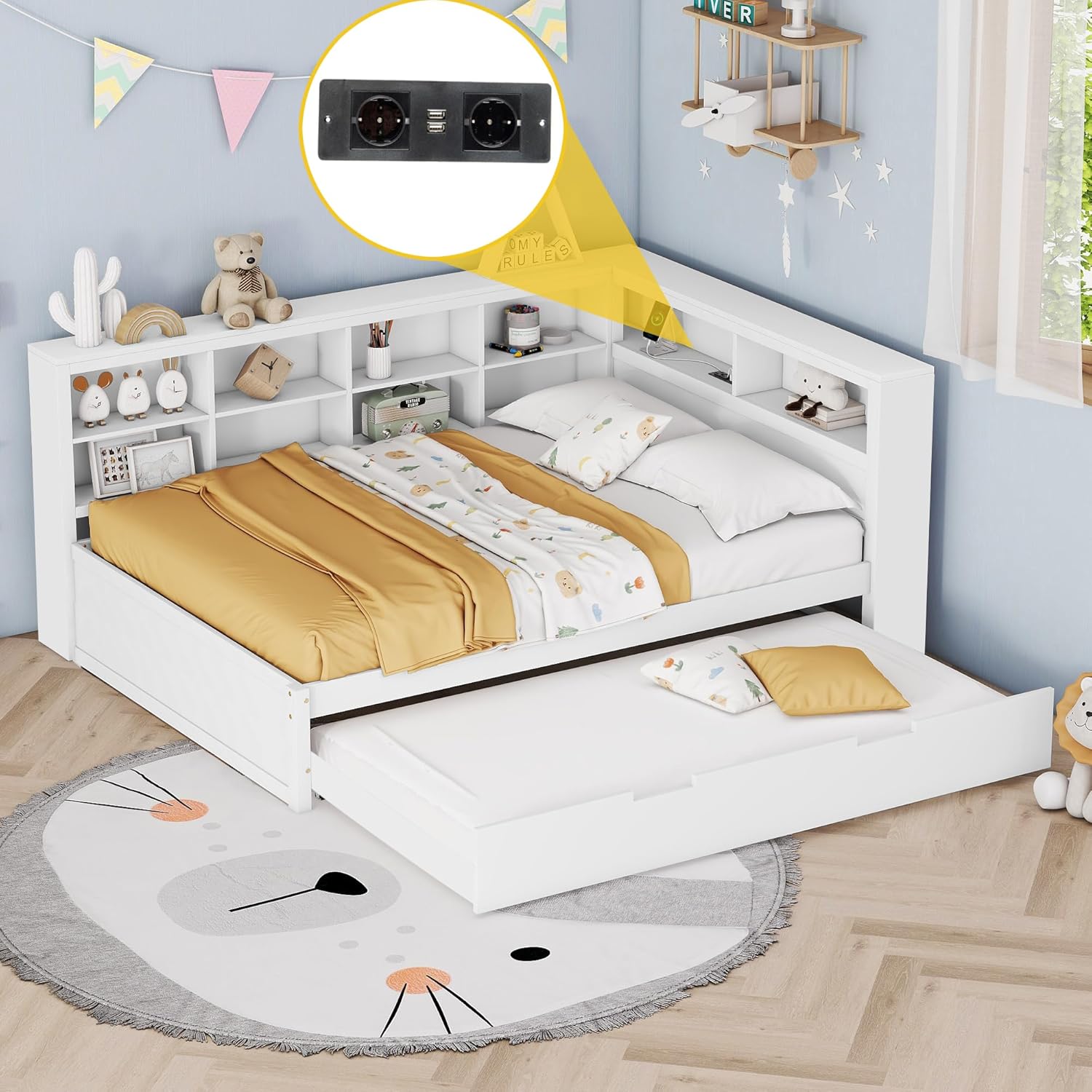

Figure 5: Integrated USB Ports and Power Outlets

5.3 보관 구획

The bed features multiple storage options:

• 침대 헤드보드 선반: Use the open shelves in the headboard for books, decorative items, or frequently accessed personal effects.
• Fabric Basket: A fabric basket is included for additional storage within the headboard unit, ideal for smaller items.
• 침대 밑 서랍: Utilize the two spacious drawers on wheels for storing bedding, toys, or seasonal items. The non-woven lining protects contents from dust.

Figure 6: Storage Features of the Bed

6. 유지관리

To maintain the quality and appearance of your Merax Children's Bed, follow these simple care instructions:

• 청소: 광고로 표면 닦기amp 천으로 닦으세요. 강한 화학 물질이나 연마성 세제는 마감재를 손상시킬 수 있으므로 사용하지 마세요.
• 가루 살포: 부드럽고 마른 천으로 모든 표면의 먼지를 정기적으로 닦아주세요.
• 패스너: 정기적으로 모든 나사와 볼트가 단단히 조여져 있는지 확인하십시오. 구조적 안정성을 유지하기 위해 필요한 경우 다시 조이십시오.
• 습기를 피하세요: Protect the bed from excessive moisture and direct sunlight to prevent warping or discoloration.

7. 문제 해결

If you encounter any issues with your Merax Children's Bed, please refer to the following common solutions:

• 삐걱거리는 소리: Check all assembly points and tighten any loose screws. Ensure the slats are correctly positioned and not rubbing against the frame.
• Trundle Bed Sticking: Ensure the wheels are clean and free of debris. Check that the trundle bed's path is clear of any obstructions.
• USB 포트가 작동하지 않음: Verify that the power strip is correctly plugged into a functional wall outlet. Check the cable connections to the USB ports.
• 안정성 문제: Re-check all connections and ensure the bed is on a level surface. If the issue persists, disassemble and reassemble carefully, ensuring all steps are followed.

For persistent issues or concerns not addressed here, please contact Merax customer support.

8. 사양

9. 보증 및 지원

For warranty information or technical support, please refer to the documentation included with your purchase or contact Merax customer service directly. Keep your proof of purchase for any warranty claims.
