BAKAJI Elliptical Exercise Bike User Manual

1. 서론

The BAKAJI Elliptical Exercise Bike is designed for home fitness, offering a comprehensive workout for various muscle groups including legs, abdomen, hips, back, and shoulders. This equipment supports cardiovascular health, improves endurance, and increases lung capacity. It features integrated heart rate sensors, 8 pre-set programs, and adjustable resistance levels to customize your training experience.

그림 1.1: 전면 view of the BAKAJI Elliptical Exercise Bike.

2. 안전 정보

Please read all instructions carefully before using this equipment. Keep this manual for future reference.

• 의사와 상담하세요: Before starting any exercise program, especially if you have pre-existing health conditions, consult your doctor.
• 적절한 복장: 적절한 운동복과 운동화를 착용하십시오. 움직이는 부분에 걸릴 수 있는 헐렁한 옷은 피하십시오.
• 장비 확인: Before each use, inspect the elliptical for any loose parts, damage, or wear. Do not use if damaged.
• 안정적인 표면: Place the elliptical on a flat, stable surface. Ensure adequate clear space around the equipment (at least 0.6 meters or 2 feet).
• 어린이와 애완동물: Keep children and pets away from the equipment during operation. This equipment is not a toy.
• 최대 중량: 최대 사용자 체중 100kg(220lbs)을 초과하지 마십시오.
• 올바른 형식: Maintain proper posture and form during exercise to prevent injury. Stop immediately if you feel pain, dizziness, or discomfort.
• 움직이는 부품: 손과 발을 움직이는 모든 부분에 닿지 않게 하세요.

3. 제품 오버view 및 구성 요소

Familiarize yourself with the main components of your BAKAJI Elliptical Exercise Bike:

• 핸들 바 : Fixed and moving handlebars for upper body workout and support.
• 심박수 센서: 핸들바에 통합되어 심박수를 측정합니다.
• 디스플레이 콘솔: Shows workout data such as time, distance, speed, calories, and pulse.
• Resistance Control Knob: Adjusts the magnetic resistance level (1-8).
• 풋 페달: Large, anti-slip pedals for secure foot placement.
• 조절 가능한 좌석: Comfortable seat with backrest, adjustable for various user heights.
• 강철 프레임: Durable stainless steel frame with powder coating.
• 운송 바퀴: Located on the front stabilizer for easy relocation.

Figure 3.1: Display console and handlebars with integrated heart rate sensors.

Figure 3.2: Close-up of the anti-slip foot pedals.

4. 설정

Follow these steps to set up your elliptical exercise bike:

1. 풀다: Carefully remove all components from the packaging. Place them on a clean, flat surface.
2. 베이스 조립: Attach the front and rear stabilizer bars to the main frame using the provided bolts and tools. Ensure they are securely tightened.
3. 페달 설치: Attach the left and right foot pedals to their respective crank arms. Note that the left pedal is reverse-threaded. Tighten firmly.
4. 핸들바 부착: Connect the moving handlebars and the fixed handlebars (with heart rate sensors) to the main frame. Secure with the appropriate hardware.
5. 콘솔 마운트: Connect the sensor wires from the main frame to the display console. Mount the console onto the handlebar post.
6. 좌석 설치: Insert the seat post into the main frame and adjust to your desired height. Secure the seat with the adjustment knob.
7. 최종 확인: 처음 사용하기 전에 모든 볼트와 연결부가 단단히 조여져 있는지 다시 한번 확인하십시오.

5. 사용 설명서

To begin your workout, follow these steps:

• 전원 켜기: The display console will typically activate automatically when you start pedaling or press any button.
• 좌석 조절: Adjust the seat height and position to ensure a comfortable and ergonomic workout. Your knees should have a slight bend at the lowest pedal point.
• 저항 조정: 사용하세요 장력 조절 노브 (Figure 5.1) to select your desired resistance level from 1 (lowest) to 8 (highest). Turn clockwise for more resistance, counter-clockwise for less.

Figure 5.1: Resistance tension control knob.

• 운동을 시작하세요: Step onto the pedals and begin a smooth, elliptical motion. You can hold the fixed handlebars for stability or use the moving handlebars for an upper body workout.
• 심박수 모니터링: 그립을 잡다 심박수 센서 (Figure 5.2) on the fixed handlebars to display your pulse on the console. Ensure both hands are firmly on the sensors for an accurate reading.

Figure 5.2: Heart rate sensors integrated into the handlebars.

• Using the Display Console: The console typically cycles through various metrics (Scan) or you can press the mode button to view specific data like Time, Distance, Speed, Calories, and Pulse.
• 사전 설정된 프로그램: This model includes 8 pre-set programs. Refer to the console's specific instructions (if available) for how to select and utilize these programs to vary your workout intensity and focus.
• 쿨다운: After your workout, gradually reduce your speed and resistance. Perform a cool-down and stretching routine.

6. 유지관리

Regular maintenance ensures the longevity and safe operation of your elliptical bike:

• 청소: 광고로 장비를 닦으세요amp 사용 후에는 천으로 닦아 땀과 먼지를 제거하세요. 연마성 세제나 용제는 사용하지 마세요.
• 연결 확인: Periodically check all bolts, nuts, and screws to ensure they are tight. Retighten as necessary.
• 매끄럽게 하기: Moving parts may require occasional lubrication. Consult the specific product manual for recommended lubrication points and types.
• 저장: Store the elliptical in a dry, cool place away from direct sunlight and extreme temperatures. Use the transport wheels (Figure 6.1) to move the unit carefully.

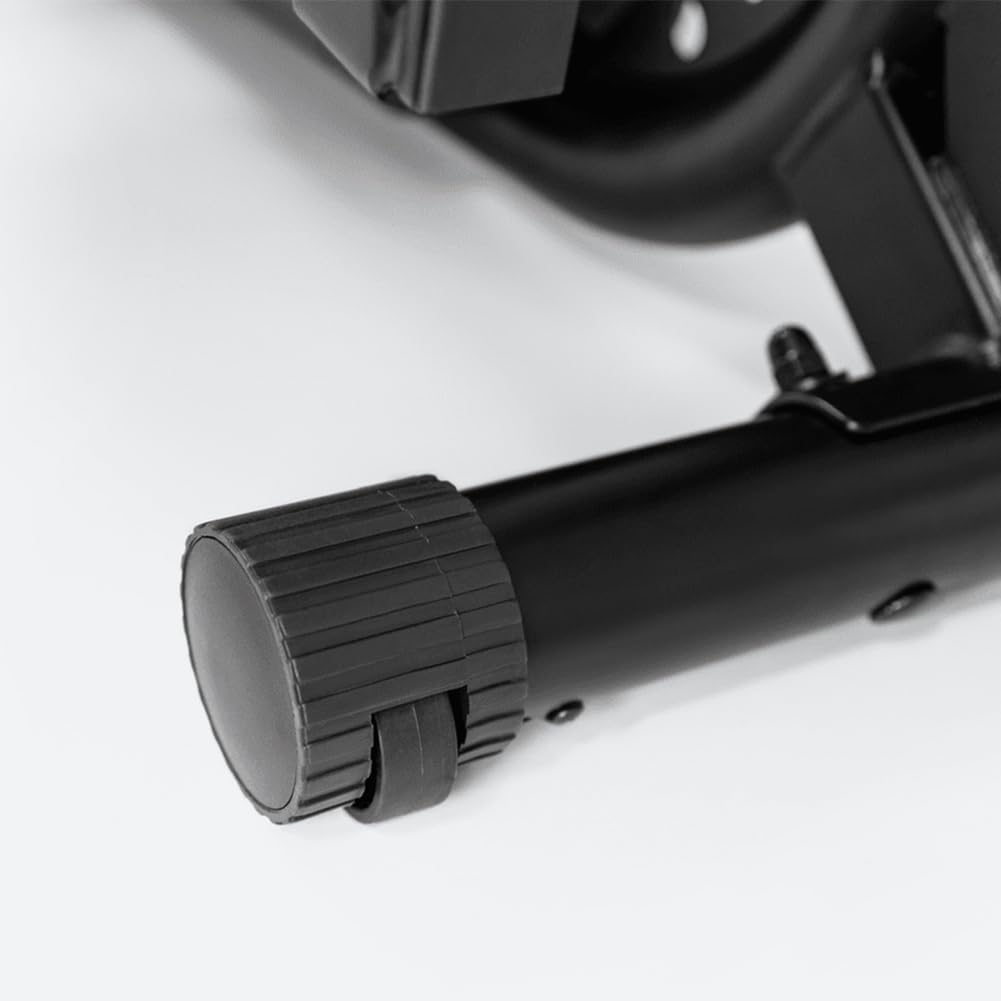

Figure 6.1: Transport wheels for convenient relocation.

7. 문제 해결

If you encounter issues with your elliptical, try these common troubleshooting steps:

• 삐걱거리는 소리/소음: Check all bolts and connections for tightness. Lubricate moving joints if necessary. Ensure the equipment is on a level surface.
• 디스플레이가 작동하지 않음: Check battery installation and ensure batteries are fresh. Verify all cable connections to the console are secure.
• Heart Rate Reading Inaccurate: Ensure both hands are firmly gripping the sensors. Skin contact must be consistent. Readings can be affected by dry skin or excessive movement.
• 저항은 변하지 않는다: Check the resistance control knob for proper function. Ensure the internal cable (if applicable) is not disconnected or damaged.
• 불안정한 작업: Ensure the elliptical is placed on a flat, stable surface. Adjust any leveling feet if present.

문제가 지속되면 고객 지원팀에 문의하세요.

8. 사양

9. 보증 정보

Specific warranty details for your BAKAJI Elliptical Exercise Bike are typically provided with your purchase documentation. Please refer to the warranty card or contact your retailer for information regarding coverage, terms, and conditions.

10. 지원

For technical assistance, spare parts, or any questions not covered in this manual, please contact your retailer or visit the official BAKAJI brand store:

BAKAJI Brand Store on Amazon
