AGCUT Touch Screen Digitizer Replacement for Digiland DL1016 DL1023

1. 서론

This document provides essential information and guidelines for the AGCUT Touch Screen Digitizer Replacement kit, compatible with Digiland DL1016 and DL1023 tablet models. This product is designed to restore touch functionality to your device. It is important to understand that this is a touch screen digitizer only and does not include the LCD display.

2. 패키지 내용

아래 나열된 모든 품목이 패키지에 포함되어 있는지 확인하세요.

• 1x AGCUT Touch Screen Digitizer for Digiland DL1016 DL1023
• 1x Set of Special Disassembly Tools
• 양면 접착 테이프 1개
• 1x Dust Removal Sticker

Image 2.1: Included components of the digitizer replacement kit.

3. 중요 안전 정보 및 경고

설치를 시도하기 전에 모든 지침을 주의 깊게 읽으십시오.

• 전문 설치 권장: The removal and installation of a touch screen digitizer often requires specialized equipment to separate it from the LCD screen. If you are not a professional maintenance technician or lack experience in screen replacement and professional tools, it is strongly recommended to seek assistance from a local repair shop. Attempting installation without proper expertise may result in damage to your device.
• 깨지기 쉬운 구성 요소: The screen digitizer is made of glass and is very fragile. Exercise extreme caution when opening the package and during the installation process to prevent damage to the digitizer itself, the LCD screen, or internal chip ICs.
• Digitizer vs. LCD: This product is a touch screen digitizer only. It is designed to fix issues related to touch functionality (e.g., unresponsive touch). It does NOT include the LCD display. If your device's LCD screen has display problems (e.g., no image, distorted image, dead pixels), replacing only the digitizer will not resolve these issues. In such cases, both the LCD and digitizer may need replacement.
• 설치 전 테스트: Before fully installing the digitizer, connect the flex cable to the tablet's motherboard and test the touch functionality. Ensure the screen responds correctly across all areas. Do not remove protective films or adhesive until satisfactory testing is complete.

4. Installation Guidelines (Professional Recommended)

These guidelines are provided for informational purposes. Professional installation is highly recommended due to the delicate nature of the components and the specialized tools required.

4.1. 준비

• Power off your Digiland DL1016 or DL1023 tablet completely.
• Gather all necessary tools, including those provided in the kit.
• 먼지가 없는 깨끗한 환경에서 작업하여 화면 아래에 입자가 끼는 것을 방지하십시오.
• Discharge any static electricity from your body before handling components.

4.2. Disassembly (Requires Professional Tools)

1. 태블릿을 조심스럽게 여세요asing using appropriate prying tools.
2. Disconnect the battery to prevent short circuits.
3. 기존 디지타이저의 플렉스 케이블을 찾아 마더보드에서 조심스럽게 분리하십시오.
4. Using a heat gun or heating plate, gently heat the edges of the old digitizer to soften the adhesive.
5. Carefully separate the old digitizer from the LCD panel and the tablet frame. This step is critical and requires precision to avoid damaging the LCD.
6. Clean any remaining adhesive residue from the tablet frame and LCD surface. Use the dust removal sticker to ensure a pristine surface.

4.3. Installation of New Digitizer

1. Before applying adhesive, perform a test fit of the new digitizer.
2. Connect the new digitizer's flex cable to the tablet's motherboard.
3. Reconnect the battery and power on the tablet to test touch functionality across the entire screen. If the touch is unresponsive or erratic, power off, disconnect, and re-seat the flex cable.
4. Once testing is successful, power off the tablet and disconnect the battery again.
5. Carefully remove the protective films from the new digitizer and apply the double-sided adhesive tape to the tablet frame or the digitizer's edges as appropriate.
6. Align the new digitizer precisely with the tablet frame and gently press it into place, ensuring even adhesion.
7. Reconnect the digitizer flex cable and the battery.
8. Carefully reassemble the tablet casing.

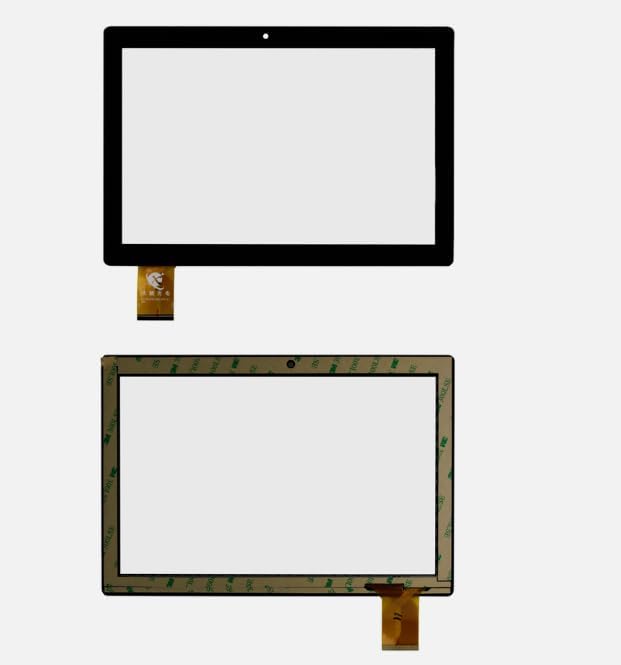

이미지 4.1: 앞면 view of the replacement digitizer.

이미지 4.2: 뒤 view of the replacement digitizer showing adhesive areas.

5. 운영

After successful installation, power on your Digiland tablet. The touch screen digitizer should now respond to your touch inputs, allowing you to navigate the tablet's interface as intended. Verify that all areas of the screen register touch accurately and smoothly.

Image 5.1: Visual representation of a damaged screen before replacement and a functional screen after replacement.

6. 유지관리

To ensure the longevity and optimal performance of your new touch screen digitizer:

• 청소: 부드럽고 보푸라기가 없는 천을 사용하여 약간 dampened with water or a screen-safe cleaning solution, to gently wipe the screen. Avoid harsh chemicals or abrasive materials.
• 보호: 화면 긁힘이나 가벼운 충격으로부터 보호하기 위해 화면 보호 필름 사용을 고려해 보세요.
• 손질: Avoid dropping the tablet or subjecting it to excessive pressure, as this can damage the digitizer.

7. 문제 해결

설치 후 문제가 발생하면 다음 사항을 고려하세요.

• 터치가 응답하지 않음:
  • Ensure the digitizer flex cable is securely connected to the motherboard. Disconnect and re-connect it carefully.
  • Verify that the correct digitizer model was installed for your tablet.
  • Perform a hard reset of your tablet.
• Screen Display Issues (e.g., no image, lines, distorted colors):
  • Remember, this product is a digitizer only. Display issues are typically related to the LCD screen, not the digitizer. If your LCD was working before and now has issues, it might have been damaged during the installation process.
  • If the LCD was already faulty, you will need to replace the LCD assembly, not just the digitizer.
• Physical Damage During Installation:
  • Cracks or breaks that occur during installation are typically not covered under warranty. Exercise extreme caution.

Image 7.1: Quality assurance points for the digitizer.

8. 사양

9. 보증 및 지원

• 애프터 서비스 : This product includes 6 months of after-sale service.
• 서비스 보증: The touch screen digitizer replacement undergoes 100% inspection by a professional QC team before delivery. We offer a lifetime exchange for non-human damage.
• 지원팀에 문의: If you encounter any issues with the product, we recommend contacting us for technical support and satisfactory solutions.
