PAX Wardrobe Frame 100x35x236 cm, White - Instruction Manual

1. 제품 오버view

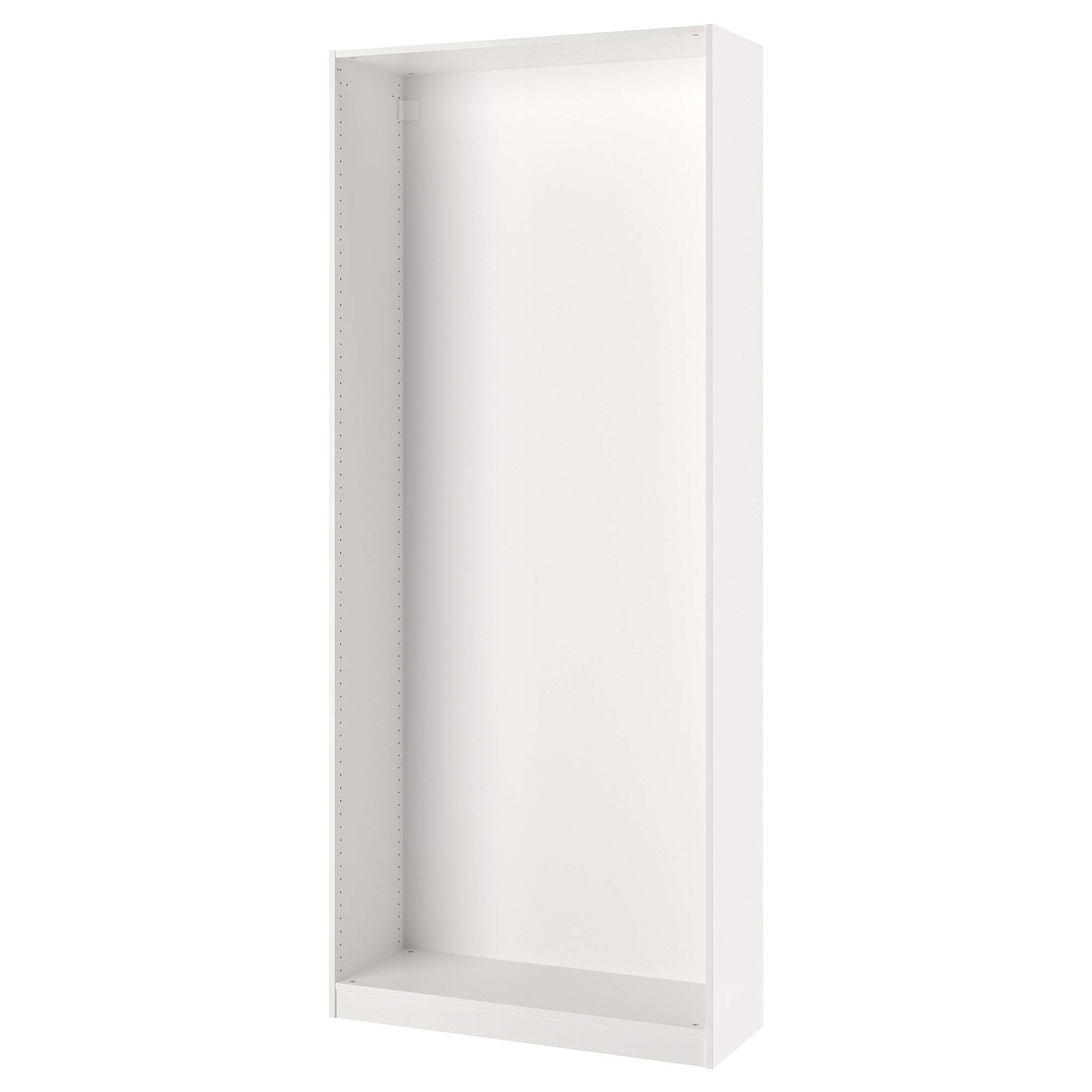

The PAX Wardrobe Frame is designed to provide a robust and versatile foundation for your storage needs. This frame, measuring 100x35x236 cm, is a core component of a customizable wardrobe system, allowing you to add various interior organizers and doors (sold separately) to create a personalized storage solution. Its white finish offers a clean and modern aesthetic suitable for various room decors.

이미지 1.1: Example of a fully assembled PAX wardrobe system, demonstrating potential configurations with doors and interior fittings.

2. 사양

This section details the key dimensions and characteristics of the PAX Wardrobe Frame.

• 모델 번호: IK.002.145.72
• 제품 번호: 3147411
• 상표: Generic (compatible with PAX system)
• 조립 폭: 99.8 cm (Frame Width: 100 cm)
• 조립 후 깊이: 35.5 cm (Frame Depth: 35 cm)
• 조립 높이: 236.4 cm (Frame Height: 236 cm)
• 재료: Not explicitly stated, typically particleboard/fiberboard with foil finish.
• 색상: 하얀색

Image 2.1: Detailed technical drawing illustrating the precise dimensions of the wardrobe frame, including internal measurements.

3. 설치 및 조립

Assembly of the PAX Wardrobe Frame requires careful attention to detail. It is recommended to have at least two people for assembly due to the size and weight of the components. Ensure you have adequate space and the necessary tools before beginning.

3.1. 시작하기 전에

• 풀다: Carefully unpack all components and check against the parts list provided in the packaging to ensure all pieces are present and undamaged.
• 도구: Gather necessary tools, typically a hammer, screwdriver (Phillips and flathead), and possibly an Allen key (often included).
• 작업 공간: Clear a large, flat, and clean area for assembly to prevent scratching components.
• 안전: Always follow the safety instructions provided with the product. Wear appropriate safety gear if necessary.

3.2. 조립 단계 (일반 지침)

1. 측면 패널 연결: Attach the top and bottom panels to the side panels using the provided hardware (dowels, cam locks, and screws). Ensure all connections are secure.
2. 후면 패널 설치: Slide or nail the back panel into the grooves or onto the back of the frame. This step is crucial for structural integrity and squareness.
3. 벽에 고정: For safety, it is essential to secure the wardrobe frame to the wall using the anti-tip hardware provided. Different wall materials require different types of fasteners. Consult a professional if unsure.
4. Add Interior Fittings: Once the frame is stable and secured, you can begin installing shelves, clothes rails, drawers, and other interior organizers according to your design.

Image 3.1: Detail of a corner joint, illustrating the precision and secure fastening points of the frame components.

4. 사용 설명서

The PAX Wardrobe Frame is designed for static storage. Proper use ensures longevity and safety.

• 무게 분포 : Distribute weight evenly across shelves and drawers. Avoid placing heavy items exclusively on one side or at the very top.
• 적재 용량: Adhere to the maximum weight limits for shelves and rails as specified in the detailed assembly instructions for interior fittings. Overloading can cause structural damage or collapse.
• Door Operation (if applicable): If doors are installed, ensure they open and close smoothly without obstruction. Adjust hinges or sliding mechanisms if necessary.
• 통풍: Ensure adequate air circulation, especially if storing clothes, to prevent moisture buildup.

5. 유지관리 및 관리

Regular maintenance helps preserve the appearance and functionality of your wardrobe frame.

• 청소: Wipe the frame surfaces with a damp 천과 순한 세제를 사용하여 닦으십시오. 깨끗한 천으로 즉시 물기를 제거하십시오. 마감재를 손상시킬 수 있는 연마성 세제나 독한 화학 물질은 사용하지 마십시오.
• 가루 살포: 쌓이는 것을 방지하기 위해 모든 표면에 정기적으로 먼지를 털어주세요.
• 연결 확인: 모든 나사와 부속품이 단단히 조여져 있는지 주기적으로 점검하십시오. 필요한 경우 다시 조이되, 과도하게 조이지 마십시오.
• 환경 조건: Avoid exposing the wardrobe to extreme temperature changes or high humidity, which can affect the material.

6. 문제 해결

이 섹션에서는 일반적으로 발생할 수 있는 문제에 대해 설명합니다.

• 흔들리는 프레임:
  • 모든 조립 나사와 캠 잠금 장치가 완전히 조여졌는지 확인하십시오.
  • Verify the back panel is correctly installed and secured, as it contributes significantly to stability.
  • Confirm the frame is properly secured to the wall with anti-tip hardware.
  • Check that the floor is level. Use shims if necessary.
• Difficulty Installing Interior Fittings:
  • Ensure the frame is square. A non-square frame can make fitting shelves or drawers difficult.
  • Double-check the measurements and alignment of the interior fittings with the pre-drilled holes.
• 긁힘이나 사소한 손상:
  • 가벼운 흠집의 경우, 흰색 마감재와 일치하는 보수용 페인트나 가구용 마커를 사용할 수 있습니다.
  • For deeper damage, consider contacting the manufacturer or a furniture repair specialist.

7. 보증 및 지원

이 제품에는 다음이 포함되어 있습니다. 10년 보증. Please refer to the warranty brochure included with your purchase for detailed terms and conditions. This guarantee covers defects in materials and workmanship under normal use.

For further assistance, parts replacement, or to report any issues not covered in this manual, please contact the retailer or manufacturer's customer support. Have your model number (IK.002.145.72) and purchase information ready when contacting support.

Note: For customers ordering outside the EU, please be aware that you may be subject to import duties and taxes. Please check with your local postal or tax office regarding import regulations.
