1. 서론
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the DANFOSS BFP 21R3 Burner Oil Pump, model number 071N0109. Please read this manual thoroughly before attempting any installation or operation to ensure proper function and to prevent damage or injury. Keep this manual for future reference.
그림 1: 일반 view of the DANFOSS BFP 21R3 Burner Oil Pump.
2. 안전 정보
Always observe general safety precautions when working with fuel systems and electrical components. Failure to follow these instructions may result in property damage, serious injury, or death.
- Ensure the power supply to the burner system is disconnected before installation, maintenance, or troubleshooting.
- 장갑과 눈 보호 장비 등 적절한 개인 보호 장비(PPE)를 착용하세요.
- Handle fuel with care. Fuel is flammable and can cause skin irritation.
- 설치 및 서비스는 자격을 갖춘 인력에 의해서만 수행되어야 합니다.
- 설치 후 시스템 작동 전에 누출 여부를 확인하십시오.
- Do not modify the pump or its components. Use only genuine DANFOSS replacement parts.
3. 제품 오버view
The DANFOSS BFP 21R3 is a compact burner oil pump designed for use in oil burner systems. It is engineered for reliable fuel delivery and pressure regulation. The pump features a robust metal construction and is suitable for industrial applications.
그림 2: 측면 view of the pump, highlighting the 'P' (pressure) and 'V' (return) ports, and model identification.
주요 특징은 다음과 같습니다.
- 모델: BFP 21R3
- 부품 번호: 071N0109
- 재료: 금속
- 색상: 검은색
- 애플리케이션: Burner Oil Systems
그림 3: 상단 view of the pump, showing the electrical connector for power supply.
4. 설정 및 설치
Proper installation is crucial for the pump's performance and longevity. Refer to your burner manufacturer's instructions for specific mounting requirements.
4.1 장착
- Mount the pump securely to the burner motor or a stable surface using appropriate fasteners.
- Ensure the pump shaft aligns correctly with the motor coupling.

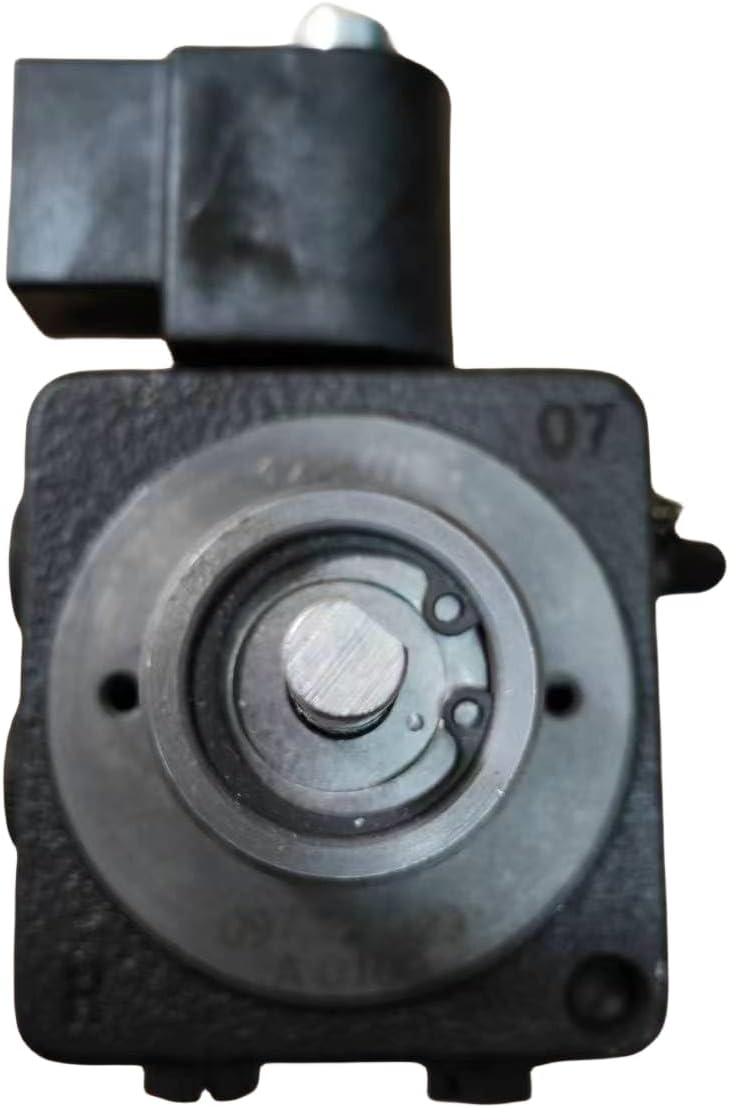

그림 4: 하단 view of the pump, illustrating the drive shaft and mounting screw locations.
4.2 연료 라인 연결
Connect the fuel lines as follows:
- Inlet (Suction) Line: Connect the fuel supply line to the designated inlet port. Ensure a tight, leak-free connection.
- Nozzle Line (Pressure): Connect the line leading to the burner nozzle to the pressure port (marked 'P' on some models).
- 복귀 라인: If applicable, connect the return line to the return port (marked 'V' on some models) to send excess fuel back to the tank. For single-pipe systems, the return port must be plugged.
4.3 전기 연결
Connect the pump's electrical terminals to the burner control system according to the burner manufacturer's wiring diagram. Ensure correct voltage and polarity. All electrical work must comply with local codes and regulations.
4.4 펌프 프라이밍
After installation, the pump must be primed to remove air from the fuel lines. This is typically done by running the burner for a short period until a steady flame is established. Some pumps may have a bleed screw for manual air removal.
5. 사용 설명서
Once installed and primed, the DANFOSS BFP 21R3 pump operates automatically in conjunction with the burner control system. The pump maintains the required fuel pressure for efficient combustion.
5.1 압력 조정
The pump's pressure can be adjusted via a pressure regulating screw, typically located on the pump body. Use a pressure gauge to set the desired operating pressure as specified by the burner manufacturer. Turn the screw clockwise to increase pressure and counter-clockwise to decrease pressure.
6. 유지관리
Regular maintenance ensures optimal performance and extends the life of the pump.
6.1 정기 점검
- Inspect fuel lines for leaks, cracks, or damage.
- 전기 연결부의 조임 상태와 부식 여부를 점검하세요.
- 작동 중 이상한 소음이 들리는지 주의 깊게 살펴보십시오. 이상한 소음은 문제가 발생했음을 나타낼 수 있습니다.
6.2 필터 교체
The pump typically contains an internal filter that should be inspected and replaced periodically, usually annually or as recommended by the burner manufacturer. A clogged filter can restrict fuel flow and reduce pump performance.
Figure 5: Close-up of the pump's drive shaft, which connects to the motor.
7. 문제 해결
This section outlines common issues and potential solutions. Always disconnect power before performing any troubleshooting steps.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 오일 흐름 없음 | Clogged filter, air in lines, faulty motor, incorrect rotation | Clean/replace filter, bleed air, check motor, verify pump rotation |
| 오일 압력이 낮음 | Clogged filter, worn pump components, incorrect pressure setting | Clean/replace filter, inspect pump, adjust pressure regulator |
| 과도한 소음 | Air in lines, loose mounting, worn bearings | Bleed air, tighten mounting bolts, inspect for wear |
| 오일 누출 | Loose fittings, damaged seals | Tighten connections, replace seals |
8. 사양
| 사양 | 값 |
|---|---|
| 제조업체 | 댄포스 |
| 모델 번호 | BFP 21R3 |
| 부품 번호 | 071N0109 |
| 재료 | 금속 |
| 색상 | 검은색 |
| 스타일 | 산업 |
9. 보증 및 지원
For warranty information or technical support, please contact your authorized DANFOSS dealer or the seller from whom the product was purchased. Keep your proof of purchase for warranty claims.
