LLNSEAUTO Winch Solenoid Relay Contactor 12V 250A Instruction Manual

소개

The LLNSEAUTO Winch Solenoid Relay Contactor is a crucial component designed to manage the power supply to your 12V electric winch system. This device ensures safe and efficient operation for winches used on ATVs, UTVs, boats, and 4x4 vehicles. This manual provides essential information for proper installation, operation, maintenance, and troubleshooting to ensure reliable performance.

제품 내용

포장을 풀 때 모든 구성품이 들어 있고 손상되지 않았는지 확인하세요.

• 1x Winch Solenoid Relay Contactor
• 6x Waterproof Terminal Caps

명세서

Refer to the following technical specifications for the LLNSEAUTO Winch Solenoid Relay Contactor:

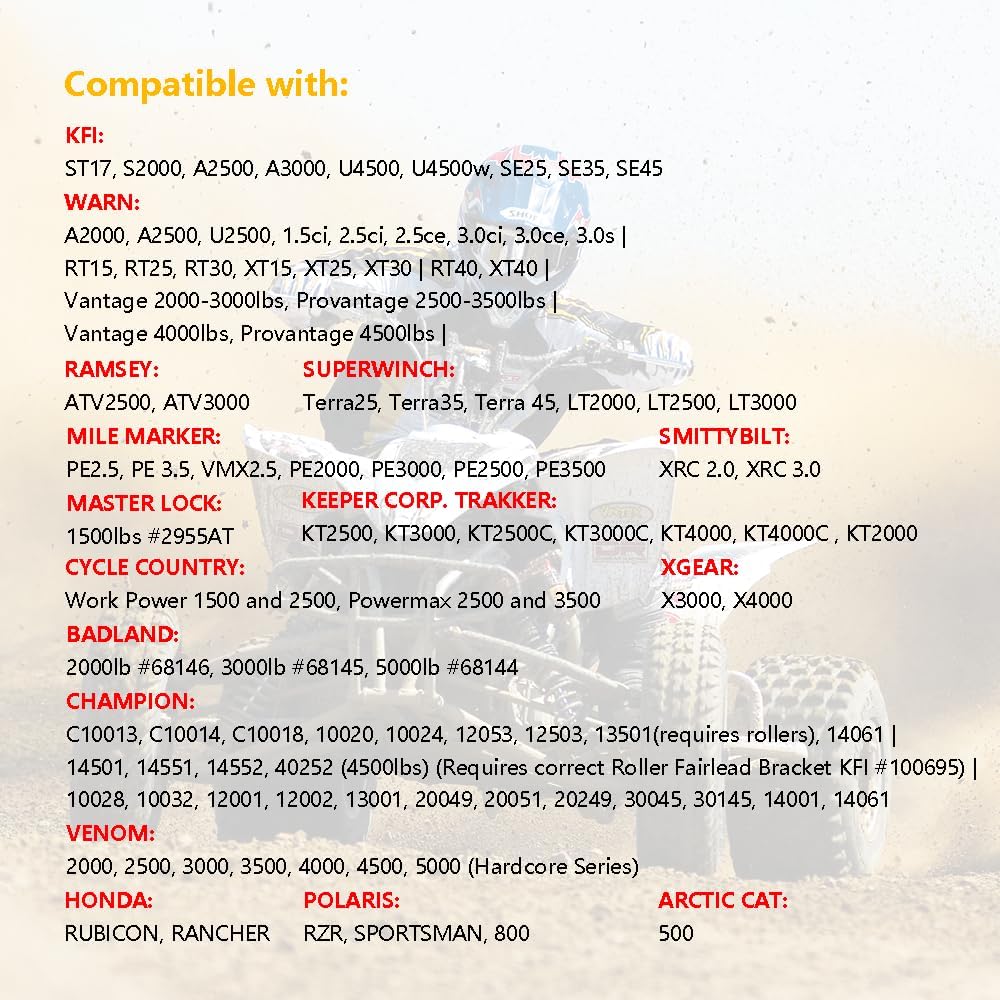

호환성

This winch solenoid relay is compatible with most ATV & UTV 12V winch switch systems that utilize a solenoid-operated contactor or relay, suitable for 1500lb-5000lb applications. It is designed to be a replacement for various OE numbers and works with numerous popular winch brands.

호환 브랜드 및 모델:

• KFI: ST17, S2000, A2500, A3000, U4500, U4500w, SE25, SE35, SE45
• 경고 : A2000, A2500, U2500, 1.5ci, 2.5ci, 2.5ce, 3.0ci, 3.0ce, 3.0s, RT15, RT25, RT30, XT15, XT25, XT30, RT40, XT40, Vantage 2000-3000lbs, Provantage 2500-3500lbs, Vantage 4000lbs, Provantage 4500lbs
• RAMSEY: ATV2500, ATV3000
• SUPERWINCH: Terra25, Terra35, Terra 45, LT2000, LT2500, LT3000
• MILE MARKER: PE2.5, PE 3.5, VMX2.5, PE2000, PE3000, PE2500, PE3500
• MASTER LOCK: 1500lbs #2955AT
• KEEPER CORP. TRAKKER: KT2500, KT3000, KT3000C, KT4000, KT4000C, KT2000
• CYCLE COUNTRY: Work Power 1500 and 2500, Powermax 2500 and 3500
• BADLAND: 2000lb #68146, 3000lb #68145, 5000lb #68144
• CHAMP이온: C10013, C10014, C10018, 10020, 10024, 12053, 12503, 13501 (requires rollers), 14061, 14501, 14551, 14552, 40252 (4500lbs) (Requires correct Roller Fairlead Bracket KFI #100695), 10028, 10032, 12001, 12002, 13001, 20049, 20051, 20249, 30045, 30145, 14001, 14061
• XGEAR: 엑스3000, 엑스4000
• VENOM: 2000, 2500, 3000, 3500, 4000, 4500, 5000 (Hardcore Series)
• 혼다: RUBICON, RANCHER
• POLARIS: RZR, SPORTSMAN, 800
• ARCTIC CAT: 500

Also compatible with other 12-volt trailer, hydraulic pump, and lift jack systems.

설정 및 설치

Proper installation is critical for the safe and effective operation of your winch system. Always disconnect the battery before beginning any electrical work.

1. 설치: Securely mount the solenoid in a dry, protected location, close to the battery and winch, using appropriate hardware (not included). Ensure it is away from moving parts and excessive heat.
2. 배터리 연결:
   • 연결하다 빨간색 terminal of the solenoid to the 긍정적 (+) terminal of your 12V battery.
   • 연결하다 검은색 terminal of the solenoid to the 부정적인 (-) terminal of your 12V battery.
3. Winch Connections:
   • 연결하다 파란색 terminal of the solenoid to the 긍정적 (+) terminal of your winch motor.
   • 연결하다 노란색 terminal of the solenoid to the 부정적인 (-) terminal of your winch motor.
4. Control Switch Connections:
   • Connect the yellow wire from the solenoid's control harness to the 여성 소켓 of your winch control switch.
   • Connect the green wire from the solenoid's control harness to the Male Socket of your winch control switch.
5. 보안 연결: Ensure all connections are tight and free from corrosion. Apply the provided waterproof caps to the main terminals to protect against moisture and debris.
6. 시험: Reconnect the battery and perform a functional test of the winch in both directions (in and out) to confirm correct wiring and operation.

Safety Warning: Incorrect wiring can cause damage to the solenoid, winch, or vehicle, and may pose a fire hazard. If you are unsure about any step, consult a qualified technician.

작동 지침

Once the solenoid is correctly installed and connected, operate your winch according to the manufacturer's instructions for your specific winch model and control switch.

1. Ensure the vehicle's engine is running to provide adequate power during winching operations.
2. Engage the winch clutch (if applicable) and connect the winch hook to a secure anchor point.
3. Use your winch control switch (e.g., rocker switch, thumb switch) to control the winch cable movement. Press the appropriate button to spool the cable in or out.
4. Monitor the winch and cable during operation to prevent tangles, snags, or overloading.
5. Do not exceed the rated capacity of your winch or the solenoid.
6. Disengage the winch clutch and secure the hook after use.

유지

Regular maintenance helps ensure the longevity and reliable performance of your winch solenoid.

• 연결 검사: Periodically check all electrical connections (battery, winch, and control wires) for tightness, corrosion, and damage. Clean any corrosion with a wire brush and apply dielectric grease if necessary.
• Check Waterproof Caps: Ensure the waterproof terminal caps are securely in place to protect against moisture, dirt, and debris.
• Clean Solenoid: Keep the exterior of the solenoid clean and free from excessive dirt, mud, or other contaminants.
• 물리적 손상: Inspect the solenoid housing for any cracks, breaks, or other physical damage that could compromise its integrity.

문제 해결

If you encounter issues with your winch system, consider the following troubleshooting steps:

• 윈치가 작동하지 않음:
  • 차량 배터리 용량을 확인하세요tage. A low battery may not provide enough power.
  • Verify all battery and winch connections to the solenoid are secure and free of corrosion.
  • Ensure the control switch is functioning correctly and its wires are properly connected to the solenoid.
  • Check for any blown fuses or tripped circuit breakers in the winch's power circuit.
• Solenoid Clicks, But Winch Does Not Move:
  • This often indicates insufficient power reaching the winch motor. Recheck battery voltage and all heavy-gauge power connections.
  • The winch motor itself may be faulty or seized.
  • The winch may be overloaded.
• Winch Operates in Only One Direction:
  • Check the control switch and its wiring to the solenoid. One of the control wires may be disconnected or faulty.
  • Inspect the corresponding power output terminal from the solenoid to the winch for a loose connection or internal solenoid fault.
• Solenoid Overheating:
  • Ensure the winch is not being continuously operated under heavy load for extended periods. Allow for cooling.
  • Verify that the winch's current draw does not exceed the solenoid's 250A rating.

If problems persist after performing these checks, it may indicate a faulty solenoid, winch motor, or control switch. Professional diagnosis may be required.

보증 및 지원

The LLNSEAUTO Winch Solenoid Relay Contactor comes with a 1년 보증, ensuring your satisfaction with the product. If you encounter any issues or are not satisfied with your purchase for any reason, please contact the seller directly for assistance.

For technical support or warranty claims, please refer to your purchase documentation or contact the retailer where the product was acquired. Provide your model number (S044-63070) and a detailed description of the issue to facilitate a quicker resolution.
