1. 소개 및 이상view
The Felicity Solar IVEM3024 is a versatile 3KVA 24V solar inverter designed to provide reliable power for various applications. It integrates a pure sine wave inverter with a high-efficiency MPPT solar charge controller, ensuring optimal energy conversion and stable power output. This device is engineered for seamless compatibility with mains voltage, generator power, and solar energy sources, offering flexible power supply transitions. Its intuitive LCD display allows users to easily monitor system status and customize operational settings, including battery charging current and AC/solar charger priority. The IVEM3024 is an ideal solution for enhancing energy management, providing a stable and sustainable power infrastructure.
그림 1: 전면 view of the Felicity Solar IVEM3024 Inverter.
2. 안전 지침
설치 및 작동 전에 모든 안전 지침을 읽고 이해하십시오. 이 지침을 따르지 않으면 감전, 화재 또는 심각한 부상이 발생할 수 있습니다.
- 적격 직원: 설치 및 유지관리는 자격을 갖춘 인력만이 수행해야 합니다.
- 높은 Voltage: 인버터는 높은 볼륨에서 작동합니다.tages. Do not open the unit or attempt repairs unless specifically instructed.
- 적절한 접지: Ensure the inverter is properly grounded to prevent electric shock.
- 통풍: 인버터의 과열을 방지하기 위해 통풍이 잘 되는 곳에 설치하십시오. 장치 주변에 충분한 공간을 확보하십시오.
- 배터리 안전: Work with batteries carefully. Wear eye protection and avoid contact with battery acid. Ensure proper battery polarity.
- 비상 정지: Know how to quickly disconnect all power sources (AC, DC, solar) to the inverter in an emergency.
- 환경 조건: 인버터를 비, 눈, 액체 또는 과도한 먼지에 노출시키지 마십시오.
3. 제품 특징
The Felicity Solar IVEM3024 inverter offers a range of advanced features for efficient and reliable power management:
- Built-in MPPT solar charge controller for optimized solar energy harvesting.
- Intuitive LCD display for easy adjustment of settings and system monitoring.
- Versatile compatibility with mains, generator, and solar power sources.
- Reliable performance with features like auto-restart during AC recovery and cold start capability.
- Support for lithium battery activation.
- Scalable design: Up to 12 units can be connected in parallel for a total power output of 5KVA.
- AC coupling compatibility for seamless integration with existing solar setups.
4. 패키지 내용
포장을 풀 때 아래 나열된 모든 품목이 들어 있고 손상되지 않았는지 확인하세요.
- Felicity Solar IVEM3024 Inverter Unit
- 사용자 설명서
- 통신 케이블 (해당되는 경우)
- 장착 하드웨어(나사, 벽 앵커)
- 보증 카드(해당되는 경우)
누락되거나 손상된 품목이 있는 경우 즉시 공급업체에 문의하십시오.
5. 설정 및 설치
Proper installation is crucial for the safe and efficient operation of the inverter. It is highly recommended that installation be performed by a certified electrician or solar professional.
- 사이트 선택: Choose a location that is dry, well-ventilated, and protected from direct sunlight, rain, and excessive dust. Ensure the ambient temperature is within the specified operating range.
- 설치: Securely mount the inverter to a sturdy vertical surface using the provided mounting hardware. Ensure there is sufficient clearance (at least 20 cm) around all sides for proper airflow.
- 배선 연결:
- 배터리 연결: Connect the battery bank to the inverter's DC input terminals, observing correct polarity (+ to + and - to -). Ensure battery voltage matches the inverter's 24V requirement.
- AC 입력 연결: Connect the AC mains or generator power source to the inverter's AC input terminals.
- AC 출력 연결: Connect your loads (appliances, distribution board) to the inverter's AC output terminals.
- PV 입력 연결: Connect the solar panel array to the inverter's PV input terminals, ensuring the PV voltage does not exceed 500V. Observe correct polarity.
- 접지: 인버터의 접지 단자를 안정적인 접지에 연결하세요.
- 초기 전원 켜기: After all connections are secure and verified, switch on the battery breaker first, then the AC input breaker (if applicable), and finally the PV input breaker. The inverter will initiate its startup sequence.

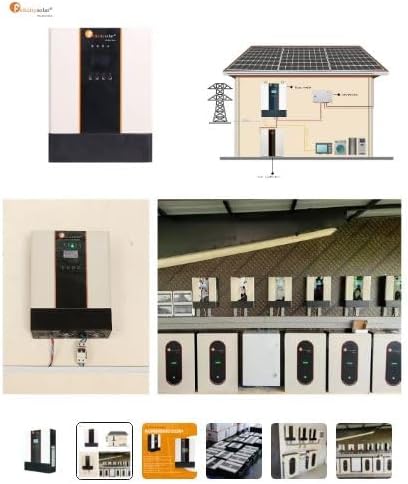

그림 2: 예ample installation diagram and multiple inverter units.
6. 사용 설명서
The IVEM3024 inverter features an LCD display and control buttons for easy operation and setting adjustments.
- LCD 디스플레이: The LCD displays real-time system information such as input voltage, 출력 볼륨tag예를 들어 배터리 상태, 충전 전류 및 오류 코드 등이 있습니다.
- 탐색 버튼: Use the buttons (typically 'Up', 'Down', 'Enter', 'Esc') to navigate through menus and adjust settings.
- Setting Customization: Access the settings menu to customize parameters such as:
- Battery charging current (e.g., for different battery capacities).
- AC/solar charger priority (e.g., Solar First, Utility First, SBU Priority).
- 출력 볼륨tage와 주파수.
- Battery type (e.g., AGM, Flooded, Lithium).
- 콜드 스타트 기능: The inverter can be started directly from the battery without AC input, useful in off-grid scenarios.
- 자동 재시작: The inverter will automatically restart when AC power is restored after a power outage.
- 병렬 작업: For increased power capacity, up to 12 units of the IVEM3024 can be connected in parallel. Refer to the detailed parallel kit manual for specific wiring and configuration instructions.
7. 유지관리
정기적인 유지관리는 인버터의 수명과 최적의 성능을 보장합니다.
- 청소: 인버터 외부를 주기적으로 마른 부드러운 천으로 닦아주십시오. 통풍구에 먼지와 이물질이 없도록 하십시오. 액체 세척제는 사용하지 마십시오.
- 연결 확인: Annually, or as needed, inspect all electrical connections (AC, DC, PV, ground) for tightness and corrosion. Tighten any loose connections.
- 통풍: Ensure the area around the inverter remains clear and well-ventilated to prevent overheating.
- 배터리 검사: Regularly check battery terminals for corrosion and ensure proper electrolyte levels for flooded batteries.
8. 문제 해결
이 섹션에서는 발생할 수 있는 일반적인 문제에 대한 해결 방법을 제공합니다. 여기에 나와 있지 않은 문제는 기술 지원팀에 문의하십시오.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 인버터가 켜지지 않습니다 | 배터리 연결 안 됨, 배터리 전압 낮음tage, DC breaker off. | Check battery connections, charge battery, turn on DC breaker. |
| AC 출력 없음 | Overload, short circuit, AC output breaker off, inverter fault. | Reduce load, check for short circuits, turn on AC breaker, check LCD for error codes. |
| 배터리가 충전되지 않음 | PV input issue, AC input issue, charge controller fault, incorrect settings. | Check PV connections, ensure AC input is present, verify charging settings on LCD. |
| LCD의 오류 코드 | 특정 시스템 오류(예: 과열, 과용량)tag이자형). | Refer to the inverter's detailed error code list in the full manual or contact support. |
9. 사양
Key technical specifications for the Felicity Solar IVEM3024 Inverter:
| 사양 | 값 |
|---|---|
| 제조업체 | 펠리시티 솔라 |
| 제품 치수 | 30 x 13 x 40cm |
| 품목 무게 | 10.8kg |
| 모델 번호 | 아이엠3024 |
| 권tage | 24 볼트 |
| 색상 | 하얀색 |
| 첫 번째 가능한 날짜 | 18년 2023월 XNUMX일 |
10. 보증 및 지원
The Felicity Solar IVEM3024 Inverter comes with a warranty period of 90 days from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For technical support, warranty claims, or service inquiries, please contact your original point of purchase or the authorized Felicity Solar service center. Please have your product model number (IVEM3024) and purchase date available when contacting support.
