1. 서론
This manual provides detailed instructions for the assembly, operation, and maintenance of your HUANUO 48x24 inch Electric Standing Desk (Model HNESD22B). This adjustable height desk is designed to enhance your home office setup with its electric lifting mechanism, large keyboard tray, and memory height settings. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Image 1.1: The HUANUO 48x24 inch Electric Standing Desk in a typical home office environment, showcasin디자인과 기능성이 뛰어납니다.
2. 안전 정보
- 책상을 작동하기 전에 모든 연결이 안전하게 되어 있는지 확인하십시오.
- 부상을 예방하기 위해 작동 중에는 어린이와 애완동물이 책상에 접근하지 못하도록 하세요.
- 책상에 과부하를 주지 마십시오. 최대 하중 용량은 제품 사양을 참조하십시오.
- 제어판이나 전기 부품 근처에 액체를 직접 두지 마십시오.
- In case of malfunction, disconnect power immediately and refer to the troubleshooting section or contact customer support.
- Ensure there are no obstructions in the desk's path when adjusting height to prevent damage or injury. The desk is equipped with an anti-collision system.
3. 패키지 내용
Please verify that all components are present before beginning assembly. A detailed list of parts is included in the separate installation manual (PDF) provided with your purchase. Key components include:
- 데스크톱 섹션
- 책상 다리와 받침대
- Electric lifting mechanism and control box
- 제어판
- Large keyboard tray with gliding mechanism
- Cable management accessories (slots, power strip holder, storage hooks)
- 하드웨어 키트(나사, 공구)
For a complete list and visual guide, please refer to the 설치 설명서(PDF).
4. 설치(조립)
Assembly of the HUANUO Electric Standing Desk requires careful attention to detail. It is recommended that 두 사람 perform the assembly to ensure safety and ease of installation. A screwdriver is the primary tool recommended for assembly.
Follow the step-by-step instructions provided in the dedicated installation manual. The manual includes embedded screw hole locations and labeled installation tools for a simplified process. An assembly video guide is also available to assist you.
참조 설치 설명서(PDF) 자세한 조립 단계는 다음과 같습니다.
Image 4.1: Desk dimensions are crucial for proper assembly and placement. This diagram illustrates the overall size and keyboard tray measurements.
5. 사용 설명서
5.1 높이 조정
Your HUANUO Electric Standing Desk features an electric lifting system for smooth and quiet height adjustments. Use the control panel located on the front edge of the desk to raise or lower the desktop.
- 위/아래 버튼: Press and hold the up or down arrow buttons to continuously adjust the desk height. Release the button at your desired height.
- 메모리 사전 설정: The desk has four customizable height settings (1, 2, 3, 4). To save a height: adjust the desk to the desired height, then press the 'M' button followed by the desired number (1-4). The desk will beep to confirm the setting is saved. To recall a saved height, simply press the corresponding number button.
Image 5.1: The desk offers a wide height range, allowing users to easily switch between sitting and standing positions and save up to four preferred heights.

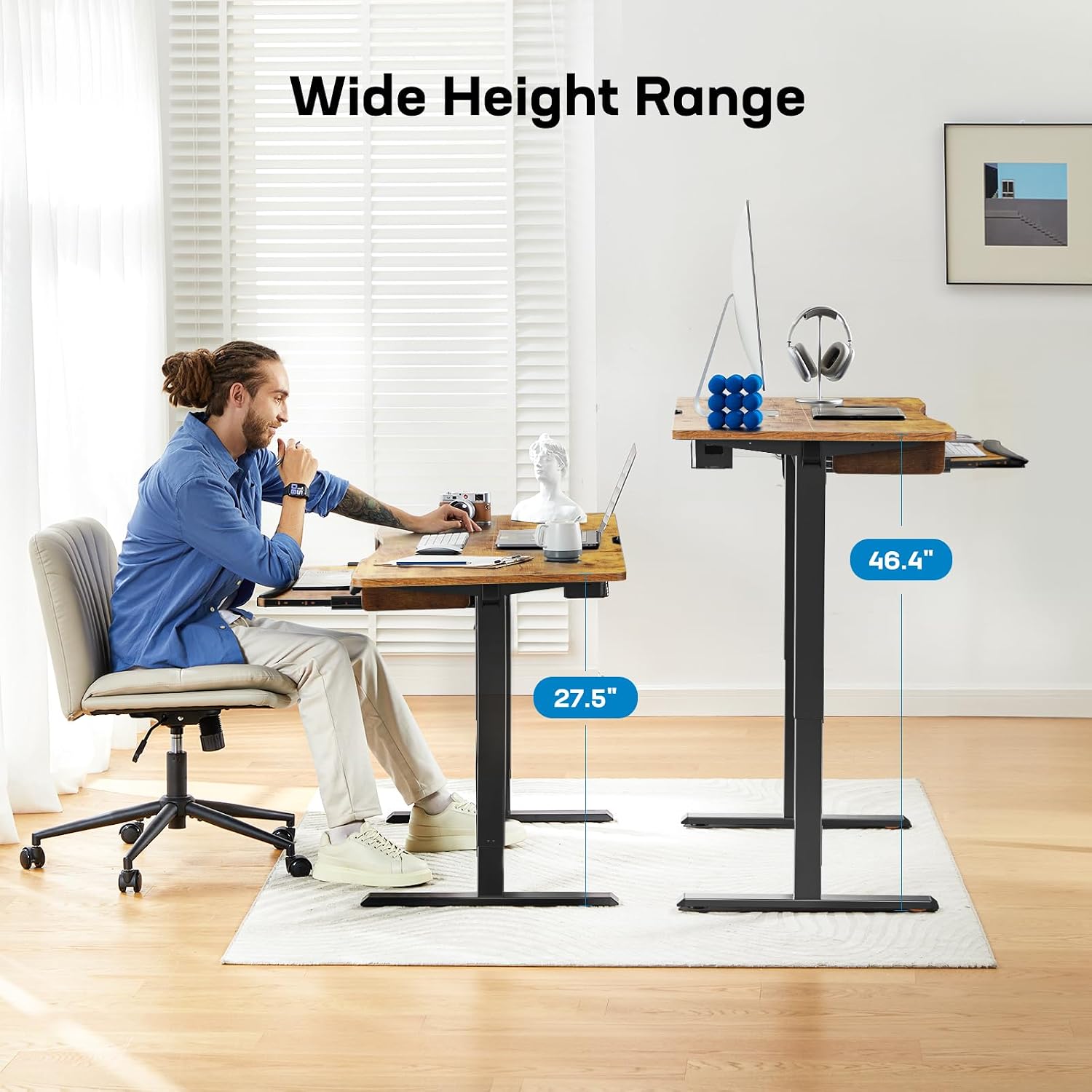

Image 5.2: This image illustrates the minimum (27.5 inches) and maximum (46.4 inches) height capabilities of the desk, accommodating both sitting and standing postures.
5.2 키보드 트레이
The desk includes a large 26.7" x 11.8" keyboard tray designed for ergonomic comfort. The tray features a smooth gliding and locking system.
- 확대: Pull the keyboard tray forward until it locks into place for use.
- 취소: Push the keyboard tray back into its storage position when not in use.
- The tray supports a maximum load of 22 lbs.
Image 5.3: The spacious keyboard tray provides ample room for a full-size keyboard and mouse, designed for ergonomic positioning.
Image 5.4: The keyboard tray's premium gliding mechanism ensures smooth and stable operation, supporting up to 22 lbs.
5.3 Cable Management and Anti-Collision System
The desk is equipped with features to keep your workspace organized and safe.
- 케이블 관리 : Utilize the integrated cable management slots and the power strip holder underneath the desk to neatly organize your device cables and power strips.
- Storage Hooks: Use the included hooks to hang headphones or other accessories.
- 충돌 방지 시스템: The desk features an anti-collision system that automatically stops and slightly reverses the desk's movement if it encounters an obstruction during height adjustment, preventing damage or injury.
이미지 5.5: 이상view of the desk's smart features, including the control panel, cable management solutions, storage hooks, and the anti-collision safety mechanism.
5.4 공식 제품 영상
Video 5.1: This video demonstrates the key features of the HUANUO Standing Desk, including the large keyboard tray, cable management, and height adjustment functionality.
6. 유지관리
To ensure the longevity and optimal performance of your HUANUO Electric Standing Desk, follow these simple maintenance guidelines:
- 청소: 책상 표면을 광고로 닦으세요amp 천으로 닦으세요. 마감재를 손상시킬 수 있는 강한 화학 물질이나 연마성 세제는 사용하지 마세요.
- 검사: 모든 나사와 연결부가 단단히 조여져 있는지 정기적으로 점검하세요. 필요하면 다시 조이세요.
- 케이블 관리 : Regularly check cables for any signs of wear or damage and ensure they are properly routed through the cable management system.
7. 문제 해결
HUANUO 전동 스탠딩 데스크 사용 중 문제가 발생하면 다음 일반적인 문제 해결 단계를 참조하십시오.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| Desk does not move or respond to control panel. | Power disconnected; motor overload; control box error. | Check power cable connection. Disconnect power for 10 seconds, then reconnect to reset. Reduce load on desk. |
| 책상이 고르지 않게 움직이거나 이상한 소리가 납니다. | Uneven load; loose connections; motor issue. | Ensure weight is evenly distributed. Check all assembly screws. If noise persists, contact support. |
| Keyboard tray is stiff or not gliding smoothly. | Obstruction in tracks; dirt/debris; damaged mechanism. | Inspect tracks for obstructions and clean. Ensure proper alignment. If damaged, contact customer support for replacement parts. |
| 충돌 방지 시스템이 너무 쉽게 작동하거나 아예 작동하지 않습니다. | Sensitivity setting; sensor obstruction. | Refer to the full user manual for instructions on adjusting anti-collision sensitivity. Ensure no objects are near the desk's path. |
이러한 조치를 취해도 문제가 해결되지 않으면 HUANUO 고객 지원팀에 문의하여 추가 지원을 받으십시오.
8. 사양
Detailed technical specifications for the HUANUO 48x24 Inch Electric Standing Desk (Model HNESD22B):
- 모델 번호: HNESD22B
- 상표: 화누오
- 제품 크기: 24인치(깊이) x 48인치(폭) x 28.3인치(높이) (최소 높이)
- 조정 가능한 높이 범위: 27.5인치에서 46.4인치까지
- 데스크탑 자료: Wood (Vintage Brown finish)
- 프레임 소재: Automotive-grade SPCC cold-rolled steel
- 리프팅 메커니즘: 전기 같은
- 높이 위치 수: 4 (메모리 사전 설정)
- Keyboard Tray Dimensions: 26.7인치 x 11.8인치
- Keyboard Tray Max Load: 22파운드
- 특별 기능: Adjustable Height, Large Keyboard Tray, 4 Memory Height Settings, Cable Management System, Anti-Collision System
- 한국어: 810145639504
Image 8.1: This diagram provides a comprehensive overview of the desk's dimensions, essential for planning your workspace.
9. 보증 및 지원
HUANUO 전동 스탠딩 데스크에는 다음이 포함됩니다. 한정 보증. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty information included with your purchase or visit the official HUANUO web대지.
For technical support, missing parts, or any other inquiries, please contact HUANUO customer service. Contact information can typically be found on the product packaging, the official HUANUO web사이트나 소매업체를 통해 구매할 수 있습니다.
