TALLPOWER V2400 Portable Electric Generator User Manual

1. 서론

Thank you for choosing the TALLPOWER V2400 Portable Electric Generator. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before using the product and retain it for future reference.

The TALLPOWER V2400 is a high-capacity portable power station designed to provide reliable electricity for various applications, including emergencies, outdoor activities like camping, and powering RVs. It features a durable LiFePO4 battery, multiple output ports, and versatile charging options.

이미지 1.1: The TALLPOWER V2400 Portable Power Station, highlighting its 2160Wh capacity, 2400W output, and 1100W input capabilities. This image illustrates the device's core power specifications.

2. 중요 안전 지침

안전한 작동을 위해 항상 다음 기본 예방 조치를 따르세요.

• 장치를 분해, 수리 또는 개조하지 마십시오.
• 제품을 화기 근처에 두거나 고온에 노출시키지 마십시오.
• 욕실이나 물 또는 비에 노출되는 장소에서 제품을 사용하거나 보관하지 마십시오.
• 장치가 손상되었거나 떨어진 경우 사용하지 마십시오.
• 어린이와 애완동물의 손이 닿지 않는 곳에 보관하세요.
• 사용 및 충전 시에는 적절한 환기를 유지하세요.
• 승인된 액세서리와 충전 케이블만 사용하세요.
• 출력 포트의 단락을 방지하십시오.
• 해당 제품은 지역 규정에 따라 폐기하십시오.

이미지 2.1: An illustration of the TALLPOWER V2400's comprehensive battery and device protection features, including safeguards against low temperature, overload, overheating, over-discharge, over-voltage, 언더볼륨tage, and short-circuiting. This highlights the built-in safety mechanisms.

3. 제품 오버view

The TALLPOWER V2400 features a robust design with multiple input and output ports, a clear LCD display, and intuitive controls. Familiarize yourself with the components before operation.

이미지 3.1: Front panel of the TALLPOWER V2400 Portable Electric Generator. This image displays the various DC output ports (12V/10A, 12V/25A, 12V/3A), USB-A (QC3.0), USB-C (PD 20W, PD 100W), the main LCD display, power button, and input adjustment knob.

3.1. 구성 요소

• LCD 디스플레이: Shows battery level, input/output power, remaining runtime, and error indicators.
• 전원 버튼: 기기를 켜거나 끕니다.
• Input Adjustment Knob: Controls AC input charging power (300W, 500W, 700W, 900W, 1100W).
• DC 출력 포트: 1x Cigarette Lighter (12V/10A), 1x XT60 (12V/25A), 2x DC5521 (12V/3A).
• USB 출력 포트: 2x USB-A (QC3.0), 3x USB-C (PD 20W), 1x USB-C (PD 100W).
• AC 출력 포트: 3x AC outlets (2400W rated, 4800W peak).
• AC 입력 포트: 벽면 콘센트를 이용한 충전용입니다.
• 태양광/자동차 입력 포트: For charging via solar panels or car cigarette lighter.
• 통합형 보관함: Located on top for accessories.
• LED 조명: For illumination and emergency signaling.

4. 설정

4.1. 풀기

Carefully remove the TALLPOWER V2400 from its packaging. Verify that all components are present and undamaged. The package typically includes the generator unit and various charging cables (AC charging cable, car charging cable, solar charging cable).

4.2. 초기 요금

Before first use, it is recommended to fully charge the TALLPOWER V2400. Connect the AC charging cable to the unit's AC input port and then to a wall outlet. The LCD display will indicate charging status. A full charge typically takes approximately 1.5 hours using dual charging (AC + solar) or 2 hours with AC charging alone.

4.3. 배치

Place the generator on a stable, flat surface in a well-ventilated area. Ensure there is adequate space around the unit for heat dissipation. Avoid direct sunlight or enclosed spaces during operation and charging.

5. 사용 설명서

5.1. 전원 켜기 / 끄기

Press and hold the main Power Button for a few seconds to turn the unit on or off. The LCD display will illuminate upon activation.

5.2. 장치 연결

Once powered on, connect your electronic devices to the appropriate output ports (AC, DC, USB). Press the respective DC ON/OFF or AC ON/OFF buttons to activate the desired output section. The LCD display will show the current output wattage.

이미지 5.1: The TALLPOWER V2400 demonstrating its high power output of 2400 Watts (with a maximum instantaneous power of 4800 Watts). The image shows examples of appliances it can power, such as a coffee machine (550W for 4H), electric grill (160W for 13H), induction cooker (1800W for 1.2H), and refrigerator (1150W for 1.9H), illustrating its versatility for various high-energy consumption devices.

5.3. LCD 디스플레이 이해

LCD 디스플레이는 실시간 정보를 제공합니다.

• 배터리 잔량 표시기: 배터리 잔량을 표시합니다.
• 입력 전력(W): Displays the current charging wattage.
• 출력 전력(W): 총 전력량을 표시합니다.tag연결된 기기에 의해 그려지고 있습니다.
• 남은 사용 시간/충전 시간: 기기가 얼마나 오랫동안 전원을 공급할 수 있는지 또는 완전히 충전될 때까지 얼마나 걸릴지 예상 시간을 알려줍니다.
• UPS Indicator: Illuminates when the UPS function is active.
• Fan Indicator: Shows when the cooling fan is operating.
• 오류 표시기: Alerts to potential issues (e.g., overload, overheating).

6. 충전 방법

The TALLPOWER V2400 offers multiple charging options for flexibility.

이미지 6.1: An illustration detailing the four available charging methods for the TALLPOWER V2400. These include charging via a power outlet (maximum 1100W, full charge in approximately 2 hours), charging via a car cigarette lighter (120W, full charge in approximately 17 hours), solar panel charging (maximum 500W, using 2x 200W panels for approximately 6-7 hours), and combined AC (1100W) and solar panel (500W max) charging for a full charge in approximately 1.5 hours.

6.1. AC 벽면 콘센트 충전

Connect the provided AC charging cable to the unit's AC input port and then to a standard wall outlet. The unit supports up to 1100W AC input, allowing for a full charge in approximately 2 hours.

6.2. 태양광 패널 충전

Connect compatible solar panels (12-48V, 500W max) to the unit's solar input port. The charging time will vary depending on solar intensity and panel wattage. 예를 들어ample, two 200W solar panels can fully charge the unit in approximately 6-7 hours under optimal conditions.

6.3. 자동차 충전

Use the provided car charging cable to connect the unit to your vehicle's 12V/24V cigarette lighter socket. This method provides up to 120W input and can fully charge the unit in approximately 17 hours.

6.4. Dual Charging (AC + Solar)

For the fastest charging, combine AC wall outlet charging with solar panel charging. This method allows for a full charge in approximately 1.5 hours.

7. 조절 가능한 입력 전력

The TALLPOWER V2400 features an adjustable input power knob, allowing you to select charging speeds of 300W, 500W, 700W, 900W, and 1100W. Rotate the knob to adjust the charging rate. This feature helps protect the device from unstable voltage and allows you to manage charging time according to your needs.

8. 무정전 전원 공급 장치(UPS) 기능

The V2400 is equipped with an Uninterruptible Power Supply (UPS) function. When connected to a wall outlet and powering devices, it typically passes power directly from the grid. In the event of a power outage, the unit automatically switches to its internal battery power within 0.001 seconds. This seamless transition protects connected devices from sudden power loss, making it an ideal backup power solution for critical electronics.

9. 유지관리

9.1. 청소

Wipe the unit with a dry, soft cloth. Do not use abrasive cleaners or solvents. Ensure all ports are free of dust and debris. The silicone protective covers on each port help prevent dust, moisture, and insects from causing short circuits.

9.2. 보관

Store the TALLPOWER V2400 in a cool, dry place, away from direct sunlight and extreme temperatures. For long-term storage, charge the unit to approximately 50-80% every 3-6 months to maintain battery health.

9.3. 배터리 관리

The built-in LiFePO4 battery offers excellent safety and a long lifespan. Avoid fully discharging the battery frequently to prolong its overall life. The unit is designed to operate efficiently within a wide temperature range, but extreme conditions should be avoided.

10. 문제 해결

If you encounter issues with your TALLPOWER V2400, refer to the following common problems and solutions:

• 장치가 켜지지 않음: 배터리가 충전되어 있는지 확인하십시오. 전원 버튼을 길게 누르십시오.
• 포트에서 출력이 없습니다. Ensure the specific output section (AC, DC, USB) is activated by pressing its respective ON/OFF button. Check if the device connected is within the power limits of the port and the unit.
• 기기가 충전되지 않음: Verify that the charging cable is securely connected to both the unit and the power source. Check the power source (wall outlet, solar panel, car socket) for functionality. Adjust the input power knob if necessary.
• 과부하 표시기: If the overload icon appears, disconnect some devices to reduce the power draw. The unit will automatically reset after a few seconds.
• Overheating Indicator: If the unit overheats, it will shut down automatically. Allow it to cool down in a well-ventilated area before resuming use.

문제가 지속되면 고객 지원팀에 문의하세요.

11. 사양

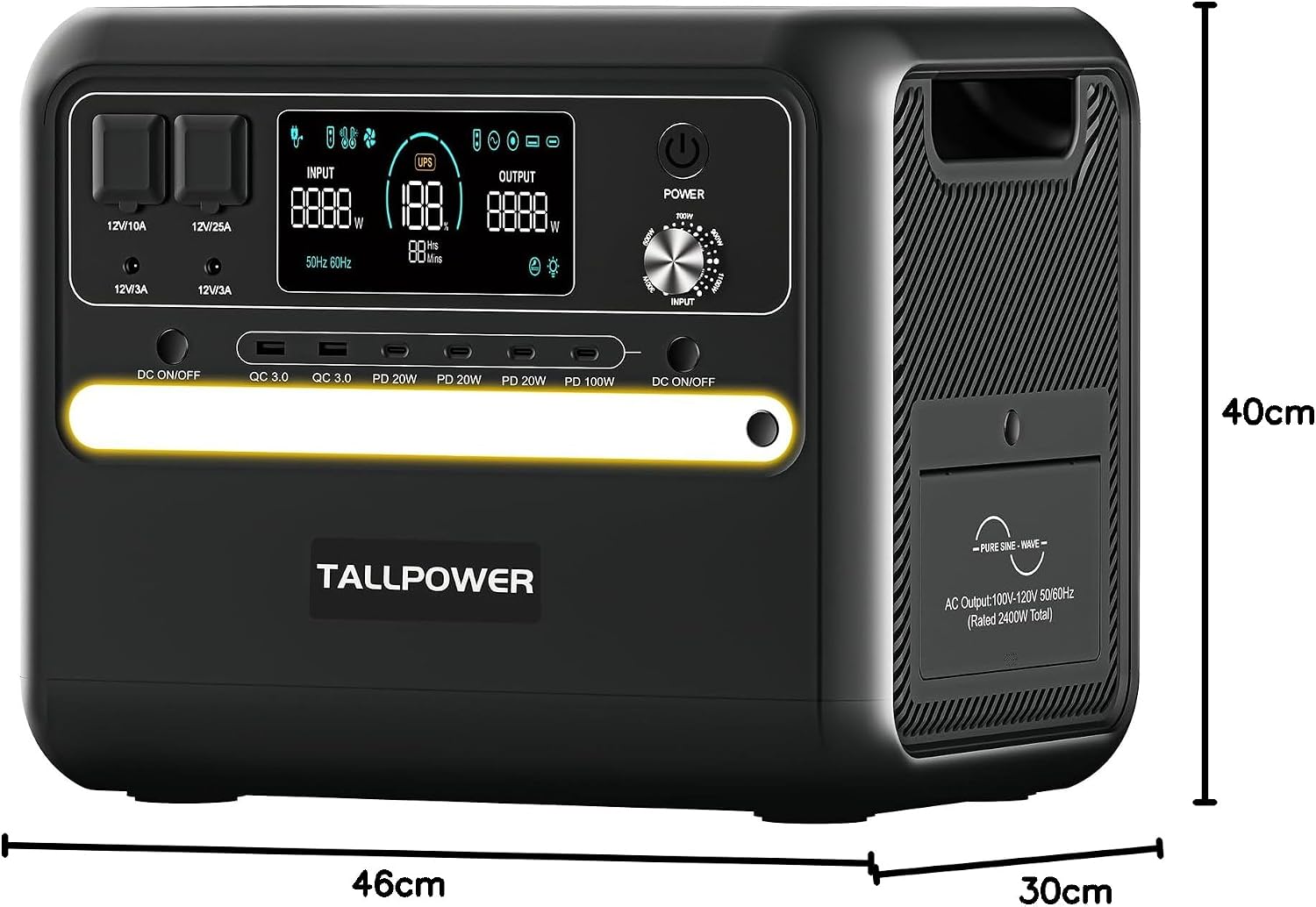

이미지 11.1: The TALLPOWER V2400 Portable Electric Generator with its physical dimensions clearly marked: 40cm (length), 46cm (width), and 30cm (height). This provides a visual reference for the unit's size.

12. 보증 및 지원

12.1. 보증 정보

The TALLPOWER V2400 Portable Electric Generator is covered by a 3년 보증 구매일로부터. 본 보증은 제조상의 결함에 대한 보증이며, 정상적인 사용 조건에서 제품이 지정된 성능 기준을 충족함을 보장합니다. 보증 청구를 위해 구매 증빙 자료를 보관해 주십시오.

12.2. 고객 지원

If you have any questions, require technical assistance, or need to make a warranty claim, please do not hesitate to contact TALLPOWER customer support. We aim to respond to all inquiries within 48 hours.

For support, please refer to the contact information provided on the official TALLPOWER web사이트 또는 구매 문서.
