1. 제품 오버view
This KiriNavi car radio is designed for Toyota Highlander models from 2015 to 2019. It features a 13.1-inch 2K screen, Android 13 operating system, Octa-Core CPU, 6GB RAM, and 128GB ROM. Key functionalities include wireless CarPlay, wired Android Auto, built-in DSP, Bluetooth 5.0, 4G LTE support, and GPS navigation. It is compatible with original car features such as the JBL Amplifier and 360-view 카메라.
Image: KiriNavi Car Stereo installed in a Toyota Highlander dashboard, showcasing the large screen display and integration.
2. 패키지 내용
설치를 시작하기 전에 패키지에 모든 구성 요소가 들어 있는지 확인하세요.
- 1 x 전원 케이블
- RCA 입력/출력 케이블 1개
- 1 x 후방 카메라 입력 케이블
- 4G 모듈 1개
- 2 x USB 케이블
- 1 x GPS 안테나
- 1 x 사용자 매뉴얼(이 문서)
- 1 x 외부 마이크
- 1 x Installation Tool (Crowbar)
- 1 x CANBUS Decoder (integrated with Power Cable)
Image: All components included in the KiriNavi car radio package, including cables, antennas, microphone, and installation tools.
3. 설정 및 설치
Installation of the KiriNavi car radio is designed to be plug-and-play for compatible Toyota Highlander models (2015-2019). Professional installation is recommended if you are unfamiliar with car audio systems.
3.1 설치 전 확인 사항
- 시동을 걸기 전에 차량의 시동이 꺼져 있고 배터리가 분리되어 있는지 확인하십시오.
- Confirm compatibility with your specific Toyota Highlander model and year (2015-2019).
- If your vehicle has a JBL amplifier or 360-view camera, ensure the provided wiring harness supports these features.
3.2 설치 단계(일반)
- Carefully remove the original car radio unit and trim panels using the provided installation tool (crowbar).
- Connect the main power cable harness from the KiriNavi unit to the vehicle's factory harness. Ensure all connections are secure.
- GPS 안테나를 연결하고 깨끗한 곳에 위치시키세요. view 하늘의 (예: 대시보드).
- Connect the 4G module and its antenna for cellular data connectivity.
- Connect the RCA input/output cables and rear camera input cable as needed for external devices or the vehicle's existing rear camera.
- 통화 품질 향상을 위해 외부 마이크를 연결하세요.
- Mount the KiriNavi unit into the dashboard opening. Ensure the frame fits correctly. The unit comes with 3 groups of holes in the frame for adjustment.
- 차량 배터리를 다시 연결하고 대시보드를 완전히 재조립하기 전에 장치의 기능을 테스트하십시오.
Image: Visual comparison of the car dashboard before and after the KiriNavi car radio installation, highlighting the integrated large screen.

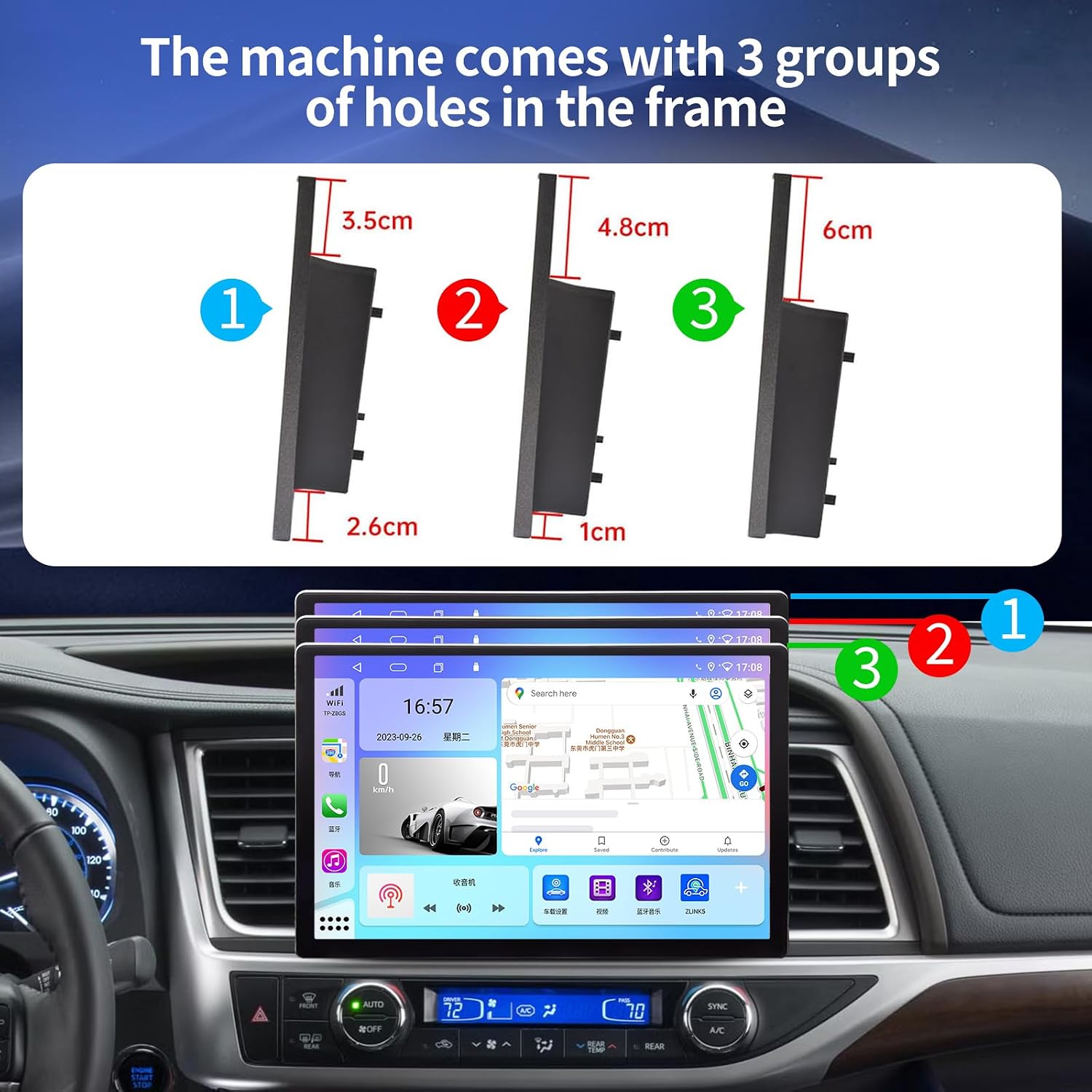

Image: Diagram illustrating the three adjustable frame hole positions (3.5cm, 4.8cm, 6cm) for precise mounting of the car radio.
3.3 초기 전원 켜기
Upon first power-on, the system may take a moment to boot up. Follow any on-screen prompts for initial setup, such as language selection and network configuration.
4. 사용 설명서
4.1 터치스크린 인터페이스
The unit features a capacitive touchscreen. Navigate through menus and applications by tapping, swiping, and pinching (for zoom, where applicable) similar to a smartphone or tablet.
4.2 무선 CarPlay 및 유선 Android Auto
스마트폰을 연결하여 원활하게 연동하세요.
- 무선 카플레이: For iPhone users, enable Bluetooth and Wi-Fi on your phone. Pair your iPhone with the car radio via Bluetooth. Once paired, CarPlay should automatically launch wirelessly.
- 유선 안드로이드 오토: For Android users, connect your phone to one of the USB ports using a high-quality USB cable. Android Auto should launch automatically. Ensure Android Auto is installed on your phone.
Image: The car radio screen showing the CarPlay interface, providing access to phone, music, maps, and messages.
Video: Demonstration of the KiriNavi car radio's features, including Bluetooth calling and CarPlay functionality.
4.3 Bluetooth 5.0 Hands-Free
Pair your phone via Bluetooth for hands-free calling and audio streaming:
- 자동차 라디오의 Bluetooth 설정으로 이동하세요.
- 휴대폰에서 Bluetooth를 활성화하고 사용 가능한 기기를 검색하세요.
- Select "KiriNavi" (or similar device name) from the list on your phone and confirm pairing.
- Once connected, you can make/receive calls, access your phonebook, and stream music directly from your phone.

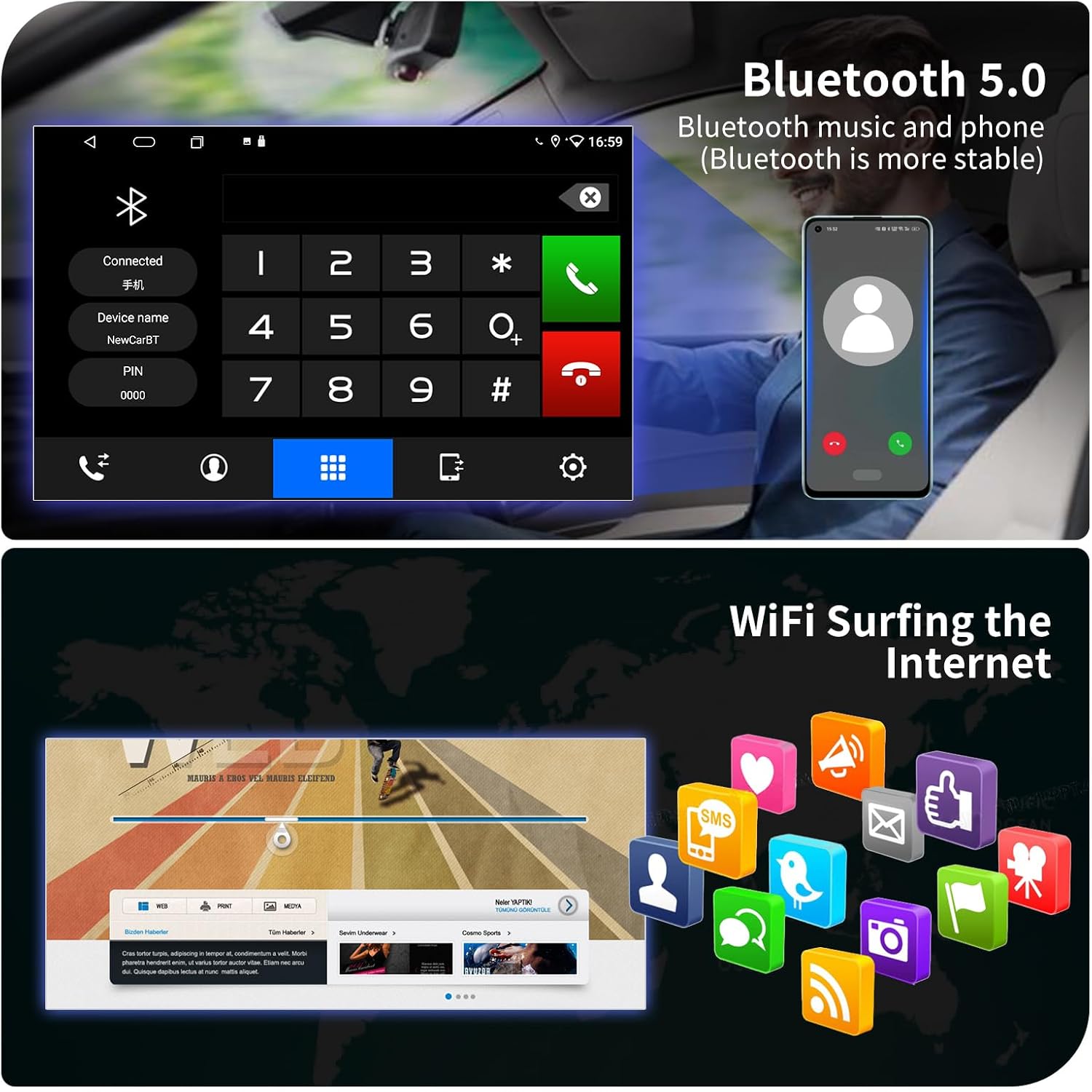

Image: The car radio displaying the Bluetooth dialing interface, allowing users to make calls directly from the unit.
4.4 GPS 내비게이션
The unit comes with built-in GPS and supports offline maps (North America pre-installed) and online navigation applications. Ensure the GPS antenna is properly installed for optimal signal reception.
Image: The car radio displaying a map application, demonstrating its GPS navigation capabilities with search and destination options.
4.5 분할 화면 기능
The 2K screen supports smart split-screen, allowing two applications to run simultaneously. For examp르, 당신은 할 수 있습니다 view navigation on one side and media playback on the other. To activate, drag an app icon to one side of the screen or use the dedicated split-screen button (if available).
Image: The car radio screen demonstrating the split-screen feature, showing a video playing concurrently with a navigation map.
4.6 스티어링 휠 컨트롤(SWC)
The unit supports factory steering wheel controls. After installation, you may need to configure the SWC settings within the unit's system menu. Follow the on-screen instructions to map your vehicle's steering wheel buttons to the corresponding functions on the radio.

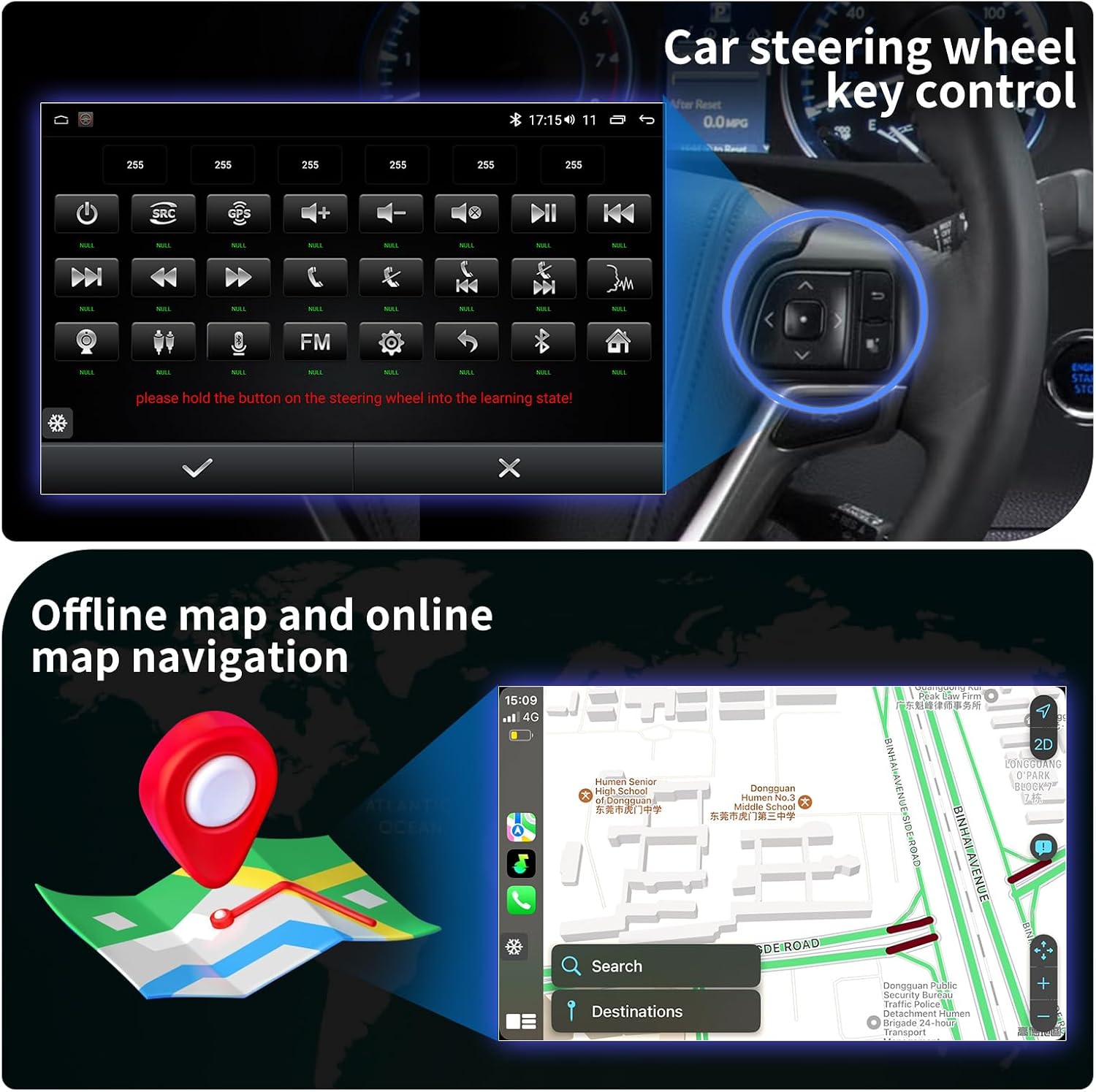

Image: The car radio displaying the interface for learning steering wheel controls, with an overlay of a hand on a steering wheel.
4.7 4G LTE & Wi-Fi Connectivity
Connect to the internet via the 4G module (requires a SIM card, not included) or by tethering to your phone's Wi-Fi hotspot. This enables online navigation, app downloads, and internet browsing.
Image: The car radio screen displaying a variety of application icons, illustrating the unit's 4G and Wi-Fi internet capabilities.
4.8 디지털 사운드 프로세서(DSP)
The built-in DSP allows for advanced audio customization. Access the equalizer and position adjustment settings to fine-tune the sound output for a personalized listening experience.
5. 유지관리
- 화면 청소: 전자 기기 화면 전용으로 제작된 부드럽고 보풀 없는 천을 사용하십시오. 연마성 세척제나 용제를 사용하지 마십시오.
- 소프트웨어 업데이트: 최적의 성능을 유지하고 새로운 기능을 이용하려면 기기의 설정 메뉴를 통해 시스템 소프트웨어 업데이트를 주기적으로 확인하십시오.
- 케이블 연결: 모든 케이블이 단단히 연결되어 있는지 확인하세요. 연결이 느슨하면 간헐적으로 문제가 발생할 수 있습니다.
- 환경 조건: 본 제품을 극한의 온도, 장시간 직사광선 또는 과도한 습기에 노출시키지 마십시오.
6. 문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 장치의 전원이 켜지지 않습니다. | 전원 연결 불량, 퓨즈 단선, 차량 배터리 분리. | Check all power cable connections. Verify vehicle battery is connected. Inspect vehicle fuses. |
| 소리가 나지 않거나 오디오 품질이 좋지 않습니다. | Incorrect wiring, volume too low, DSP settings misconfigured, JBL amplifier not properly integrated. | Check speaker wiring. Adjust volume. Reset DSP settings. Ensure JBL amplifier integration is correct (if applicable). |
| 스티어링 휠 컨트롤이 작동하지 않습니다. | Incorrect CANBUS connection, SWC not configured in settings. | Verify CANBUS connection. Go to unit settings and perform SWC learning/configuration. If issues persist, try changing RX and TX settings as per manufacturer guidance. |
| CarPlay/Android Auto 연결 문제. | Bluetooth/Wi-Fi off, incorrect pairing, faulty USB cable, outdated phone OS/app. | Ensure Bluetooth and Wi-Fi are enabled on phone and unit. Re-pair devices. Try a different USB cable. Update phone's operating system and CarPlay/Android Auto app. |
| GPS 신호가 약하거나 부정확합니다. | GPS 안테나가 잘못 설치되었거나 연결이 끊어졌습니다. | GPS 안테나가 단단히 연결되어 있고 시야가 확보된 위치에 설치되어 있는지 확인하십시오. view 하늘의. |
| 360-view camera not connecting. | Incorrect wiring, compatibility issue, software configuration. | Verify all camera input cables are correctly connected. Check unit settings for camera input configuration. Consult professional installer if problem persists. |
7. 사양
| 상표 | KiriNavi |
| 모델명 | Car Stereo For Toyota Highlander |
| 화면 크기 | 13.1인치 |
| 운영 체제 | 안드로이드 13 |
| CPU | 옥타 코어 |
| 숫양 | 6GB |
| 집시 남자 | 128GB |
| 디스플레이 유형 | LCD, Capacitive Touchscreen |
| 해결 | 2000*1200P (2K) |
| 연결 기술 | Bluetooth 5.0, USB, Wi-Fi, 4G LTE |
| Supported Navigation System | GPS (North America maps included) |
| 오디오 출력 모드 | 스테레오(내장 DSP) |
| 호환 차량 유형 | 토요타 하이랜더 2015-2019 |
| 품목 무게 | 2.94kg |
8. 보증 정보
This KiriNavi car radio comes with a 1년 보증 from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by improper installation, accident, misuse, abuse, unauthorized modifications, or natural disasters. Please retain your proof of purchase for warranty claims.
9. 고객 지원
For technical assistance, troubleshooting, or warranty inquiries, please contact KiriNavi customer support through the retailer where the product was purchased or visit the official KiriNavi website for contact information. When contacting support, please have your product model number (B0CJC5F7JH) and proof of purchase readily available.
