1. 설정
This section guides you through the initial setup of your Natec ATX NPC-2038 Semi-Tower PC Case, from unpacking to component installation.
1.1 풀기
- Carefully open the packaging and remove the PC case.
- Inspect the case for any signs of damage during transit. If damage is found, contact your retailer immediately.
- Remove all internal packaging materials and accessories. Keep the packaging for future transport or warranty claims.
1.2 구성 요소 식별
Familiarize yourself with the key components and features of your PC case.

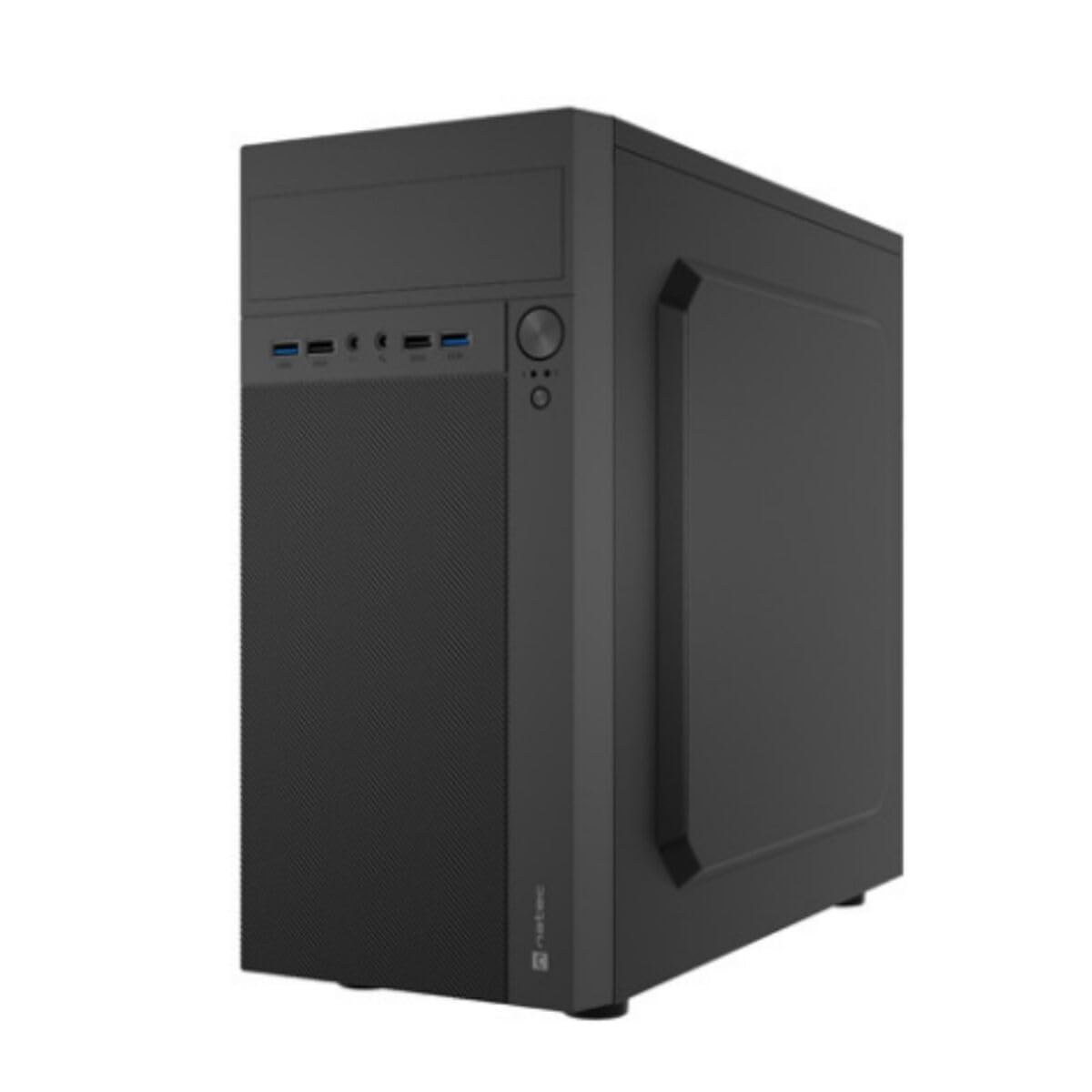

이미지 1: 앞면과 측면 view of the Natec ATX NPC-2038 Semi-Tower PC Case, highlighting its compact dimensions. The front panel features USB ports, audio jacks, and power/reset buttons. The case measures approximately 3.9 inches in depth, width, and height, indicating a compact design suitable for various setups.
- 전면 패널: Includes power button, reset button, USB 2.0 ports, USB 3.0 port, and audio input/output jacks.
- 사이드 패널 : Removable panels for easy access to internal components.
- 후면 패널 : Features expansion slots and an opening for the motherboard I/O shield.
- 내부 베이: Provides space for 3.5-inch hard drives and other storage devices.
1.3 설치
- 사례 준비: Lay the case on its side and remove the side panel(s) by unscrewing the thumb screws at the rear.
- 마더보드 설치: Secure the Mini ATX motherboard onto the standoffs provided. Ensure all screws are tightened appropriately.
- 전원 공급 장치 설치: Mount the power supply unit (PSU) in the designated front mount area. Connect the necessary power cables to the motherboard and other components.
- 저장 드라이브 설치: Install 3.5-inch hard drives into the internal bays. Secure them with screws.
- 확장 카드 설치: Remove the necessary expansion slot covers and install any graphics cards or other expansion cards.
- 전면 패널 케이블 연결: Connect the front panel USB, audio, power, and reset cables to the corresponding headers on your motherboard. Refer to your motherboard manual for specific pin layouts.
- 케이블 관리 : Route cables neatly to ensure optimal airflow and a clean build.
- 사건 종결: Reattach the side panel(s) and secure them with the thumb screws.
2. 사용 설명서
This section details how to power on your system and utilize the front panel connections.
2.1 전원 켜기
- 모든 외부 주변기기(모니터, 키보드, 마우스)가 연결되어 있는지 확인하십시오.
- Connect the power cable from your power supply unit to a wall outlet.
- Press the power button located on the front panel of the case. The system should initiate startup.
2.2 전면 패널 연결
The front panel provides convenient access to various ports for your peripherals.
- USB 2.0 포트(x2): For connecting standard USB devices such as keyboards, mice, and printers.
- USB 3.0 포트(x1): For connecting high-speed USB devices like external hard drives or flash drives, offering faster data transfer rates.
- Audio Input (Microphone): Connect your microphone for voice communication.
- Audio Output (Headphones): Connect your headphones or speakers for audio playback.
3. 유지관리
정기적인 유지 관리는 PC 부품의 수명과 최적의 성능을 보장하는 데 도움이 됩니다.
3.1 청소
- 외부: 부드러운 d를 사용하세요amp 케이스 외부 표면을 닦을 천을 사용하세요. 연마성 세척제 사용은 피하세요.
- 내부: Periodically open the case and use compressed air to remove dust buildup from fans, heatsinks, and other components. Ensure the system is powered off and unplugged before cleaning the interior.
- 먼지 필터: If your case includes dust filters, remove and clean them regularly to maintain good airflow.
3.2 공기 흐름 관리
Proper airflow is crucial for cooling your components. Ensure that the case fans are clean and unobstructed. Consider the direction of airflow (intake vs. exhaust) to optimize cooling efficiency.
4. 문제 해결
This section addresses common issues you might encounter with your PC case and offers potential solutions.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 시스템 전원이 켜지지 않습니다. | Power cable disconnected, PSU switch off, front panel power button not connected correctly. | Check power cable connection, ensure PSU switch is on, verify front panel power cable connection to motherboard. |
| USB 포트가 작동하지 않습니다. | Front panel USB cables not connected to motherboard. | Ensure USB 2.0 and USB 3.0 headers are correctly connected to the motherboard. |
| 오디오 잭이 작동하지 않습니다. | Front panel audio cable not connected to motherboard. | Verify the HD Audio cable is securely connected to the motherboard's audio header. |
| 부품 과열. | Poor airflow, dust buildup. | Clean dust filters and internal components. Ensure fans are properly oriented for optimal airflow. |
5. 사양
Detailed technical specifications for the Natec ATX NPC-2038 Semi-Tower PC Case.
| 특징 | 값 |
|---|---|
| 상표 | Natec |
| 모델명 | HELIX (NPC-2038) |
| 케이스 유형 | 미드 타워 |
| 마더보드 호환성 | 미니 ATX |
| 색상 | multicoloured (Black) |
| 재료 | Legierter Stahl (Alloy Steel) |
| 전원 공급 장치 장착 유형 | 전면 마운트 |
| 냉각 방식 | 공기 |
| 팬 크기 | 120 밀리미터 |
| 팬 수 | 1 (pre-installed, if applicable) |
| Total Expansion Slots Quantity | 4 |
| Total USB 2.0 Ports | 2 |
| Total USB 3.0 Ports | 1 |
| Internal Bays Quantity | 3 (for 3.5 Inches Hard Disk Form Factor) |
| 품목 무게 | 1 킬로그램 |
| 품목 치수(D x W x H) | 3.94"D x 3.94"W x 3.94"H (Approximate, based on provided data) |
| 제품의 권장 용도 | General-Purpose Computing |
6. 보증 정보
Natec products are manufactured to high-quality standards. This product is covered by a manufacturer's warranty against defects in materials and workmanship. The specific duration and terms of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims. For detailed warranty information, refer to the documentation provided with your purchase or visit the official Natec web대지.
7. 지원
If you encounter any issues not covered in this manual or require further assistance, please contact Natec customer support or your retailer. You can typically find contact information on the official Natec web사이트 또는 제품 포장에 표시하세요.
- 온라인 지원: Visit the official Natec webFAQ, 드라이버, 지원 리소스를 제공하는 사이트입니다.
- Contact Retailer: For purchase-related issues or initial troubleshooting, your retailer may be able to provide immediate assistance.
