1. 서론
Thank you for choosing the BOSSIN 70-inch Fireplace TV Stand. This product combines a modern entertainment center with a functional electric fireplace, designed to enhance your living space. This manual provides essential information for safe assembly, operation, and maintenance of your new TV stand.

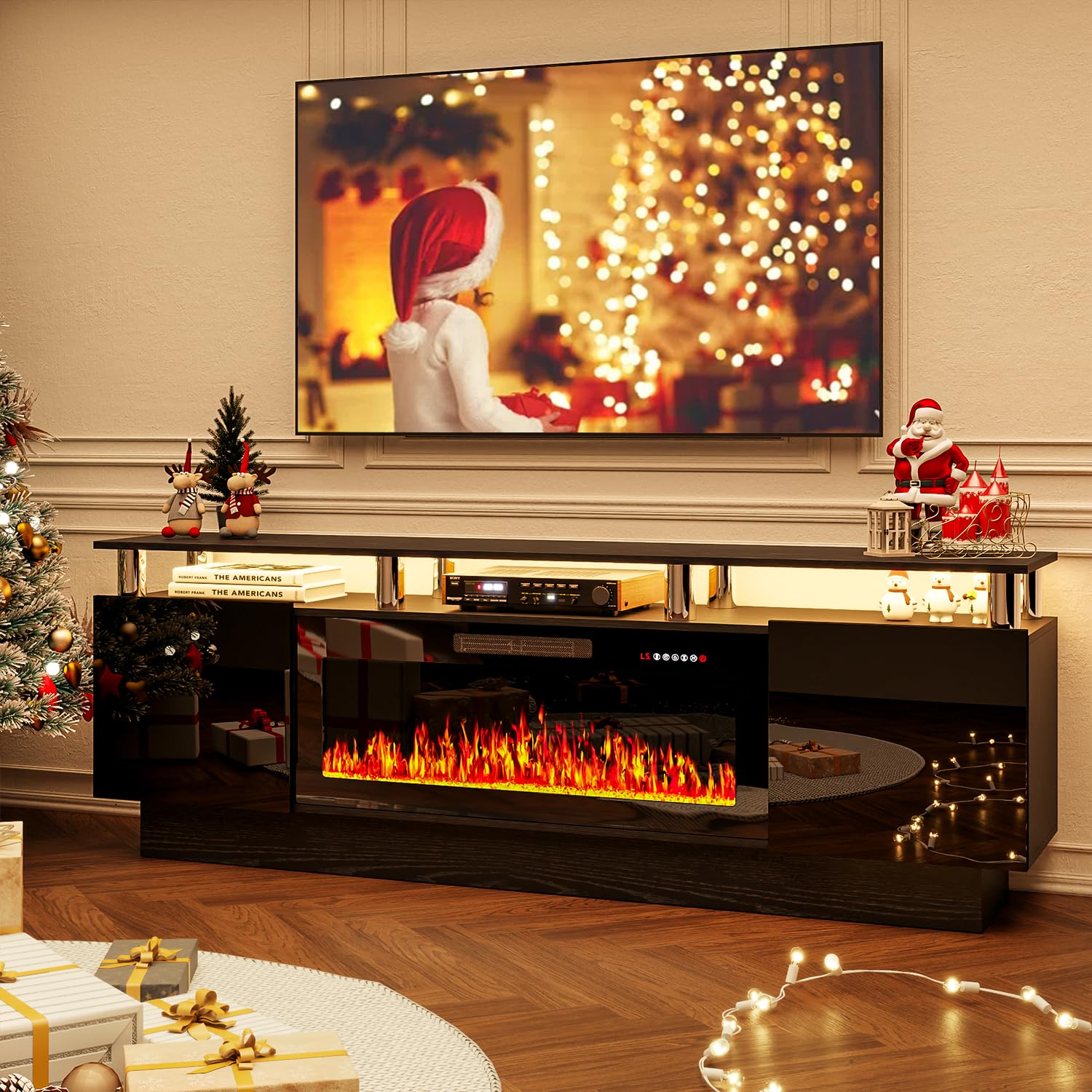

Image 1.1: The BOSSIN 70-inch Fireplace TV Stand with Electric Fireplace.
2. 안전 정보
부상이나 손상을 방지하기 위해 조립 및 사용 전에 모든 안전 경고 및 지침을 주의 깊게 읽어 주십시오.
- 조립하기 전에 모든 구성품이 있는지, 손상되지 않았는지 확인하십시오. 부품이 누락되었거나 파손된 경우 사용하지 마십시오.
- 본 제품은 실내에서만 사용하도록 설계되었습니다.
- Place the TV stand on a flat, stable, and level surface.
- TV 스탠드에 과부하를 주지 마십시오. 무게 제한은 제품 사양을 참조하십시오.
- Keep children and pets away from the electric fireplace when it is operating.
- Do not block the air vents of the electric fireplace. Maintain adequate clearance around the unit.
- Only use the provided power cord and plug into a grounded outlet.
- 전기 벽난로를 청소하거나 정비하기 전에 전원 콘센트에서 플러그를 뽑으세요.
3. 패키지 내용
Your BOSSIN Fireplace TV Stand will arrive in two separate packages, typically delivered on different days. Please ensure you have received both packages before beginning assembly.
Image 3.1: The TV stand and electric fireplace are shipped in two separate packages.
각 패키지에는 다음이 포함됩니다.
- 패키지 1 : TV Stand components (panels, hardware, stainless steel supports, cabinet doors, adjustable shelves).
- 패키지 2 : 36-inch Electric Fireplace unit, remote control, power cord.
- Detailed assembly instructions for the TV stand and electric fireplace.
4. 설치 및 조립
Assembly of the BOSSIN Fireplace TV Stand is designed to be user-friendly. All parts are labeled, and detailed instructions are included. For best results and safety, a two-person assembly is recommended.
4.1 시작하기 전에
- 조립을 위해 넓은 공간을 확보하세요.
- Lay out all components and hardware. Verify against the parts list in the included manual.
- 필요한 도구(예: 드라이버)를 준비하세요.
4.2 조립 단계 (일반 개요)view)
- Assemble the main frame of the TV stand according to the numbered steps in the instruction manual.
- Attach the eight stainless steel pillars/columns to support the upper tier.
- Install the adjustable shelves within the storage cabinets.
- Mount the high-gloss cabinet doors using the provided hinges.
- Carefully insert the 36-inch electric fireplace unit into its designated opening in the TV stand.
- Route power cords through the integrated cable management holes for a tidy setup.
Image 4.1: Key features like adjustable shelves, high-gloss cabinet doors, and stainless steel supports.
5. 사용 설명서
5.1 전기 벽난로 작동
36인치 전기 벽난로는 본체의 제어판이나 함께 제공되는 리모컨을 사용하여 작동할 수 있습니다.
Image 5.1: Electric Fireplace control functions.
- 전원(켜짐/꺼짐): 전원 버튼을 눌러 벽난로를 켜거나 끄세요.
- 히터: Select between two heating modes: 750W (low heat) and 1500W (high heat). The heater can be used independently of the flame effect.
- 화염 속도: Adjust the speed of the flame effect through 5 available levels.
- 주차: Control the brightness of the flame effect with 5 dimmer settings.
- 시간제 노동자: 자동 꺼짐 타이머를 1~8시간으로 설정하세요.
- 색상: Choose from 12 realistic 3D flame effects to customize the ambiance.
이미지 5.2: Examples of multi-color flame effects.
Image 5.3: Visual representation of 12 adjustable flame colors.
5.2 LED Strip Lights Operation
The TV stand features integrated LED strip lights with 20 color combinations to further customize your entertainment area.
- Use the dedicated remote control or integrated buttons to cycle through the 20 available LED colors.
- Adjust brightness and modes (e.g., static color, fading, flashing) as desired.
이미지 5.4: Examples of multi-color LED light changes.
Image 5.5: Visual representation of 20 LED strip light colors.
6. 유지관리
정기적인 관리는 TV 스탠드와 전기 벽난로의 수명과 외관을 오래 유지하는 데 도움이 됩니다.
- TV 스탠드 청소하기: 부드러운 d로 표면을 닦으십시오.amp 천으로 닦으세요. 마감재를 손상시킬 수 있는 강한 화학 물질이나 연마성 세제는 사용하지 마세요.
- Cleaning the Electric Fireplace: Ensure the unit is unplugged and cool before cleaning. Use a soft, dry cloth to wipe the exterior. Do not spray liquids directly onto the unit.
- 가루 살포: 적절한 공기 흐름을 유지하기 위해 벽난로의 공기 흡입구와 배출구 주변을 정기적으로 먼지 제거하십시오.
- 코드 검사: 전원 코드에 손상 흔적이 있는지 주기적으로 점검하십시오. 손상된 경우 사용을 중단하고 고객 지원 센터에 문의하십시오.
7. 문제 해결
If you encounter any issues with your BOSSIN Fireplace TV Stand, please refer to the following common troubleshooting steps:
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| Electric fireplace does not turn on. | No power, unit unplugged, power switch off, remote batteries dead. | Ensure unit is plugged in and power switch is ON. Check circuit breaker. Replace remote batteries. |
| 벽난로에서 열이 발생하지 않습니다. | Heater function not activated, thermostat setting too low, air vents blocked. | Activate heater function. Increase thermostat setting. Clear any obstructions from air vents. |
| 화염 효과가 작동하지 않습니다. | Flame effect function not activated. | Ensure flame effect function is turned on via control panel or remote. |
| LED strip lights not working. | LED power off, loose connection. | Check LED power connection and ensure it is turned on. |
If the problem persists after attempting these solutions, please contact BOSSIN customer support.
8. 사양
Image 8.1: Product dimensions of the TV stand and electric fireplace.
Image 8.2: The TV stand is suitable for TVs up to 80 inches.
| 특징 | 세부 사항 |
|---|---|
| 상표 | 보스신 |
| 모델 번호 | f4175983-8bda-439c-a715-4133b5409df3 |
| 제품 치수 | 70"W x 14"D x 24"H (TV Stand), 36"W x 5.51"D x 18.2"H (Fireplace) |
| 재료 | Stainless Steel (supports), Engineered Wood (panels) |
| 색상 | 검은색 |
| 전원 | 코드식 전기 |
| 히터 출력 | 750W / 1500W |
| 화염 효과 | 12 realistic 3D flame effects |
| LED 조명 | 20 color combinations |
| 지원되는 최대 TV 크기 | 최대 80인치 |
| 설치 유형 | 독립형 |
9. 보증 및 지원
The BOSSIN Fireplace TV Stand comes with a limited warranty. Please refer to the warranty card included in your package for specific terms and conditions.
For any questions, missing parts, or assistance with assembly or operation, please contact BOSSIN customer support. Our team is available 24/7 to provide reliable support.
고객 지원 연락처: Refer to the contact information provided in your product packaging or on the official BOSSIN web대지.
