소개
This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your Generic C20E Electric Walk-Behind Corded Auto Floor Scrubber. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage. The C20E is designed for cleaning hard floors such as concrete, ceramic tile, and marble, offering a 20-inch cleaning path and high coverage per hour.
그림 1: 옆 view of the Generic C20E Electric Walk-Behind Corded Auto Floor Scrubber.
그림 2: 위에view of the C20E Scrubber highlighting the 12-gallon solution tank, 20" cleaning path, and rotomolded polyethylene tank for durability.
안전 정보
Always prioritize safety when operating the C20E floor scrubber. Failure to follow these instructions may result in serious injury or damage to the machine.
- 매뉴얼을 읽어보세요: Do not operate the machine unless you have read and understood the entire instruction manual.
- 개인 보호 장비(PPE): Wear appropriate PPE, including non-slip footwear, eye protection, and gloves, especially when handling cleaning solutions.
- 전기 안전: The machine uses a GFCI plug to prevent electrical shock. Always inspect the power cord for damage before use. Do not operate with a damaged cord. Connect to a properly grounded outlet. Keep the cord clear of the cleaning path and moving parts.
- 화학 물질 취급: Use only recommended cleaning solutions. Follow manufacturer's instructions for dilution and safe handling. Avoid contact with skin and eyes.
- 운영 환경: Operate only on hard, level surfaces. Do not use on inclines that exceed the machine's stability limits. Ensure adequate ventilation.
- 기계 안정성: Do not stand on the machine. Do not allow children or unauthorized personnel to operate or be near the machine during operation.
- 유지보수 안전: 유지관리, 조정 또는 청소를 수행하기 전에 전원을 분리하세요.
- 저장: Store the machine in a dry, secure location, away from extreme temperatures and out of reach of children.
설정
Before first use, ensure all components are present and undamaged. The C20E comes largely pre-assembled, but some initial steps are required.
- 포장 풀기 및 검사: 스크러버를 포장에서 조심스럽게 꺼내세요. 배송 중 손상된 부분이 있는지 확인하세요. 손상된 부분이 있으면 즉시 공급업체에 보고하세요.
- Attach Squeegee Assembly:
Attach the squeegee assembly to the rear of the machine. Ensure it is securely fastened and properly aligned for effective water recovery.
그림 3: 상세한 view of the squeegee assembly, showing the blades and adjustment knobs.
- Install Brush or Pad Driver:
Lift the brush deck and attach the appropriate brush or pad driver. Ensure it clicks into place securely. For optimal cleaning, select the correct pad or brush type for your floor surface.
- 용액 탱크 채우기:
Locate the solution tank fill port (typically at the front or top of the machine). Fill the tank with clean water and the recommended cleaning solution, following the solution manufacturer's dilution instructions. The C20E has a 12-gallon solution tank capacity.

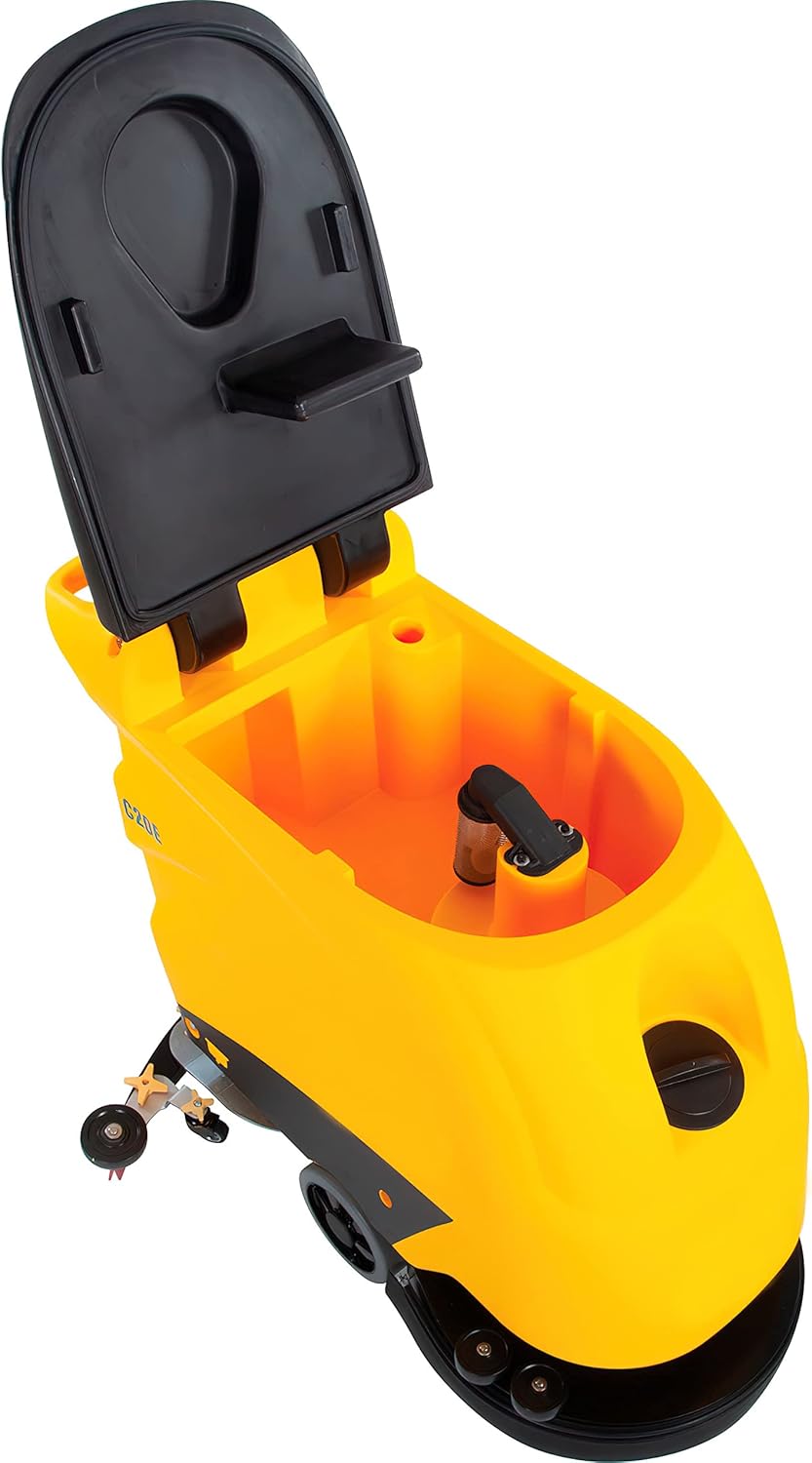

그림 4: The recovery tank access, also indicating the general area for solution tank filling (often a separate port or under a different lid).
- 전원 연결:
Uncoil the 82-foot power cord completely. Plug the GFCI plug into a grounded 120V AC outlet. Ensure the cord is positioned to avoid entanglement during operation.

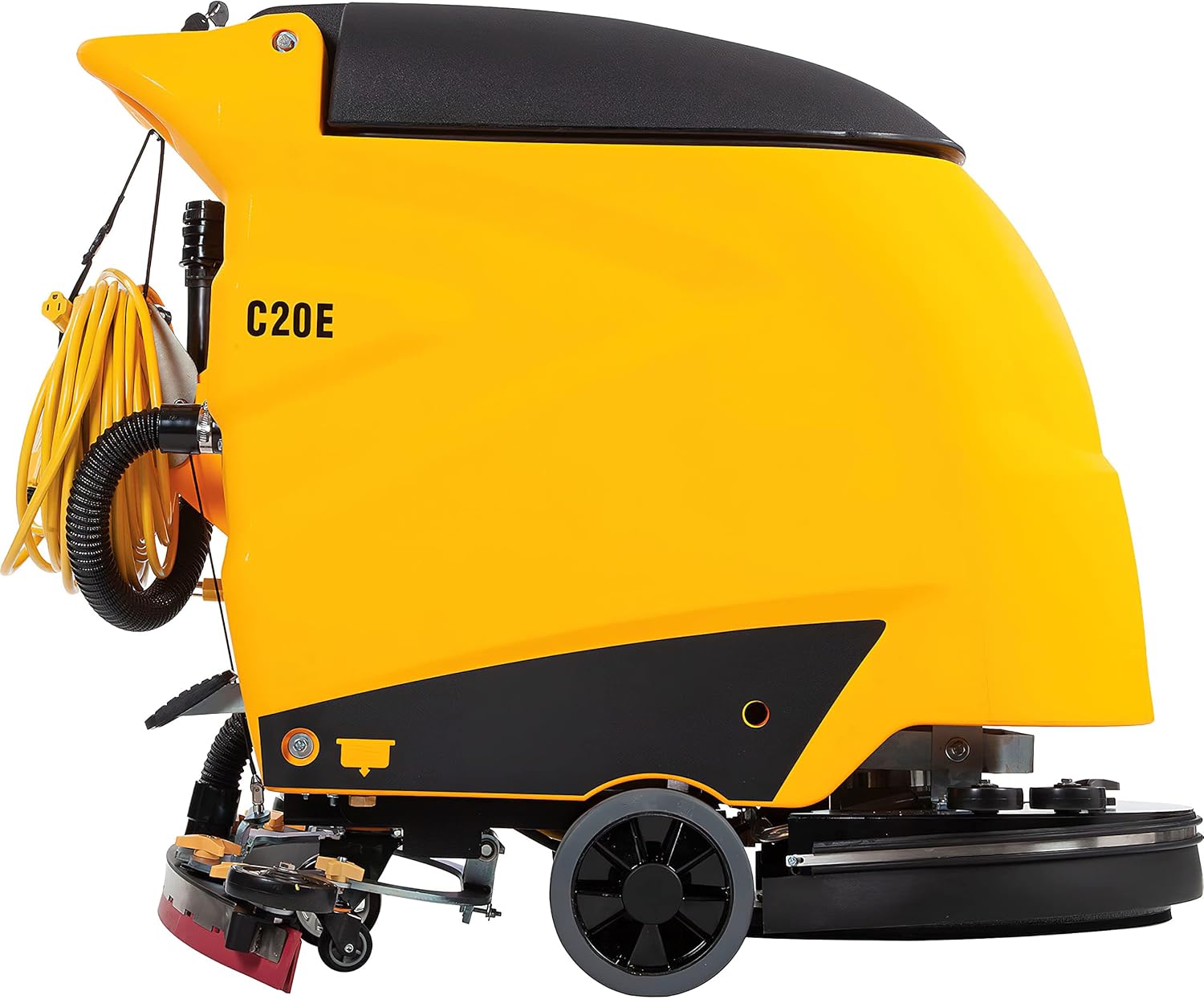

그림 5: 사이드 프로file of the C20E, illustrating the power cord management and overall machine design.
작업
Familiarize yourself with the controls before starting the cleaning process.
그림 6: The main control panel, featuring the key switch and operational buttons for brush and vacuum functions.
- 기계를 시작하십시오:
Insert the key into the ignition switch on the control panel and turn it to the "ON" position. The machine is now ready for operation.
- Engage Brush/Pad Driver:
Press the brush engagement button (refer to Figure 6 for button identification). The brush or pad driver will begin to rotate, applying cleaning solution to the floor.
- 진공청소기/물기 제거기 작동:
Press the vacuum engagement button (refer to Figure 6). The vacuum motor will activate, and the squeegee will begin to recover the dirty solution from the floor.
- 청소 시작:
Walk behind the machine at a steady pace (approximately 2 mph). Overlap cleaning passes slightly to ensure complete coverage. The machine's pad assist drive system will aid in movement.
- 모니터 탱크:
Periodically check the solution tank level and the recovery tank level. Refill the solution tank as needed and empty the recovery tank when full to maintain optimal performance.
- 종료:
When cleaning is complete, disengage the brush and vacuum functions. Turn the key switch to the "OFF" position and remove the key. Unplug the power cord from the outlet.
유지
Regular maintenance ensures the longevity and efficient operation of your C20E scrubber. Always disconnect power before performing maintenance.
- 매번 사용 후:
- Empty and rinse both the solution and recovery tanks thoroughly with clean water to prevent residue buildup and odors.
- Clean the squeegee blades and check for wear or damage. Replace if necessary.
- Rinse the brush or pad driver. Remove any debris or hair.
- 광고로 기계 외부를 닦아주세요amp 옷감.
- Weekly/As Needed:
- Inspect the power cord for cuts, fraying, or other damage.
- Check the condition of the brush or pad driver. Replace worn brushes or pads.
- Inspect the vacuum hose for blockages or leaks.
- Clean the vacuum filter (if applicable).
- 저장:
Store the machine in a dry, protected area. Ensure tanks are empty and clean. Lift the squeegee assembly off the floor to prevent blade deformation. Store the power cord neatly coiled.
문제 해결
This section addresses common issues you might encounter with your C20E scrubber. For problems not listed here, contact customer support.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 기계가 시작되지 않습니다. |
|
|
| Poor water recovery. |
|
|
| No solution dispensed. |
|
|
| 브러시가 회전하지 않습니다. |
|
|
명세서
Key technical specifications for the Generic C20E Electric Walk-Behind Corded Auto Floor Scrubber.
| 특징 | 세부 사항 |
|---|---|
| 상표 | 일반적인 |
| 모델명 | C20E |
| 제조업체 | 고양이 |
| 청소 폭 | 20인치 |
| 청소 용량 | 18,800 ft²/hr |
| 솔루션 탱크 용량 | 12갤런 |
| 회수 탱크 용량 | 15갤런 |
| 전원 | 코드식 전기 |
| 권tage | 120 볼트 |
| 왓tage | 1200 와트 |
| 전원 코드 길이 | 82 피트 |
| 진공 모터 | 1.6마력 |
| Brush Motor RPM | 180 RPM |
| 패드 압력 | 99파운드 |
| 워터 리프트 | 92인치 |
| 속도 | 2마일 |
| 소음 수준 | 68데시벨 |
| 전체 치수 (LxWxH) | 46인치 길이 x 22인치 너비 x 38인치 높이 |
| 품목 무게 | 278파운드 |
| 재료 | Plastic (Impact Resistant Housing) |
| 색상 | 노란색 |
| 드라이브 시스템 | Pad Assist |
| 제어 방법 | 만지다 |
| 포함된 구성 요소 | Brush, Squeegee blades, Pad driver |
| 특별 기능 | HEPA, GFCI plug, Increased brush pressure |
| 표면 추천 | Floor, Tile, Concrete, Ceramic, Marble |
| UPC/GTIN | 761373852411 |
보증 및 지원
보증: The product information indicates "Warranty Description: N/a." Please refer to your purchase documentation or contact the retailer for specific warranty details, if any, at the time of purchase.
고객 지원: For technical assistance, parts, or service inquiries, please contact the manufacturer or your authorized dealer. Have your model number (C20E) and purchase information ready when contacting support.
