1. 중요한 안전 정보
조립 및 사용 전에 모든 지침을 주의 깊게 읽어 주십시오. 나중에 참조할 수 있도록 이 설명서를 보관하십시오.
- 경고: Do not use this screen house in high winds or during storms. Severe weather conditions can cause damage to the product and potential injury.
- Ensure all poles are securely connected and stakes are properly anchored to prevent collapse.
- 화기 및 열원으로부터 멀리하십시오. 이 원단은 방염 처리가 되어 있지 않습니다.
- Supervise children around the screen house to prevent accidents.
2. 패키지 내용
조립을 시작하기 전에 모든 구성 요소가 있는지 확인하세요.
- Screen Tent Fabric (Netting)
- 유리섬유 막대
- 금속 기둥
- 그라운드 스테이크
- 가이 로프
- 가방을 기내
3. 설정 지침
Assembly is designed to be straightforward, but having two people can make the process easier, especially when connecting poles.
- 구성 요소 풀기: Lay out all parts on a clear, flat area. Identify the fiberglass and metal poles. The poles and tent sleeves are color-coded for easier matching.
- 프레임 조립: Connect the fiberglass and metal poles according to the color-coding. Ensure each pole segment is fully inserted into its connector.
- 텐트 천 부착하기: Drape the screen tent fabric over the assembled frame. Align the tent sleeves with the corresponding poles.
- 안전한 기둥: Insert the ends of the poles into the designated pockets or pins on the tent fabric. This step may require some force and coordination, as noted by users.
- 다리 뻗기: Ensure the screen house legs are pulled to their full width. This is crucial for the tent's stability and to ensure the bottom skirt of the tent reaches the ground properly, preventing gaps.
- 스테이크 다운: Use the provided ground stakes to secure the base of the screen house to the ground.
- 가이 로프 부착: Connect the guy ropes to the designated loops on the screen house and stake them firmly into the ground at an angle to provide additional stability against wind.

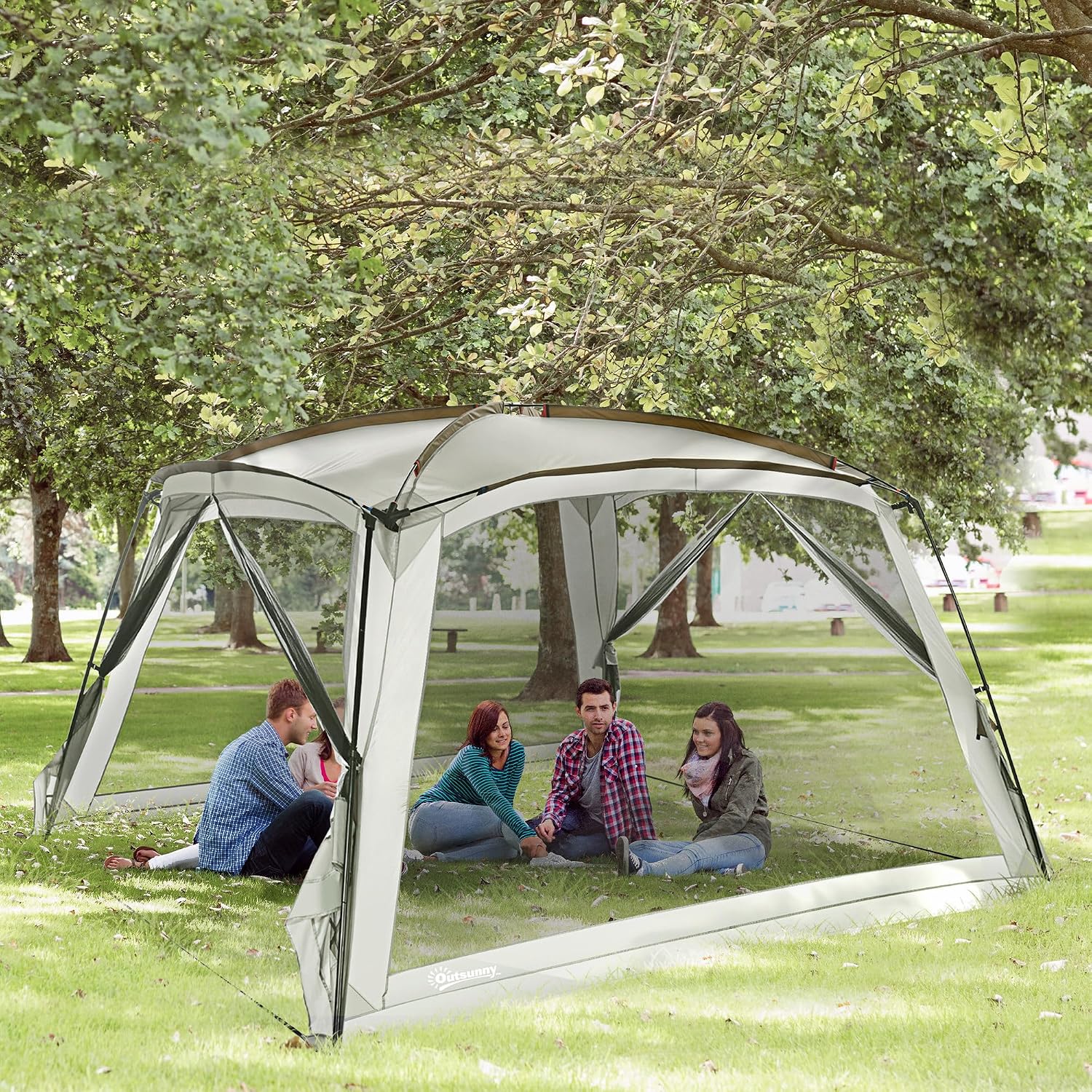

Image: The Outsunny Screen House Room fully set up in a grassy area, providing shelter for a group of people.
Image: A diagram illustrating the assembled dimensions of the screen house (141.75" L x 141.75" W x 86.5" H) and the compact dimensions of its carry bag (26.75" L x 7" W x 7" H).
4. 사용 설명서
The Outsunny Screen House is designed for outdoor activities, offering shade and protection from insects.
- 용량: This screen house is spacious, accommodating 6-8 people comfortably. It can also fit a camping table for dining or other activities.
- 진입 및 종료: The screen house features two zippered doors for convenient entry and exit, reducing congestion.
- 환기 및 보호: The mesh walls provide excellent ventilation, allowing air to circulate while keeping insects out. The top canopy offers UV 50+ protection from the sun's rays.
- 지퍼: Operate zippers smoothly to avoid snagging the mesh fabric.
Image: An illustration emphasizing the two distinct zippered entry points of the screen house, designed for ease of access.
Image: The screen house in use, with overlaid text highlighting its four full mesh walls for ventilation and UV50+ top canopy for sun protection.
5. 유지관리
Proper maintenance will extend the life of your screen house.
- 청소: Clean the fabric with a mild soap solution and a soft cloth. Rinse thoroughly with water and allow to air dry completely before packing. Do not use harsh chemicals or abrasive cleaners.
- 저장: Ensure the screen house is completely dry before folding and storing it in the provided carry bag. Store in a cool, dry place away from direct sunlight.
- 폴 케어: Inspect poles for any damage or bending before and after each use. Be gentle when inserting and removing poles from the fabric sleeves to prevent tearing or splitting of the material.
- 지퍼 관리: Periodically clean and lubricate zippers with a silicone-based spray to ensure smooth operation and prevent sticking.
Image: A person demonstrating how to carry the screen house in its compact, double-handled duffel bag, making it easy for transport and storage.
6. 문제 해결
다음은 흔히 발생하는 문제와 해결책입니다.
- 전봇대 연결에 어려움: If poles are hard to connect, ensure they are correctly aligned with the color-coded sleeves. Applying gentle, steady pressure and having a second person assist can help. Avoid excessive force to prevent damage.
- Skirt Not Touching Ground / Gaps: Ensure all legs of the screen house are fully extended and pulled to their maximum width. If the frame is not fully expanded, the fabric may not reach the ground. Verify that the screen house is set up on level ground.
- 바람의 불안정성: The screen house requires proper anchoring. Always use all provided ground stakes and guy ropes. For added security in breezy conditions, consider using heavier-duty stakes or sandbags (not included) at the base.
- Mesh Tearing: The mesh fabric is designed for ventilation and insect protection. Avoid leaning or pushing against the mesh walls, as this can cause tearing. Handle zippers carefully to prevent snagging the mesh.
- 지퍼가 뻑뻑하게 잘 안 열릴 때: Clean any dirt or debris from the zipper teeth. Apply a small amount of zipper lubricant (e.g., silicone spray or wax) to the teeth and pull the zipper back and forth several times.
7. 사양
| 특징 | 세부 사항 |
|---|---|
| 상표 | 맑음 |
| 모델 번호 | A20-327V00WT |
| 재료 | 폴리에스터(원단), 유리섬유(프레임) |
| 색상 | 하얀색 |
| 품목 무게 | 17파운드 |
| 전체 치수(길이 x 너비 x 높이) | 141.75인치 x 141.75인치 x 86.5인치 |
| 접힌 치수(L x W x H) | 26.75인치 x 7인치 x 7인치 |
| 점유 | 8인 |
| 적용 범위 | 140제곱 피트 |
| 자외선 차단 | UV 50+ |
| 방수 레벨 | 방수가 되지 않음 |
| 폐쇄 유형 | 지퍼 |
| 포함된 구성 요소 | Bag, Netting, Ropes, Stakes |
8. 보증 정보
이 Outsunny 제품에는 다음이 포함됩니다. 1년 제조업체 보증. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accidents, improper assembly, or extreme weather conditions.
보증 청구를 위해 구매 증명서를 보관하십시오.
9. 고객 지원
For any questions, concerns, or assistance with your Outsunny Screen House Room, please contact the manufacturer, Aosom LLC, or the retailer where you purchased the product.
When contacting support, please have your model number (A20-327V00WT) and proof of purchase readily available.
