소개
This manual provides essential information for the safe and effective use of your BROMECH AC/DC Adapter. Please read this manual thoroughly before use and retain it for future reference.
This replacement charger is specifically designed for CAMRY and Bromech Scales purchased after the year 2021. Compatible models include: ACS-15-JE21, ACS-30-JE21, ACS-30-JC21G, ACS-30-JC81W, ACS-30-JE51, BCS30JE21, BCS30JC21G, BCS30JC81W, BCS30JE31.
제품 끝view
Image: The BROMECH AC/DC Adapter, a black power supply unit with a two-prong plug and a DC output cable.
이미지: 또 다른 view of the BROMECH AC/DC Adapter, showing the compact design and the attached cable with the DC plug.
The BROMECH AC/DC Adapter is a compact and reliable power supply designed to provide stable power to compatible Camry and Bromech commercial scales. It features a standard two-prong plug for AC input and a DC output connector.
명세서
| 매개변수 | 값 |
|---|---|
| 모델 번호 | AC02BKAA |
| 교류 입력 | 100-240V, 50/60Hz |
| DC 출력 | 6V, 500mA |
| 케이블 길이 | 38.6인치 |
| 커넥터 유형 | DC 5.5mm x 3.3mm (2-Pin) |
| 색상 | 검은색 |
| 품목 무게 | 2.08 온스 |
| 패키지 크기 | 3.27 x 3.19 x 1.3 인치 |
| 호환 장치 | CAMRY and Bromech commercial scales (purchased after 2021) |
Image: Diagram illustrating the product specifications, including input/output voltage and current, and model number HW0600500U (which is likely the internal model for the adapter component, while AC02BKAA is the product model number).

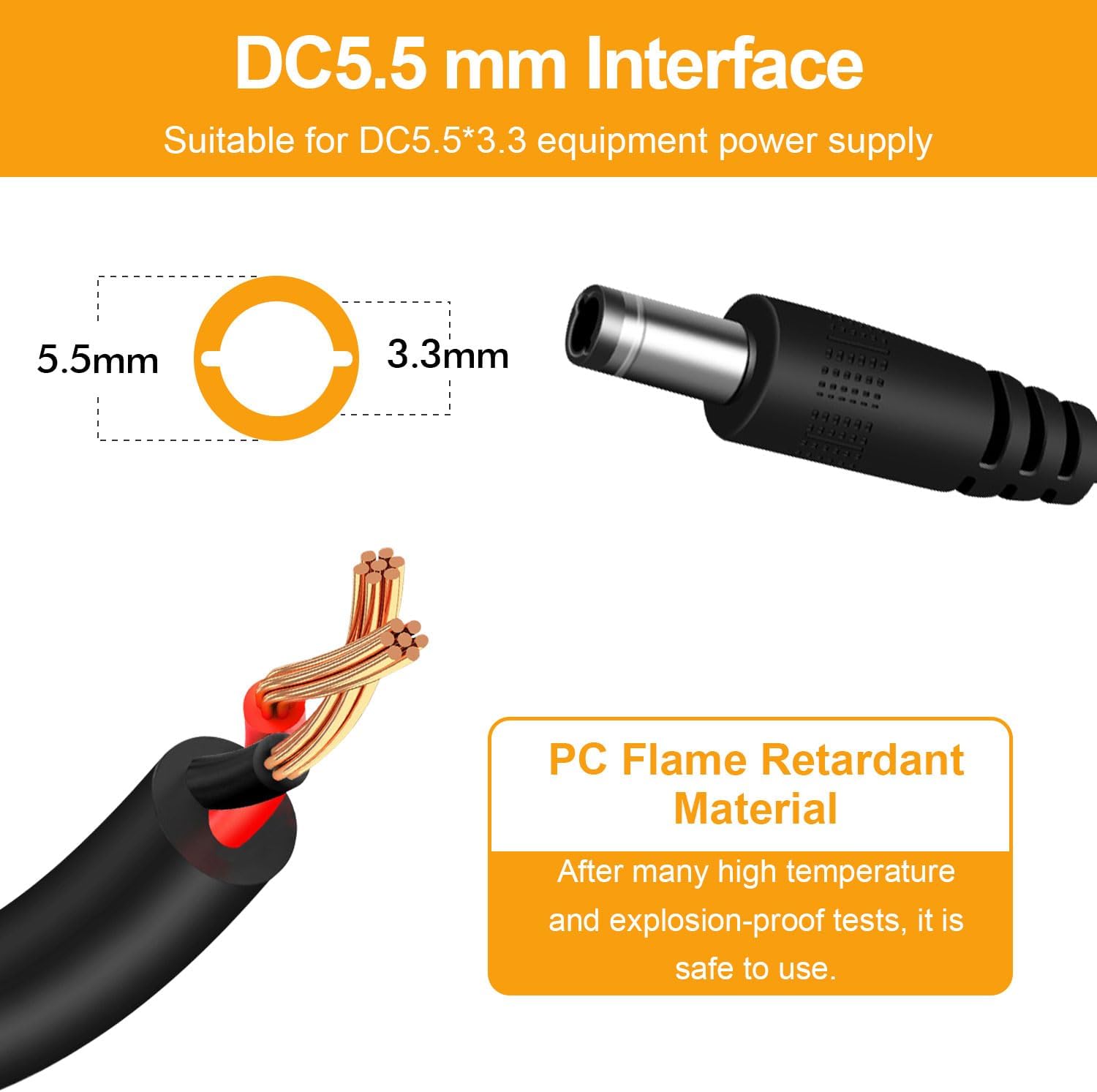

Image: Diagram showing the dimensions of the DC 5.5mm x 3.3mm interface, suitable for compatible equipment power supply.
설정 및 연결
- 호환성 확인: Ensure your Camry or Bromech scale model is listed as compatible (ACS-15-JE21, ACS-30-JE21, ACS-30-JC21G, ACS-30-JC81W, ACS-30-JE51, BCS30JE21, BCS30JC21G, BCS30JC81W, BCS30JE31) and was purchased after the year 2021.
- 전원 포트를 찾으십시오: Identify the DC power input port on your scale.
- 어댑터 연결: Insert the DC output plug of the BROMECH AC/DC Adapter firmly into the scale's power input port.
- 콘센트에 꽂으세요: Insert the two-prong plug of the adapter into a standard 100-240V AC wall outlet.
- 전원 켜기: Once connected, your scale should receive power. Refer to your scale's manual for specific power-on procedures.

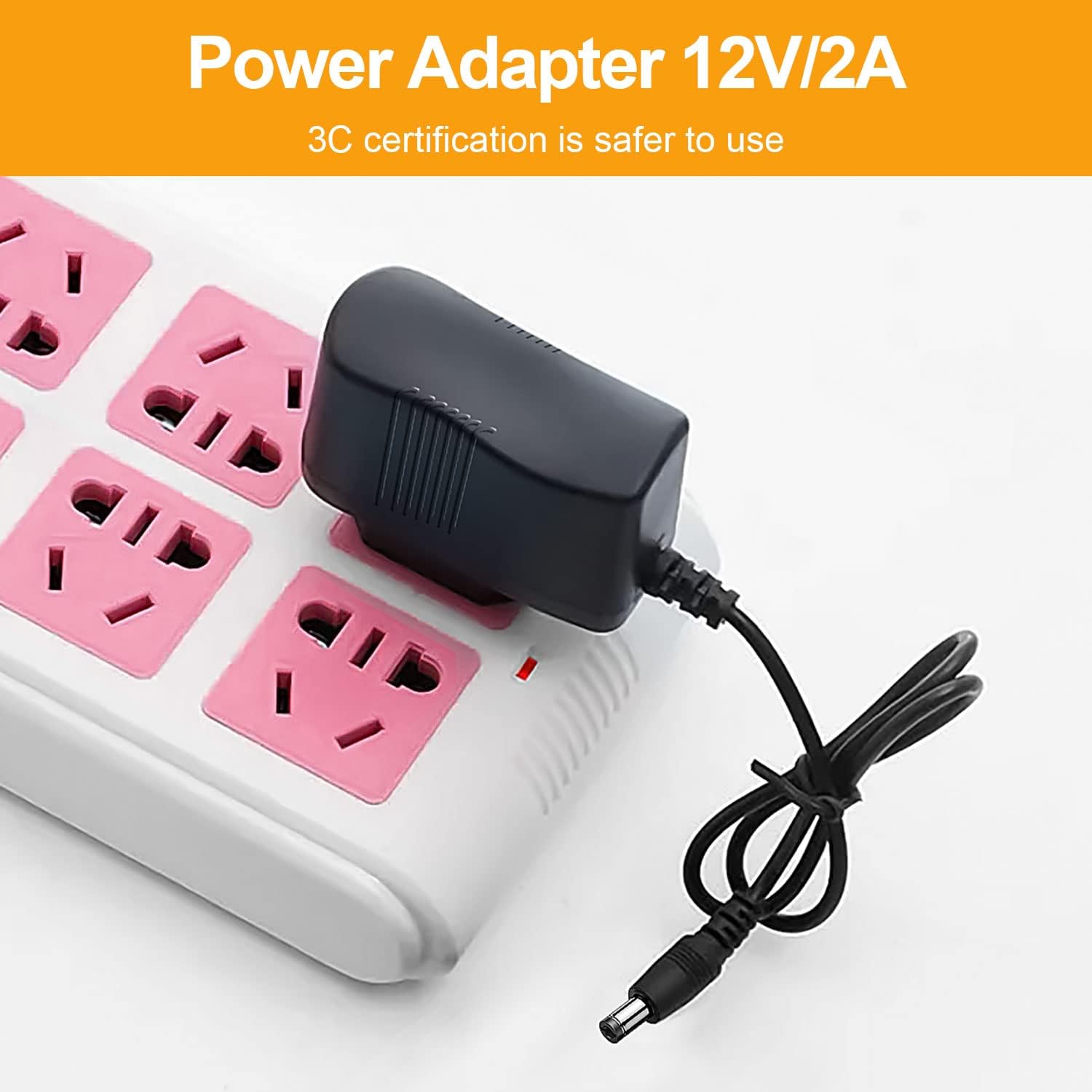

Image: The BROMECH AC/DC Adapter plugged into a multi-outlet power strip, demonstrating a typical connection scenario.
작동 지침
The BROMECH AC/DC Adapter functions as a direct power supply for your compatible scale. It does not require any user configuration or software installation.
- Ensure the adapter is securely plugged into both the scale and the power outlet.
- The adapter provides a stable 6V DC output to power your device.
- Always disconnect the adapter from the power outlet when not in use for extended periods.
안전 및 유지 관리
안전 예방 조치:
- 어댑터를 물, 습기 또는 극한 온도에 노출시키지 마십시오.
- 어댑터를 떨어뜨리거나 강한 충격을 주지 마십시오.
- 어댑터를 열거나 수리하려고 시도하지 마십시오. 자격을 갖춘 전문가에게 서비스를 의뢰하십시오.
- 필요시 신속하게 전원을 차단할 수 있도록 전원 콘센트에 쉽게 접근할 수 있도록 하십시오.
- 어린이의 손이 닿지 않는 곳에 보관하세요.
- 이 어댑터는 실내용으로만 설계되었습니다.
Image: The BROMECH AC/DC Adapter with a "Certified Safe" icon, indicating its adherence to safety standards.

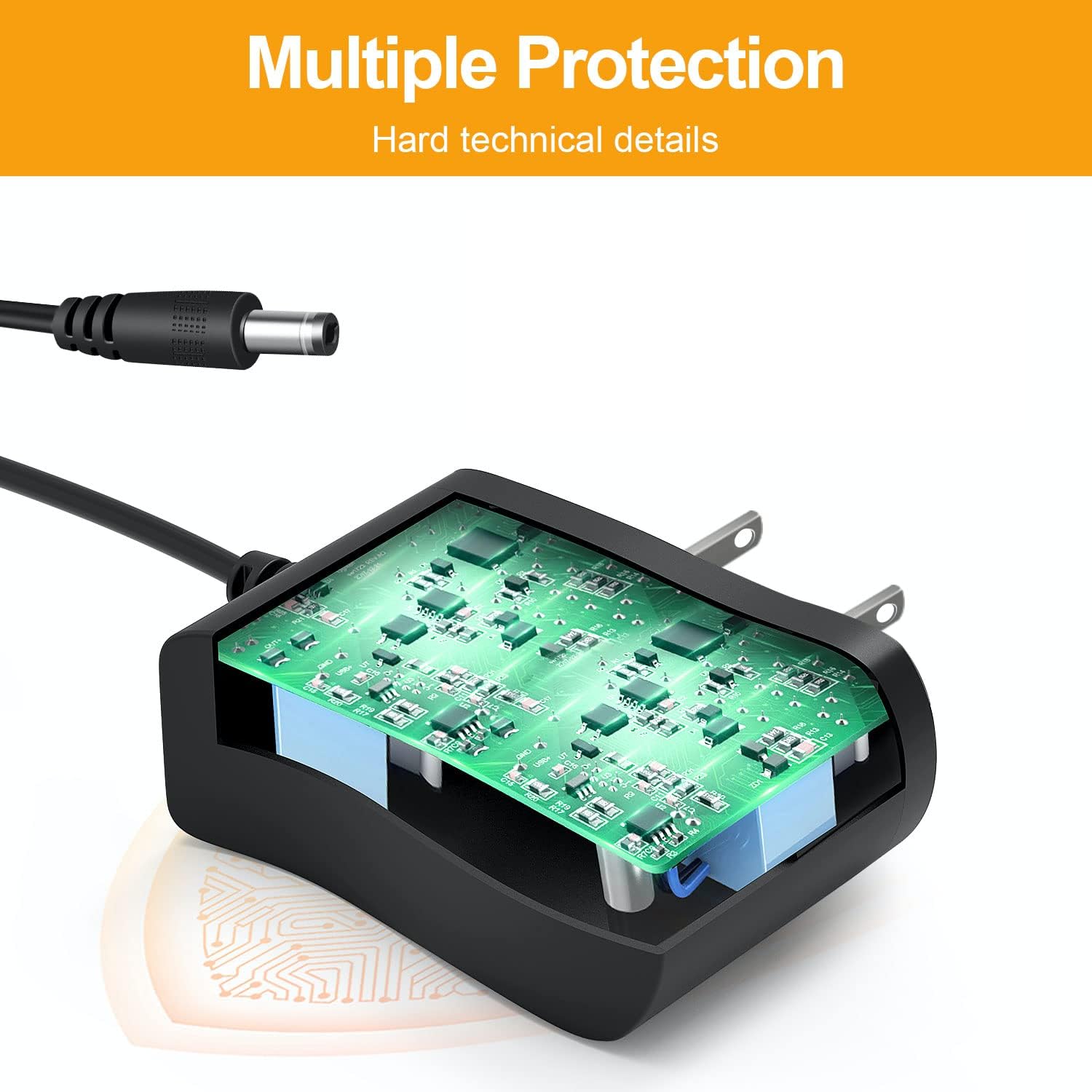

이미지: 컷어웨이 view of the adapter showing its internal circuitry, highlighting its multiple protection features for safer charging.
청소:
Wipe the adapter with a soft, dry cloth. Do not use liquid cleaners or aerosol sprays.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| Scale not powering on. | 어댑터가 제대로 연결되지 않았습니다. | Ensure both ends of the adapter are securely plugged in. |
| 전원 콘센트가 활성화되지 않았습니다. | 다른 장치로 콘센트를 테스트하거나 다른 콘센트를 사용해 보십시오. | |
| Scale model incompatibility. | Verify your scale model is listed as compatible and was purchased after 2021. | |
| 어댑터가 따뜻하게 느껴집니다. | 정상 작동. | A slight warmth during operation is normal. If it becomes excessively hot or emits smoke/odor, disconnect immediately. |
보증 및 지원
For warranty information or technical support, please contact BROMECH customer service through the official BROMECH store on Amazon or visit their web사이트. 구매 증빙 자료로 구매 영수증을 보관하세요.
BROMECH Store Link: https://www.amazon.com/stores/BROMECH/page/177EC1E0-7479-45AB-AC3D-7F4EE9BCF0E2
