YETHKE YXS-02
YETHKE Star Projector User Manual
Model: YXS-02
소개
Thank you for choosing the YETHKE 4-in-1 Star Projector. This versatile device combines an aurora projector, a Bluetooth music speaker, and a white noise machine to create a relaxing and immersive environment. It features a dual projection lens capable of displaying 16 aurora colors and a vivid starry sky, transforming any room into a serene natural landscape. Enjoy soothing music and dynamic light effects for an unparalleled experience.
패키지 내용
- 1 x YETHKE Star Projector
- 1 x 원격 제어
- 1 x USB 케이블
- 1 x 사용자 설명서

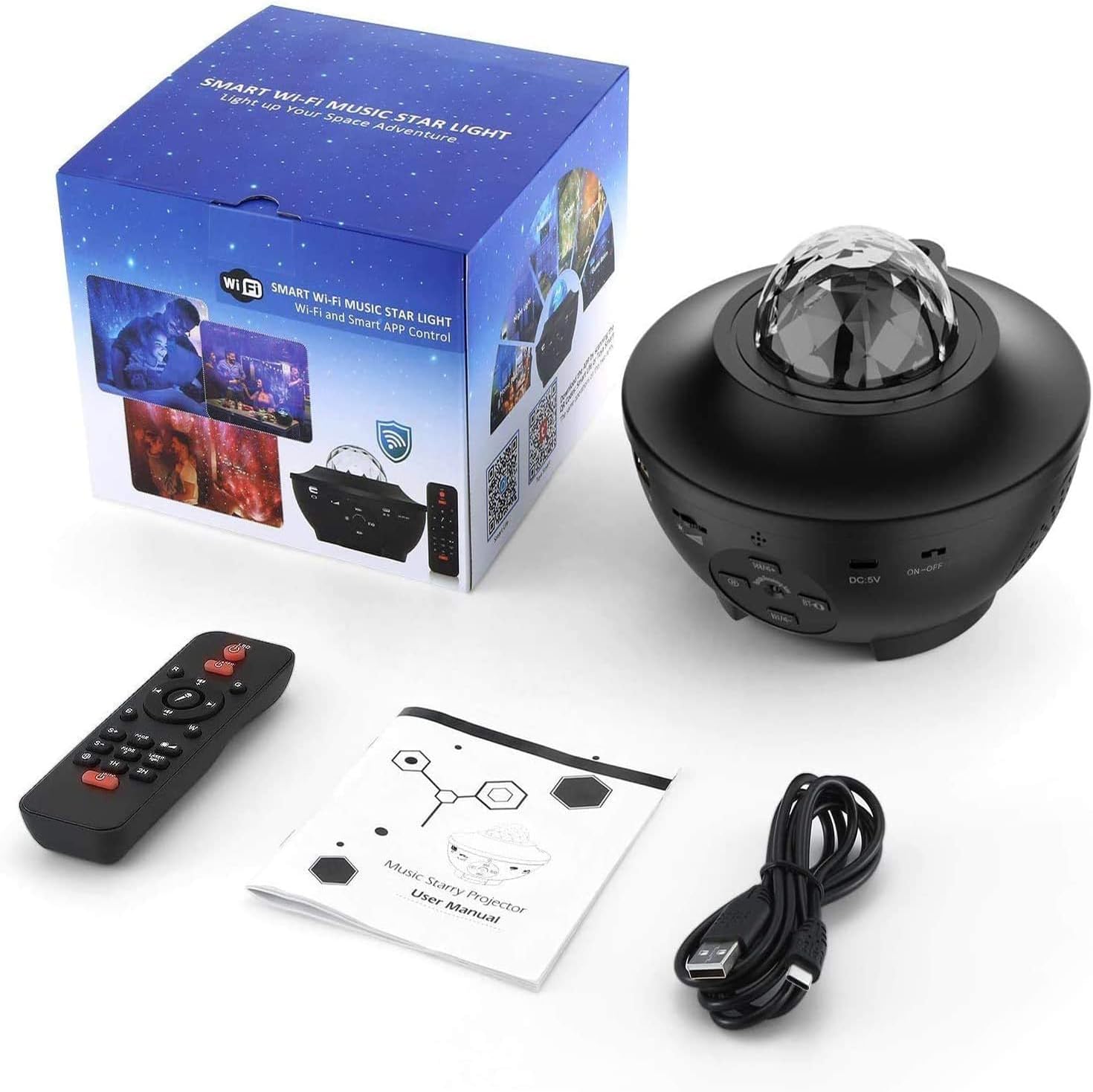

Image: All components included in the package, including the projector, remote, USB cable, and user manual.
제품 특징
- 4-in-1 기능: Combines aurora projection, starry sky projection, Bluetooth music speaker, and white noise machine.
- Dynamic Projection: Features 16 colors of dynamic 360-degree rotating ocean waves and a vivid starry sky.
- 다양한 제어 방법: Control via Smart WiFi App, included Remote Control, or directly using product buttons.
- 소리 활성화 모드: Projection effects can synchronize and flash with music or voice.
- 블루투스 스피커 내장: Connect your device to play music through the projector.
- 조정 가능한 밝기: Customize the light intensity to your preference.
- 타이머 기능: Set automatic shut-off for 1 hour, 2 hours, or 4 hours.
- USB 전원 공급: Convenient power supply via USB cable.

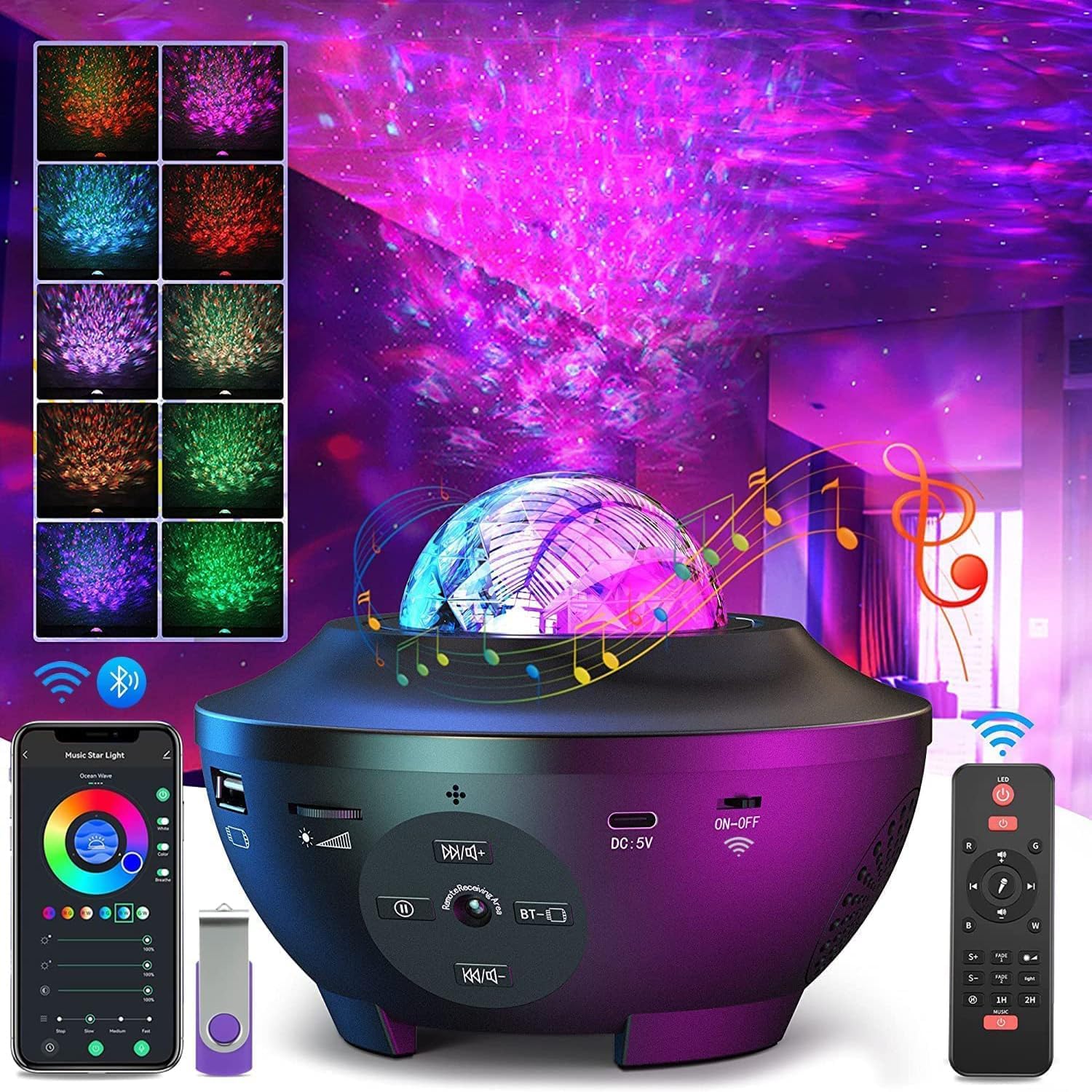

Image: The YETHKE Star Projector showcasing its diverse light effects and control interfaces, including app and remote.
이미지: 전직ample of the projector's wide coverage and various lighting modes in a living room setting.
설정
- 전원 연결: Connect the provided USB cable to the DC 5V port on the projector and plug the other end into a compatible USB power adapter (not included) or a USB port on a computer/power bank. The projector will power on automatically.
- 원격 제어 준비: Ensure the remote control has working batteries. If not, insert 2 AAA batteries (not included) into the remote control's battery compartment.
- 앱 다운로드 (선택 사항): For smart control, download the 'Smart Life' or 'Tuya Smart' app from your smartphone's app store (iOS/Android). Register or log in to your account.
- WiFi Pairing (for App Control):
- 프로젝터 전원이 켜져 있는지 확인하십시오.
- Open the app and tap 'Add Device' or the '+' icon.
- '조명' > '광원(Wi-Fi)'을 선택하세요.
- Follow the in-app instructions to connect the projector to your 2.4GHz Wi-Fi network. You may need to put the projector into pairing mode (refer to app instructions or projector manual for specific button presses).
- 블루투스 페어링 :
- 프로젝터를 켜세요.
- On your smartphone or Bluetooth-enabled device, search for Bluetooth devices.
- Select 'YXS-02' or a similar name from the list to pair. A voice prompt will confirm successful connection.

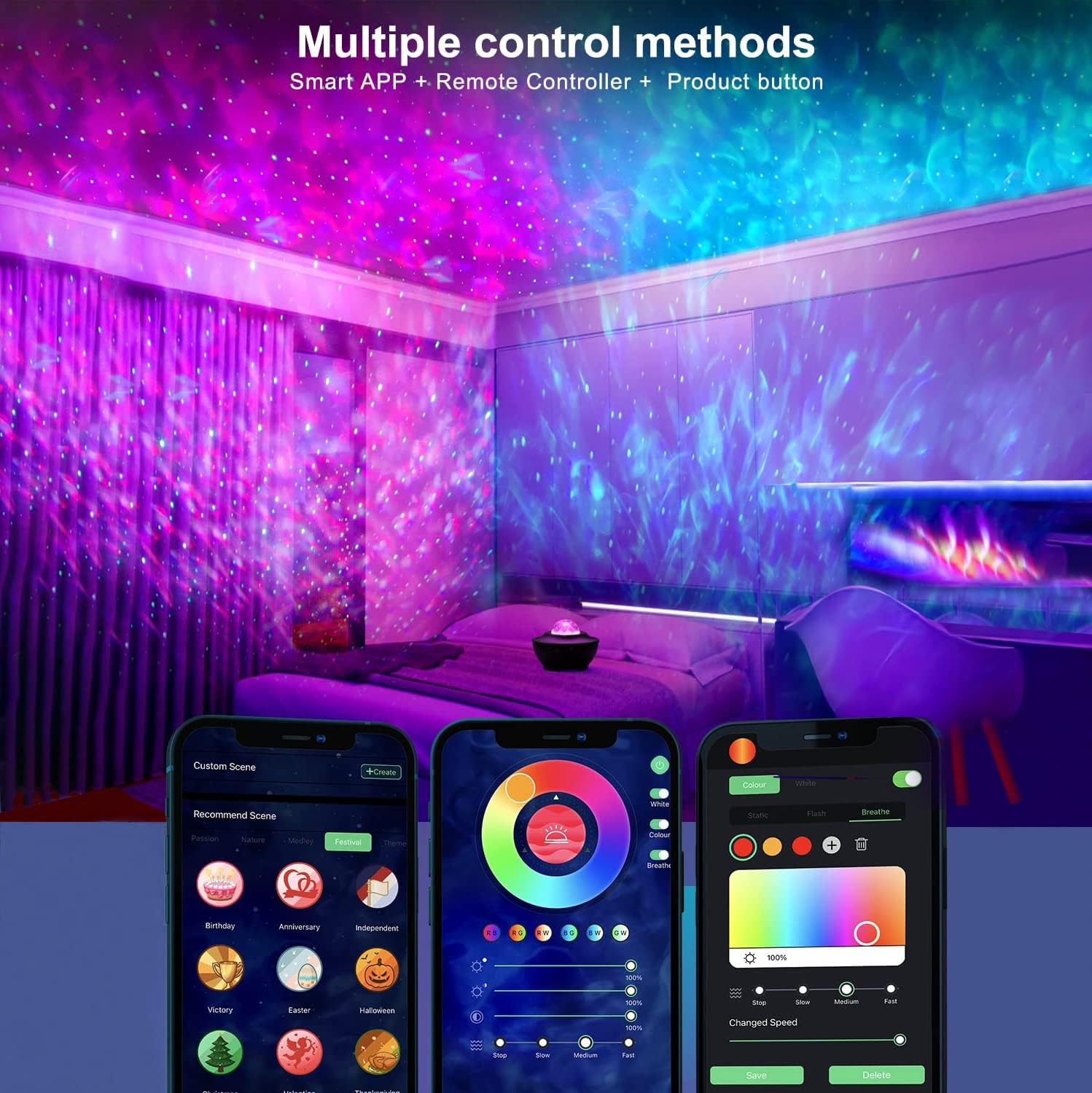

Image: Demonstrates the multiple control methods available, including the smart app, remote controller, and product buttons.
작동 지침
Basic Operation (Product Buttons)
- 전원 켜기/끄기: Press the 'ON-OFF' button on the projector to turn it on or off.
- 라이트 모드 사이클: Press the 'Light Mode' button to cycle through different light effects (aurora, stars, combined).
- 밝기 조정: Use the brightness buttons to increase or decrease the projection brightness.
- 음악 재생: Use the music control buttons (play/pause, next/previous track) for Bluetooth audio.
원격 제어 작동
동봉된 리모컨을 통해 모든 기능을 편리하게 이용할 수 있습니다.
- 전원 버튼: 프로젝터를 켜거나 끕니다.
- Aurora/Star Buttons: Independently control the aurora and star projection.
- 색상 선택: Choose from various aurora colors.
- 밝기 +/-: Adjust the brightness of the projection.
- 속도 +/-: Control the rotation speed of the aurora effects.
- 음악 컨트롤: Play/pause, skip tracks, adjust volume for Bluetooth audio.
- 타이머 버튼: Set auto-off timer for 1H, 2H, or 4H.
- 사운드 활성화: Activate the mode where lights react to music/sound.
Smart App Control (WiFi)
The 'Smart Life' or 'Tuya Smart' app offers advanced control and customization:
- Full Color Customization: Select from 16 million colors for aurora effects.
- Brightness & Speed Control: Fine-tune projection brightness and movement speed.
- 장면 모드: Choose from preset scenes or create custom lighting effects.
- 타이머 및 일정: Set precise timers and schedules for automatic operation.
- 음악 동기화: Control music playback and sound-activated light effects.
Image: The mobile phone WiFi connection interface for controlling the star projector, demonstrating color and scene customization.
Image: Illustrates the adjustable ocean light brightness feature, showing different intensity levels.
유지
- 청소: Use a soft, dry cloth to clean the projector's surface. Do not use abrasive cleaners or solvents.
- 렌즈 관리: Gently wipe the projection lens with a microfiber cloth to ensure clear projection.
- 저장: 사용하지 않을 때에는 프로젝터를 직사광선이나 극한의 온도를 피해 서늘하고 건조한 곳에 보관하십시오.
- 물을 피하세요: 이 기기는 방수 기능이 없습니다. 물과 높은 습도를 피해 보관하십시오.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 프로젝터가 켜지지 않습니다. | 전원 공급이 안 되거나 케이블에 문제가 있습니다. | Ensure USB cable is securely connected and power source is working. Try a different USB port or adapter. |
| 투영이 없습니다. | Light source off or obstructed. | Check if the light function is enabled via remote/app. Ensure the lens is not covered. |
| 리모컨이 작동하지 않습니다. | Batteries low/dead or remote out of range. | Replace remote batteries. Ensure remote is pointed at the projector and within range. |
| 블루투스 연결 문제. | Device not in pairing mode or already connected. | Ensure projector is in Bluetooth pairing mode. Disconnect from other devices. Restart both devices. |
| 앱이 프로젝터에 연결할 수 없습니다. | Incorrect WiFi network (not 2.4GHz) or pairing mode issue. | Ensure your phone and projector are on a 2.4GHz WiFi network. Re-enter pairing mode on the projector and try connecting again. |
| Lights not reacting to music. | Sound-activated mode not enabled. | Activate the sound-activated mode via remote or app. Ensure music volume is sufficient. |
명세서
| 특징 | 사양 |
|---|---|
| 상표 | 예트케 |
| 모델 번호 | YXS-02 |
| 치수(길이 x 너비 x 높이) | 16.26 x 16.26 x 12.95cm(6.4 x 6.4 x 5.1인치) |
| 무게 | 500g(1.1파운드) |
| 재료 | 아크릴로니트릴 부타디엔 스티렌(ABS) 플라스틱 |
| 광원 유형 | LED (Diode électroluminescente) |
| 평균 수명 | 50,000시간 |
| 전원 | 유선 전기 (USB 케이블) |
| 입력 Voltage | 직류 5V |
| 제어 방법 | Smart WiFi App, Remote Control, Product Buttons |
| 연결성 | Bluetooth, WiFi (2.4GHz) |
| 인증 | CE |

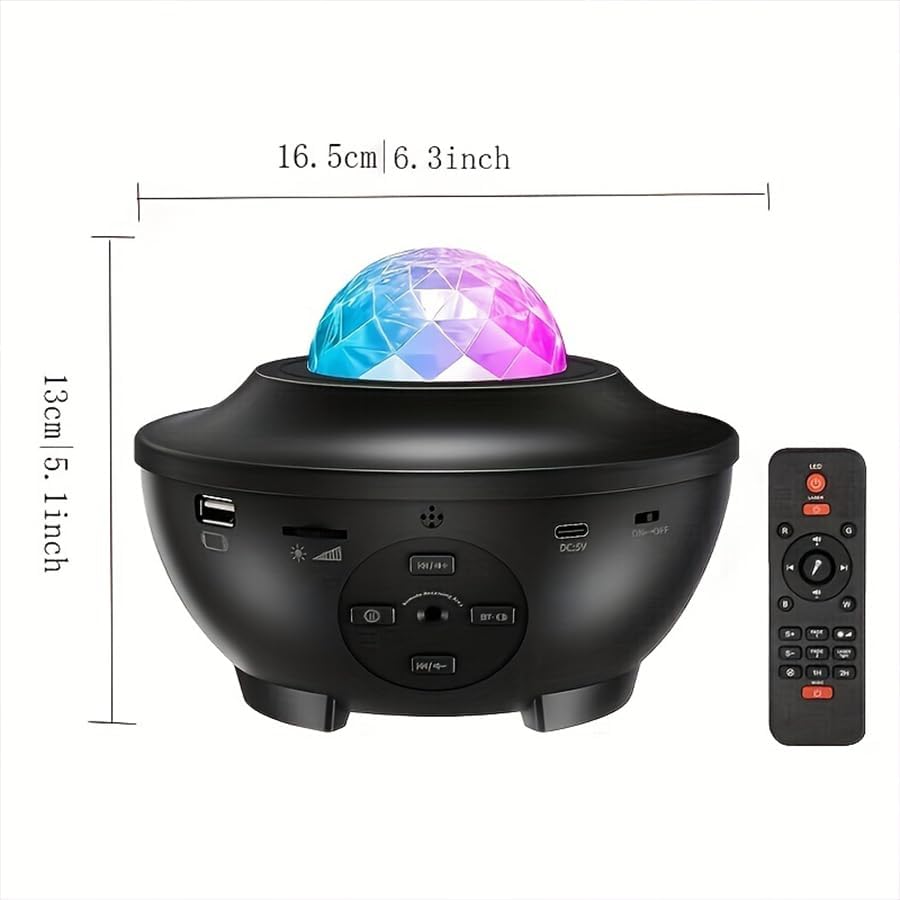

Image: Detailed dimensions of the YETHKE Star Projector.
보증 및 지원
This YETHKE product is designed for durability and performance. For any questions, technical support, or warranty claims, please refer to the contact information provided with your purchase or visit the official YETHKE web사이트. 보증을 위해 구매 증빙 자료를 보관해 주세요.
