EJEAS EUC 오토바이 인터콤 블루투스 리모컨 사용 설명서

1. 서론

The EJEAS EUC Motorcycle Intercom Bluetooth Remote Control Handle is designed to provide convenient, hands-free control over your EJEAS motorcycle Bluetooth interphone system while riding. This device allows you to manage various functions such as answering calls, switching music, controlling intercom, and adjusting volume directly from your motorcycle handle, enhancing safety and convenience on the road.

Image 1: EJEAS EUC Remote Control Handle. This image displays the sleek, black design of the EJEAS EUC remote control handle, highlighting its ergonomic shape and button layout.

2. 패키지 내용

Upon unboxing your EJEAS EUC Remote Control Handle, please ensure all the following items are present:

• EJEAS EUC Remote Control Handle
• USB Type-C 충전 케이블
• Mounting Accessories (various adjustment gears for different handle sizes)
• 사용자 설명서

Image 2: EJEAS EUC Package Contents. This image shows all components included in the EJEAS EUC box, including the remote, charging cable, mounting hardware, and user manual.

3. 제품 오버view

The EJEAS EUC Remote Control Handle features an intuitive button layout for easy access to various functions. It is designed for durability and all-weather use.

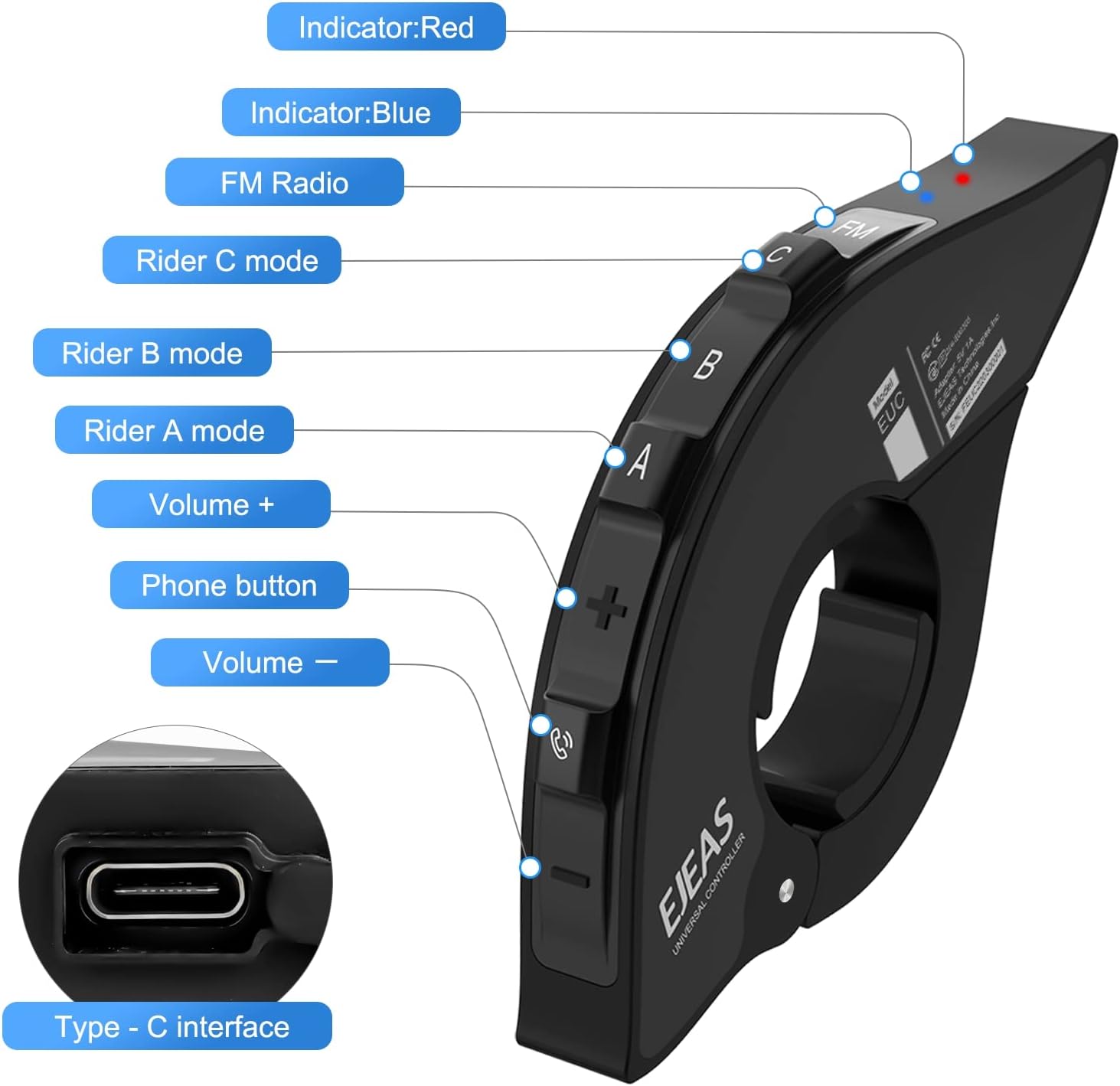

Image 3: EJEAS EUC Labeled Buttons. This image provides a detailed view of the remote control handle with labels for each button: Indicator (Red/Blue), FM Radio, Rider C mode, Rider B mode, Rider A mode, Volume +, Phone button, Volume -, and Type-C interface.

주요 특징:

• 블루투스 5.1 : Ensures stable and fast connection.
• IP65 방수: Designed to withstand snowy slopes and rain-soaked roads.
• 핸즈프리 제어: Manage calls, music, and intercom without removing hands from the handle.
• 보편적 인 호환성 : Suitable for various motorcycles, ATVs, and off-road vehicles.
• 긴 배터리 수명: 1250mAh battery with fast charging (1.5 hours).

Image 4: EJEAS EUC Bluetooth 5.1 Chip. This image visually represents the advanced Bluetooth 5.1 chip integrated into the device, emphasizing high-speed transmission, stronger signal, and quick connection capabilities.

Image 5: EJEAS EUC IP65 Waterproof. This image illustrates the IP65 waterproof rating of the device, showing it mounted on a motorcycle handle in rainy conditions, indicating its suitability for all-weather use.

4. 설정 및 설치

The EJEAS EUC Remote Control Handle is designed for easy installation on various motorcycle handles.

4.1 Mounting the Remote Control Handle

1. Select the appropriate adjustment gears from the package that best fit your motorcycle handle.
2. Securely attach the remote control handle to your motorcycle's handlebar using the provided mounting accessories. Ensure it is positioned within easy reach for safe operation.

Image 6: EJEAS EUC Suitable for Various Vehicles. This image demonstrates the versatility of the remote control handle, showing it mounted on a motorcycle handle, indicating its compatibility with various riding vehicles.

4.2 Pairing with EJEAS Intercom

The EUC handle is compatible with EJEAS motorcycle Bluetooth interphones, including models like Q2, Q7, MS8, and V4Plus.

1. Ensure your EJEAS motorcycle Bluetooth interphone is powered on and in pairing mode.
2. Press any button on the EUC Remote Control Handle to initiate Bluetooth connection.
3. The devices will automatically connect. A successful connection is usually indicated by a specific light pattern or audio prompt on your intercom.

Image 7: EJEAS EUC Remote Control for EJEAS Intercoms. This image visually confirms the remote's compatibility with various EJEAS Bluetooth intercom models (Q2, Q7, MS8, V4Plus), showing the remote mounted on a motorcycle handle.

5. 사용 설명서

The EJEAS EUC Remote Control Handle provides intuitive control over your EJEAS intercom system.

5.1 기본 기능

• 전원 켜기/끄기: Refer to your EJEAS intercom's manual for specific power controls. The EUC handle controls the intercom's functions once it's powered on and paired.
• 볼륨 조절: Use the '+' and '-' buttons on the handle to adjust the volume of your intercom, music, or calls.
• 음악 전환: Use the dedicated music control buttons (e.g., forward/backward arrows) to skip tracks.
• Telephone Answering: Press the 'Phone' button to answer incoming calls. Press again to end calls.
• Intercom Control: Use the 'Rider A', 'Rider B', 'Rider C' buttons to manage intercom conversations with other riders, depending on your intercom model's capabilities.
• FM 라디오 : Press the 'FM Radio' button to activate or control the FM radio function on your intercom.

5.2 핸즈프리 작동

The EUC handle is designed to keep your hands on the handlebars, allowing for safer operation of your intercom's features while riding. All primary functions can be accessed with a single finger.

6. 유지관리

To ensure the longevity and optimal performance of your EJEAS EUC Remote Control Handle, follow these maintenance guidelines:

• 청소: 부드러운 d를 사용하세요amp 천으로 기기를 닦으세요. 강한 화학 물질이나 연마재는 사용하지 마세요.
• 저장: 사용하지 않을 때는 장치를 서늘하고 건조한 곳에 보관하십시오.
• 충전 중: Charge the device using the provided USB Type-C cable. Avoid overcharging.
• 물 노출: While IP65 waterproof, avoid prolonged submersion in water. Ensure the charging port cover is securely closed when not charging.

7. 문제 해결

If you encounter issues with your EJEAS EUC Remote Control Handle, try the following steps:

• 장치 전원이 켜지지 않음: Ensure the device is fully charged. Connect it to the charging cable and wait for the charging indicator.
• 블루투스 연결 문제:
1. Ensure both the EUC handle and your EJEAS intercom are in pairing mode.
2. Check that both devices are within Bluetooth range.
3. 두 기기를 모두 재시작하고 다시 페어링을 시도하십시오.
4. Clear previous Bluetooth pairings on your intercom and try pairing anew.
• 버튼이 응답하지 않음: Ensure the device is properly paired and powered on. Check for any physical obstructions or damage to the buttons.
• 배터리 수명이 짧음: Ensure the device is fully charged before each use. Battery performance can degrade over time with extensive use.

8. 사양

9. 보증 및 지원

For warranty information and customer support, please refer to the documentation included in your product package or visit the official EJEAS website. EJEAS is committed to providing a better experience for its customers.
