Subaru Forester SJ LED Reflector Tail Lamp 사용자 설명서

1. 서론

This manual provides essential information for the installation and operation of your new LED Reflector Tail Lamp for the Subaru Forester SJ series. This product is designed to replace the standard rear reflectors with LED-illuminated units, enhancing visibility and the aesthetic appeal of your vehicle. Please read these instructions carefully before installation and keep them for future reference.

2. 안전 정보

• 감전이나 손상을 방지하기 위해 전기 작업을 하기 전에 항상 차량 배터리를 분리하십시오.
• 설치하는 동안 안전 안경, 장갑 등 적절한 개인 보호 장비를 착용하세요.
• 모든 연결 부분이 안전하고 적절하게 절연되어 단락을 방지하세요.
• 설치 과정 중 확실하지 않은 부분이 있으면 자격을 갖춘 자동차 정비사에게 문의하십시오.
• This product is intended for specific vehicle models. Verify compatibility before installation.
• Consider applying additional waterproofing to the reflector unit if operating in cold or wet climates, as the reflector itself is not manufactured in Japan and additional waterproofing is recommended for peace of mind.

3. 패키지 내용

• Coupler-on LED Reflector Set (for one vehicle)

Note: An instruction manual is not included in the package. This document serves as a comprehensive guide.

4. 호환성

This LED Reflector Tail Lamp is designed for the following vehicle model:

• Subaru Forester SH/SJ Series (Model Year 2013)

중요한: 구매 전asing and installing, please verify the shape of your vehicle's existing couplers and reflectors to ensure proper fitment. Compatibility may vary based on vehicle year, grade, or cold-weather specifications.

5. 특징

• LED 조명: Replaces the standard, non-illuminated rear reflectors with bright LED lights.
• 이중 기능:
  • Illuminates at 30% brightness when small (parking) lights are on.
  • Illuminates at 100% brightness when brake lights are applied.
• Coupler-on Design: Features a plug-and-play wiring harness for direct connection to the vehicle's existing wiring, eliminating the need for complex wiring modifications.
• 고품질 부품: The wiring harness utilizes components from reputable domestic manufacturers such as Sumitomo Wiring Systems and Yazaki Corporation. Terminals are crimped using specialized dies and press machines, ensuring a secure and reliable connection comparable to genuine parts.
• 향상된 가시성: Improves rear visibility of your vehicle, especially during nighttime driving or adverse weather conditions.

6. 설치

Installation of this LED reflector set requires basic automotive knowledge. If you are not confident in your ability to perform the installation, it is highly recommended to seek assistance from a professional installer.

6.1 준비

1. 차량 시동이 꺼져 있고 주차 브레이크가 걸려 있는지 확인하십시오.
2. 차량 배터리의 음극 단자를 분리합니다.
3. Gather necessary tools (e.g., screwdrivers, trim removal tools, wire cutters/strippers if modification is needed).

6.2 Removing Existing Reflectors

Locate the rear reflectors on your Subaru Forester. These are typically found on the lower part of the rear bumper. Carefully remove the existing reflectors. This may involve unscrewing fasteners or prying them out with a trim removal tool. Be gentle to avoid damaging the bumper or surrounding paintwork.

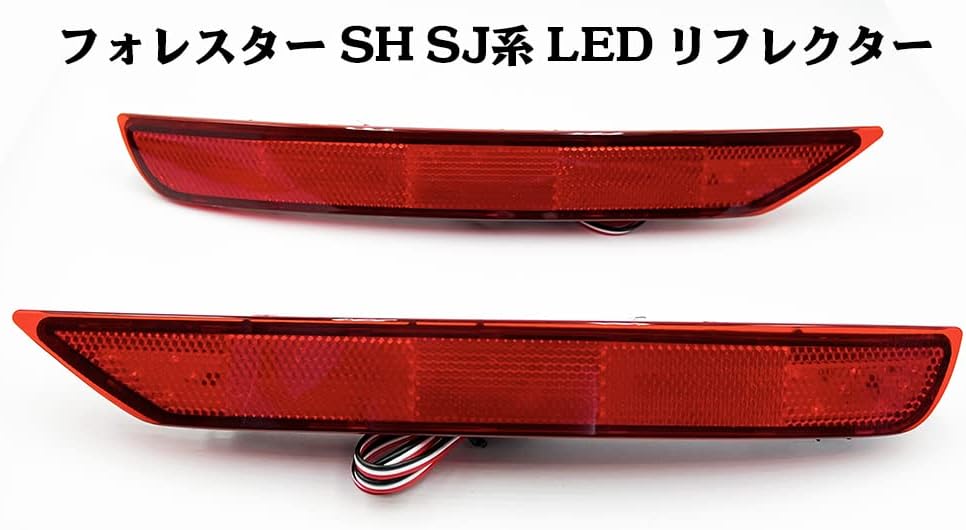

Image: The two LED reflector units provided in the set.

6.3 배선 연결

The LED reflector set features a coupler-on design for simplified wiring. Identify the corresponding wiring harness on your vehicle. Connect the provided coupler from the LED reflector to the vehicle's harness.

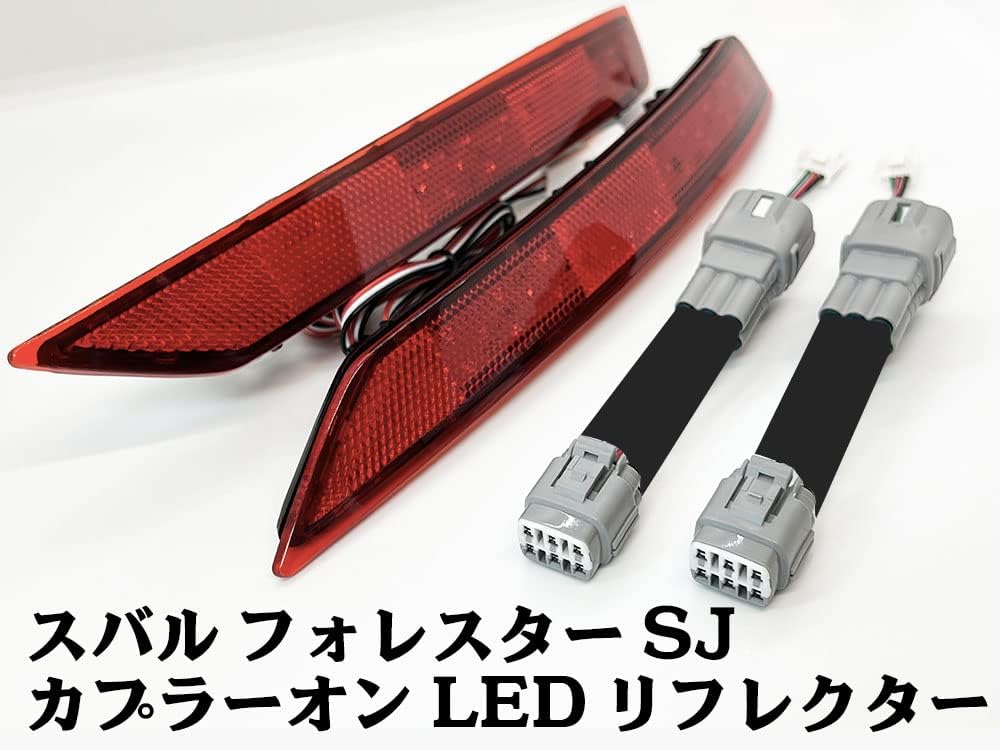

Image: Detail of the coupler connection, showing the plug-and-play design.

The harness is designed to connect directly without complex wire cutting or splicing. However, depending on your vehicle's specific configuration, it may be necessary to create a small opening or route the wiring through an existing access point to pass the reflector's wires. Ensure all connections are firm and secure.

Image: An LED reflector unit showing the integrated wiring harness.

이미지: 밑면 view of the reflector, illustrating the wiring and mounting points.

6.4 Mounting the LED Reflectors

Once the wiring is connected, carefully insert the new LED reflectors into the bumper openings. Secure them using the original fasteners or any provided with the kit. Ensure they are flush and properly seated.

6.5 마지막 단계

1. 차량 배터리의 음극 단자를 다시 연결합니다.
2. Test the functionality of the LED reflectors. Turn on your parking lights to check the 30% illumination. Then, press the brake pedal to verify the 100% illumination.
3. 운전하기 전에 모든 조명이 제대로 작동하는지 확인하십시오.

Note: The reflector itself is not manufactured in Japan. If you have concerns about water ingress, it is advisable to apply additional waterproofing during installation.

7. 운영

The LED reflector operates in conjunction with your vehicle's existing lighting system:

• When your vehicle's parking lights (small lights) are active, the LED reflectors will illuminate at approximately 30% of their full brightness.
• When the brake pedal is pressed, the LED reflectors will illuminate at 100% brightness, providing a clear and immediate signal to following drivers.

Image: The LED reflector fully illuminated, demonstrating its brightness.

8. 유지관리

The LED reflectors are designed for durability and require minimal maintenance. Periodically inspect the reflectors for any signs of damage, cracks, or loose connections. Clean the surface with a soft cloth and mild automotive cleaner to maintain optimal light output.

9. 문제 해결

• Reflectors not illuminating:
  • 모든 배선 연결부를 점검하여 단단히 고정되었는지 확인하십시오.
  • Verify that the vehicle's parking lights and brake lights are functioning correctly.
  • Inspect for any blown fuses related to the tail lights or brake lights.
• Incorrect brightness (e.g., always 100% or always 30%):
  • Recheck the wiring connections to ensure the correct wires for parking lights and brake lights are connected to the corresponding inputs on the reflector harness.

If issues persist after basic troubleshooting, it is recommended to consult a professional automotive electrician.

10. 사양

11. 보증 및 지원

This product is manufactured with high-quality domestic components for the wiring harness, ensuring reliability. However, please note that the reflector unit itself is not manufactured in Japan. No specific warranty information or direct installation support is provided by the seller. For any concerns or complex installation scenarios, consulting a professional automotive technician is advised.
