1. 서론
Thank you for choosing the Sportec Elliptical Machine Model 765889. This manual provides essential information for the safe and effective use of your new fitness equipment. Please read this manual thoroughly before assembly or operation and retain it for future reference.
This elliptical machine is designed to provide a smooth, low-impact cardio workout, engaging both your upper and lower body. It features 8 levels of magnetic resistance, an adjustable handle, and an adjustable seat to customize your exercise experience.
2. 안전 정보
Before starting any exercise program, consult with your physician. It is crucial to understand and follow all safety precautions to prevent injury and ensure proper operation of the equipment.
- Always place the elliptical machine on a flat, stable surface.
- Ensure adequate space around the machine for safe operation.
- 사용 중에는 어린이와 애완동물을 장비에 가까이 두지 마십시오.
- 사용하기 전에 기계의 부품이 헐거워지거나 손상되었는지 점검하십시오. 부품이 손상된 경우 사용하지 마십시오.
- 적절한 운동화와 옷을 착용하세요.
- 최대 사용자 체중 제한인 130kg을 초과하지 마십시오.
- 실신, 현기증, 통증을 느끼면 즉시 운동을 중단하세요.
3. 패키지 내용
Carefully unpack the box and ensure all components are present. If any parts are missing or damaged, contact customer support immediately.
- 1 x Elliptical Machine (main frame and components)
- 1 x 사용자 매뉴얼(이 문서)
- All necessary assembly accessories and tools
4. 설치 및 조립
The Sportec Elliptical Machine requires assembly. Please refer to the separate assembly guide included in your package for detailed, step-by-step instructions. Ensure all bolts and nuts are securely tightened before first use.
4.1 Moving the Machine
The elliptical machine is equipped with transportation wheels for easy relocation. To move the machine, carefully tilt it forward onto its front wheels and roll it to your desired location. Ensure the path is clear of obstacles.
This image demonstrates how to easily move the elliptical machine using the integrated rollers located at its base.
5. 사용 설명서
5.1 저항 레벨 조정
The Sportec Elliptical Machine features 8 levels of magnetic resistance. To adjust the resistance, turn the tension control knob located on the main frame. Turn clockwise for higher resistance and counter-clockwise for lower resistance. Start with a lower resistance and gradually increase as your fitness improves.
This image shows the manual tension control knob, allowing users to select from 8 levels of magnetic resistance, from low to high.
5.2 Adjusting Handle and Seat
The elliptical machine is equipped with an adjustable handle and seat to accommodate various user heights and preferences. Loosen the adjustment knobs, position the handle/seat to your desired height/position, and securely tighten the knobs before use. Ensure the seat is stable and does not wobble.
Detail of the elliptical machine's adjustable seat, highlighting the mechanisms for height and horizontal position adjustments.
5.3 Using the Digital Monitor
The integrated LCD display provides real-time feedback on your workout. It typically shows:
- 주사: 모든 디스플레이 기능을 자동으로 순환합니다.
- 시간: 운동 시간.
- 속도: Current speed in appropriate units.
- 거리: 운동 중 이동한 총 거리.
- 칼로리: 추정 칼로리 소모량
Refer to the monitor's specific instructions (usually a small diagram near the display) for details on how to reset or switch modes.
5.4 심박수 모니터링
Pulse pads are located on the additional stationary handlebars. Grip these pads firmly with both hands to display your heart rate on the digital monitor. For accurate readings, ensure your hands are clean and make full contact with the sensors.
6. 유지관리
Regular maintenance ensures the longevity and safe operation of your elliptical machine.
- 청소: 광고로 기계를 닦으세요amp 사용 후에는 천으로 닦아 땀과 먼지를 제거하세요. 연마성 세제는 사용하지 마세요.
- 점검: 모든 볼트, 너트, 그리고 움직이는 부품의 조임 상태와 마모 여부를 정기적으로 점검하십시오. 느슨한 고정 장치는 조이십시오.
- 매끄럽게 하기: Moving parts may require occasional lubrication. Refer to the assembly guide or contact customer support for specific recommendations.
- 저장: Store the machine in a dry, cool place away from direct sunlight and moisture.
7. 문제 해결
If you encounter issues with your elliptical machine, refer to the following common problems and solutions:
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 기계에서 이상한 소리가 난다 | Loose bolts or connections; parts rubbing | Check and tighten all bolts. Inspect for any parts that may be rubbing and adjust if possible. |
| 저항이 변하지 않음 | 저항 케이블이 분리되었거나 손상되었습니다. | Ensure the resistance cable is properly connected to the tension knob and the magnetic mechanism. Contact support if damaged. |
| Digital monitor not displaying | Batteries low or incorrectly installed; loose connection | Replace batteries. Check battery orientation. Ensure monitor cables are securely connected. |
If the problem persists after attempting these solutions, please contact Sportec customer support.
8. 사양
Detailed technical specifications for the Sportec Elliptical Machine Model 765889:
This image illustrates the overall dimensions of the Sportec Elliptical Machine, showing its height of 155cm, width of 53cm, and length of 120cm.
- 모델 이름: 765889
- 상표: Sportec
- 색상: 검은색
- 재료: 합금강
- 저항 메커니즘: 자기
- 저항 수준: 8
- 최대 보폭: 13 인치 (33cm)
- 제품 크기(길이 x 너비 x 높이): 120cm x 53cm x 155cm
- 품목 무게: 16 킬로그램
- 플라이휠 무게: 16 킬로그램
- Maximum User Load Weight: 130 킬로그램
- Footboard Size: 15.6 x 6.3인치(39.6 x 16cm)
- Foot Pedal Span: 14.2인치(36cm)

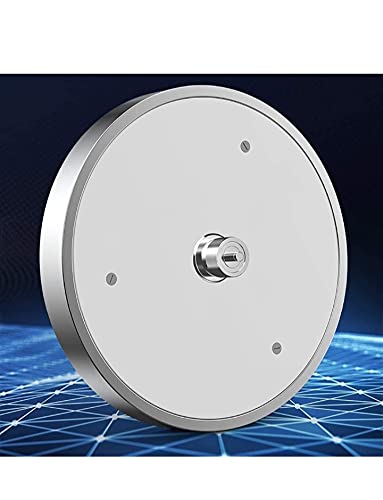

내부 view of the elliptical machine's precision balanced flywheel, which contributes to smooth and quiet operation.
9. 보증 및 지원
For warranty information, technical support, or to order replacement parts, please contact Sportec customer service. Keep your purchase receipt and model number (765889) handy when contacting support.
Contact information can typically be found on the Sportec official web사이트 또는 제품 포장에 표시하세요.
