Temtop LKC-1000S+ Air Quality Detector Instruction Manual

1. 서론

The Temtop LKC-1000S+ is a versatile 10-in-1 air quality detector designed to monitor various environmental parameters. This device provides accurate measurements for PM2.5, PM10, particle count, HCHO (Formaldehyde), TVOC, AQI (Air Quality Index), temperature, and humidity. It features a clear TFT screen for easy readability, data export capabilities, and a histogram display for historical data. This manual will guide you through the proper use and maintenance of your LKC-1000S+ detector.

2. 제품 특징

• 10-in-1 모니터링: Measures PM2.5, PM10, Particles, HCHO, TVOC, AQI, Temperature, and Humidity.
• 고급 센서 기술: Equipped with a 3rd generation Temtop laser particle sensor and optimized PSO algorithm for accurate and stable particle measurements, with a sensor life of up to 20,000 hours.
• High-Precision Formaldehyde Detection: Features a pre-calibrated electrochemical sensor for precise capture of formaldehyde molecules.
• 사용자 친화적인 디스플레이: Large TFT screen with rich display options and a battery indicator light for clear readability.
• Historical Data Analysis: New histogram function displays concentration changes of tested objects over the past 12 hours.
• 데이터 내보내기: Supports data export for detailed analysis and record-keeping.

Image: The Temtop LKC-1000S+ detector highlighting its 10-in-1 air quality monitoring functions, including PM2.5, PM10, Particles, HCHO, TVOC, AQI, Temperature, Humidity, and Data Export.

3. 패키지 내용

패키지에 모든 품목이 들어 있는지 확인하세요.

• Temtop LKC-1000S+ Air Quality Monitor
• USB 충전 케이블(마이크로 USB)
• 사용 설명서
• 보관함

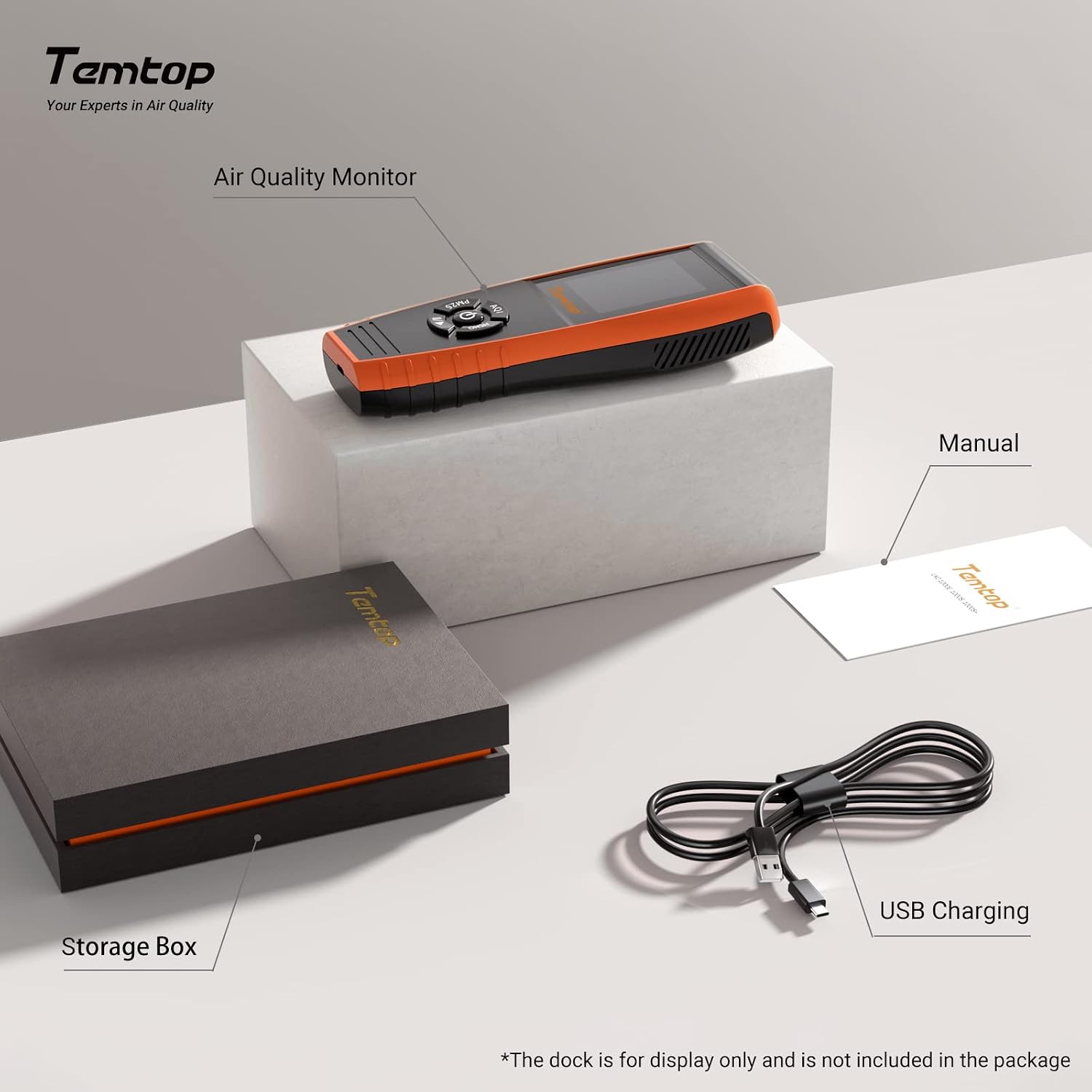

Image: The Temtop LKC-1000S+ air quality monitor, its storage box, the instruction manual, and the USB charging cable.

4. 디바이스 오버view

Familiarize yourself with the components and controls of your LKC-1000S+ detector:

Image: Labeled diagram of the Temtop LKC-1000S+ device, indicating the Air Outlet, Air Inlet, LCD Screen, AQI/Temp & Humi button, PM2.5/PM10/Particles button, HCHO/TVOC button, and USB Port.

• 공기 배출구: Where processed air exits the device.
• 공기 유입구: Where ambient air enters the device for samp링.
• LCD 화면: Displays all measurement readings and device status.
• AQI / Temp & Humi Button: Press to cycle through Air Quality Index, Temperature, and Humidity displays. Double-click for histogram.
• PM2.5 / PM10 / Particles Button: Press to cycle through PM2.5, PM10, and Particle count displays. Double-click for histogram.
• HCHO / TVOC Button: Press to cycle through Formaldehyde and TVOC displays. Double-click for histogram.
• USB 포트: Micro USB port for charging and data export.

이미지: 폭발된 view illustrating the internal components of the Temtop LKC-1000S+, detailing the Dart electrochemical HCHO sensor, Sensirion temperature and humidity sensor, and the 3rd Generation Temtop Laser PM2.5 Sensor.

5. 설정

1. 초기 청구 : Before first use, fully charge the device using the provided USB cable and a standard USB power adapter (not included). The battery indicator on the screen will show charging status.
2. 전원 켜기: Press and hold the power button (usually located in the center of the control panel) for a few seconds until the screen illuminates.
3. 초기 교정: For optimal accuracy, allow the device to run for at least 5-10 minutes in a well-ventilated area after powering on, especially for HCHO and TVOC readings. This allows the sensors to stabilize.

6. 운영

6.1 Taking Readings

Once powered on, the device will automatically begin monitoring. The main screen displays real-time readings for various parameters.

• Use the dedicated buttons (AQI / Temp & Humi, PM2.5 / PM10 / Particles, HCHO / TVOC) to switch between different measurement displays.
• The screen will show the current concentration or value for the selected parameter.

6.2 디스플레이 이해

The large TFT screen provides clear information:

• Running Status: Indicates the device is actively monitoring.
• 배터리 표시기: 배터리 잔량을 표시합니다.
• 측정 단위: Clearly displayed (e.g., ug/m³ for PM2.5/PM10, mg/m³ for HCHO/TVOC).
• AQI Level: Provides an overall air quality assessment (e.g., Good, Moderate, Unhealthy).

6.3 Histogram Function

에게 view the historical data histogram for a specific parameter:

• Double-click the corresponding button (AQI / Temp & Humi, PM2.5 / PM10 / Particles, or HCHO / TVOC).
• The screen will display a graph showing the concentration changes over the past 12 hours.

7. Parameter Comparison

The LKC-1000S+ offers a comprehensive set of monitoring capabilities compared to other models:

Image: A comparison table detailing the monitoring parameters available across different Temtop air quality monitor models, including PM2.5, PM10, HCHO, Particle Count, AQI, TVOC, Temperature & Humidity, Histogram, and Data Export.

8. Air Quality Index Interpretation

The device provides an Air Quality Index (AQI) and specific parameter levels based on EPA & WHO Air Quality Standards. Refer to the tables below for interpretation:

Image: Detailed tables outlining the Air Quality Index (AQI) categories and corresponding concentration ranges for PM2.5, PM10, HCHO, and TVOC, based on EPA and WHO standards.

9. Data Storage & Export

The LKC-1000S+ is equipped with internal memory and a data export function:

Image: The Temtop LKC-1000S+ monitor next to a laptop screen showing exported data in a spreadsheet format, illustrating the device's data storage and export capabilities.

• 메모리: The device's memory allows for at least 3 months of continuous data recording.
• 데이터 내보내기: Connect the device to a computer using the provided USB cable to export recorded data. Specific software or drivers may be required, refer to the official Temtop web자세한 내용은 사이트.

10. 유지관리

To ensure the longevity and accuracy of your air quality detector, follow these maintenance guidelines:

• 청소: 부드럽고 마른 천을 사용하여 기기 외부를 닦으세요. 연마성 세제나 용제는 사용하지 마세요.
• 센서 관리: Avoid exposing the air inlets and outlets to dust, lint, or liquids, as this can affect sensor performance. Do not attempt to clean the internal sensors.
• 저장: When not in use for extended periods, store the device in its original storage box in a cool, dry place away from direct sunlight and extreme temperatures.
• 충전 중: 배터리 수명을 유지하려면 자주 사용하지 않더라도 정기적으로 배터리를 충전하십시오.

11. 문제 해결

If you encounter issues with your Temtop LKC-1000S+, consider the following:

• 부정확한 판독: Ensure the device has been allowed sufficient time to stabilize after power-on. Move the device to a different location to rule out localized anomalies. Avoid placing it near strong air currents, heat sources, or chemical fumes.
• 장치 전원이 켜지지 않음: Check if the battery is charged. Connect the device to a power source using the USB cable and try again.
• 화면이 응답하지 않음: Try restarting the device by holding the power button. If unresponsive, allow the battery to fully discharge and then recharge before attempting to power on again.
• 데이터 내보내기 관련 문제: Ensure the USB cable is securely connected to both the device and the computer. Verify that any necessary drivers or software are installed on your computer.

For persistent issues, please contact Temtop customer support.

12. 사양

13. 보증 및 지원

Temtop provides the following support for your LKC-1000S+ Air Quality Detector:

• 보증: A 12-month warranty is available from the date of purchase.
• 반환 & 교환: Free returns and exchanges are available within 3 months of purchase.

For technical support, warranty claims, or further assistance, please refer to the contact information provided on the official Temtop web사이트 또는 구매 문서.
