1. 서론
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Prestige APS510Z 1-Way Remote Keyless Entry Car Security System. Please read this manual thoroughly before attempting to install or operate the system to ensure proper function and to maximize the benefits of your new security system.
The Prestige APS510Z system is designed to provide enhanced security for your vehicle with features such as remote keyless entry, automatic arming, and a starter interrupt. It includes two five-button 1-way transmitters for convenient control.
2. 주요 특징
- 1버튼 단방향 송신기 2개: 시스템 기능의 원격 제어를 위해.
- 800 Feet Operating Range: Extended range for remote commands.
- Remote Keyless Entry: Lock and unlock vehicle doors remotely.
- 자동 무장: System arms automatically after a set period.
- 자동 잠금: Doors lock automatically under certain conditions.
- 조명이 켜진 입구: Interior lights illuminate upon disarming.
- 멀티톤 미니 사이렌: Provides audible alerts during alarm events.
- 스타터 인터럽트: Prevents the vehicle from starting when armed.
- 듀얼 Stage Shock Sensor with City Mode: Detects impacts and provides warnings or full alarm.
- DBI Port: Supports DBI and ADS protocols for enhanced integration.
- Telematics Port: Carlink Ready for optional telematics module integration.
- Glass Mount Antenna with Built-in LED Light and Valet Switch: For system status indication and service mode.
3. 설정 및 설치
Installation of the Prestige APS510Z system should be performed by a qualified professional. Incorrect installation can lead to vehicle damage or system malfunction. This section provides a general overview; refer to the detailed installation guide provided with the product for specific wiring diagrams and procedures.
3.1 구성 요소view
The system includes the main control module, two remote transmitters, a siren, a shock sensor, and an antenna with an integrated LED and valet switch.

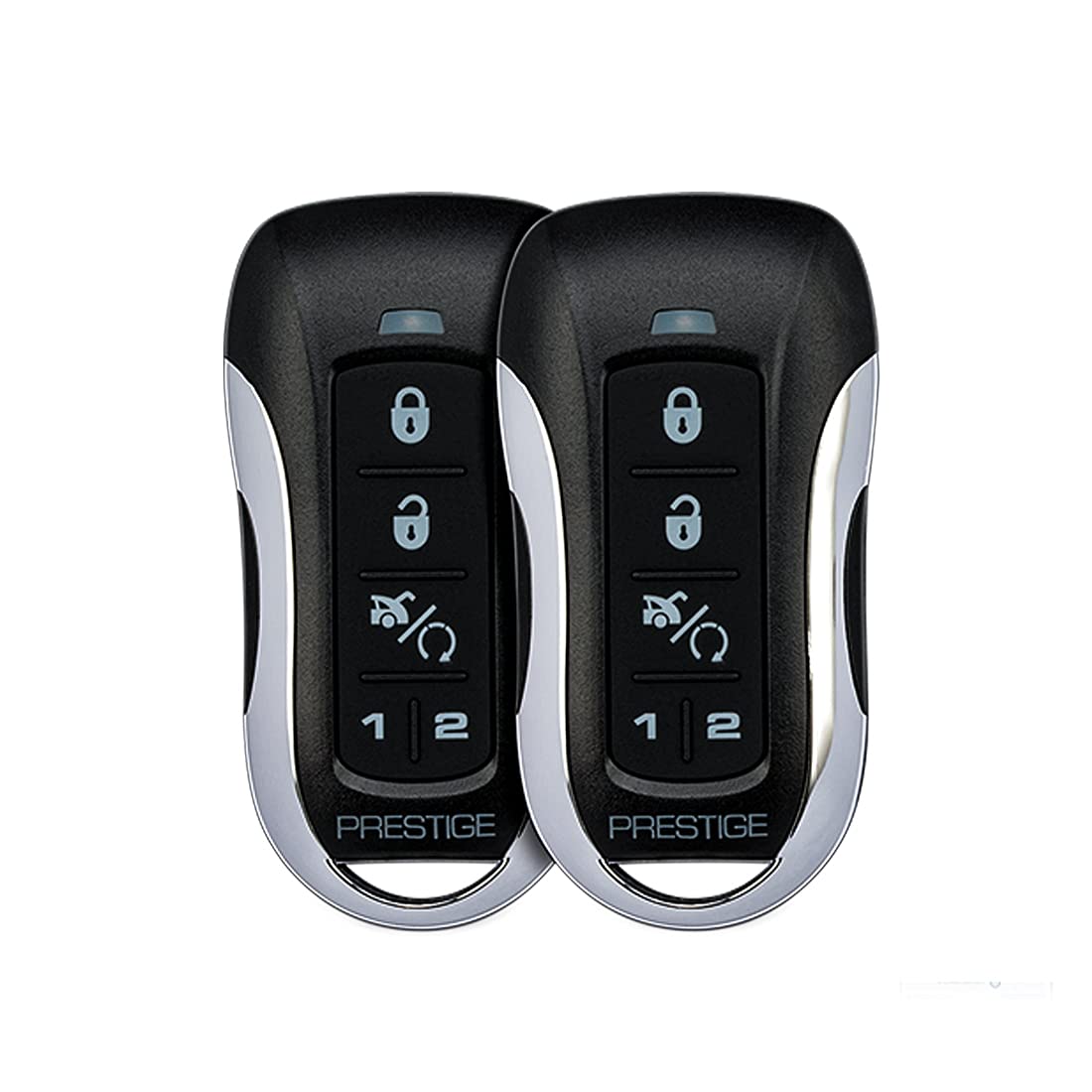

그림 1: 이상view of Prestige APS510Z Car Security System components. This image shows the main control unit, a remote transmitter, and the siren, illustrating the primary parts of the security system.
3.2 Initial System Programming
After physical installation, the system requires initial programming, which typically involves:
- Transmitter Learning: Programming the remote transmitters to the system.
- 기능 프로그래밍: Customizing features such as automatic arming delay, shock sensor sensitivity, and auxiliary output functions. This is often done via the valet switch or a dedicated programming button.
- DBI/ADS Module Integration: If using a data interface module, ensure it is correctly connected and programmed according to its specific instructions.
Consult the detailed installation manual for specific programming steps and options.
4. 사용 설명서
This section details the basic functions of your Prestige APS510Z system using the five-button remote transmitter.
4.1 원격 송신기 기능
The remote transmitter typically has five buttons. Refer to your specific transmitter's button layout for exact functions.
- 잠금 버튼: Press to arm the security system and lock the vehicle doors. The siren will chirp once, and the parking lights will flash once.
- 잠금 해제 버튼: Press to disarm the security system and unlock the vehicle doors. The siren will chirp twice, and the parking lights will flash twice. If the alarm was triggered, it will chirp four times.
- Trunk Release Button (or Auxiliary 1): Press and hold for 3 seconds to activate the trunk release or auxiliary output 1.
- 패닉 버튼: Press and hold for 3 seconds to activate the panic alarm. The siren will sound, and the parking lights will flash. Press any button to turn off panic mode.
- Auxiliary 2 Button (or Function Button): This button may control a second auxiliary output or be used in combination with other buttons for advanced functions (e.g., silent arm/disarm).
4.2 발렛 모드
Valet mode allows you to temporarily disable the security system's alarm functions while retaining keyless entry. This is useful when servicing your vehicle or when you do not want the alarm to arm automatically.
- 발렛 모드 진입: Turn the ignition ON, then press and release the valet switch. The system's LED will illuminate solid to indicate valet mode is active.
- 발렛 모드 종료: Turn the ignition ON, then press and release the valet switch again. The system's LED will turn off, indicating valet mode is deactivated.
4.3 LED 표시등 상태
The system's LED indicator, typically mounted on the windshield, provides visual feedback on the system's status:
- 느린 플래시: 시스템이 작동 중입니다.
- 빠른 플래시: System armed with passive arming countdown.
- 켜짐: Valet mode active.
- Rapid Flash (after disarm): Indicates an alarm trigger occurred. Count the flashes to identify the zone (e.g., 3 flashes for door trigger).
5. 유지관리
The Prestige APS510Z system is designed for reliable operation with minimal maintenance. Regular checks can help ensure its longevity and performance.
5.1 Remote Transmitter Battery Replacement
When the remote transmitter's range decreases significantly or the LED on the remote dims, it's time to replace the battery. Refer to your transmitter's specific model for battery type and replacement instructions. Typically, this involves opening the remote casing and replacing a coin-cell battery.
5.2 시스템 청소
Keep the system's components, especially the shock sensor and antenna, free from excessive dirt or moisture. Use a soft, dry cloth for cleaning. Do not use harsh chemicals or abrasive cleaners.
6. 문제 해결
This section addresses common issues you might encounter with your Prestige APS510Z system.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| System does not respond to remote. | Dead remote battery, out of range, or system in valet mode. | Replace remote battery. Move closer to the vehicle. Check if the valet LED is solid ON; if so, exit valet mode. |
| 뚜렷한 이유 없이 경보가 울립니다. | Shock sensor sensitivity too high, faulty sensor, or intermittent wiring. | Adjust shock sensor sensitivity (refer to installation manual). Inspect wiring for loose connections. If problem persists, consult an installer. |
| Vehicle does not start when system is disarmed. | Starter interrupt circuit issue, or system still armed. | Ensure system is fully disarmed (two chirps). Check for valet mode. If problem persists, consult an installer. |
| Doors do not lock/unlock with remote. | Actuator issue, wiring problem, or system programming. | Verify remote battery. Check vehicle's door lock fuses. Consult an installer to check wiring and programming. |
For issues not covered here, or if troubleshooting steps do not resolve the problem, it is recommended to contact a professional installer or Prestige customer support.
7. 사양
- 모델: APS510Z
- 유형: 1-Way Remote Keyless Entry Car Security System
- 작동 범위: 최대 800피트(약 244미터)
- 송신기: Two (2) Five-Button 1-Way
- 사이렌 출력: Multi-Tone Mini Siren, 110 dB
- 센서: 듀얼 Stage Shock Sensor with City Mode
- 연결성: DBI Port (DBI and ADS Protocol support), Telematics Port (Carlink Ready)
- 특징: Remote Keyless Entry, Automatic Arming/Locking, Illuminated Entry, Starter Interrupt, 2 Auxiliary Outputs
- 무게: 약 1.5kg(0.68파운드)
8. 보증 및 지원
Prestige products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your product packaging or visit the official Prestige web사이트. 보증 조건은 일반적으로 구매일로부터 특정 기간 동안 제조상의 결함에 대한 보증을 제공합니다.
For technical support, service, or to locate an authorized installer, please contact Prestige customer service or visit their official web해당 사이트입니다. 고객 지원팀에 문의하실 때는 구매 증빙 자료를 준비해 두시기 바랍니다.
공식적인 Web대지: www.prestige.com (참고: 이것은 플레이스홀더입니다. URL. Please refer to your product documentation for the actual support web대지.)
