소개
Thank you for choosing the Nivada Swiss Watch Chivas Collection NP17312GDL. This manual provides essential information for the proper setup, operation, and maintenance of your new timepiece. Please read it thoroughly to ensure optimal performance and longevity of your watch.
제품 끝view
Familiarize yourself with the components of your Nivada Swiss Watch.

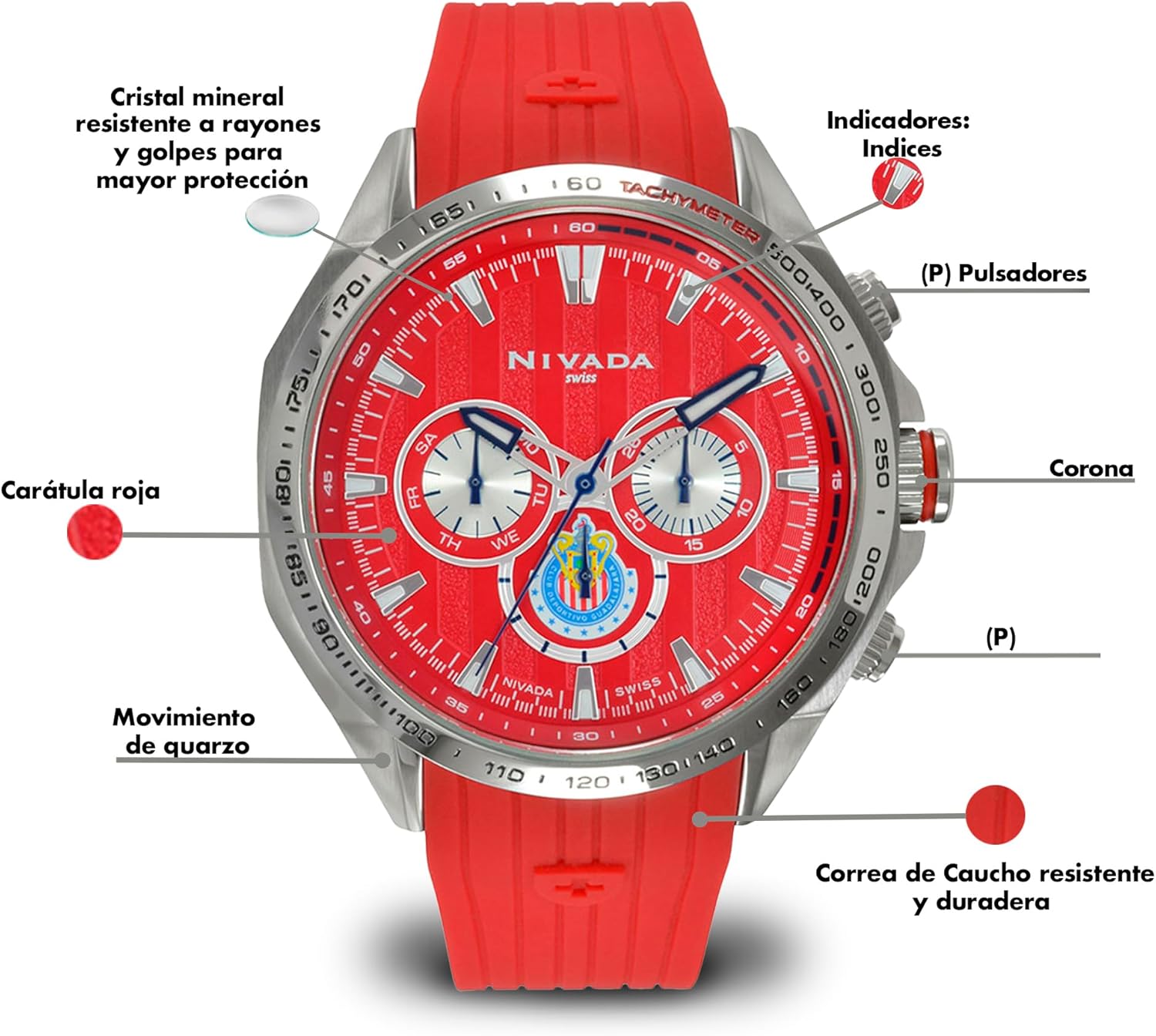

앞쪽 View 구성 요소:
- 미네랄 크리스탈: Resistant to scratches and impacts, providing enhanced protection for the dial.
- Indices: Hour markers on the dial.
- Pushers (P): Buttons used to operate the chronograph functions.
- 왕관: 시간과 날짜를 설정하는 데 사용됩니다.
- Red Dial: The main face of the watch, featuring the Chivas Collection design.
- 쿼츠 무브먼트 : The internal mechanism that powers the watch, known for accuracy.
- 내구성 좋은 고무 스트랩: A resistant and long-lasting strap for comfortable wear.
옆 View 구성 요소:
- 스톱워치: A stopwatch function integrated into the watch. The term "chronograph" literally means "time writer" and refers to a wristwatch with a stop function.
- 베젤: The ring surrounding the watch crystal.
- Pushers (P): Buttons for chronograph operation.
- 왕관: For time and date adjustments.
- 내구성 좋은 고무 스트랩: The resistant and long-lasting strap.
뒤쪽에 View 구성 요소:
- Water Resistance 5 ATM: Indicates the watch is water resistant up to 50 meters.
- Chivas Logo: Engraved logo of the Chivas football club.
- Model Number NP17312GDL: Unique identifier for your watch model.
- 내구성 좋은 고무 스트랩: The resistant and long-lasting strap.
설정
시간 설정
- 크라운을 두 번째 클릭 위치까지 빼냅니다.
- 용두를 돌려 시침과 분침을 원하는 시간으로 맞춥니다.
- 용두를 다시 정상 위치로 밉니다.
날짜 설정 (해당되는 경우)
If your watch features a date display:
- 크라운을 첫 번째 클릭 위치까지 빼냅니다.
- Turn the crown clockwise or counter-clockwise (depending on the model) to set the date.
- Push the crown back into the normal position. Avoid setting the date between 9 PM and 3 AM, as this can interfere with the automatic date change mechanism.
스트랩 조정
The rubber strap can be adjusted for a comfortable fit. If professional adjustment is required, please consult a qualified watch technician.
작동 지침
크로노그래프 기능 사용하기
Your watch is equipped with a chronograph (stopwatch) function.
- 시작: Press the upper pusher (P) to start the chronograph. The chronograph second hand will begin to move.
- 중지: Press the upper pusher (P) again to stop the chronograph. The elapsed time will be indicated by the chronograph hands.
- 재설정 : After stopping the chronograph, press the lower pusher (P) to reset all chronograph hands to their zero positions.
Note: Do not operate the pushers or crown while the watch is submerged in water to maintain water resistance.
유지
시계 청소
Wipe the watch case and crystal with a soft, dry cloth. For the rubber strap, you can use a mild soap solution and a soft brush, then rinse thoroughly with clean water and dry completely. Avoid harsh chemicals or abrasive materials.
방수성
Your watch is water resistant up to 50 meters (5 ATM). This means it is suitable for short periods of recreational swimming, but not for diving or snorkeling. Ensure the crown is fully pushed in before any contact with water. Water resistance is not a permanent condition and may decrease over time due to wear and tear or accidental impact. It is recommended to have the water resistance checked periodically by an authorized service center.
배터리 교체
This watch is powered by a lithium metal battery. When the battery runs low, the watch may stop or the second hand may jump in irregular intervals (End-of-Life indicator). Battery replacement should be performed by a qualified watch technician to ensure proper sealing and maintain water resistance.
문제 해결
- 시계가 작동하지 않음: 크라운이 완전히 눌려 있는지 확인하세요. 그래도 시계가 작동하지 않으면 배터리를 교체해야 할 수도 있습니다.
- 시간 부정확성: Ensure the crown is fully pushed in. Extreme temperatures or strong magnetic fields can affect accuracy. If the issue persists, professional inspection is recommended.
- 크로노그래프 바늘이 0으로 재설정되지 않음: This may indicate a need for chronograph hand calibration. Consult a professional watch technician.
명세서
| 모델 번호 | NP17312GDL |
| 상표 | Nivada |
| 움직임 | 석영 |
| 디스플레이 유형 | 비슷한 물건 |
| 추가 기능 | 스톱워치 |
| 방수 깊이 | 50미터(5ATM) |
| 케이스 두께 | 6 밀리미터 |
| 케이스 직경 | 2 센티미터 |
| 밴드 소재 유형 | 고무 |
| 대역폭 | 2 센티미터 |
| 걸쇠 유형 | 탕 버클 |
| 다이얼 색상 | 빨간색 |
| 밴드 색상 | 빨간색 |
| 배터리 유형 | 1개의 리튬 금속 배터리(포함) |
보증 및 지원
Your Nivada Swiss Watch is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, service, or warranty claims, please contact Nivada customer service or visit the official Nivada web사이트. 보증 확인을 위해 구매 증빙 자료를 보관하세요.
Nivada Official Web대지: Visit the Nivada Store on Amazon
