Moen 6345BL Matte Black 8-Inch Fixed Rainshower User Manual

1. 서론

This manual provides instructions for the installation, operation, and maintenance of your Moen 6345BL Matte Black 8-Inch Fixed Rainshower. Please read this manual thoroughly before installation and retain it for future reference. Proper installation and care will ensure optimal performance and longevity of your product.

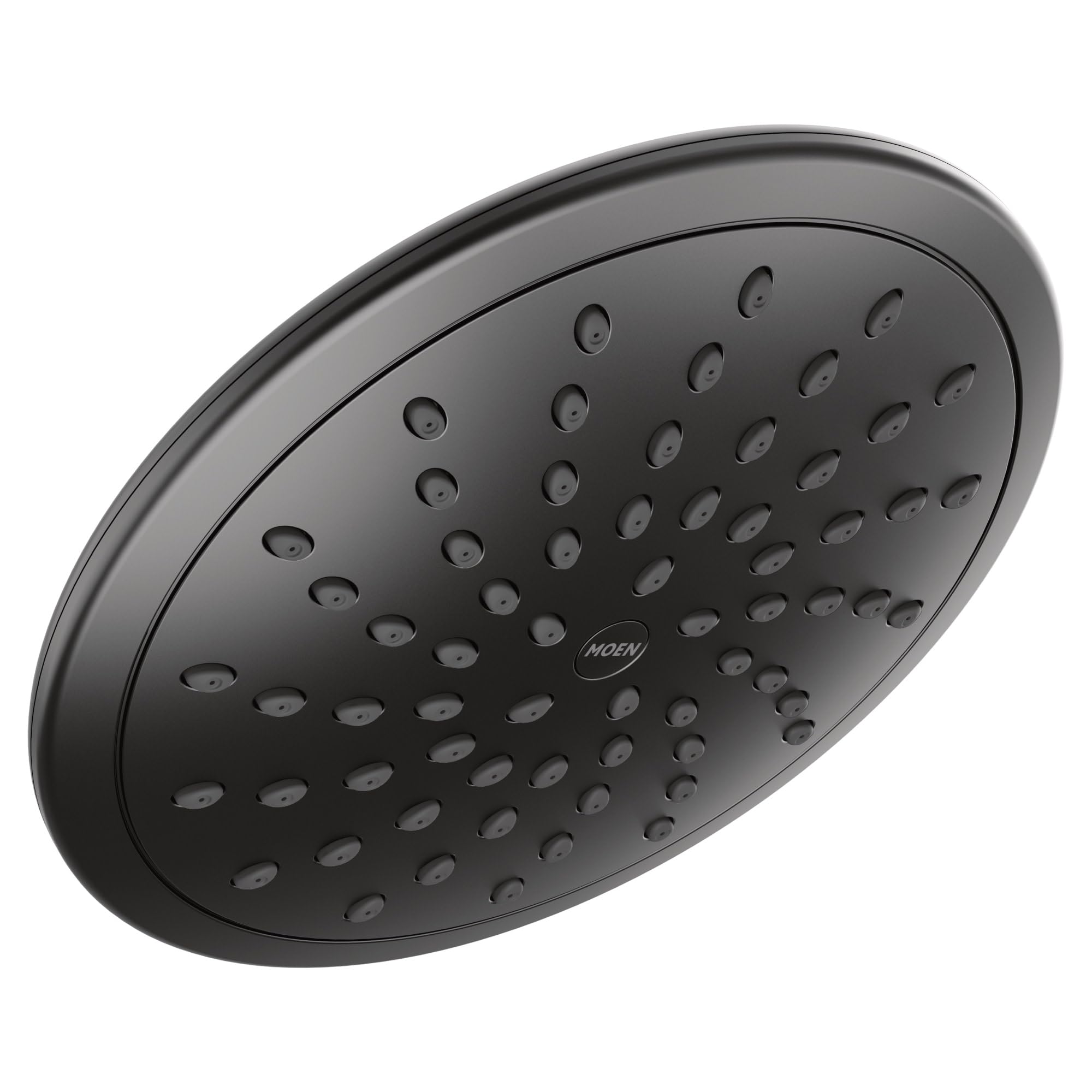

Figure 1: Moen 6345BL Matte Black 8-Inch Fixed Rainshower

2. 제품 특징

• Rainshower Design: Generously sized 8-inch wide diameter for a single-function rain spray.
• 마치다: Sleek Matte Black finish for a modern aesthetic.
• 연결 유형: Features a 1/2" IPS connection for standard compatibility.
• 유량: Maximum flow rate of 2.5 GPM (9.5 L/Min).
• 재료: 내구성이 뛰어난 금속으로 제작되었습니다.
• 노즐: Equipped with silicone nozzles designed to resist mineral buildup and simplify cleaning.

3. 포함 사항

The Moen 6345BL package includes:

• One (1) Moen 6345BL Fixed Rainshower Head

Note: Additional components such as shower arms or extension pipes are sold separately.

4. 설치

The Moen 6345BL Fixed Rainshower is designed for straightforward installation, typically screwing onto an existing shower arm. No specialized tools or plumbing experience beyond basic DIY skills are generally required.

1. 준비: Ensure the water supply to your shower is turned off at the main valve.
2. Remove Old Showerhead: Unscrew your existing showerhead from the shower arm. You may need a wrench for this. Clean any old sealant or debris from the shower arm threads.
3. 배관공용 테이프를 붙이세요: Wrap plumber's tape (Teflon tape) clockwise around the threads of the shower arm. This helps create a watertight seal.
4. 새로운 샤워헤드 부착: Hand-tighten the Moen 6345BL Rainshower onto the shower arm. Ensure it is straight and securely attached.
5. 최종 조임: Use a wrench to gently tighten the showerhead an additional quarter to half turn. Do not overtighten, as this can damage the threads.
6. 누출 테스트: 수도 밸브를 다시 열고 연결 부위 주변에 누수가 있는지 확인하십시오. 누수가 발생하면 밸브를 조금 더 조이거나 배관용 테이프를 다시 감으십시오.

Figure 2: Moen 6345BL installed in a shower setting

5. 운영

The Moen 6345BL Fixed Rainshower provides a single, immersive rain spray pattern. To operate:

• 물 활성화: Turn on your shower's water valve to activate the flow.
• 온도 조절: Adjust the water temperature using your shower's mixing valve.
• 물의 흐름: The showerhead delivers a consistent 2.5 GPM (9.5 L/Min) max flow rate, designed to provide full-body coverage.

Video 1: Demonstration of water pressure and flow from the Moen rain shower head.

6. 유지관리

Regular cleaning will help maintain the appearance and performance of your Moen rainshower.

• 일반 청소: Clean the showerhead regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
• Silicone Nozzle Cleaning: The silicone nozzles are designed for easy cleaning. If mineral buildup occurs, gently rub the nozzles with your fingers or a soft brush to dislodge deposits. This helps maintain consistent water flow.
• 마무리 관리 : To preserve the Matte Black finish, wipe the showerhead dry after each use to prevent water spots.

7. 문제 해결

If you encounter issues with your Moen 6345BL Rainshower, consider the following common solutions:

• 낮은 수압: Check if the silicone nozzles are clogged with mineral deposits. Gently rub them to clear any blockages. Ensure your main water supply valve is fully open.
• 누수: If water is leaking from the connection point, ensure the showerhead is properly tightened and that plumber's tape was applied correctly. Re-tape and re-tighten if necessary.
• 일관성 없는 스프레이: This is often due to clogged nozzles. Clean the silicone nozzles as described in the Maintenance section.

If problems persist, contact Moen customer support for further assistance.

8. 사양

9. 보증 및 지원

The Moen 6345BL Fixed Rainshower is backed by Moen's Limited Lifetime Warranty. For detailed information regarding warranty coverage, terms, and conditions, please refer to the official Moen web사이트를 방문하거나 고객 서비스에 직접 문의하세요.

For technical support, replacement parts, or any other inquiries, please visit the Moen official web대지 or contact their customer support line.
