소개
Welcome to the Angelcare AC127 Baby Monitor User Manual. This monitor is designed to provide peace of mind by combining sound monitoring with a unique Sensasure movement detection pad and a room temperature display. Please read this manual thoroughly before use to ensure proper setup, operation, and maintenance of your device.
The Angelcare AC127 Baby Monitor system, featuring both the Parent Unit and the Baby Unit.
중요한 안전 정보
경고: This product is not a medical device and is not intended to prevent Sudden Infant Death Syndrome (SIDS). It is designed to monitor your baby's movements and sounds. Always ensure proper installation and follow all safety guidelines.
- Keep all cords and cables out of reach of children to prevent strangulation hazards.
- Never place the Baby Unit or Parent Unit inside the crib or playpen.
- Ensure the movement sensor pad is placed correctly under the mattress and is not accessible to the baby.
- 제품과 함께 제공된 전원 어댑터만 사용하세요.
- Do not use the monitor near water or in damp 환경.
- Regularly check the monitor's functionality and battery levels.
패키지 내용
패키지에 모든 품목이 들어 있는지 확인하세요.
- Parent Unit (portable and rechargeable)
- Baby Unit (with temperature indicator ring)
- Sensasure Wireless Movement Sensor Pad
- 2 Power Adapters (for Parent Unit and Baby Unit)
- Rechargeable Lithium-ion Battery (pre-installed in Parent Unit)
- 사용 설명서(본 문서)
제품 끝view

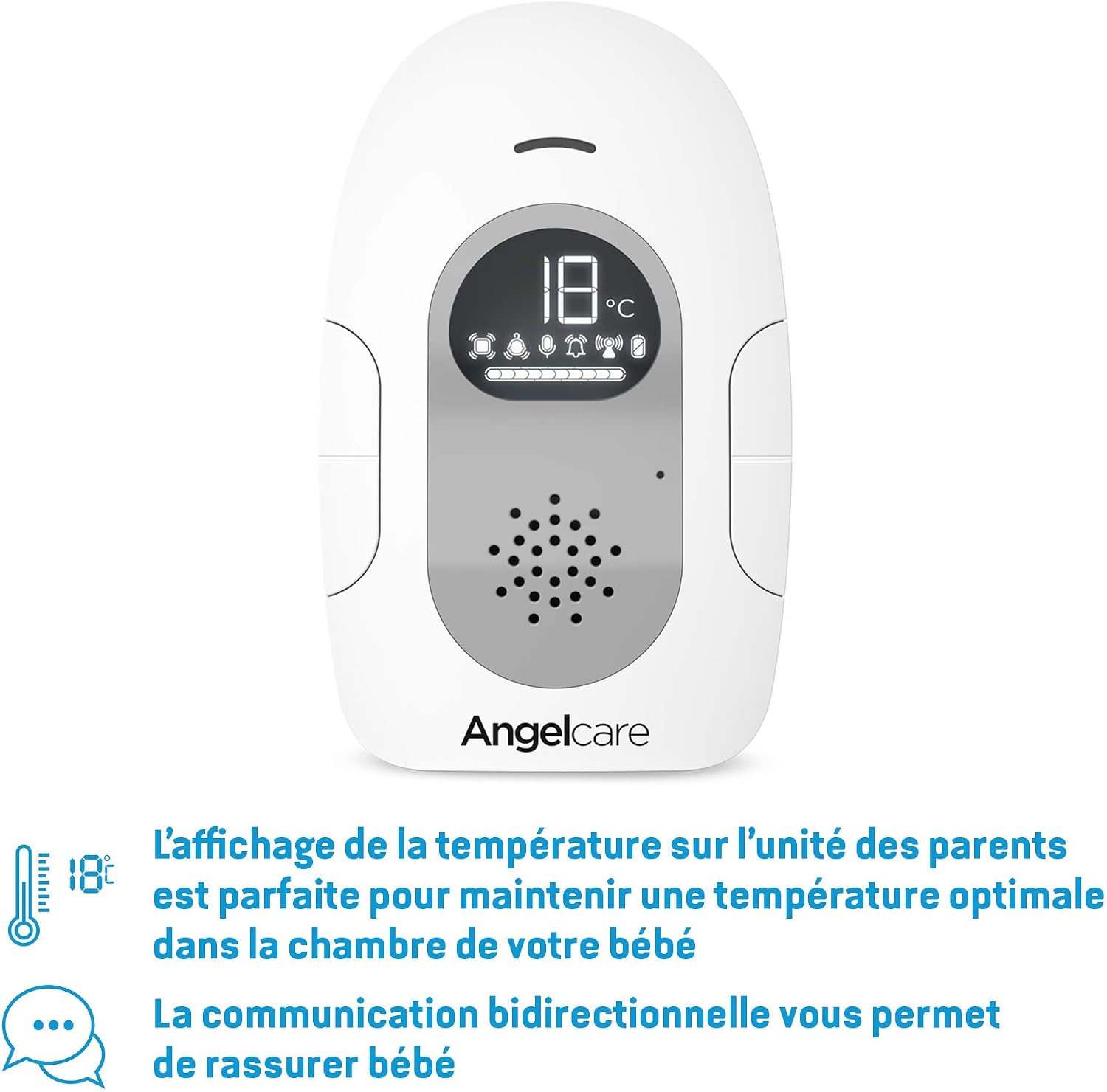

상위 단위
The Parent Unit is portable and rechargeable, allowing you to monitor your baby from anywhere in your home. It features a digital display showing the room temperature, sound levels, and movement indicators. It also enables two-way communication with your baby.
- LCD 디스플레이: Shows temperature, battery status, signal strength, and movement/sound indicators.
- 볼륨 컨트롤: Adjust listening level.
- 댓글 버튼: 양방향 통신을 활성화합니다.
- 전원/메뉴 버튼: Turns unit on/off and accesses menu settings.
베이비 유닛
The Baby Unit is placed in your baby's room and transmits sounds and temperature readings to the Parent Unit. It features a color-changing light ring that visually indicates the room's temperature.
- 마이크로폰: 아기의 소리를 포착합니다.
- 스피커: 양방향 통화 기능을 위해.
- Temperature Indicator Ring: Changes color based on room temperature (Blue for too cold, White for optimal, Red for too warm).
- 전원 입력: 전원 어댑터에 연결합니다.
Sensasure Wireless Movement Sensor Pad
The Sensasure Movement Sensor Pad is a non-contact, wireless pad that detects your baby's movements across the entire mattress surface. It triggers an alarm if no movement is detected for 20 seconds. This pad is designed to be placed under the mattress.
- 무선 기술: No cords in the crib.
- Under-Mattress Placement: Stays out of reach of the baby.
- 조정 가능한 감도: Can be adjusted to suit different mattress types and baby's movements.
- 움직임 알람: Alerts if no movement is detected for 20 seconds.
설정
1. 기기 충전
- Connect the provided power adapters to the Parent Unit and Baby Unit.
- Plug the adapters into a wall outlet.
- Charge the Parent Unit for at least 8 hours before first use to ensure optimal battery life. The Baby Unit operates on AC power.
2. Placing the Baby Unit
Place the Baby Unit on a flat surface in your baby's room, at least 1 meter (3 feet) away from the crib. Ensure it is out of your baby's reach.
3. Installing the Sensasure Movement Sensor Pad
The movement sensor pad must be placed directly under the crib mattress.
- Place the sensor pad on a firm, flat surface (e.g., a wooden board) under the crib mattress.
- Ensure the pad is centered under where your baby will sleep.
- The pad is wireless and connects to the Baby Unit via Bluetooth. No physical connection is needed between the pad and the Baby Unit.
- 중요한: The sensor pad is designed for use with standard crib mattresses. It may not function correctly with memory foam mattresses or mattresses thicker than 12 cm (approximately 4.7 inches), which can lead to false alarms or missed movements.
4. 전원 켜기 및 페어링
- Press and hold the Power button on both the Parent Unit and Baby Unit to turn them on.
- The units should automatically pair. If not, refer to the troubleshooting section for manual pairing instructions.
- Once paired, the Parent Unit display will show the room temperature and movement indicators.
작동 지침
Monitoring Movement
The Sensasure Movement Sensor Pad continuously monitors your baby's movements.
- A green light or indicator on the Parent Unit confirms movement detection.
- If no movement is detected for 20 seconds, an alarm will sound on the Parent Unit.
- To adjust the sensitivity of the movement sensor pad, access the menu on the Parent Unit. Increase sensitivity for thicker mattresses or decrease it if you experience false alarms.
온도 모니터링
The Baby Unit continuously monitors the room temperature and displays it on the Parent Unit. The color-changing ring on the Baby Unit provides a quick visual reference:
- 파란색: 방이 너무 춥습니다.
- 하얀색: Room temperature is optimal.
- 빨간색: 방이 너무 따뜻합니다.
The Parent Unit displays the room temperature, allowing you to ensure an optimal environment for your baby.
양방향 통화 기능
To speak to your baby, press and hold the "Talk Back" button on the Parent Unit. Your voice will be transmitted through the Baby Unit's speaker. Release the button to resume listening.
전원 옵션
The Parent Unit operates on a rechargeable battery or AC power. The Baby Unit operates on AC power with automatic switch to battery mode in case of power outage (if batteries are installed and charged).
유지
- 청소: Wipe the units with a dry, soft cloth. Do not use abrasive cleaners or solvents.
- 배터리 관리 : For optimal battery life, fully charge the Parent Unit before first use and avoid completely draining the battery frequently.
- 저장: If storing the monitor for an extended period, remove batteries from the Parent Unit and store in a cool, dry place.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 소리가 나지 않거나 음질이 좋지 않습니다. | Volume too low, units out of range, interference. | Increase Parent Unit volume. Move units closer. Reduce interference from other electronic devices. |
| Movement alarm sounds frequently (false alarms). | Sensor pad sensitivity too high, incorrect mattress type, external vibrations. | Decrease sensor pad sensitivity. Ensure mattress is not memory foam or too thick (max 12cm). Ensure crib is not touching walls or furniture that transmit vibrations. |
| No movement detected, but baby is moving. | Sensor pad sensitivity too low, incorrect placement. | Increase sensor pad sensitivity. Re-center the pad under the baby's sleeping area. |
| Parent Unit not charging. | Adapter not connected, faulty adapter/battery. | Ensure adapter is securely connected to unit and outlet. Try a different outlet. Contact support if issue persists. |
| 온도 표시가 정확하지 않습니다. | Baby Unit placed near heat source/vent, direct sunlight. | Relocate the Baby Unit to a more central location in the room, away from direct heat or cold sources. |
| 기기들이 페어링되지 않습니다. | Units too far apart, interference, pairing mode not activated. | Bring units closer together. Turn both units off and on again. Refer to the full manual for specific manual pairing steps if needed. |
명세서
| 특징 | 세부 사항 |
|---|---|
| 상표 | 앤젤케어 |
| 모델 번호 | AC127 |
| 색상 | 하얀색 |
| 호환 장치 | 아기 모니터 |
| 제품 크기(L x W x H) | 21.6 x 8.2 x 17.1cm |
| 배터리 유형 | 리튬이온 |
| 항목 수 | 1 |
| UPC/GTIN | 666594204219 |
보증 및 지원
Angelcare products come with a manufacturer's warranty. For specific warranty details, registration, or technical support, please visit the official Angelcare web해당 사이트를 방문하거나 고객 서비스에 문의하세요. 보증 청구를 위해 구매 증빙 자료를 보관하세요.
온라인 지원: www.angelcarebaby.com/support (This is a placeholder link, as no specific support link was provided in the JSON. Users should always refer to the official product packaging or web(정확한 지원 정보를 위한 사이트입니다.)
