1. 서론
This manual provides essential information for the safe and effective use of your Wathai 30x10mm 5V DC Brushless Cooling Blower Fan. Please read these instructions carefully before installation and operation. Retain this manual for future reference.
2. 제품 오버view
The Wathai 30x10mm 5V DC Brushless Cooling Blower Fan is a compact and efficient cooling solution designed for various electronic applications. Its small form factor allows for installation in tight spaces, providing targeted airflow to prevent overheating. This fan is suitable for DIY projects, electronic components, and small appliances requiring active cooling.
2.1 응용 프로그램
This blower fan is versatile and can be used in a range of applications, including:
- Cooling for 3D printers and custom builds.
- Enhancing airflow in cosplay masks and helmets.
- Cooling Raspberry Pi boards and other single-board computers.
- Heat dissipation in small electronic devices like projectors, laser engravers, and dash cams.
- Ventilation for small enclosures such as humidors or plant grow light setups.
Image: Wathai 30x10mm 5V DC Blower Fan installed on a 3D printer for cooling.
Image: Various applications of the Wathai 30x10mm 5V DC Blower Fan, including electronics and small appliances.
3. 패키지 내용
패키지에는 다음 품목이 포함됩니다.
- 2 x Wathai 30x10mm 5V DC Blower Fans
- 4 x 장착 나사
- 4 x 너트

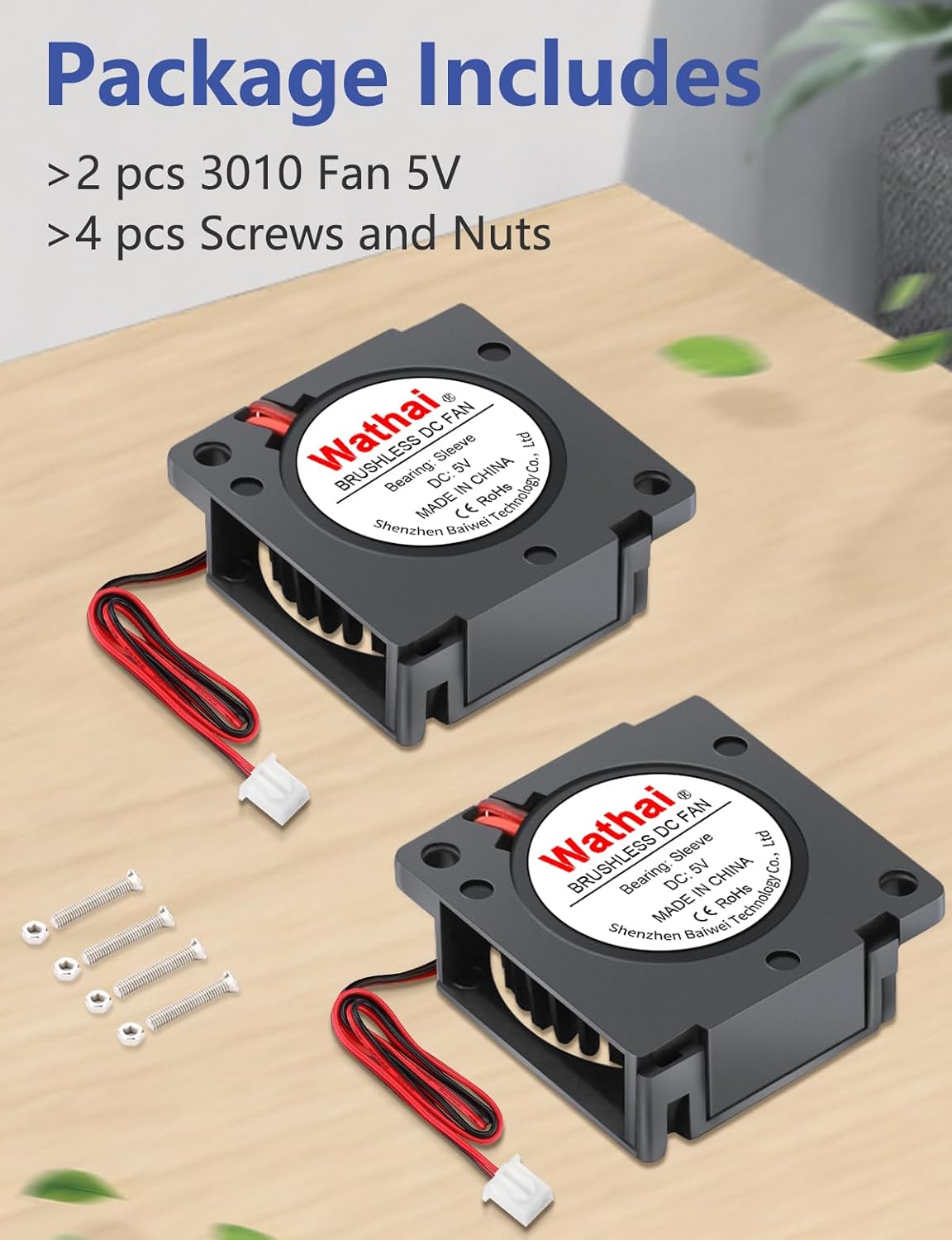

Image: Contents of the package, showing two fans and their mounting hardware.
4. 사양
Refer to the table below for detailed technical specifications of the Wathai 30x10mm 5V DC Brushless Cooling Blower Fan.
| 특징 | 사양 |
|---|---|
| 모델 | 2pcs3010S5V2PBlower |
| 치수(길이x너비x높이) | 30mm X 30mm X 10mm (1.18 "X 1.18"X 0.4 ") |
| 정격 볼륨tage | 5V 직류 |
| 정격 전류 | 0.2A |
| 속도 | 9500 RPM |
| 공기 흐름 | 1.85 퀴놀론 |
| 소음 수준 | 29데시벨 |
| 베어링 유형 | 슬리브 베어링 |
| 기대수명 | 35,000시간 |
| 커넥터 유형 | XH2.54-2Pin |
| 케이블 길이 | 15cm(6인치) |
| 재료 | 플라스틱 |
| 무게(팬당) | Approximately 0.28 ounces (0.56 ounces for 2 fans) |
Image: Technical specifications and physical dimensions of the fan.
5. 설정 및 설치
Follow these steps for proper installation of your Wathai blower fan:
- 설치: Secure the fan in the desired location using the provided screws and nuts. Ensure the fan is positioned to direct airflow effectively towards the components requiring cooling.
- 전원 연결: Connect the fan's XH2.54-2Pin connector to a compatible 5V DC power source. The red wire is positive (+), and the black wire is negative (-). Ensure correct polarity to prevent damage.
- 공기 흐름 방향: Observe the arrows on the fan housing, if present, to confirm the intended airflow direction. Position the fan to draw hot air away or blow cool air onto components.
Image: A single Wathai 30x10mm 5V DC Blower Fan, showing its compact design and connector.
6. 운영
Once properly installed and connected to a 5V DC power source, the fan will begin operation. The fan is designed for continuous use.
- 소음 수준: The fan operates at approximately 29 dBA. While designed to be quiet for its performance, some audible noise is normal during operation.
- 속도: 이 선풍기는 최대 9500RPM의 회전 속도로 작동합니다.
Image: Visual representation of the fan's airflow and performance characteristics.
7. 유지관리
To ensure optimal performance and longevity of your Wathai blower fan:
- 청소: Periodically inspect the fan for dust accumulation on the blades and housing. Use a soft brush or compressed air to gently clean the fan. Ensure the power is disconnected before cleaning.
- 베어링: This fan utilizes a sleeve bearing, designed for a life expectancy of approximately 35,000 hours under normal operating conditions.
8. 문제 해결
If you encounter issues with your fan, refer to the following troubleshooting steps:
- 팬이 회전하지 않음:
- Check if the fan is correctly connected to a 5V DC power source.
- Verify that the power source is active and providing 5V DC.
- Ensure the polarity of the connection (red to +, black to -) is correct.
- Check for any obstructions preventing the fan blades from rotating.
- 낮은 공기 흐름:
- Ensure the fan is not obstructed by dust or other debris.
- Verify the fan is installed with the correct airflow direction for your application.
- 과도한 소음:
- Check for any loose mounting screws or vibrations.
- 케이블이나 물체가 선풍기 날개에 닿지 않도록 하십시오.
- Dust accumulation can sometimes cause increased noise; clean the fan if necessary.
9. 보증 및 지원
For product support or warranty inquiries, please contact Wathai customer service through the retailer where the product was purchased. Please have your model number (2pcs3010S5V2PBlower) and purchase details available.
