BAKAJI 3-Seater Garden Swing - Model 49510

1. 서론

Thank you for choosing the BAKAJI 3-Seater Garden Swing. This manual provides essential information for the safe assembly, operation, and maintenance of your new garden swing. Please read these instructions carefully before assembly and retain them for future reference.

This garden swing is designed for outdoor relaxation, featuring a sturdy metal frame, comfortable padded seating for three individuals, an adjustable sun canopy, and convenient foldable side trays with cup holders.

이미지 1.1: 앞면 view of the assembled BAKAJI 3-Seater Garden Swing.

2. 안전 지침

• 모든 지침 읽기: Ensure you understand all assembly and safety instructions before using the product.
• 성인 조립 필요: Assembly should be performed by at least two adults. Keep children away during assembly.
• 중량 제한: Do not exceed the maximum recommended weight of 300 kg (approximately 660 lbs). This swing is designed for three adults.
• 안정적인 표면: Place the swing on a flat, level, and stable surface to prevent tipping.
• 날씨 보호: Protect the swing from extreme weather conditions. Store cushions indoors during rain or strong winds. Consider covering the entire swing during prolonged periods of non-use or harsh weather.
• 정기 검사: 모든 볼트, 너트, 연결부를 주기적으로 점검하여 단단하고 안전한지 확인하세요.
• 서 있는 것을 피하세요: Do not stand on the swing seat. Use it only for sitting.
• 명확하게 유지: Ensure the area around the swing is clear of obstructions to allow for safe swinging motion.

3. 패키지 내용

조립을 시작하기 전에 아래 나열된 모든 부품이 있는지, 손상되지 않았는지 확인하십시오. 부품이 누락되었거나 손상된 경우 조립을 진행하지 마십시오. 고객 지원팀에 문의하여 도움을 받으십시오.

• Main Frame Components (legs, crossbars, top bar)
• 스윙 시트 프레임
• 3 Seat Cushions (8cm thick polyester wadding)
• 3 Round Back Cushions
• Adjustable Sun Canopy Fabric
• 캐노피 프레임 구성품
• 2 Foldable Side Trays with Cup Holders
• 서스펜션 스프링 및 체인
• 하드웨어 세트 (볼트, 너트, 와셔, 렌치)

Refer to the assembly diagram (not included in this manual) for visual identification of each component.

4. 설치 및 조립

Assembly requires two adults. Ensure you have sufficient space and all tools (provided in the hardware pack) before starting.

1. 부품 풀기 및 식별: 포장에서 모든 구성품을 조심스럽게 꺼내십시오. 흠집이 생기지 않도록 깨끗하고 부드러운 표면에 구성품들을 펼쳐 놓으십시오. 제공된 부품 목록을 사용하여 각 부품을 확인하십시오.
2. 메인 프레임 조립: Connect the leg sections and crossbars to form the A-frames. Secure with the appropriate bolts, washers, and nuts. Do not fully tighten bolts until all sections are loosely assembled.
3. 상단 막대를 부착하세요: Connect the two A-frames using the main top bar. Ensure the frame is stable and upright.
4. 그네 의자를 조립하세요: Construct the swing seat frame. Attach the backrest and seat base components.
5. 그네 의자를 걸어주세요: Using the suspension chains and springs, carefully hang the assembled swing seat from the main top bar. Ensure the springs are securely attached to both the seat frame and the top bar hooks.


Image 4.1: Detail of the suspension spring for the swing seat.

6. Install the Sun Canopy: Assemble the canopy frame and attach the canopy fabric. Secure the canopy frame to the main top bar, ensuring it can be adjusted.
7. 측면 트레이를 부착하세요: Mount the foldable side trays to the designated points on the main frame.

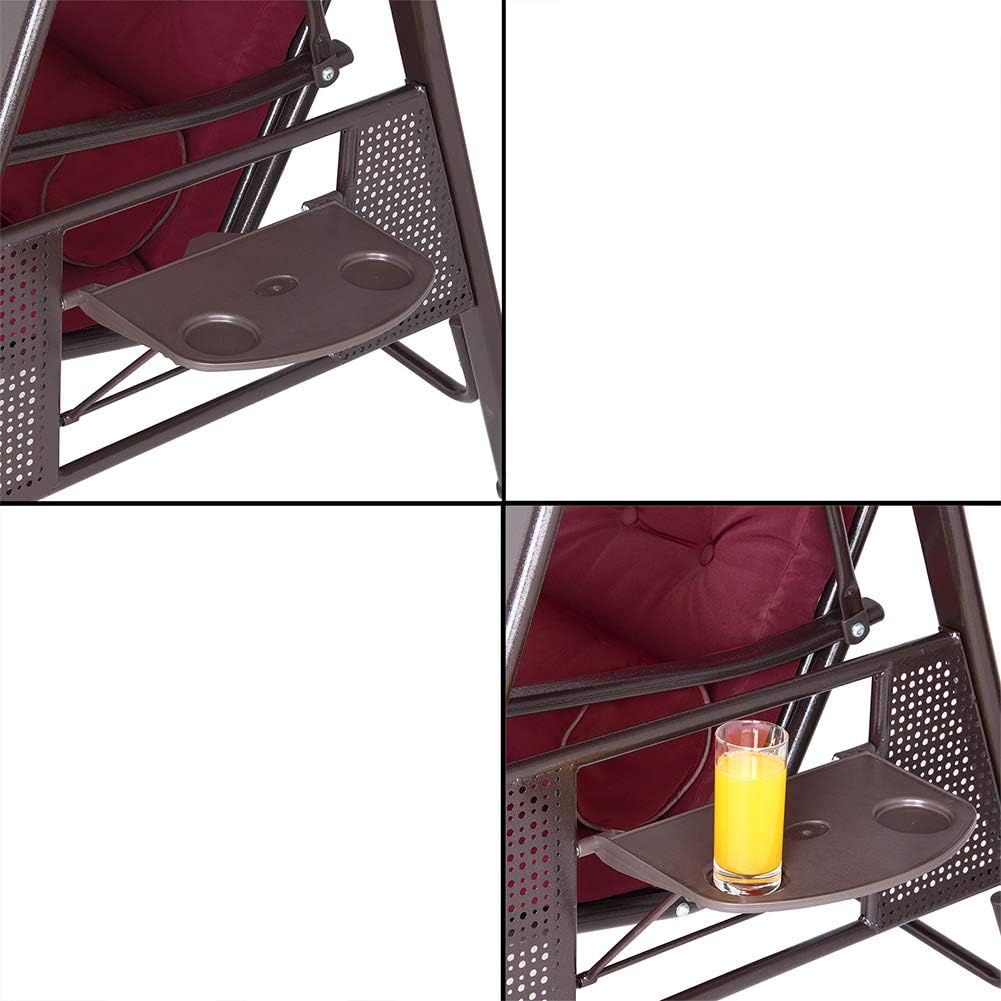

Image 4.2: Detail of the foldable side tray with integrated cup holders.

8. 쿠션 놓기: Position the seat and back cushions onto the swing seat.
9. 최종 조임: Once all components are in place and aligned, gradually tighten all bolts and nuts. Do not overtighten.
10. 안정성 확인: 처음 사용하기 전에 그네가 안정적인지, 모든 연결 부위가 단단히 고정되었는지 확인하기 위해 살살 흔들어 보십시오.

5. 사용 설명서

• 스윙 사용하기: Sit gently on the swing seat. Avoid sudden movements or excessive force when swinging. The swing is designed for a gentle, relaxing motion.
• 썬 캐노피 조정: The sun canopy can be tilted to provide optimal shade. Loosen the adjustment knobs on either side of the canopy frame, position the canopy to your desired angle, and then tighten the knobs to secure it.
• Using Foldable Side Trays: The side trays can be folded up for use or down for storage. Gently lift or lower the trays as needed. The integrated cup holders are suitable for standard beverage containers.

6. 유지관리

• 프레임 청소: 금속 프레임을 광고로 닦으세요amp 천과 순한 비누를 사용하세요. 녹이 슬지 않도록 깨끗이 헹구고 완전히 말리세요. 연마성 세제는 사용하지 마세요.
• Cleaning Cushions and Canopy: The polyester fabric cushions and canopy can be spot cleaned with a mild detergent and water. Allow them to air dry completely. Do not machine wash or tumble dry.
• 계절별 보관: During winter months or extended periods of non-use, it is recommended to store the cushions indoors. The entire swing should be covered with a protective cover or disassembled and stored in a dry place to prolong its lifespan.
• 매끄럽게 하기: Periodically apply a silicone-based lubricant to the suspension springs and any moving joints to ensure smooth operation and prevent squeaking.
• 패스너 점검: Regularly inspect all bolts, nuts, and screws for tightness. Tighten any loose fasteners to maintain structural integrity.

7. 문제 해결

• Swing is Squeaking: Apply a silicone-based lubricant to the suspension springs and any pivot points on the swing mechanism. Ensure all bolts are tightened.
• 그네가 불안정하게 느껴져요: Check that the swing is placed on a completely flat and level surface. Verify that all assembly bolts are securely tightened.
• 캐노피가 제자리에 고정되지 않음: Ensure the adjustment knobs on the canopy frame are fully tightened after positioning the canopy.
• 조립의 어려움: Review the assembly instructions carefully. Ensure all parts are correctly oriented. It is often helpful to have a second person assist with assembly. Do not force parts together.

8. 사양

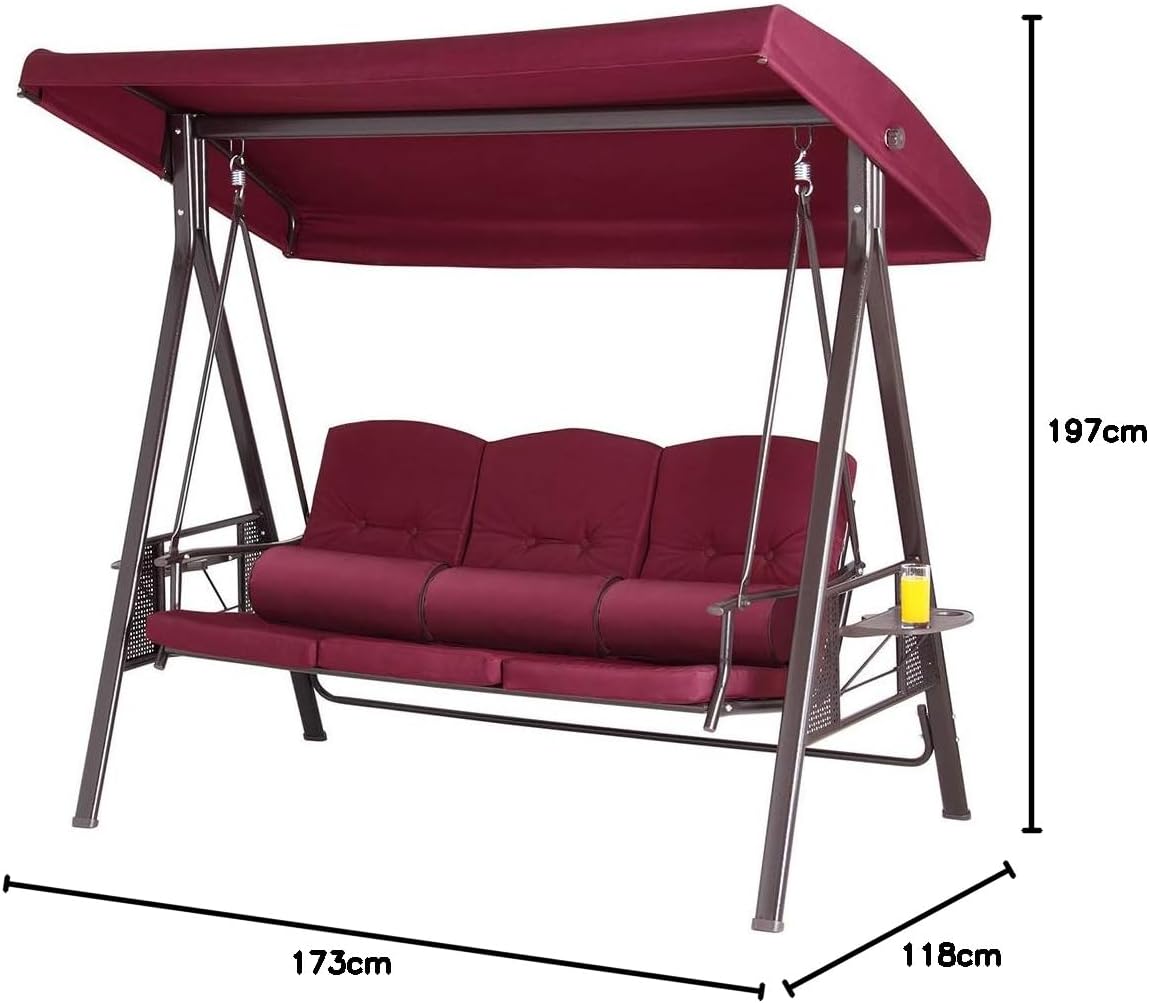

Image 8.1: Dimensions of the BAKAJI 3-Seater Garden Swing.

9. 보증 및 지원

보증 정보 또는 기술 지원에 대한 문의는 구매 설명서를 참조하시거나 판매점에 문의해 주세요. 보증 청구를 위해 구매 증빙 자료를 보관해 주세요.
