Wonlink B07NP94J33

Wonlink 10x20 ft Pop up Canopy Tent

사용자 설명서

Model: B07NP94J33

소개

Thank you for choosing the Wonlink 10x20 ft Pop up Canopy Tent. This heavy-duty, height-adjustable shelter is designed for quick and easy setup, providing a reliable outdoor space for various events, gatherings, or as a temporary shelter. This manual will guide you through the assembly, operation, and care to ensure optimal performance and longevity of your canopy.

Wonlink 10x20 ft Pop up Canopy Tent in blue, with people hanging from the frame to demonstrate sturdiness.

The Wonlink 10x20 ft Pop up Canopy Tent provides ample shaded space for various outdoor activities.

안전 정보

캐노피 텐트를 설치하거나 사용하기 전에 모든 안전 경고를 읽고 이해하시기 바랍니다. 이 지침을 따르지 않을 경우 부상이나 제품 손상이 발생할 수 있습니다.

날씨 조건: This canopy is designed for protection against sun and light rain. Do not use the canopy in strong winds, heavy rain, hail, or snow. Severe weather conditions can cause the canopy to collapse, leading to serious injury or property damage.
정박: Always secure the canopy with the provided ground nails and ropes. Proper anchoring is crucial to prevent the canopy from lifting or moving in windy conditions.
정리: 설치 및 사용 시 캐노피 주변에 충분한 여유 공간을 확보하십시오. 전선, 나무 또는 기타 장애물 근처에 설치하지 마십시오.
감독: 캐노피 설치 및 철거 시에는 어린이와 반려동물이 캐노피에 접근하지 못하도록 하십시오.
화재 안전: 캐노피 원단에 화염이나 열원을 가까이 두지 마십시오. 이 원단은 내화성이 없습니다.
구조적 무결성: Regularly inspect the frame and fabric for any signs of wear, damage, or loose connections. Do not use if any part is compromised.

패키지 내용

조립을 시작하기 전에 아래 나열된 모든 구성품이 패키지에 포함되어 있는지 확인하십시오.

Diagram showing all components included in the package: 1x Canopy Top, 4x Wind Rope, 10x Spikes, 1x Steel Frame, 1x Wheel Bag.

All components included in the Wonlink 10x20 ft Pop up Canopy Tent package.

1x Canopy Top (Blue, 210D Oxford fabric)
1x Steel Frame (Pre-assembled, white powder-coated)
1x Wheeled Bag (for transport and storage)
바람줄 4개
10x Ground Spikes

설치 지침

The Wonlink Pop up Canopy Tent is designed for quick setup, typically requiring 1-2 people. Follow these steps for efficient assembly:

Four-step diagram illustrating the canopy setup process: 1. Remove frame from bag, 2. Partially expand frame, 3. Place canopy top over frame, 4. Fully extend and secure frame.

캐노피 설치의 네 가지 주요 단계를 시각적으로 안내합니다.

Step 1: Unpack the Frame. Take the fully assembled steel frame out of the wheeled bag. Place it in the desired setup location.
Step 2: Partially Expand the Frame. With a person at each end, gently pull the frame apart until it is about halfway open. Do not fully extend yet.
Step 3: Attach the Canopy Top. Drape the canopy top fabric over the partially expanded frame. Ensure the corners of the fabric align with the frame's corners. Secure the canopy top to the frame using any attached Velcro straps or ties.
Step 4: Fully Extend and Secure. Continue pulling the frame outwards until it is fully extended and the locking mechanisms click into place. Adjust the height of the legs as desired (refer to Operating Instructions). Finally, secure the tent using the provided 12 ground nails and 8 ropes for stability.

작동 지침

높이 조정

The Wonlink canopy tent features three adjustable height settings, allowing you to customize the clearance and overall height of the shelter. The top height of the tent can reach up to 10.8 feet.

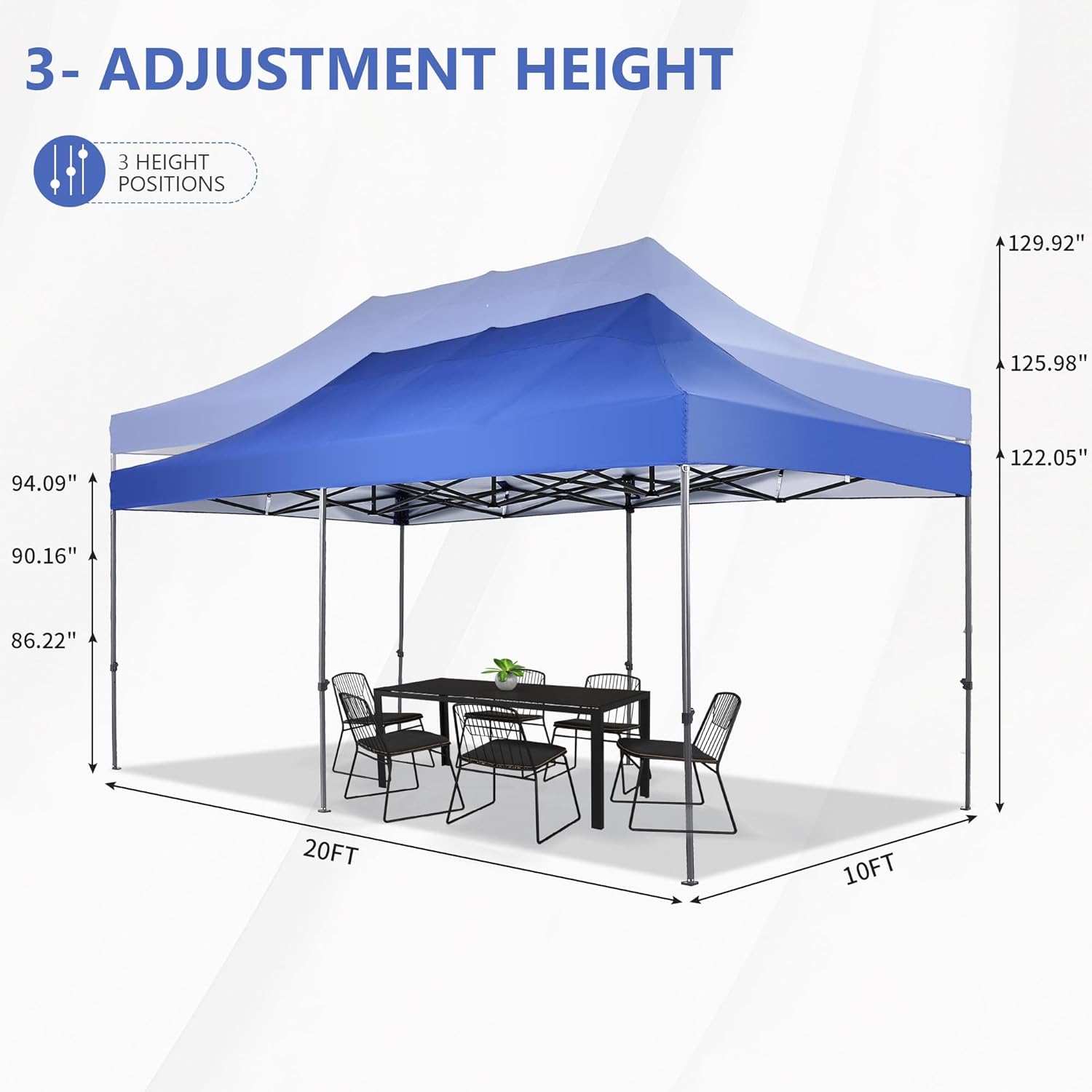

Diagram illustrating the three adjustable height positions of the canopy tent, showing measurements for each setting.

The canopy offers three distinct height adjustment settings for versatility.

To adjust the height, locate the push buttons on each of the 6 legs of the frame.
Simultaneously press the buttons and slide the inner leg section up or down to the desired height position. Ensure that the button clicks securely into the corresponding hole at each leg for stability.
Confirm all legs are set to the same height to maintain a level and stable structure.

일반적인 사용

Once set up and secured, the canopy provides a shaded area. While the fabric is UV-resistant and water-resistant for light rain, it is crucial to monitor weather conditions and take down the canopy if strong winds or heavy precipitation are expected.

Image showing the canopy's UV protection, windproof, and waterproof features with corresponding icons.

The canopy fabric offers UV protection, wind resistance, and water resistance for light conditions.

유지

Proper maintenance will extend the life of your Wonlink canopy tent.

청소: Clean the canopy fabric with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as this can damage the fabric's protective coating. Rinse thoroughly and allow to air dry completely before storage.
건조: Always ensure the canopy top is completely dry before folding and storing. Storing a damp canopy can lead to mildew and fabric degradation.
프레임 관리: 광고로 강철 프레임을 닦으세요amp cloth to remove dirt and debris. Inspect for any rust or damage.
저장: When not in use, store the canopy tent in its wheeled bag in a cool, dry place, away from direct sunlight and extreme temperatures.

Close-up of the waterproof fabric with water droplets on its surface.

The waterproof fabric is easy to clean and maintain.

Close-up of the wheels on the wheeled carrying bag.

The wheeled bag facilitates easy transport and storage of the canopy.

문제 해결

다음은 몇 가지 일반적인 문제와 이에 대한 잠재적 해결책입니다.

문제	가능한 원인	해결책
캐노피가 불안정하거나 흔들립니다.	제대로 고정되지 않음; 다리가 완전히 펴지지 않았거나 고정되지 않음; 땅이 고르지 않음.	Ensure all legs are fully extended and locked. Use all ground nails and ropes. Relocate to a level surface if possible.
캐노피 꼭대기에 물이 웅덩이를 이루고 있습니다.	Insufficient tension in fabric; heavy rain exceeding water resistance.	Ensure canopy top is tautly stretched over the frame. If heavy rain, take down the canopy immediately.
프레임을 확장하거나 축소하는 데 어려움이 있습니다.	프레임 조인트가 뻣뻣하거나 정렬이 잘못되었습니다.	Ensure no fabric is caught in the joints. Apply a silicone-based lubricant to moving parts if necessary. Ensure buttons are fully depressed when adjusting height.
Canopy fabric leaks during light rain.	Fabric coating wear; seam issues.	Inspect fabric for tears or worn areas. Consider applying a fabric waterproofing spray. If new and leaking, contact customer support.

명세서

특징	세부 사항
상표	Wonlink
모델	B07NP94J33
제품 크기(L x W x H)	66.14" x 14.56" x 7.87" (packaged)
조립 치수	10 ft x 20 ft (approximate)
품목 무게	68 파운드
프레임 소재	White color powder coated steel
캐노피 소재	210D Oxford Polyester
방수 레벨	방수
자외선 차단	Yes (Blocks 99% of UV rays)
조정 가능한 높이 설정	3 positions (Top height up to 10.8 ft)
조립이 필요합니다	No (Frame comes fully assembled)
색상	파란색

보증 및 지원

Wonlink is committed to providing high-quality products and customer satisfaction.

만족 보장: If you have any questions or concerns regarding your 10x20 ft Pop up Canopy Tent, please do not hesitate to contact us. Your satisfaction is our priority, and we are dedicated to offering the best possible solution.
지원팀에 문의: For assistance, troubleshooting, or warranty inquiries, please reach out to Wonlink customer service through the platform where you purchased the product or visit the official Wonlink store page.
