Itek SIISBE 3.0 Gaming PC Case Instruction Manual

1. 제품 오버view

The Itek SIISBE 3.0 is a gaming middle tower PC case designed to combine high-level features with a modern aesthetic. It features a fully perforated front panel for optimal airflow and a tempered glass side panel with a convenient hinged closure, allowing for easy access and showcasing your internal components.

The case comes equipped with three 12 cm ARGB fans: two located at the front and one at the rear. These fans can be controlled via a dedicated button on the front panel or through your motherboard's ARGB software, providing customizable lighting effects and efficient cooling.

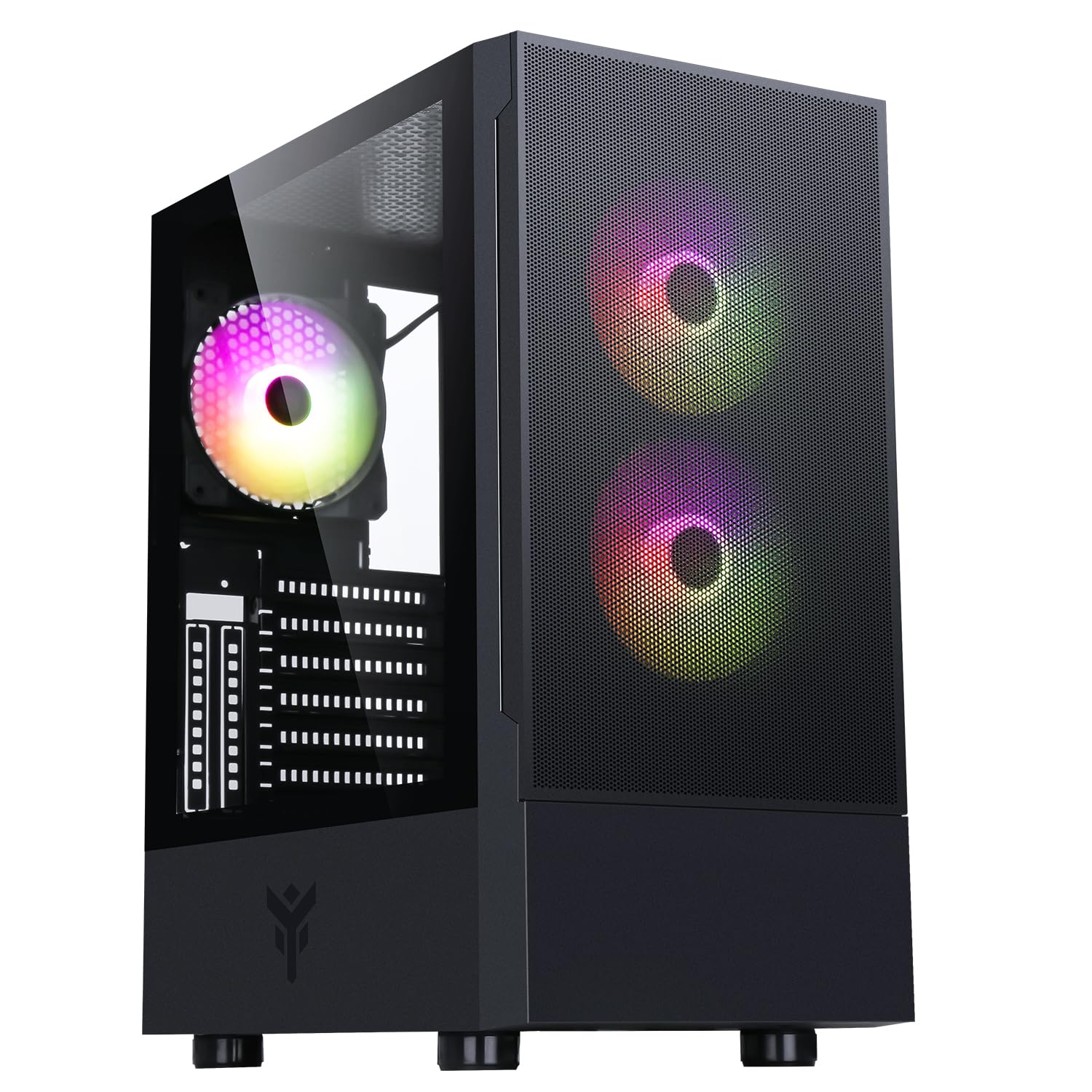

그림 1: 전면 view of the Itek SIISBE 3.0 Gaming PC Case, showcasing the perforated front panel and tempered glass side panel.

The SIISBE 3.0 supports a wide range of hardware, including ATX, Micro-ATX, and Mini-ITX motherboards. It accommodates graphics cards up to 315 mm in length, CPU coolers up to 160 mm in height, and liquid cooling radiators up to 280 mm. The case also offers 28 mm of space for efficient cable management, ensuring a clean and organized build.

2. 설정 및 설치

2.1 사건 준비

• 케이스를 개봉하고 모든 포장재를 제거하세요.
• Open the tempered glass side panel by gently pulling it open from the hinge.
• Locate the accessory box inside the case, which contains screws and other mounting hardware.

2.2 마더 보드 설치

• Install the necessary standoffs for your motherboard form factor (ATX, Micro-ATX, or Mini-ITX) onto the motherboard tray.
• 나사 구멍을 맞춰서 마더보드를 스탠드오프에 조심스럽게 올려놓습니다.
• 제공된 나사로 마더보드를 고정합니다.

그림 2: 내부 view of the Itek SIISBE 3.0, highlighting the motherboard mounting area and cable routing options.

2.3 전원 공급 장치(PSU) 설치

• Mount the PSU in the dedicated bottom compartment of the case.
• 케이스 뒷면에서 나사로 PSU를 고정합니다.

2.4 저장 드라이브 설치

• Install 2.5-inch SSDs or 3.5-inch HDDs into the designated internal bays. Refer to the case's internal layout for specific mounting points.
• 적절한 나사를 사용하여 드라이브를 고정하십시오.

그림 3: 후면 내부 view of the Itek SIISBE 3.0, showing the motherboard tray, SSD mounting points, and amp케이블 관리를 위한 공간.

2.5 그래픽 카드 및 확장 카드 설치

• 케이스 후면에서 필요한 확장 슬롯 덮개를 제거하십시오.
• 그래픽 카드 또는 기타 확장 카드를 마더보드의 PCIe 슬롯에 장착하십시오.
• Secure the cards with screws. The case supports graphics cards up to 315 mm in length.

2.6 냉각 시스템 설치

• The case includes three 12 cm ARGB fans (two front, one rear). Connect their power and ARGB cables to the motherboard or the integrated fan controller.
• For additional cooling, install extra fans or a liquid cooling radiator (up to 280 mm) in the designated mounting points.
• Install your CPU cooler. The case supports CPU coolers up to 160 mm in height.

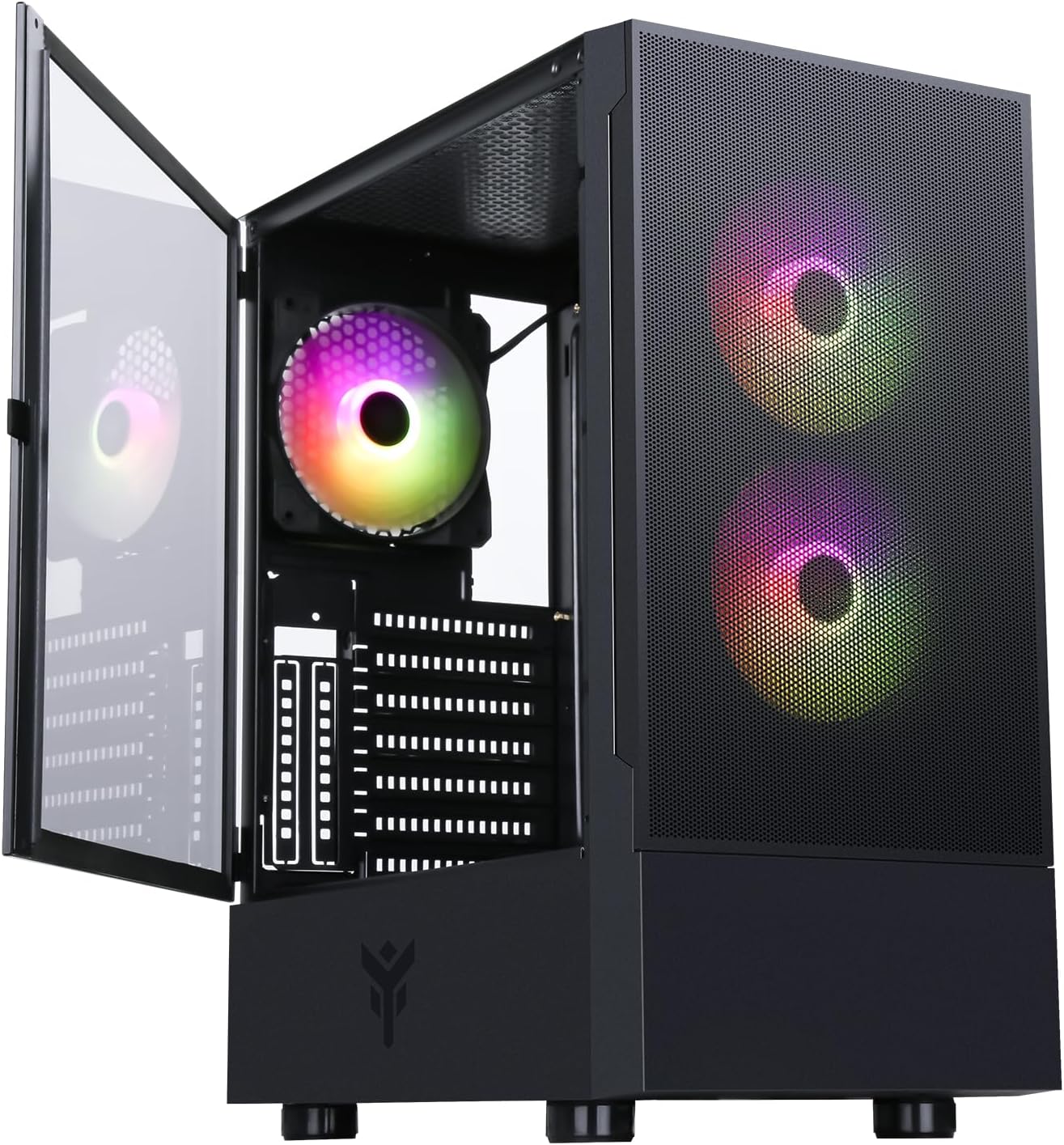

Figure 4: The Itek SIISBE 3.0 with its hinged tempered glass panel open, revealing the pre-installed ARGB fans and internal layout.

2.7 케이블 관리

• Utilize the 28 mm cable management space behind the motherboard tray to route and organize all power and data cables.
• Use cable ties (not included) to secure cables and maintain optimal airflow.

3. 사용 설명서

3.1 전원 켜기

• Ensure all components are correctly installed and connected.
• 전원 케이블을 파워서플라이와 벽면 콘센트에 연결하세요.
• Press the power button located on the top I/O panel of the case to start your system.

3.2 ARGB 팬 컨트롤

• The pre-installed ARGB fans can be controlled via the dedicated LED control button on the front panel. Press the button to cycle through various lighting modes and colors.
• Alternatively, if the fans are connected to an ARGB header on your motherboard, you can use the motherboard's proprietary software (e.g., ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion) to synchronize and customize the lighting effects.

3.3 전면 I/O 포트

• The front I/O panel includes USB 3.0 and USB 2.0 ports for connecting peripherals and external storage devices.
• Audio jacks are also available for headphones and microphones.

4. 유지관리

4.1 먼지 필터 청소

• The SIISBE 3.0 case is equipped with dust filters to prevent dust buildup inside. Regularly check and clean these filters.
• Gently remove the dust filters (typically located on the top, front, and/or bottom) and clean them with compressed air or by rinsing them with water. Ensure they are completely dry before re-installing.

4.2 일반 청소

• 부드러운 d를 사용하세요amp cloth to wipe down the exterior surfaces of the case, including the tempered glass panel. Avoid abrasive cleaners.
• For internal cleaning, use compressed air to remove dust from fans, heatsinks, and other components. Ensure the system is powered off and unplugged before cleaning.

5. 문제 해결

This section provides general troubleshooting tips for common issues. For more specific problems, consult the manuals for your individual PC components (motherboard, PSU, GPU, etc.) or contact Itek support.

5.1 시스템 전원이 켜지지 않음

• 전원 연결 확인: Ensure the PSU is properly connected to the wall outlet and the power switch on the PSU is in the 'ON' position. Verify all internal power cables (24-pin ATX, 8-pin CPU, PCIe, SATA) are securely connected to the motherboard and components.
• 전면 패널 커넥터: 전면 패널 전원 스위치 케이블이 마더보드의 전면 패널 헤더에 올바르게 연결되어 있는지 확인하십시오.

5.2 Fans Not Spinning / ARGB Not Working

• 팬 연결: Verify that the fan power cables are securely connected to the motherboard fan headers or the integrated fan controller.
• ARGB 연결: Ensure ARGB cables are correctly connected to the motherboard's ARGB header or the case's ARGB controller.
• Software/Button Control: If using the case's LED button, try pressing it to cycle modes. If using motherboard software, ensure it is installed and configured correctly.

5.3 과열 문제

• 공기 흐름: Ensure fans are installed in the correct orientation for optimal airflow (front fans typically intake, rear/top fans exhaust).
• 먼지 축적: 유지관리 섹션에 설명된 대로 먼지 필터와 내부 구성품을 청소하세요.
• 케이블 관리 : Improve cable routing to reduce obstructions to airflow.

6. 사양

7. 보증 정보

Specific warranty details for the Itek SIISBE 3.0 PC Case may vary by region and retailer. Please refer to the warranty card included with your product or visit the official Itek web가장 정확하고 최신의 보증 정보를 제공하는 사이트입니다.

보증 청구에 필요하므로 구매 증빙서(영수증 또는 송장)를 보관하세요.

8. 고객 지원

For technical assistance, product inquiries, or support regarding your Itek SIISBE 3.0 PC Case, please contact Itek customer support through their official channels.

• 공식적인 Web대지: Visit the Itek official web지원 리소스, FAQ 및 연락처 정보를 제공하는 사이트입니다.
• 이메일 지원: Look for a support email address on the Itek web대지.
• 전화 지원: Check the Itek web지역별 전화 지원 번호 안내 사이트입니다.

When contacting support, please have your product model (SIISBE 3.0) and item model number (ITGCASIB30) ready to help expedite the process.
