소개
Thank you for choosing the Midland MXT275 MicroMobile GMRS Radio. This 15-watt two-way radio is designed for reliable communication in various environments, including overland caravanning, off-roading, farming, and recreational outdoor activities. Featuring an integrated control microphone, detachable magnetic mount antenna, and NOAA weather alert, the MXT275 ensures you stay connected and informed. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your radio.
상자 안에 무엇이 들어있나요?
Your Midland MXT275 package includes the following components:
- Fully Integrated Control Microphone
- 마이크 홀더
- 차량용 전원 어댑터가 포함된 12V 전원 코드
- Detachable Antenna with Magnetic Mount
- 로우 프로file Hide Away Unit
- Flip Frame Detachable Mount with Hardware
The image displays the contents of the MXT275 box, including the main radio unit, integrated control microphone, 12V power cord, magnetic mount antenna, and mounting hardware.
주요 특징
- 15-Watt Two-Way Radio: Operates on GMRS (General Mobile Radio Service) frequencies with 15 high-power channels (1-7 & 15-22) for extended range communication. Includes channel scan for active channels.
- GMRS 채널: Licensed by the FCC for personal and business use, offering a range of up to several miles depending on terrain and conditions.
- 142 CTCSS/DCS Privacy Codes: Allows selection of specific codes to prevent unwanted transmissions on the same channel, enhancing communication privacy. Features silent operation to turn off all tones.
- NOAA 날씨 스캔 + 알림: Automatically scans 10 available weather (WX) band channels and locks onto the strongest signal for severe weather updates. NOAA Weather Alert sounds an alarm for severe weather risks and broadcasts AMBER alerts.
- MicroMobile Compatibility: Compatible with all Midland FRS and GMRS walkie-talkies, ensuring connectivity with other Midland devices.
- Integrated Control Microphone: All controls are located on the microphone for easy access and operation.
- Detachable External Magnetic Mount Antenna: Provides flexible mounting options for optimal signal reception.
설정
Proper installation is crucial for optimal performance of your MXT275 radio. The compact design allows for flexible placement of the main unit, with all controls accessible via the integrated microphone.
설치 단계:
- 메인 유닛 장착: Use the provided flip frame detachable mount and hardware to secure the low-profile hideaway unit in a convenient location within your vehicle. Consider under the seat, behind the dashboard, or in a console.
- 전원을 연결하십시오: Attach the 12V power cord to the main unit and plug the car power adapter into your vehicle's 12V outlet. Ensure a secure connection.
- 안테나 부착: Connect the detachable magnetic mount antenna to the main unit. Place the antenna on a metal surface on the exterior of your vehicle for best performance, ensuring it has a clear line of sight.
- 마이크를 연결하십시오: Plug the integrated control microphone into the main unit. The microphone serves as your primary interface for all radio functions.
- Secure Microphone Holder: Install the microphone holder in an easily accessible location for convenient storage and use of the integrated control microphone.
This image illustrates the main radio unit and the integrated control microphone, highlighting the USB-C port and the connections for the antenna and power cable. The microphone features a customizable LCD backlit display.
The image shows the compact main unit of the MXT275 installed in a vehicle, demonstrating its 'hideaway' capability, with the microphone providing all necessary controls.
설정 비디오:
비디오: 오버view of the Midland MicroMobile MXT275, demonstrating its features and typical installation in a vehicle. This video is provided by Midland Radio.
작동 지침
All primary operating functions of the MXT275 are controlled via the integrated microphone.
기본 작업:
- 전원 켜기/끄기: Rotate the volume knob on the microphone to turn the radio on or off.
- 볼륨 조절: 볼륨 조절 노브를 돌려 음량을 조절하세요.
- 채널 선택: Use the UP/DOWN arrow buttons on the microphone to cycle through the 15 GMRS channels (1-7 & 15-22) and 8 repeater channels.
- 부치다: Press and hold the Push-To-Talk (PTT) button on the side of the microphone to transmit. Release to listen.
- 메뉴 접근: Press the 'MENU' button to access radio settings and features. Use the UP/DOWN arrows to navigate and 'CALL' or 'MON' to select/confirm.

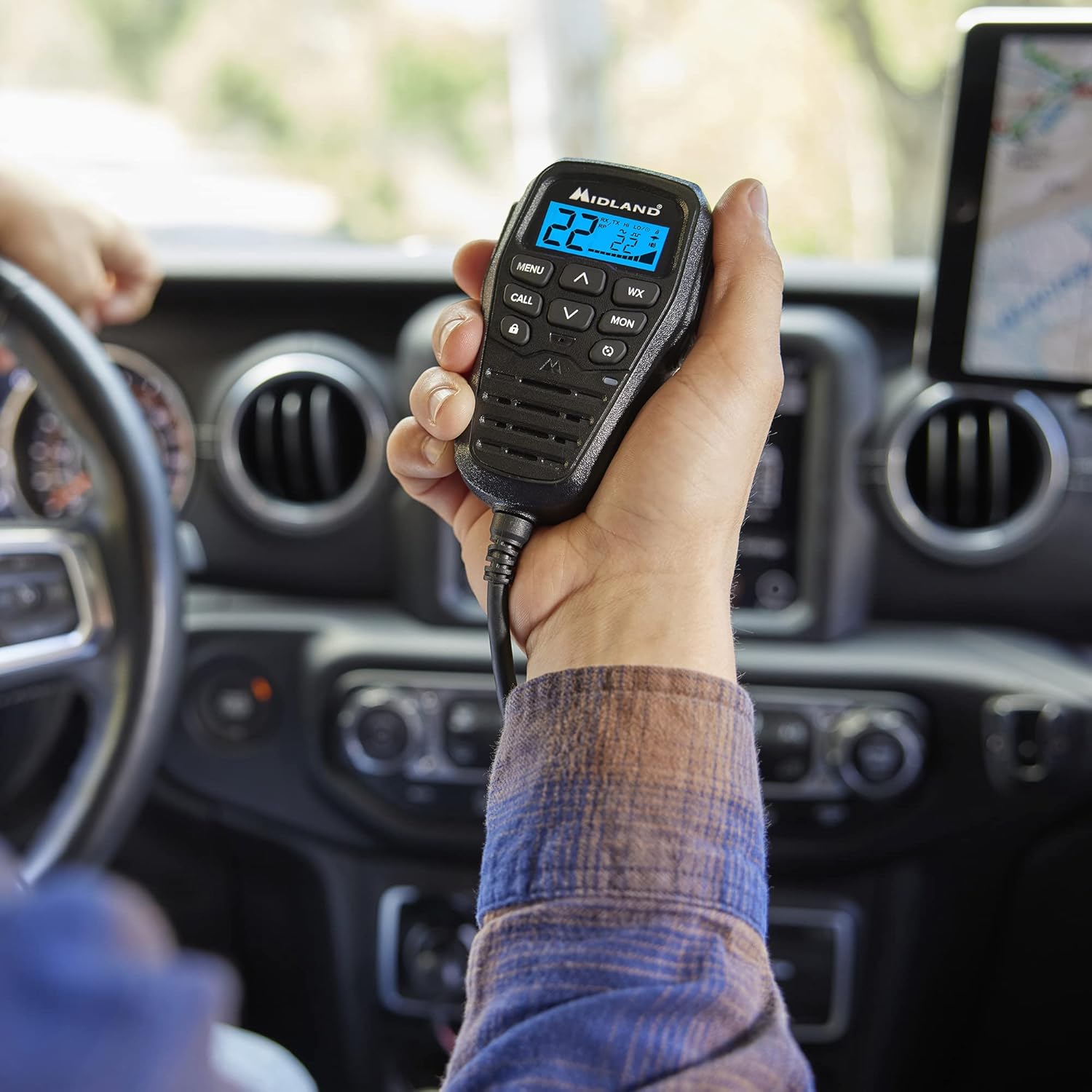

This image demonstrates the ergonomic design of the integrated control microphone, allowing for easy channel selection and communication while driving.
고급 기능:
- 개인정보보호코드(CTCSS/DCS): Use the menu to set one of the 142 privacy codes for clearer communication and reduced interference.
- 미국 해양대기청(NOAA) 날씨 정보: Press the 'WX' button to activate NOAA Weather Scan, which automatically scans for the strongest weather channel.
- NOAA 날씨 경보: The radio will automatically alert you to severe weather conditions when this feature is enabled.
- 리피터 채널: Utilize the 8 repeater channels for extended communication range, especially in challenging terrain.
Microphone Features Video:
Video: This video highlights the features of the MXMC01 ANC Microphone, which is compatible with the MXT275, focusing on its noise-canceling capabilities and controls. This video is provided by Midland Radio.
유지
To ensure the longevity and optimal performance of your Midland MXT275 radio, follow these maintenance guidelines:
- 청소: Regularly wipe the radio and microphone with a soft, damp 옷감. 가혹한 화학 물질이나 연마성 세제를 사용하지 마십시오.
- 사이: Periodically check all cable connections (power, antenna, microphone) to ensure they are secure and free from corrosion or damage.
- 안테나 관리: Inspect the magnetic mount antenna for any damage to the cable or base. Ensure it is securely mounted when in use.
- 저장: 장시간 사용하지 않을 경우, 라디오를 직사광선과 극한의 온도를 피해 서늘하고 건조한 곳에 보관하세요.
문제 해결
If you encounter issues with your MXT275 radio, try the following troubleshooting steps:
- 전원 없음: Check the 12V power cord connection and ensure the vehicle's power outlet is functioning. Verify the fuse in the power adapter.
- 수신/송신 불가: Ensure the antenna is securely connected and properly mounted. Check that you are on the correct channel and that privacy codes (CTCSS/DCS) match those of the other party.
- 낮은 오디오 품질: Adjust the volume. Ensure the microphone is not obstructed and is held at an appropriate distance. Check for loose connections.
- 제한된 범위: Ensure the antenna is clear of obstructions and mounted in the best possible location. Terrain, weather, and obstacles significantly affect range.
- 무전기가 응답하지 않습니다: Try turning the radio off and then on again. If the issue persists, consult the full user manual for a factory reset procedure.
명세서
| 품목 무게 | 2.48파운드 |
| 제품 치수 | 5 x 5.25 x 1인치(1인치 깊이 x 5인치 너비 x 5.25인치 높이) |
| 품목 모델 번호 | MXT275 |
| 상표 | 중부 방언 |
| 색상 | 검은색 |
| 채널 수 | 15 |
| 주파수 범위 | 462MHz - 467MHz |
| 통화 범위 최대 | 50 Miles (under ideal conditions) |
| 권tage | 12 볼트 |
| 방수 레벨 | 방수가 되지 않음 |
보증
The Midland MXT275 MicroMobile GMRS Radio comes with a 1년 보증 from the date of purchase. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the official Midland web사이트를 방문하거나 고객 지원팀에 문의하세요.
지원하다
For further assistance, technical support, or to inquire about accessories, please contact Midland customer service. You can find contact information on the official Midland website or through the support section of your product documentation.
