XPG by ADATA SX8200 NVMe SSD User Manual

1. 서론

This manual provides essential information for the installation, operation, and maintenance of your XPG by ADATA SX8200 3D NAND NVMe Gen3x4 M.2 2280 Solid State Drive. Please read this manual thoroughly before proceeding with installation or use to ensure proper functionality and longevity of your device.

2. 안전 정보

• Always handle the SSD with care to avoid physical damage.
• Ensure your system is powered off and disconnected from the power source before installation.
• Discharge any static electricity from your body before handling the SSD to prevent damage to sensitive electronic components.
• SSD를 분해하거나 개조하지 마십시오. 그렇게 하면 보증이 무효화됩니다.

3. 패키지 내용

패키지에 다음 품목이 포함되어 있는지 확인하십시오.

• XPG by ADATA SX8200 NVMe SSD (ASX8200NP-960GT-C)
• 빠른 시작 가이드(QSG)

Figure 1: XPG SX8200 NVMe SSD Retail Packaging

4. 제품 오버view

The XPG SX8200 is an M.2 2280 form factor Solid State Drive utilizing 3D NAND technology and a PCIe Gen3x4 interface. It is designed for high-performance computing, offering fast read/write speeds and improved responsiveness for demanding applications.

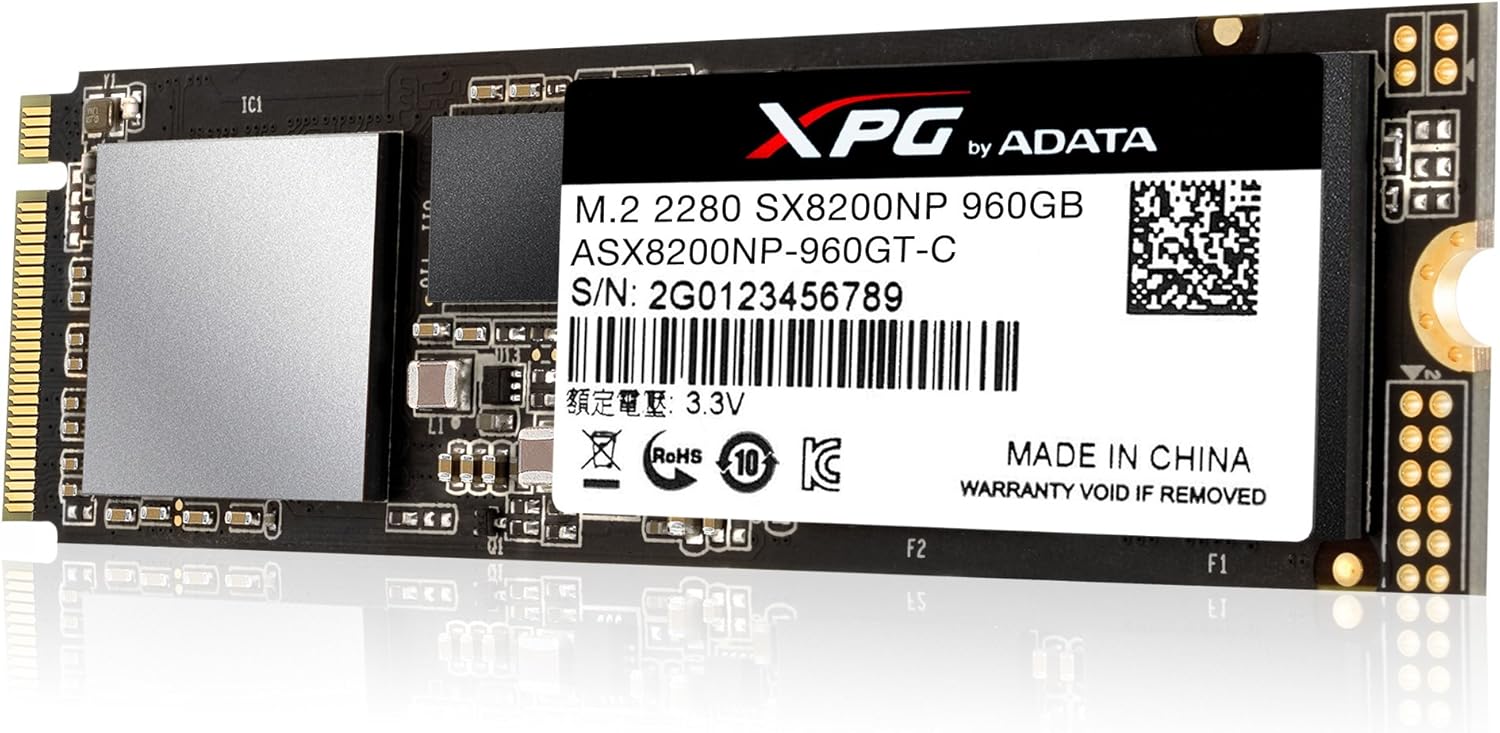

Figure 2: XPG SX8200 NVMe SSD (Top View with Label)

Figure 3: XPG SX8200 NVMe SSD (Top View without Label)

5. 설정 및 설치

5.1 시스템 요구 사항

• Motherboard with an available M.2 slot (Key M) that supports NVMe PCIe Gen3x4. Consult your motherboard's manual for M.2 slot specifications and compatibility.
• Operating System: Windows 10 (NVMe drivers are typically included), Windows 8.1, or Linux. For Windows 7, specific NVMe drivers may need to be integrated into the installation media.

5.2 물리적 설치

1. 컴퓨터 전원을 끄고 전원 케이블을 분리하세요.
2. 컴퓨터 케이스를 엽니다.
3. 마더보드에서 사용 가능한 M.2 슬롯을 찾습니다.
4. Carefully insert the XPG SX8200 SSD into the M.2 slot at a 30-degree angle.
5. SSD를 마더보드와 평행이 될 때까지 부드럽게 아래로 누릅니다.
6. Secure the SSD with the screw provided with your motherboard or system.
7. 컴퓨터 케이스를 닫고 전원 케이블을 다시 연결하세요.

5.3 운영 체제 설정

After physical installation, you may need to initialize and format the SSD before it can be used. For a fresh operating system installation, ensure your BIOS/UEFI settings are configured to recognize the NVMe drive as a boot device.

• 윈도우: Open Disk Management (right-click Start button > Disk Management). Locate the new SSD, initialize it (GPT partition style recommended for drives over 2TB, MBR for smaller drives or older systems), and then create a new simple volume.
• Cloning an Existing Drive: If you are migrating your operating system, use a reliable disk cloning software. Note that some older cloning software versions (e.g., Acronis True Image 2015) may not fully support M.2 NVMe drives. Consider using updated software or alternatives like EaseUS for a smoother process.

6. SSD 작동

The XPG SX8200 SSD is designed for high-speed data access and storage. Once installed and configured, it operates as a standard storage device within your system. For optimal performance, it is recommended to use the SSD as your primary boot drive for the operating system and frequently accessed applications.

• 성능: Expect sequential read/write speeds up to 3200/1700 MB/s and 4K random speeds up to 310K/280K IOPS. Actual performance may vary based on system hardware, configuration, and workload.
• 용법: Ideal for intense gaming, rendering, overclocking, and other demanding applications that benefit from rapid data transfer.

7. 유지관리

7.1 펌웨어 업데이트

Periodically check the official XPG/ADATA website for firmware updates. Firmware updates can improve performance, stability, and compatibility. Follow the instructions provided by XPG/ADATA carefully when performing firmware updates. Note that the ADATA SSD Toolbox may not always be updated to support the latest products immediately upon release.

7.2 Data Integrity and Protection

The SX8200 incorporates several technologies to ensure data integrity and longevity:

• SLC Caching: Enhances burst read/write performance.
• DRAM Cache Buffer: Improves random read/write performance.
• LDPC (Low-Density Parity Check) ECC: Detects and corrects data errors for improved data integrity.
• AES 256비트 암호화: Provides robust data security.
• RAID Engine & Data Shaping: Further enhance data protection and extend SSD lifespan.

7.3 열 관리

The SX8200 includes a built-in heatsink to help dissipate heat and maintain optimal operating temperatures, preventing thermal throttling under heavy loads.

8. 문제 해결

• SSD가 감지되지 않음:
  • SSD가 M.2 슬롯에 올바르게 장착되었는지 확인하십시오.
  • Check your motherboard's BIOS/UEFI settings to ensure the M.2 slot is enabled and configured for NVMe (PCIe mode). Some M.2 slots may share bandwidth with SATA ports; ensure there are no conflicts.
  • Ensure your operating system has the necessary NVMe drivers.
• 예상보다 저조한 성과:
  • Confirm the M.2 slot is operating at PCIe Gen3x4 speed. Older motherboards or specific M.2 slots might operate at lower speeds (e.g., PCIe Gen2 or x2 lanes).
  • Ensure your system's hardware and configuration meet the requirements for optimal NVMe performance.
  • Check for background processes or other storage devices that might be impacting performance.
• 복제 관련 문제:
  • Use up-to-date disk cloning software that explicitly supports M.2 NVMe drives.
  • Ensure the target drive (SX8200) is initialized and formatted correctly before cloning.
• 펌웨어 업데이트 오류:
  • If you encounter issues with the ADATA SSD Toolbox for firmware updates, visit the official XPG/ADATA support website for alternative methods or direct assistance.

9. 사양

10. 보증 정보

The XPG by ADATA SX8200 NVMe SSD (ASX8200NP-960GT-C) is backed by a 5년 보증. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. Any physical damage, unauthorized modification, or improper installation may void the warranty.

11. 지원

For further assistance, technical support, or warranty inquiries, please visit the official XPG or ADATA web대지. NS web해당 사이트는 일반적으로 FAQ, 드라이버 다운로드, 펌웨어 업데이트 및 고객 서비스 연락처 정보를 제공합니다.

XPG Official Web대지: https://www.xpg.com/

ADATA Official Web대지: https://www.adata.com/
