소개
Thank you for choosing the Soundstream AR4.1200 Arachnid 4-Channel Car Audio Amp리퍼. 이것 amp이 앰프는 차량용 사운드 시스템에 강력하고 선명한 오디오 성능을 제공하도록 설계되었습니다. 본 설명서는 최적의 성능과 제품 수명 연장을 위해 올바른 설치, 작동 및 유지 관리에 필요한 필수 정보를 제공합니다. amp리퍼.
Image: The Soundstream AR4.1200 amplifier shown alongside the complete amplifier wiring kit, including power cables, ground cables, RCA cables, speaker wire, and fuse holder.
안전 정보
설치 또는 작동 시 항상 다음 안전 예방 조치를 준수하십시오. amp정수기:
- 전문 설치 권장: Installation of car audio equipment can be complex. If you are unsure about any step, seek assistance from a qualified professional installer.
- 배터리 분리: Before beginning any wiring, always disconnect the vehicle's negative battery terminal to prevent electrical shorts and damage.
- 올바른 융합: 확인하십시오 amplifier is properly fused at the battery and at the amplifier itself to protect against overcurrent.
- 통풍: 마운트하다 amplifier in a location that allows for adequate air circulation to prevent overheating.
- 습기를 피하세요: 노출시키지 마십시오 amp습기 또는 극한의 온도에 적응합니다.
- 안전한 장착: 안전하게 장착하세요 amplifier to prevent it from becoming a projectile in the event of a sudden stop or collision.
설정 및 설치
Careful installation is crucial for optimal performance. Follow these steps for proper setup:
1. 설치 전 점검
- Plan your wiring path to avoid interference with vehicle systems.
- Ensure all necessary tools and wiring materials are available. The product typically includes a wiring kit.
Image: Various components of a typical amplifier wiring kit, including power wire, ground wire, remote turn-on wire, RCA cables, speaker wire, fuse holder, and terminals.
2. 장착 Amp리퍼
Choose a mounting location that is dry, well-ventilated, and secure. Common locations include under seats, in the trunk, or behind rear seats. Ensure the amplifier is mounted firmly to a solid surface using appropriate screws.
3. 배선 연결
Refer to the image below for a visual guide to the amplifier's rear connections. Ensure all connections are secure and properly insulated.

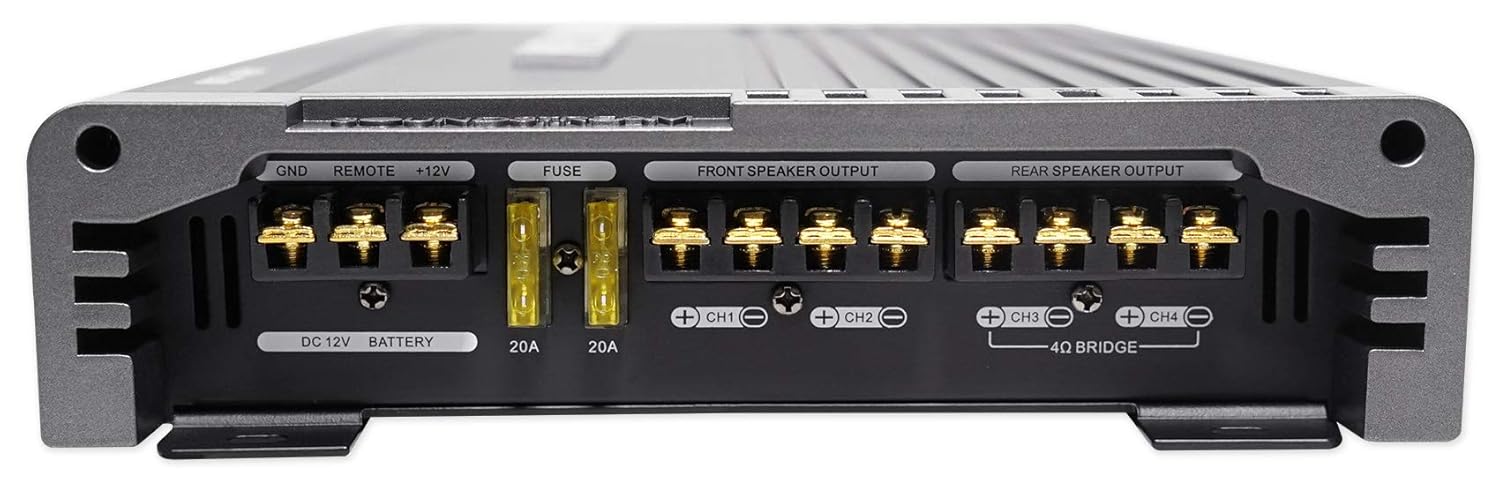

Image: The rear panel of the Soundstream AR4.1200 amplifier, showing the power, ground, remote, fuse, and speaker output terminals.
전원 연결 :
- +12V (Battery): Connect a heavy-gauge power cable (typically 4-gauge for this amplifier) directly from the positive terminal of your vehicle's battery to this terminal. Install an in-line fuse holder within 18 inches of the battery.
- GND(접지): Connect a heavy-gauge ground cable of the same size as the power cable to a clean, unpainted metal surface on the vehicle's chassis. Ensure a solid, low-resistance connection.
- REM(원격): Connect a remote turn-on wire from your head unit's remote output to this terminal. This wire signals the amp헤드 유닛이 작동 중일 때 앰프가 켜집니다.
스피커 출력 연결:
- Connect your speakers to the designated speaker output terminals (CH1, CH2, CH3, CH4). Observe correct polarity (+ to + and - to -).
- 이것 amplifier supports 4-channel stereo operation or 2-channel bridged operation for higher power output to subwoofers. Refer to your head unit and speaker impedance for proper configuration.
입력 연결:
- 헤드 유닛의 사전에서 RCA 케이블을 연결하세요.amp 출력 amplifier's RCA input jacks. Ensure left and right channels are correctly matched.
융합:
- 그만큼 amplifier features two 20A fuses. Ensure these are correctly installed before powering on the unit.
운영 Amp리퍼
설치되면 amplifier will power on automatically with your head unit. Adjustments can be made to optimize sound quality.
이미지: 상단 view of the Soundstream AR4.1200 amplifier, displaying the brand logo and model number.
게인 컨트롤 :
The gain control (often labeled 'Level' or 'Input Level') matches the amp출력 볼륨에 대한 lifier의 입력 감도tage of your head unit. Start with the gain set to minimum and slowly increase it until you achieve a clear, undistorted sound at your desired maximum volume level from the head unit. Avoid setting the gain too high, as this can lead to distortion and potential speaker damage.
크로스오버 설정:
The AR4.1200 features built-in crossovers to direct specific frequency ranges to your speakers. Adjust the High-Pass Filter (HPF) for full-range speakers to prevent low frequencies from distorting them, and the Low-Pass Filter (LPF) if using bridged channels for subwoofers to ensure only bass frequencies are sent. Consult your speaker specifications for recommended crossover points.
베이스 부스트 :
그만큼 amplifier may include a bass boost feature. Use this sparingly and with caution, as excessive bass boost can lead to distortion and potential damage to speakers, especially at high volumes.
유지
적절한 유지 관리는 제품의 수명과 성능을 보장합니다. amp리퍼.
- 청소: 주기적으로 닦아주세요 amp부드럽고 마른 천으로 기기 외부를 닦으세요. 강한 화학 물질이나 연마성 세척제는 사용하지 마세요.
- 통풍: 다음을 확인하세요. amplifier's cooling fins are free from dust and debris. Blocked fins can lead to overheating.
- 연결 확인: Annually inspect all wiring connections for tightness and corrosion. Loose connections can cause poor performance or damage.
- 퓨즈 교체: If a fuse blows, replace it only with a fuse of the exact same type and rating (20A ATC fuse). Never use a higher-rated fuse or bypass a fuse.
문제 해결
문제가 발생하는 경우 amplifier, consult the following common troubleshooting steps before seeking professional service.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 전원 없음 / Amplifier가 켜지지 않습니다 | 퓨즈 단선; 전원/접지/리모컨 배선 연결 불량; 헤드 유닛에서 리모컨 신호 수신 안 됨. | 퓨즈를 점검하고 교체합니다. 모든 전원, 접지 및 원격 연결이 안전한지 확인합니다. 헤드 유닛이 켜져 있을 때 원격 배선을 12V로 테스트합니다. |
| 소리가 출력되지 않음 | RCA cables disconnected/damaged; Speaker wires disconnected/shorted; Amplifier in protect mode; Head unit volume too low. | Check RCA connections; Inspect speaker wires for shorts or disconnections; Check amplifier's protection indicator; Increase head unit volume. |
| 왜곡된 소리 | Gain set too high; Speaker impedance mismatch; Damaged speakers; Poor ground connection. | Reduce gain setting; Verify speaker impedance is compatible (2-ohm stable); Inspect speakers for damage; Improve ground connection. |
| Amp리파이어 과열 | 환기가 불충분함; 스피커 임피던스가 너무 낮음; 게인이 너무 높게 설정됨. | 고쳐 놓다 amplifier for better airflow; Check speaker impedance; Reduce gain setting. |
명세서
Key technical specifications for the Soundstream AR4.1200 Arachnid Amp정수기:
- 모델 번호: AR4.1200
- 최대 전력 출력: 1200와트(최대)
- 채널: 4채널
- 수업: A/B 클래스
- 최소 안정 임피던스: 2Ω(스테레오)
- 권tage: 16볼트(DC)
- 최소 공급량tage: 9 볼트
- 장착 유형: 표면 실장
- 퓨즈 : 2 x 20A ATC Fuses
- 패키지 크기: 17.5 x 11 x 3.75 인치
- 무게: 약 17.5파운드
보증 및 지원
Soundstream products are designed for reliability and performance. This amplifier is covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms, duration, and claim procedures, please refer to the warranty card included with your product or visit the official Soundstream website. For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact Soundstream customer service through their official channels.
