Hella 011988011 HLMP 90MM LED Fog/DRL/Position Lamp

1. 제품 오버view

The Hella 011988011 HLMP 90MM LED module is designed to function as a Fog Lamp, Daytime Running Light (DRL), and Position Lamp. This unit is suitable for upgrading existing vehicle lighting or as an accessory item. It features a compact design and utilizes LED technology for clear and efficient illumination.

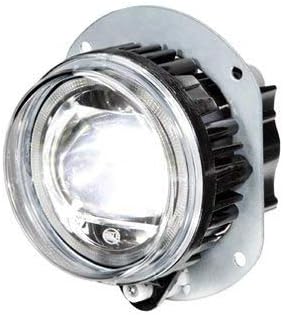

그림 1: 전면 view of the Hella 011988011 90MM LED Fog/DRL/Position Lamp.

2. 안전 정보

Read all instructions carefully before installation and operation. Failure to follow these instructions may result in damage to the product, vehicle, or personal injury.

• 전기 작업을 수행하기 전에 항상 차량의 배터리를 분리하세요.
• Ensure proper wiring and connections to prevent short circuits or electrical fires.
• 설치하는 동안 안전 안경, 장갑 등 적절한 개인 보호 장비를 착용하세요.
• l을 수정하지 마십시오.amp or its components. Unauthorized modifications may void the warranty and compromise safety.
• l을 확인하세요amp is securely mounted to prevent detachment during vehicle operation.
• 설치 단계에 대해 확실하지 않은 경우 자격을 갖춘 자동차 기술자에게 문의하세요.

3. 패키지 내용

패키지에 모든 품목이 들어 있는지 확인하세요.

• Hella 011988011 90MM LED Lamp
• 장착 지침

4. 설정 및 설치

This section provides general guidelines for installing the Hella 011988011 LED lamp. Refer to the included mounting instructions for detailed, product-specific installation steps and wiring diagrams. Professional installation is recommended.

4.1 설치 전 확인 사항

1. Ensure the vehicle's electrical system is compatible with the LED lamp의 권tag요구사항
2. Identify a suitable mounting location on the vehicle, considering the lamp's dimensions and beam pattern.
3. Gather necessary tools, which may include wrenches, screwdrivers, wire strippers, crimpers, and electrical tape.

4.2 L 장착amp

난amp features a universal fit design. Use the provided mounting instructions and hardware to secure the lamp to the vehicle. Ensure the mounting surface is stable and can support the lamp의 무게.

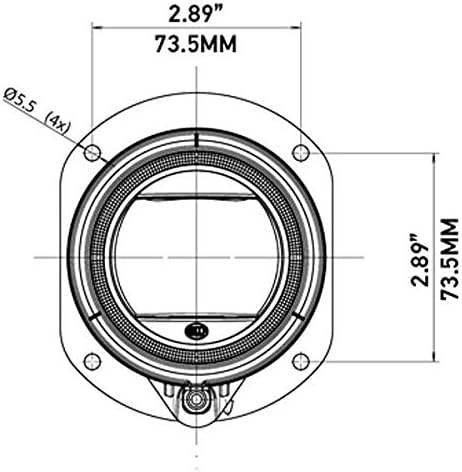

그림 2: 상단 view l의amp showing a width of approximately 73.5mm (2.89 inches).

그림 3: 측면 view l의amp showing a total depth of approximately 90mm (3.5 inches) and a mounting depth of 54mm (2.1 inches).

그림 4: 후면 view l의amp showing a width of approximately 96mm (3.7 inches) and a height of 117mm (4.6 inches).

4.3 전기 연결

l을 연결하세요amp to the vehicle's electrical system according to the wiring diagram provided in the separate mounting instructions. Ensure all connections are secure and properly insulated. The lamp is designed for use as a fog lamp, daytime running light, and position lamp, requiring appropriate connections to the vehicle's respective circuits.

그림 5: 후면 view l의amp, illustrating the connection points for electrical wiring.

5. 사용 설명서

Once properly installed and wired, the Hella 011988011 LED lamp will operate in conjunction with your vehicle's lighting system. The specific activation of the fog, DRL, and position lamp functions will depend on how they are integrated into your vehicle's electrical system and controlled by the vehicle's switches.

• 포그 엘amp 기능: Typically activated via the vehicle's fog light switch. Designed to provide improved visibility in conditions of fog, heavy rain, or snow.
• Daytime Running Light (DRL) Function: Often activates automatically when the vehicle is running, providing increased visibility to other road users during daylight hours.
• 위치 Lamp 기능: Provides a low-intensity light to indicate the vehicle's presence and width, usually active with the vehicle's parking lights or headlights.

Refer to your vehicle's owner's manual for specific instructions on operating auxiliary lighting.

6. 유지관리

The Hella 011988011 LED lamp is designed for durability and minimal maintenance. Follow these guidelines to ensure optimal performance and longevity:

• 청소: Periodically clean the lens with a soft cloth and mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the polycarbonate lens.
• 점검: l을 정기적으로 확인하십시오.amp for any signs of damage, loose connections, or corrosion. Ensure the mounting hardware remains secure.
• 방수 기능: 난amp is designed to be waterproof. However, avoid directing high-pressure water jets directly at the lamp's seals during vehicle washing.
• LED 수명 : LED lights have a long operational lifespan and typically do not require bulb replacement. If the lamp ceases to function, refer to the troubleshooting section.

7. 문제 해결

If the Hella 011988011 LED lamp is not functioning as expected, perform the following checks:

• Lamp 불이 켜지지 않음:
  • 모든 전기 연결부가 단단히 고정되어 있고 절연이 제대로 되어 있는지 확인하십시오.
  • Verify that the vehicle's fuse for the lighting circuit is intact and not blown.
  • Ensure the vehicle's battery has sufficient charge and the electrical system is supplying power to the lamp.
  • Confirm that the vehicle's light switch (fog, DRL, or position) is in the correct position.
• 희미하거나 간헐적인 조명:
  • Inspect wiring for corrosion or damage that could impede current flow.
  • Check for loose ground connections.
  • 차량의 볼륨을 확인하십시오tage is stable and within the lamp의 작동 범위.
• 렌즈 내부 습기:
  • 나는 동안amp is waterproof, extreme temperature changes can sometimes cause condensation. This usually dissipates on its own.
  • If significant water ingress is observed, check for damage to the housing or seals.

If issues persist after performing these checks, contact Hella customer support or a qualified technician.

8. 제품 사양

9. 보증 정보

This Hella product is covered by a 1년 제조사 보증 from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, abuse, modification, or normal wear and tear.

For warranty claims, please retain your proof of purchase and contact Hella customer support or the authorized dealer from whom the product was purchased.

10. 고객 지원

If you have any questions regarding the installation, operation, or maintenance of your Hella 011988011 HLMP 90MM LED Fog/DRL/Position Lamp자세한 내용은 다음 자료를 참조하십시오.

• Hella Official Web대지: Visit the official Hella web제품 정보, FAQ, 연락처 정보를 제공하는 사이트입니다.
• 공인 딜러: Contact the retailer or distributor from whom you purchased the product.
• 전문 자동차 정비 기술자: For complex installation or electrical issues, consult a certified automotive professional.
