Bartscher PRO II 60T Coffee Machine Instruction Manual

소개

This instruction manual provides essential information for the safe and efficient operation, maintenance, and care of your Bartscher PRO II 60T coffee machine. Please read this manual thoroughly before initial use and keep it for future reference. This appliance is designed for brewing large quantities of filter coffee, suitable for commercial and event use.

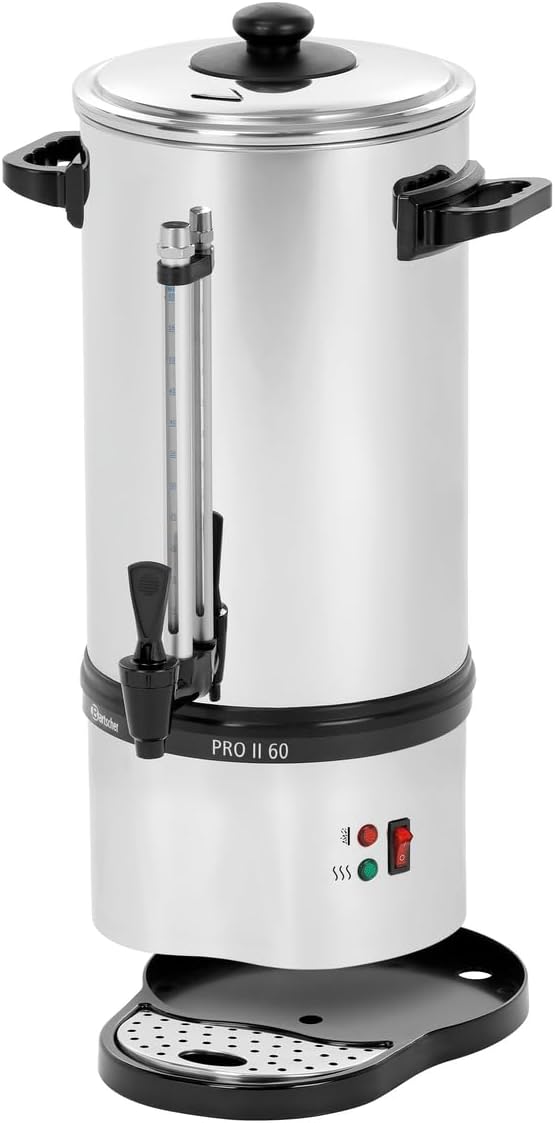

그림 1: The Bartscher PRO II 60T coffee machine, a stainless steel appliance with a spigot and level indicator on the front, and a control panel at the base.

안전 지침

• 항상 기기를 올바른 전압의 접지형 콘센트에 연결하십시오.tage (230V, 50Hz).
• 제품, 코드, 플러그를 물이나 기타 액체에 담그지 마십시오.
• Keep the appliance out of reach of children and unauthorized personnel.
• Exercise caution when handling hot liquids and surfaces. The appliance becomes hot during operation.
• Do not operate the appliance if the power cord or plug is damaged, or if the appliance malfunctions or has been damaged in any way. Contact qualified service personnel.
• 사용 중에는 기기 주변에 적절한 환기가 이루어지도록 하세요.
• Only use the appliance for its intended purpose: brewing coffee.

제품 끝view

주요 구성 요소

• 뚜껑: 양조실을 덮습니다.
• 필터 바구니: Holds coffee grounds, can be used with or without filter paper.
• 마개: For dispensing brewed coffee.
• 레벨 표시기: Shows the current liquid volume inside the machine.
• 제어판: Includes power switch, brewing indicator, and keep-warm indicator.
• Base with Drip Tray: Collects any drips from the spigot.

그림 2: 클로즈업 view of the control panel, showing the power switch (red), brewing indicator (red light), keep-warm indicator (green light), and the coffee spigot with the level indicator tube.

설정

1. 포장 풀기 및 초기 청소

1. Remove all packaging materials and inspect the appliance for any damage.
2. Wash the filter basket, lid, and interior of the coffee machine with warm soapy water. Rinse thoroughly and dry.

2. 배치

Place the coffee machine on a stable, level, and heat-resistant surface. Ensure there is sufficient space around the appliance for ventilation and safe operation.

3. 전원 연결

전원 코드를 적절한 접지형 콘센트에 꽂으십시오. 볼륨이 정상인지 확인하십시오.tage는 기기의 요구 사항(230V)과 일치합니다.

그림 3: 내부 view of the coffee machine, showing the heating element base and the 'MAX' fill line indicator on the inner wall.

작업

1. 물 채우기

1. Remove the lid and the filter basket.
2. Fill the reservoir with cold, fresh water. The minimum capacity is 4.5 liters (30 cups), and the maximum is 9 liters (60-72 cups). Do not exceed the 'MAX' fill line.

2. 커피 가루 추가

1. Place the filter basket back into the machine.
2. Add the desired amount of ground coffee to the filter basket. The optimized stainless steel filter allows use without additional paper filters.

그림 4: 위에서 아래로 view of the filter basket containing coffee grounds, ready for brewing.

그림 5: 위에서 아래로 view of the empty stainless steel filter basket, demonstrating its design for use without paper filters.

그림 6: The filter basket lifted out of the coffee machine, revealing the central column and heating element below.

3. Starting the Brewing Process

1. Securely place the lid on the machine.
2. Turn on the power switch. The red indicator light will illuminate, signaling that the brewing process has started.
3. Brewing 9 liters of coffee takes approximately 50 minutes.

4. Keep-Warm Function

Once brewing is complete, the appliance automatically switches to the keep-warm function. The green indicator light will illuminate, maintaining the coffee at an optimal serving temperature.

5. 커피 추출

Place a cup or carafe under the spigot and press the lever to dispense coffee. Release the lever to stop the flow.

유지

1. 매일 청소

1. After each use, unplug the machine and allow it to cool completely.
2. 필터 바스켓을 제거하고 사용한 커피 찌꺼기는 버리세요.
3. Wash the filter basket, lid, and the interior of the reservoir with warm soapy water. Use a soft brush for stubborn residues.
4. 기기 외부를 광고용 세제로 닦으세요.amp 옷감. 연마성 세제나 수세미를 사용하지 마십시오.
5. 다시 조립하거나 보관하기 전에 모든 부품이 완전히 건조되었는지 확인하세요.

2. 석회질 제거

The appliance features a descaling signal. When this signal activates, it indicates that descaling is required to maintain optimal performance and extend the lifespan of the machine. Use a commercial descaling agent suitable for coffee machines and follow the product's instructions carefully. Rinse the machine thoroughly after descaling.

문제 해결

기술 사양

보증 및 지원

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Bartscher customer service directly. Keep your purchase receipt as proof of purchase.
