HELLA DE/LED 90mm Performance L4060 Headlight Kit Instruction Manual

1. 서론

This manual provides essential information for the proper installation, operation, and maintenance of your HELLA DE/LED 90mm Performance L4060 Headlight Kit. Please read these instructions carefully before proceeding with installation or use to ensure safe and optimal performance. This product is designed for 12V and 24V vehicle electrical systems.

2. 안전 정보

• 단락 및 감전을 방지하기 위해 전기 작업을 하기 전에 항상 차량의 배터리를 분리하십시오.
• Ensure all connections are secure and properly insulated to prevent moisture ingress and corrosion.
• LED 광원이 작동 중일 때는 직접 쳐다보지 마십시오. 눈 손상을 초래할 수 있습니다.
• Installation should be performed by qualified personnel if you are unsure about any steps.
• Verify local regulations and laws regarding vehicle lighting before installation and use.

3. 패키지 내용

다음 구성품이 패키지에 포함되어 있는지 확인하세요.

• 1x HELLA DE/LED 90mm Performance L4060 Headlight Module (Right side)
• 장착 하드웨어(나사, 클립 등)
• 사용 설명서

이미지 3.1: Included mounting hardware for the headlight module.

4. 설정(설치)

4.1 설치 전 확인

• Ensure the vehicle's electrical system is compatible with 12V or 24V operation.
• Confirm that the mounting location provides sufficient space and ventilation for the headlight module.
• Gather all necessary tools (screwdrivers, wire strippers, crimping tool, multimeter, etc.).

4.2 Mounting the Headlight Module

1. Identify the designated mounting position for the 90mm headlight module.
2. Secure the module using the provided mounting hardware. Ensure it is firmly attached and correctly oriented (e.g., right side).
3. The robust die-cast aluminum housing is designed for durability and heat dissipation.

이미지 4.1: 앞쪽 view of the HELLA DE/LED 90mm headlight module.

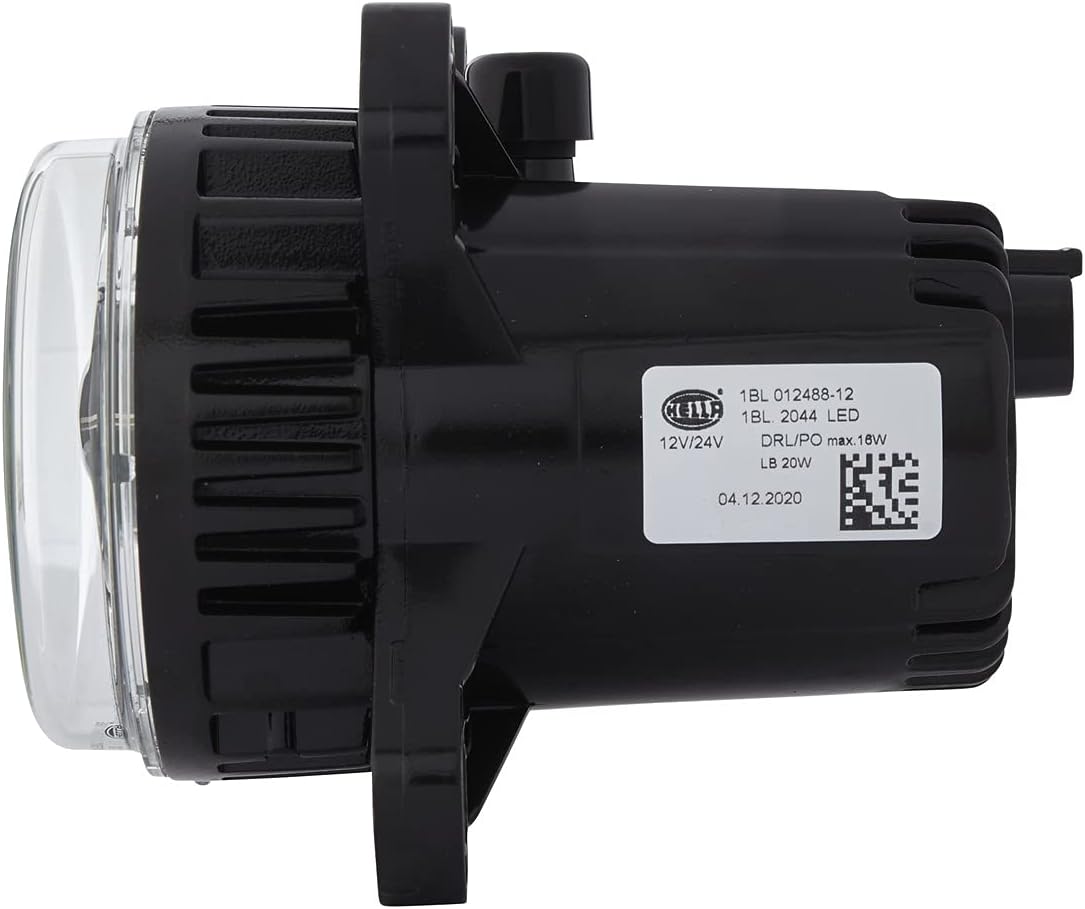

이미지 4.2: 옆 view of the headlight module, showing the integrated electronics and product label.

4.3 전기 연결

The headlight module features a DEUTSCH plug for reliable electrical connection. Refer to your vehicle's wiring diagram for specific connection points.

1. Connect the power supply (12V or 24V) to the appropriate pins on the DEUTSCH connector.
2. Connect the control wires for the position light, daytime running light (DRL), and low beam functions.
3. Ensure all connections are tight and protected from environmental elements.

이미지 4.3: 뒤쪽 view of the headlight module, showing the DEUTSCH connector for electrical hookup.

5. 사용 설명서

The HELLA DE/LED 90mm Performance L4060 Headlight Kit offers three primary light functions:

• Position Light (LED): Provides a homogeneous ring-shaped light for vehicle visibility.
• Daytime Running Light (LED): Offers enhanced visibility during daylight hours with a distinctive ring-shaped illumination.
• Low Beam (LED): Provides primary forward illumination for driving in low-light conditions or at night.

These functions are typically controlled via your vehicle's existing lighting switches and systems. Consult your vehicle's owner's manual for specific operation of these lighting modes.

6. 유지관리

6.1 청소

• Clean the lens regularly with a soft cloth and mild soap solution.
• Avoid abrasive cleaners or solvents that could damage the polycarbonate lens material.

6.2 검사

• Periodically check all electrical connections for corrosion or looseness.
• Inspect the mounting points to ensure the headlight remains securely fastened.
• Verify that all light functions (position, DRL, low beam) are operating correctly.

7. 문제 해결

8. 사양

9. 보증 및 지원

For warranty information, please refer to the documentation provided with your purchase or contact HELLA customer service. In case of technical issues or questions not covered in this manual, please reach out to your HELLA dealer or visit the official HELLA web지원 사이트입니다.
