소개
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Godrej RD Edge Pro 190 PDS 5.1 Direct-Cool Single Door Refrigerator. Please read these instructions carefully before using the appliance and retain them for future reference.
안전 정보
Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury. This appliance is intended for household use only.
- 냉장고가 올바르게 접지되었는지 확인하세요.
- 식품보관실 내에서는 전자제품을 사용하지 마세요.
- 통풍구에 장애물이 없도록 깨끗이 유지하세요.
- 냉매 회로를 손상시키지 마십시오.
- 청소 또는 유지 관리를 수행하기 전에 제품의 플러그를 뽑으십시오.
- 어린이가 포장재에 접근하지 못하도록 하십시오.
설정
1. 풀기
Carefully remove all packaging materials, including foam and adhesive tape. Inspect the refrigerator for any damage. Report any damage to your dealer immediately.
2. 배치
- Place the refrigerator on a firm, level surface to prevent vibrations.
- 적절한 환기를 확보하십시오. 원활한 공기 순환을 위해 뒤쪽과 측면에 최소 10cm(4인치)의 공간을 확보하십시오.
- 직사광선이 비치는 곳이나 스토브, 히터, 라디에이터와 같은 열원 근처에 제품을 두지 마십시오.
- 습도가 높은 곳에 설치하지 마세요.
3. Cleaning Before First Use
Before placing food inside, clean the interior and exterior of the refrigerator with a mild detergent and warm water. Wipe dry thoroughly.
4. 전원 연결
Connect the refrigerator to a dedicated 260 Volt, 50 Hz AC power outlet. Ensure the outlet is properly grounded. If your region experiences voltage fluctuations, a suitable voltage stabilizer is recommended.
5. 초기 작업
After plugging in, allow the refrigerator to operate empty for at least 2-4 hours before loading it with food. This allows the internal temperature to stabilize.

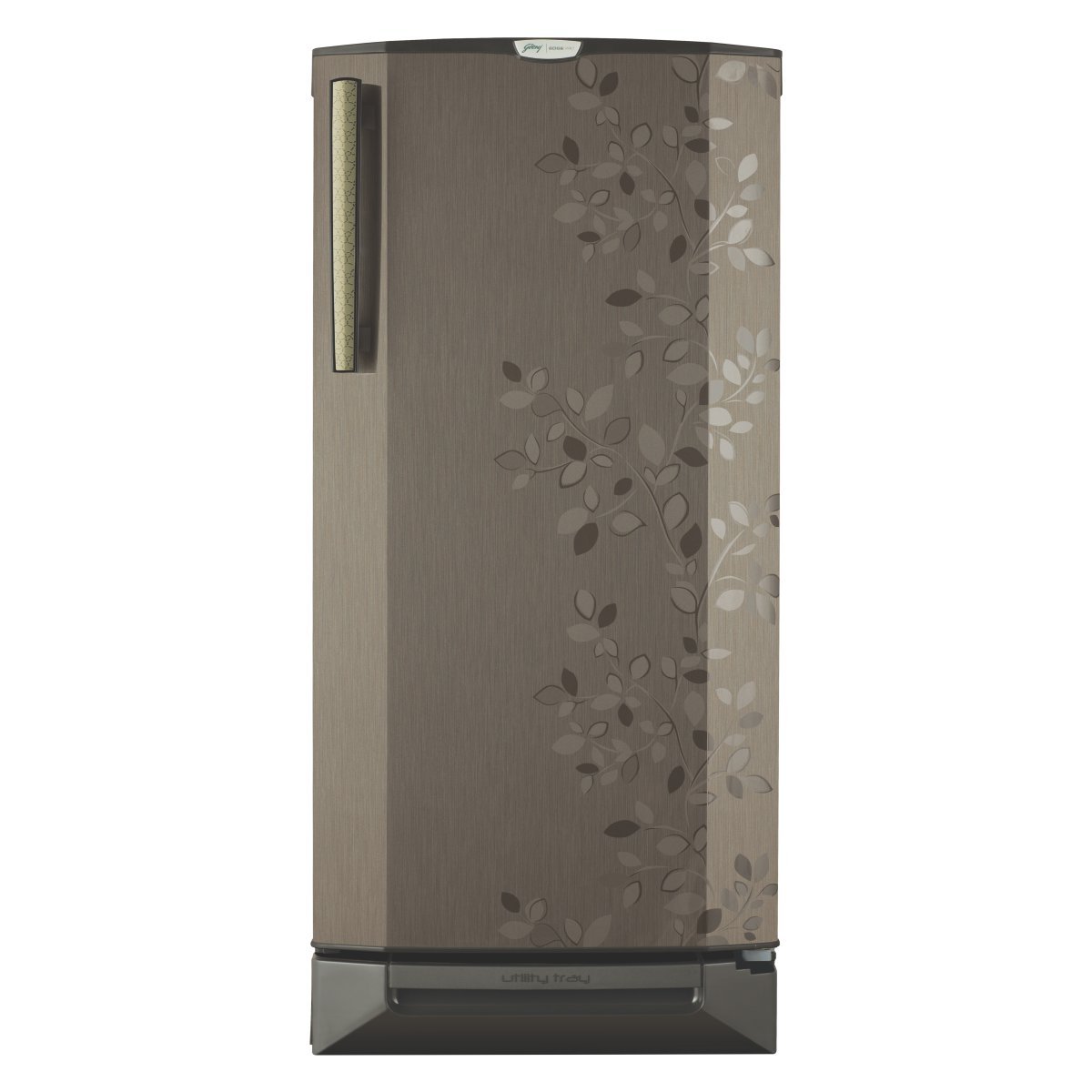

Image: Godrej RD Edge Pro 190 PDS 5.1 Direct-Cool Single Door Refrigerator. This image shows the exterior of the refrigerator, highlighting its compact design and single door configuration.
작동 지침
1. 온도 조절
Your refrigerator is equipped with a temperature control dial, usually located inside the fresh food compartment. Adjust the dial to set the desired cooling level. Higher numbers typically indicate colder settings. Start with a medium setting and adjust as needed based on ambient temperature and food load.
2. 식품 보관
- 신선 식품 칸: Use the toughened glass shelves for general food storage. Ensure proper air circulation by not overcrowding shelves.
- 야채 접시: The jumbo vegetable tray is designed to maintain optimal humidity for fruits and vegetables, keeping them fresh longer.
- 냉동실: For frozen foods and ice making. Do not store hot foods directly in the freezer.
- 도어 선반: Ideal for bottles, jars, and smaller items. The 225 L aqua space provides ample storage for large bottles.
3. Door Usage
Ensure the door is closed completely after each use to maintain internal temperature and energy efficiency. Avoid frequent or prolonged door openings.
유지
1. 청소
- 내부: 순한 세제와 따뜻한 물을 섞어 정기적으로 청소하십시오. 깨끗한 물로 헹구고 완전히 말리십시오. 청소가 더 쉬워지도록 선반과 서랍을 분리하십시오.
- 외부: 부드러운 천으로 닦아주세요amp 천으로 닦아주세요. 잘 지워지지 않는 얼룩에는 부드럽고 연마성이 없는 세제를 사용하세요.
- 도어 개스킷: Clean the door gasket regularly to ensure a tight seal. A dirty gasket can lead to poor sealing and increased energy consumption.
- Condenser Coils (Rear): Periodically vacuum or brush the condenser coils at the back of the refrigerator to remove dust and debris. This improves efficiency.
2. Defrosting (Direct-Cool)
As a direct-cool refrigerator, frost will accumulate in the freezer compartment. When the frost layer reaches approximately 5 mm (0.2 inches) thick, manual defrosting is required.
- 전원 콘센트에서 냉장고의 플러그를 뽑습니다.
- 모든 음식물을 꺼내 아이스박스나 다른 냉장고에 보관하세요.
- Leave the freezer door open to allow the frost to melt naturally. You can place towels at the bottom to absorb water. Do not use sharp objects or heating devices to speed up defrosting, as this can damage the appliance.
- 서리가 완전히 녹으면 내부를 깨끗이 청소하고 완전히 말리십시오.
- Plug the refrigerator back in and allow it to cool down before returning food items.
문제 해결
서비스에 문의하기 전에 다음과 같은 일반적인 문제를 확인하세요.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 냉장고가 식지 않아요 | 플러그가 꽂혀 있지 않음; 전원이 꺼짐tage; temperature control set too warm; door left open; excessive frost. | Check power connection; verify power supply; adjust temperature control; ensure door is closed; defrost if necessary. |
| 과도한 소음 | 냉장고 수평이 맞지 않음; 물체가 냉장고에 부딪혀 진동함; 압축기 정상 작동. | Adjust leveling feet; move objects away; some operational sounds are normal. |
| 바닥에 물이 고여 있음 (누수) | Drain pan overflowing during defrost; drain tube clogged. | Ensure drain pan is correctly positioned; clear any blockages in the drain tube. |
| 도어가 제대로 닫히지 않음 | Door gasket dirty or damaged; refrigerator not level; food items obstructing closure. | Clean or replace gasket; level the refrigerator; rearrange food items. |
If the problem persists after performing these checks, please contact authorized service personnel.
명세서
| 특징 | 세부 사항 |
|---|---|
| 상표 | 고드레지 |
| 모델 번호 | RD Edge Pro 190 PDS 5.1 |
| 용량 | 190리터 |
| 구성 | 싱글 도어 |
| 제상 시스템 유형 | Direct-cool |
| 에너지 평가 | 별 5개 (BEE 별점 평가) |
| 권tage | 260 볼트 |
| 선반 유형 | 강화 유리 |
| 냉각제 | R-600A |
| 설치 유형 | 독립형 |
| 냉각 방식 | 압축기 |
| 제조업체 | 고드레지 |
보증 정보
Your Godrej RD Edge Pro 190 PDS 5.1 Refrigerator comes with a comprehensive warranty:
- 제품: 제품에는 1년 종합 보증이 제공됩니다.
- 압축기: 압축기에 대한 보증은 5년입니다.
Please retain your purchase receipt for warranty claims. The warranty covers manufacturing defects under normal use. For detailed terms and conditions, refer to the warranty card provided with your appliance or contact Godrej customer service.
고객 지원
For any queries, service requests, or technical assistance, please contact Godrej customer support. Refer to the contact details provided in your product documentation or visit the official Godrej web최신 정보를 제공하는 사이트입니다.
When contacting support, please have your model number (RD Edge Pro 190 PDS 5.1) and serial number ready.
